Intake Manifold: Assembly
- Install fuel pipe assembly and pressure regulator, etc. to intake manifold.

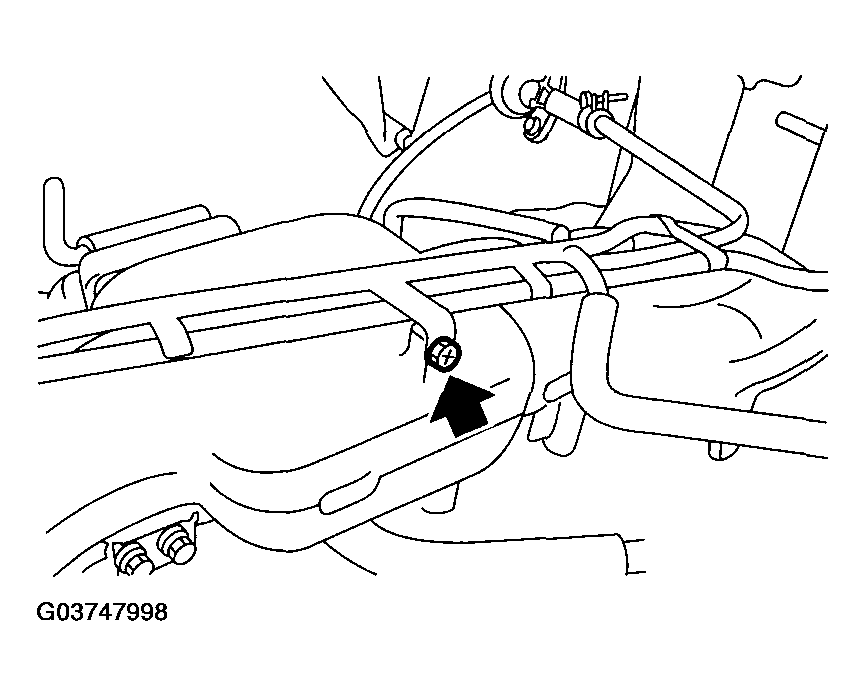

- Tighten bolt which installs fuel pipes on intake manifold.
Tightening torque:
4.9 N.m (0.5 kgf-m, 3.6 ft-lb)

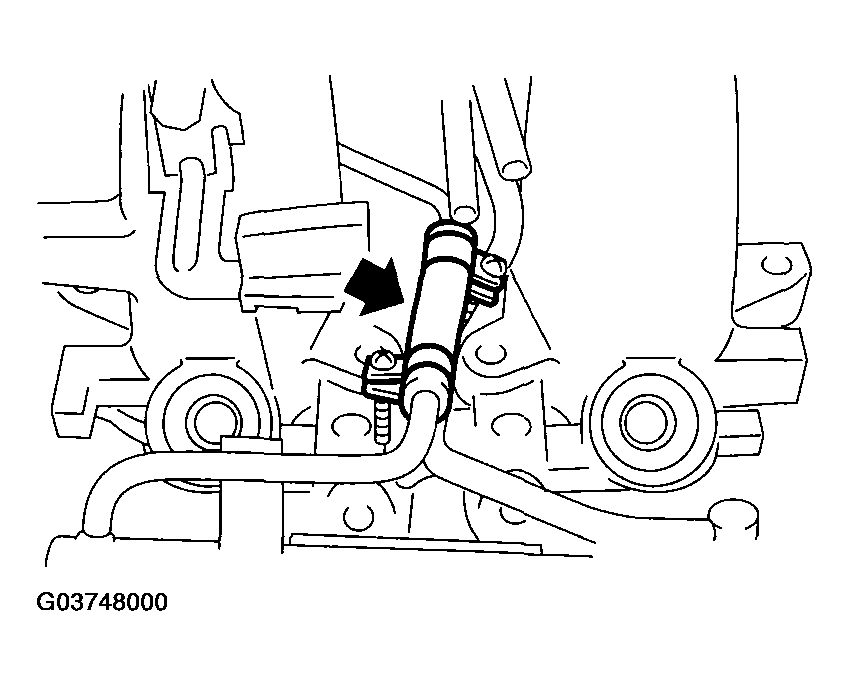

- Connect right side fuel hose to injector pipe, and tighten clamp screw.
- Install fuel injector pipe.

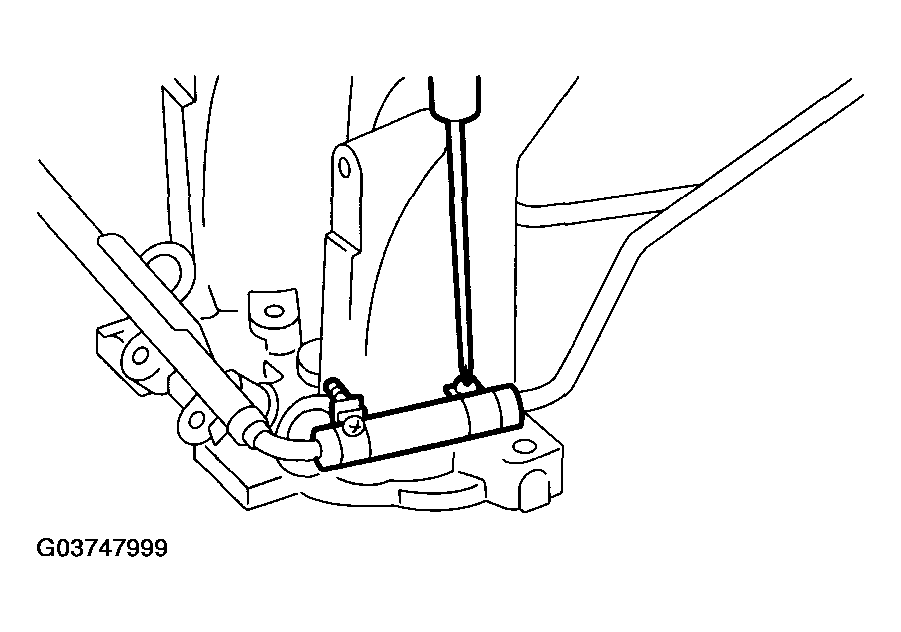

- Connect left side fuel hose to injector pipe, and tighten clamp screw.

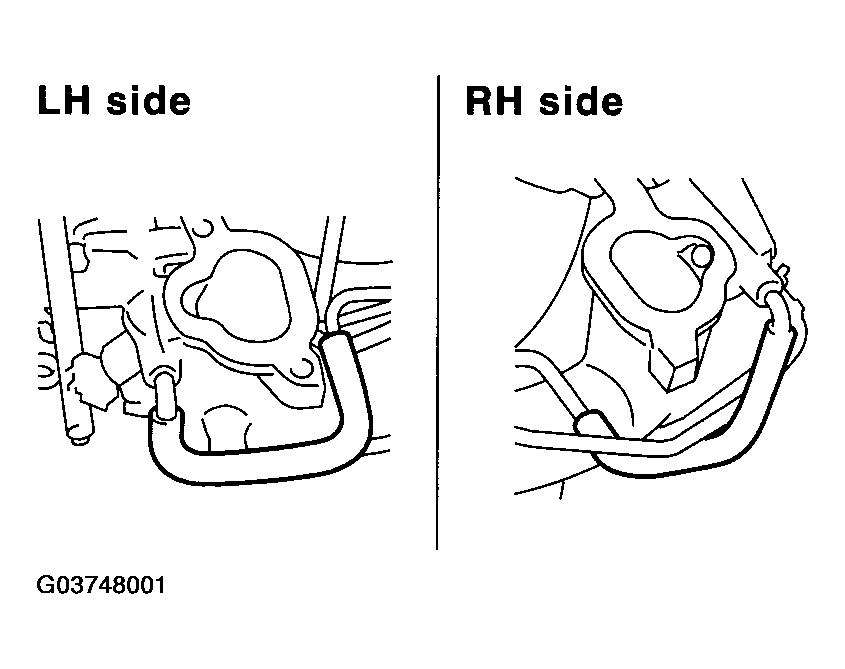

- Connect air assist hoses.
- Install fuel injectors.NOTE: Always use new O-rings.
