2005 Subaru Baja Base, AutomaticFACTORY OEM SERVICE PROCEDURE
Releasing Of Fuel Pressure
WARNING:
- Place "NO FIRE" signs near the working area.
- Be careful not to spill fuel on the floor.

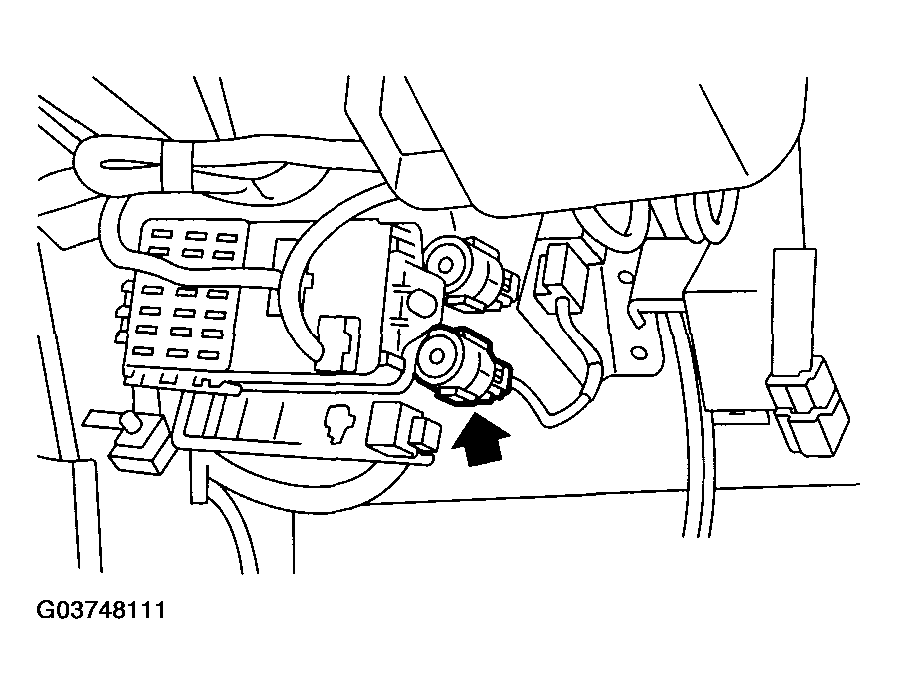

- Disconnect connector from fuel pump relay.
- Start the engine and run it until it stalls.
- After the engine stalls, crank it for five more seconds.
- Turn ignition switch to OFF.
