Draining Fuel
- Place "NO FIRE" signs near the working area.
- Be careful not to spill fuel on the floor.
- Set vehicle on the lift.

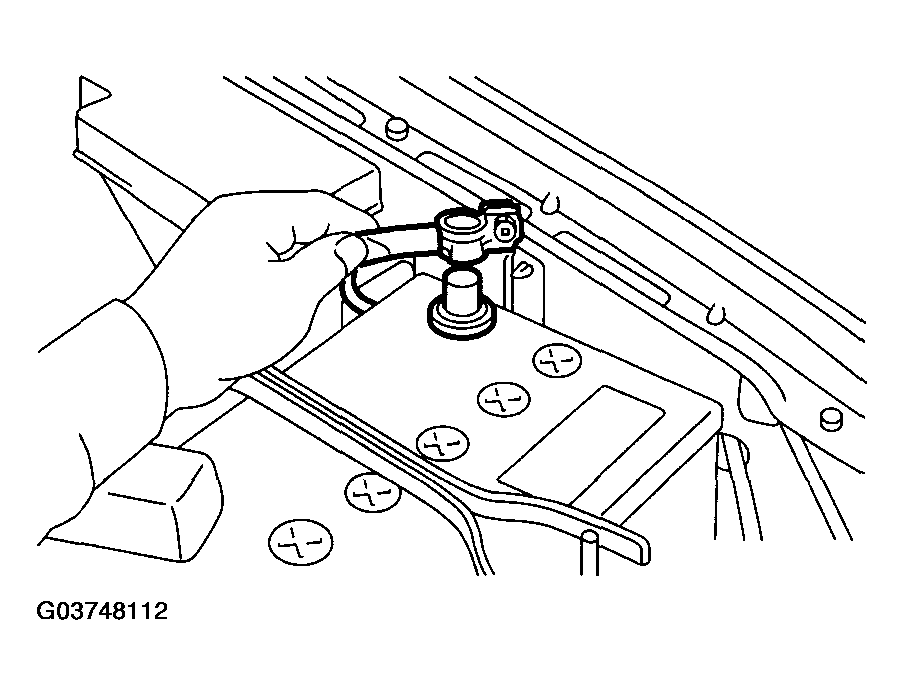

- Disconnect battery ground cable.
- Lift-up the vehicle.

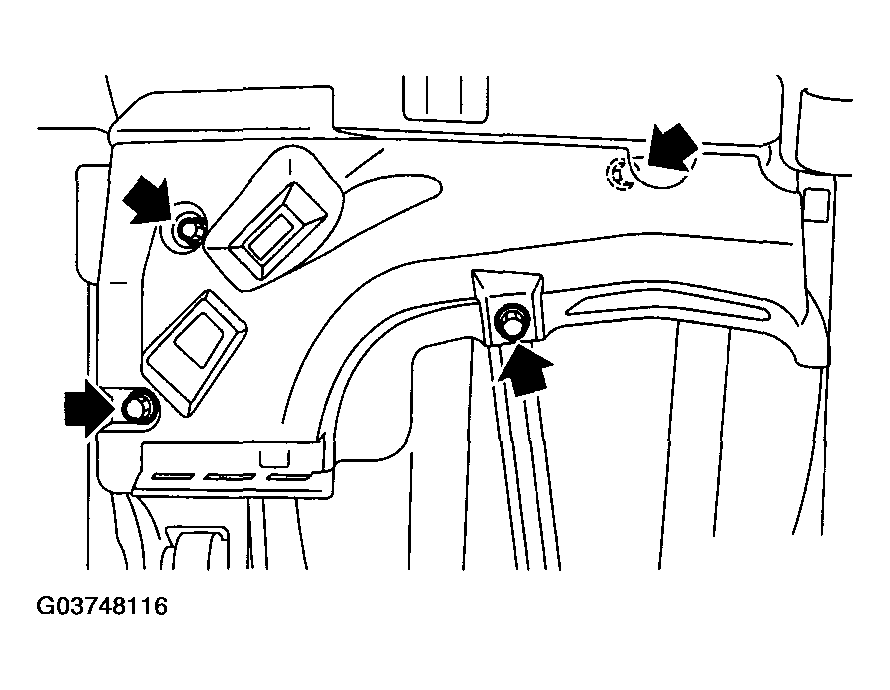

- Remove front right side fuel tank cover.
- Drain fuel from fuel tank.

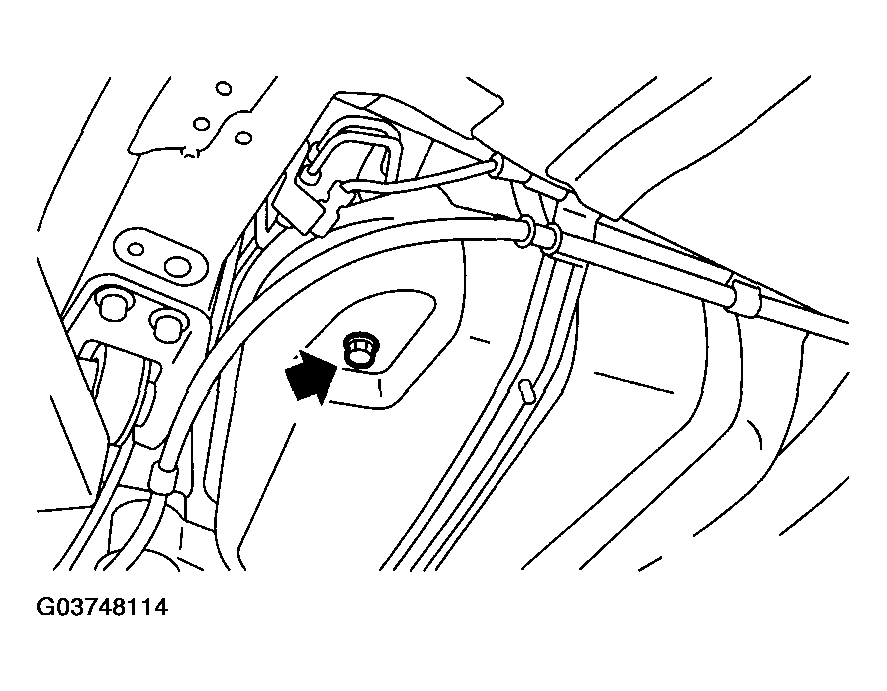

Set a container under the vehicle and remove drain plug from fuel tank.

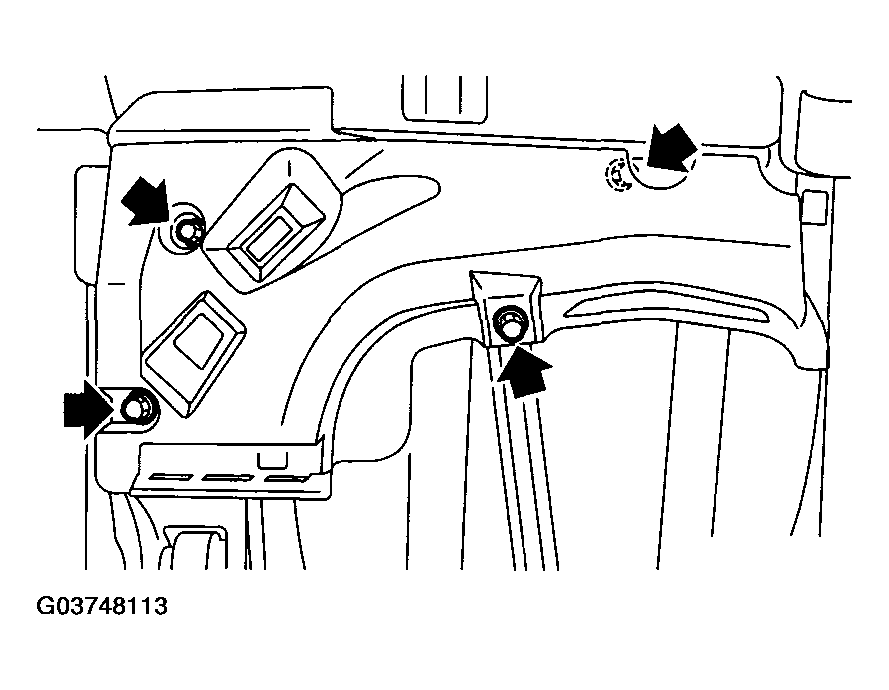

- Tighten fuel drain plug and install front right side tank cover.
Tightening torque:
26 N.m (2.65 kgf-m, 19.2 ft-lb)
Tightening torque:
18 N.m (1.8 kgf-m, 13.0 ft-lb)
- Lower the vehicle.

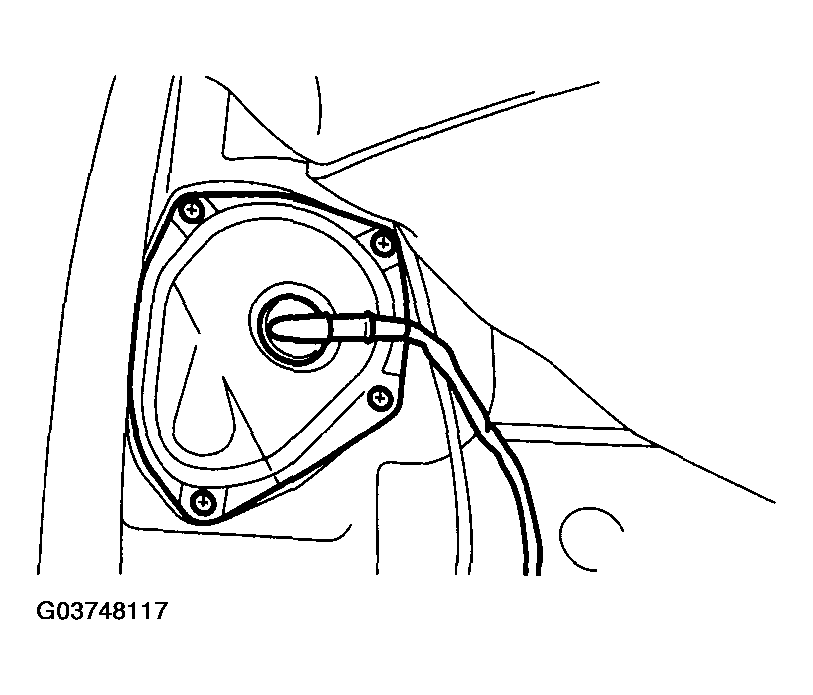

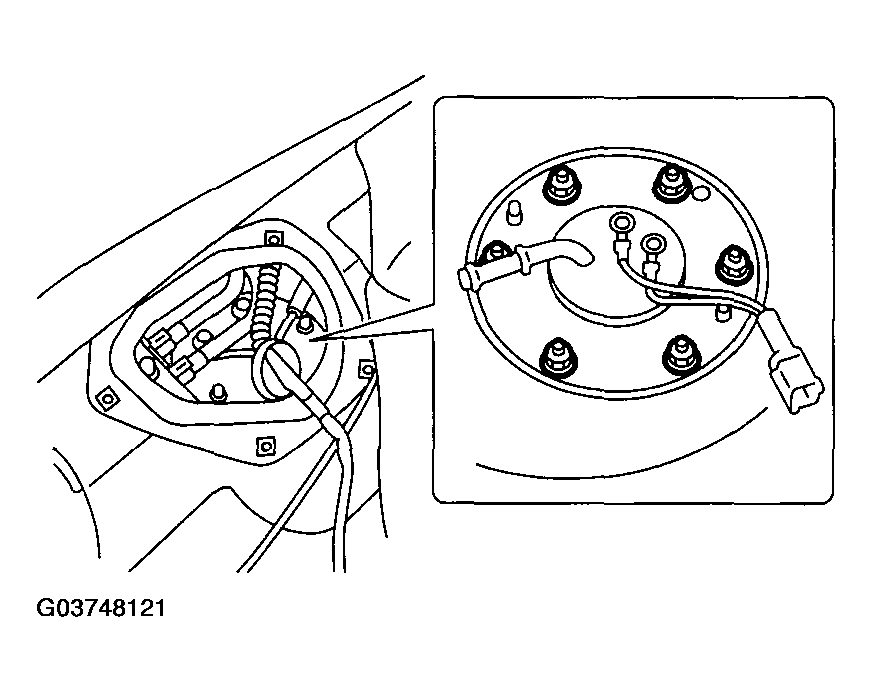

- Remove sub service hole cover.

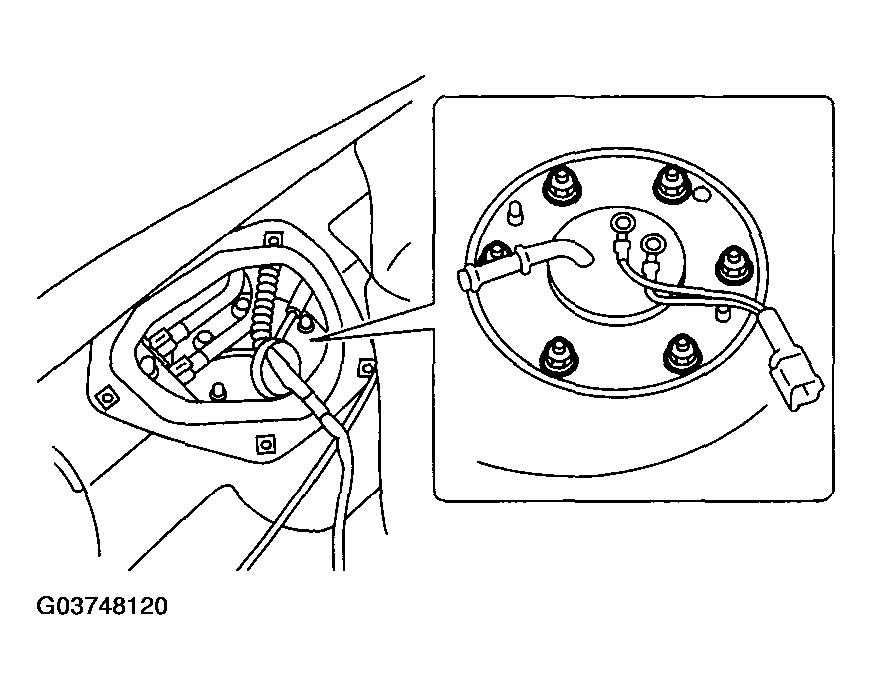

- Disconnect connector from fuel sub level sensor.

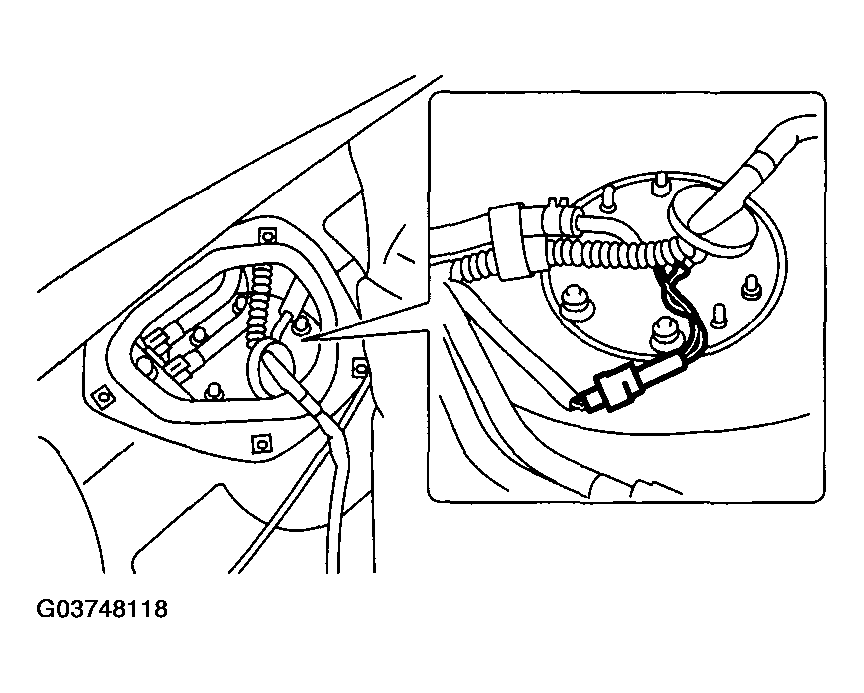

- Disconnect fuel jet pump hose.
- Remove fuel sub level sensor.

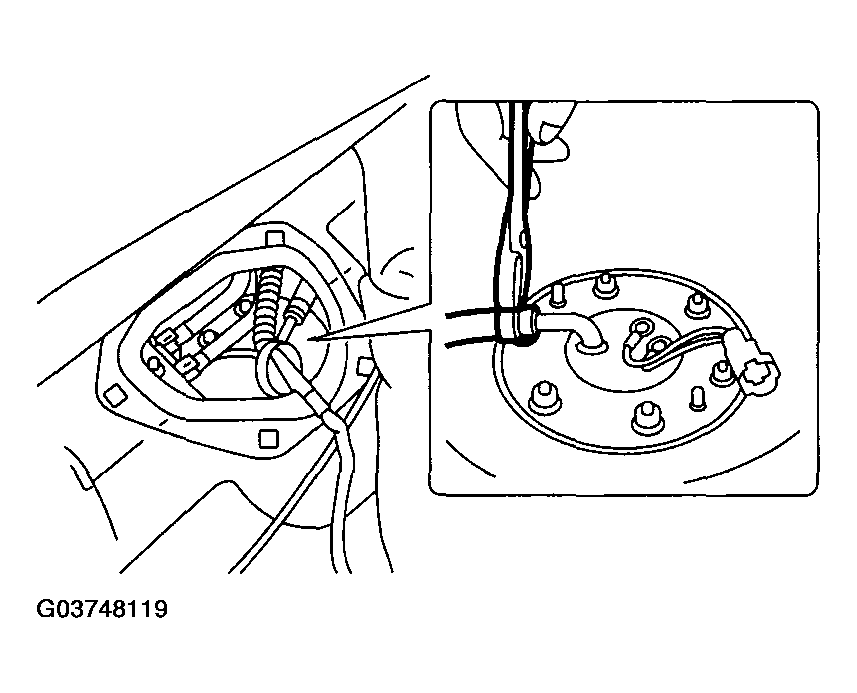

- Drain fuel from fuel tank by using hand pump.WARNING: Do not use a motor pump when draining fuel.
- After draining fuel, reinstall fuel sub level sensor.
Tightening torque:
T: 4.4 N.m (0.45 kgf-m, 3.3 ft-lb)
