2005 Subaru Baja Base, AutomaticFACTORY OEM SERVICE PROCEDURE

LH Side

  1. Release fuel pressure. < Ref. to , RELEASING OF FUEL PRESSURE , OPERATION, Fuel. >
  2. Open fuel flap lid, and remove fuel filler cap.
  3. Disconnect battery ground cable.

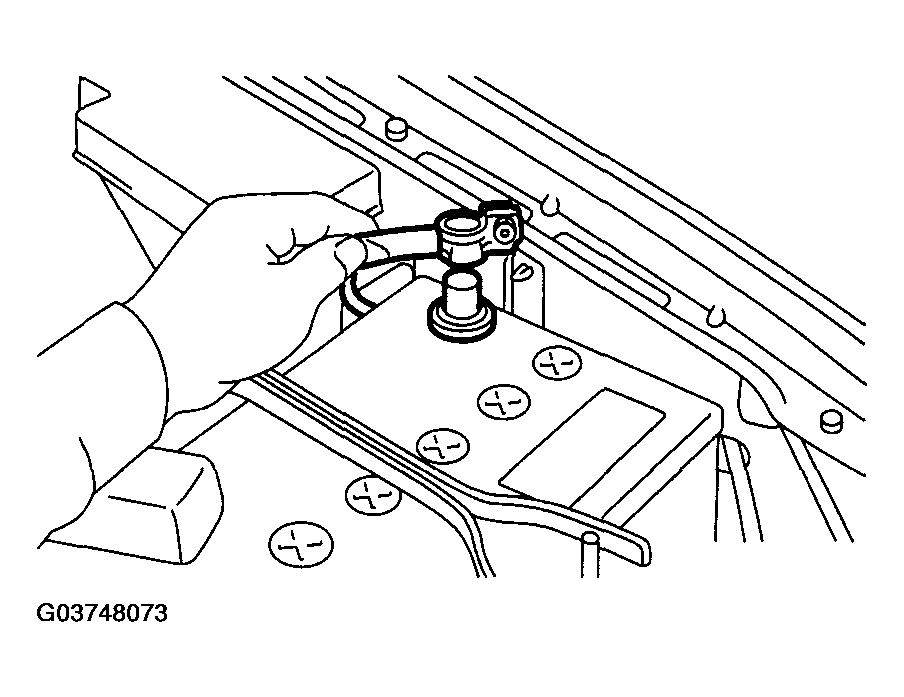

    Fig 1: Disconnecting Battery Ground Cable
    G03748073Courtesy of SUBARU OF AMERICA, INC.
  4. Remove two bolts which install washer tank on body.

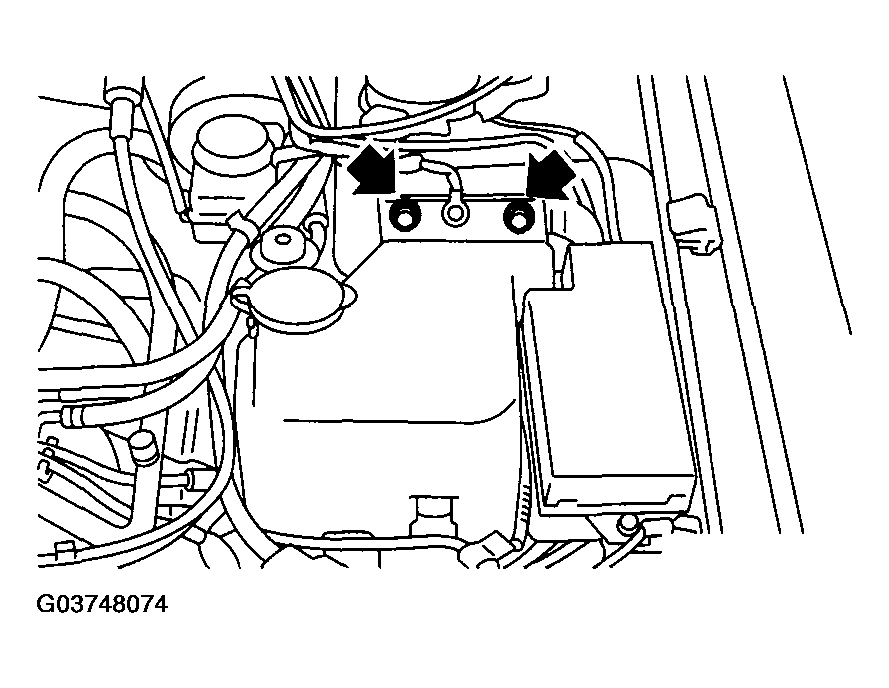

    Fig 2: Removing Washer Tank Holding Bolts
    G03748074Courtesy of SUBARU OF AMERICA, INC.
  5. Disconnect connector from front window washer motor.
  6. Disconnect connector from rear gate glass washer motor.

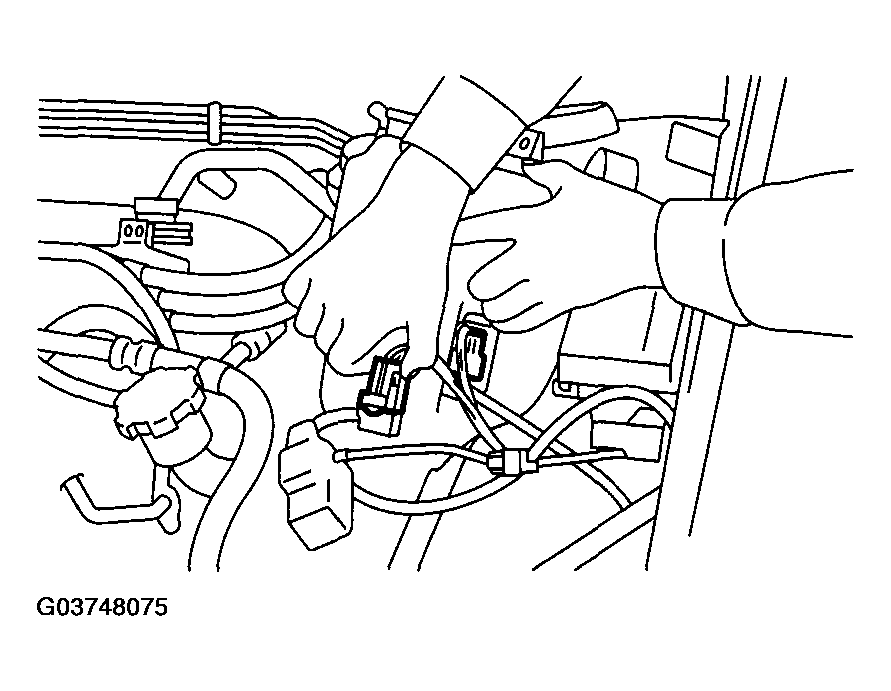

    Fig 3: Disconnecting Connector From Rear Gate Glass Washer Motor
    G03748075Courtesy of SUBARU OF AMERICA, INC.
  7. Disconnect rear window glass washer hose from washer motor, then plug connection with a suitable cap.
  8. Move washer tank, and secure it away from working area.

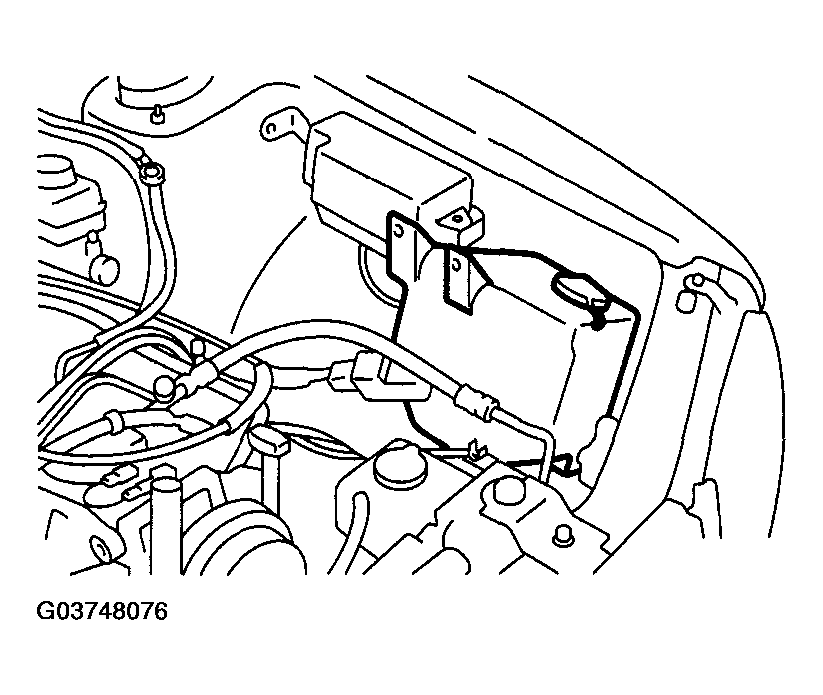

    Fig 4: Removing Washer Tank
    G03748076Courtesy of SUBARU OF AMERICA, INC.
  9. Remove spark plug cords from spark plugs (#2 and #4 cylinders).

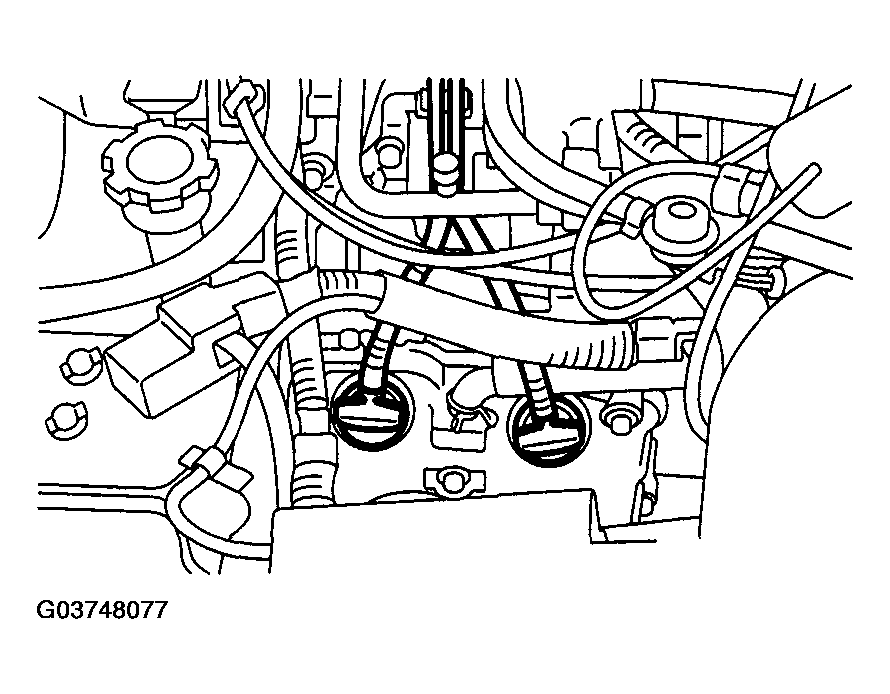

    Fig 5: Removing Spark Plug Cords From Spark Plugs (No. 2 And 4 Cylinders)
    G03748077Courtesy of SUBARU OF AMERICA, INC.
  10. Remove fuel pipe protector LH.

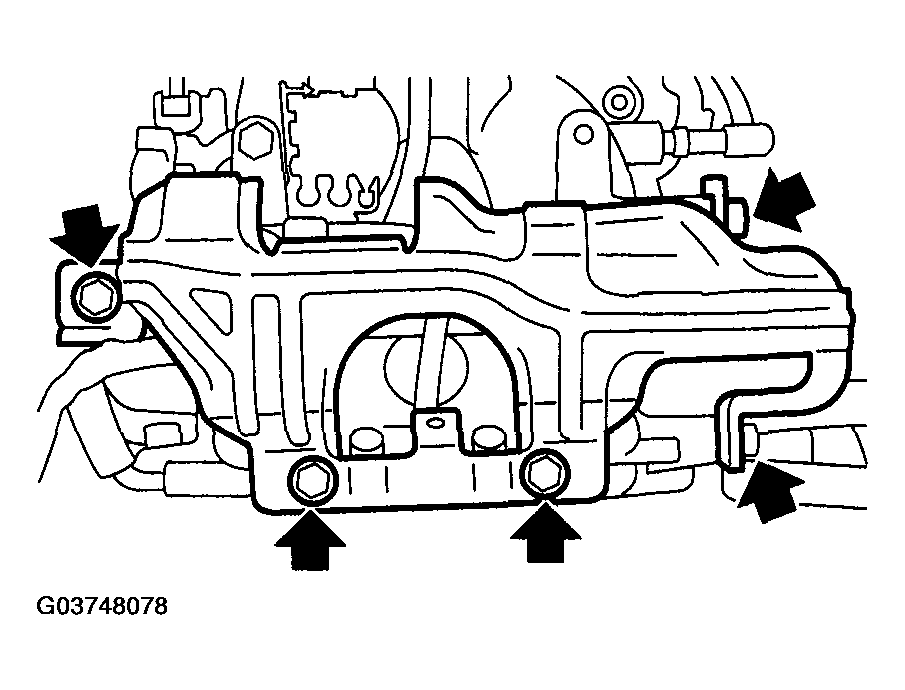

    Fig 6: Removing Fuel Pipe Protector LH
    G03748078Courtesy of SUBARU OF AMERICA, INC.
  11. Disconnect connector from fuel injector.

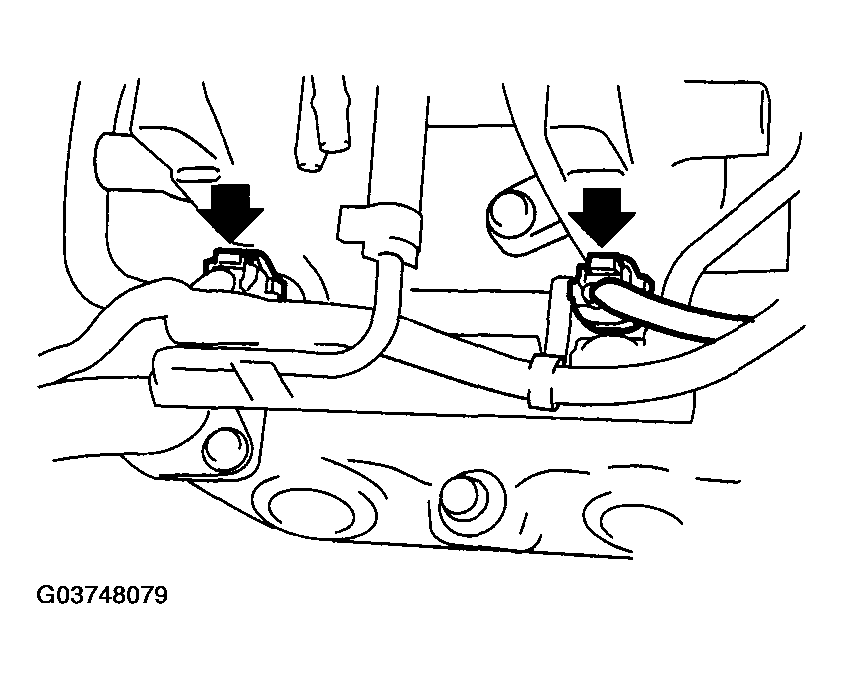

    Fig 7: Disconnecting Connector From Fuel Injector
    G03748079Courtesy of SUBARU OF AMERICA, INC.
  12. Remove bolt which holds injector pipe to intake manifold.

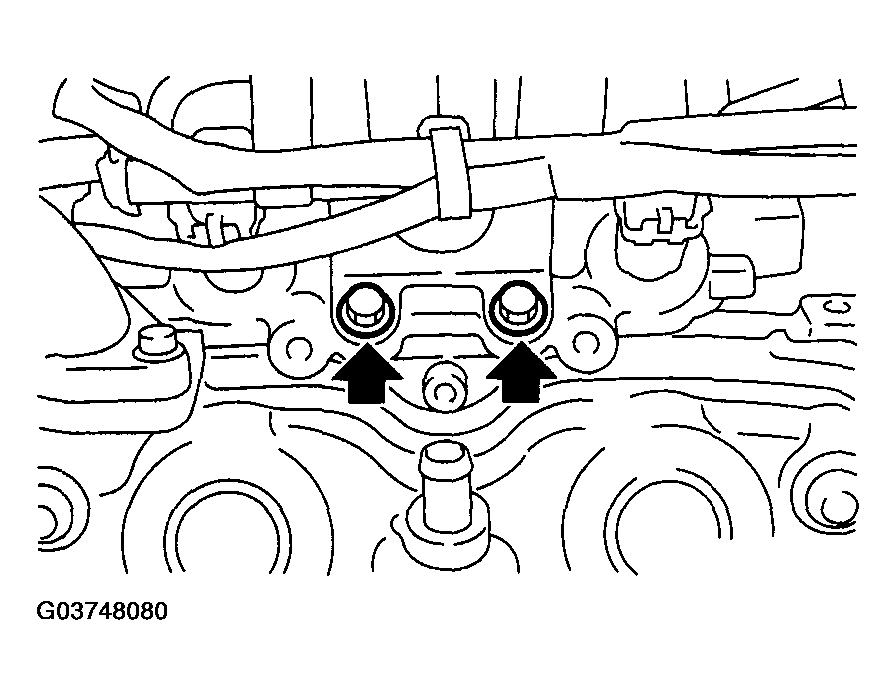

    Fig 8: Removing Bolt Holding Injector Pipe To Intake Manifold
    G03748080Courtesy of SUBARU OF AMERICA, INC.
  13. Remove bolt which holds fuel pipe on the left side intake manifold.

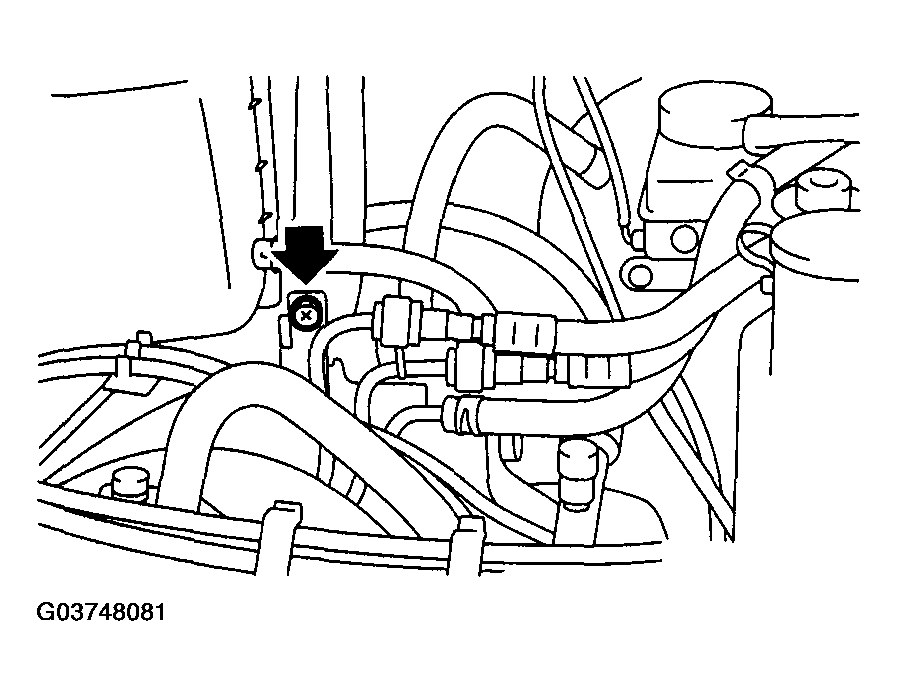

    Fig 9: Removing Bolt Holding Fuel Pipe On Left Side Intake Manifold
    G03748081Courtesy of SUBARU OF AMERICA, INC.
  14. Remove fuel injector from intake manifold.
    1. Remove fuel injector securing clip.

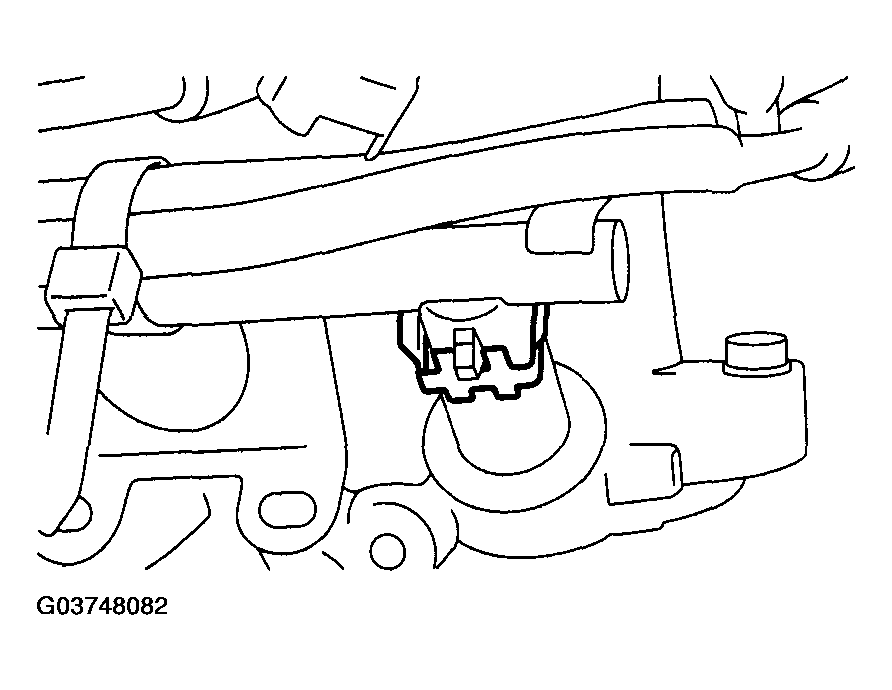

      Fig 10: Removing Fuel Injector Securing Clip
      G03748082Courtesy of SUBARU OF AMERICA, INC.
    2. Remove fuel injector while lifting up fuel injector pipe.

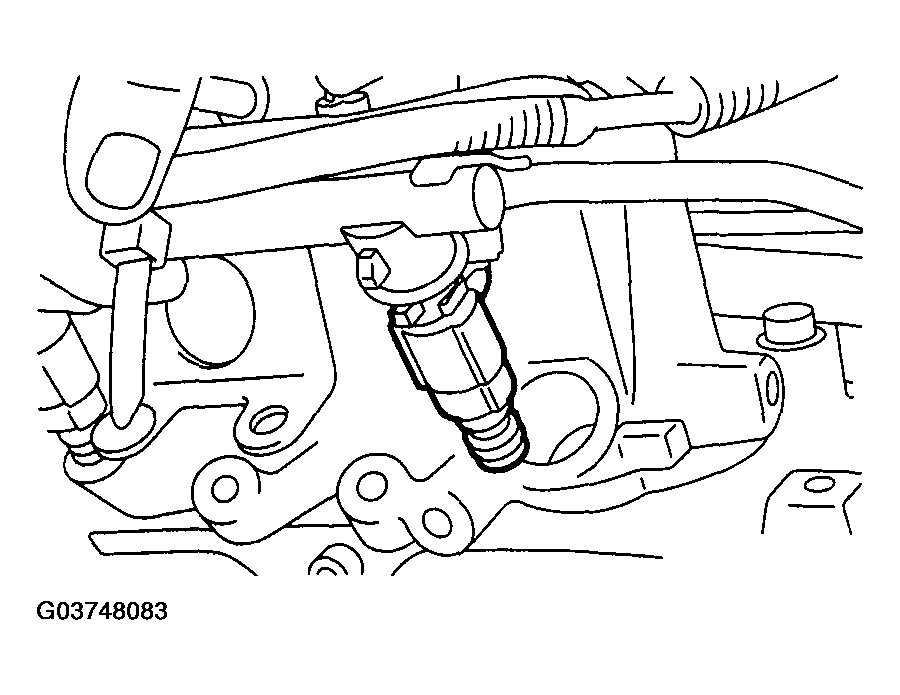

      Fig 11: Removing Fuel Injector
      G03748083Courtesy of SUBARU OF AMERICA, INC.
