2005 Subaru Baja Base, AutomaticFACTORY OEM SERVICE PROCEDURE
Front Oxygen (A/F) Sensor: Removal

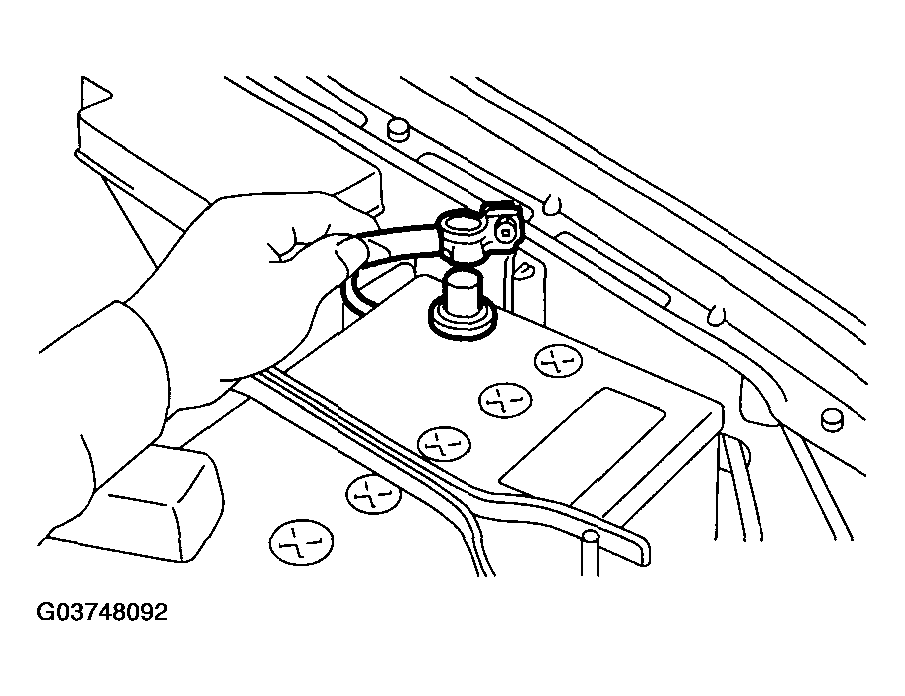

- Disconnect ground cable from battery.

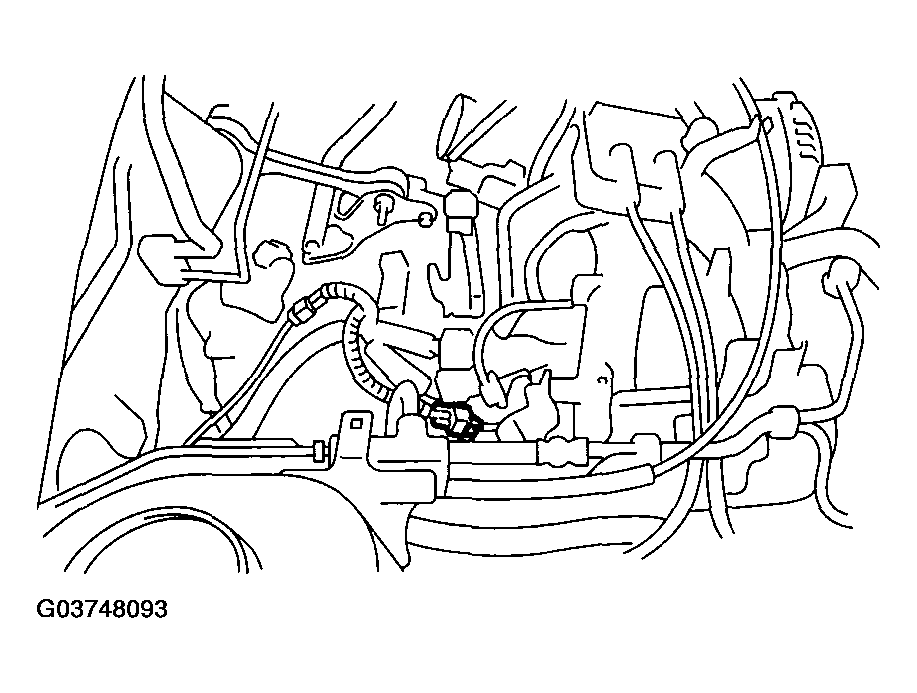

- Disconnect connectors from engine hanger and front oxygen (A/F) sensor.
- Lift-up the vehicle.
- Apply SUBARU CRC or its equivalent to threaded portion of front oxygen (A/F) sensor, and leave it for one minute or more.
SUBARU CRC (Part No. 004301003)
- Remove front oxygen (A/F) sensor.CAUTION: When removing the oxygen (A/F) sensor, wait until exhaust pipe cools, otherwise it will damage exhaust pipe.
