Remote Control Mirror Switch: Inspection

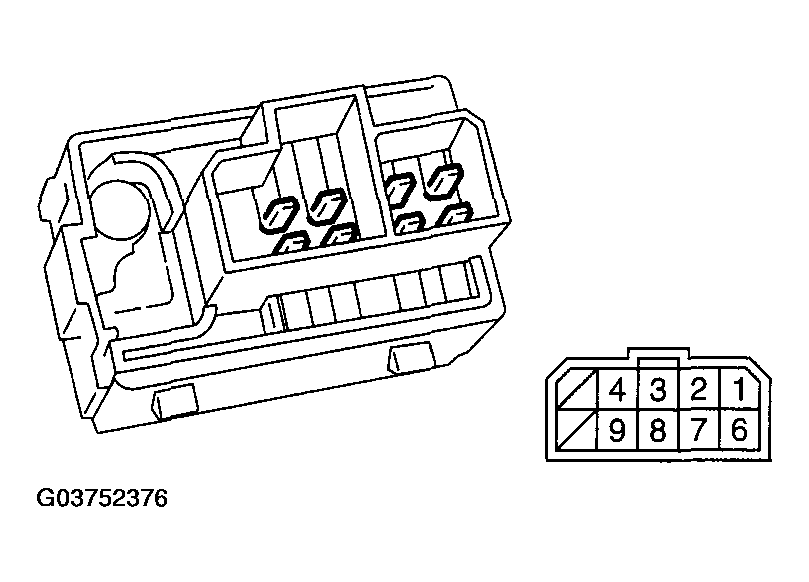

Move remote control mirror switch to each position and check continuity between terminals.
Change over switch left position:Β
| Switch position | Terminal No. | Standard |
|---|---|---|
| OFF | - | More than 1 MΞ© |
| UP | 7 and 4, 2 and 1 | Less than 1 Ξ© |
| DOWN | 7 and 2, 4 and 1 | Less than 1 Ξ© |
| LEFT | 9 and 4, 2 and 1 | Less than 1 Ξ© |
| RIGHT | 9 and 2, 4 and 1 | Less than 1 Ξ© |
Change over switch right position:Β
| Switch position | Terminal No. | Standard |
|---|---|---|
| OFF | - | More than 1 MΞ© |
| UP | 6 and 4, 2 and 1 | Less than 1 Ξ© |
| DOWN | 6 and 2, 4 and 1 | Less than 1 Ξ© |
| LEFT | 8 and 4, 2 and 1 | Less than 1 Ξ© |
| RIGHT | 8 and 2, 4 and 1 | Less than 1 Ξ© |
If defective, replace the switch.
