2005 Subaru Baja Base, AutomaticFACTORY OEM SERVICE PROCEDURE
Accelerator Pedal: Adjustment
- Check pedal stroke and free play by operating accelerator pedal by hand.
- If it is not within specified value, adjust it by turning accelerator cable lock nut.

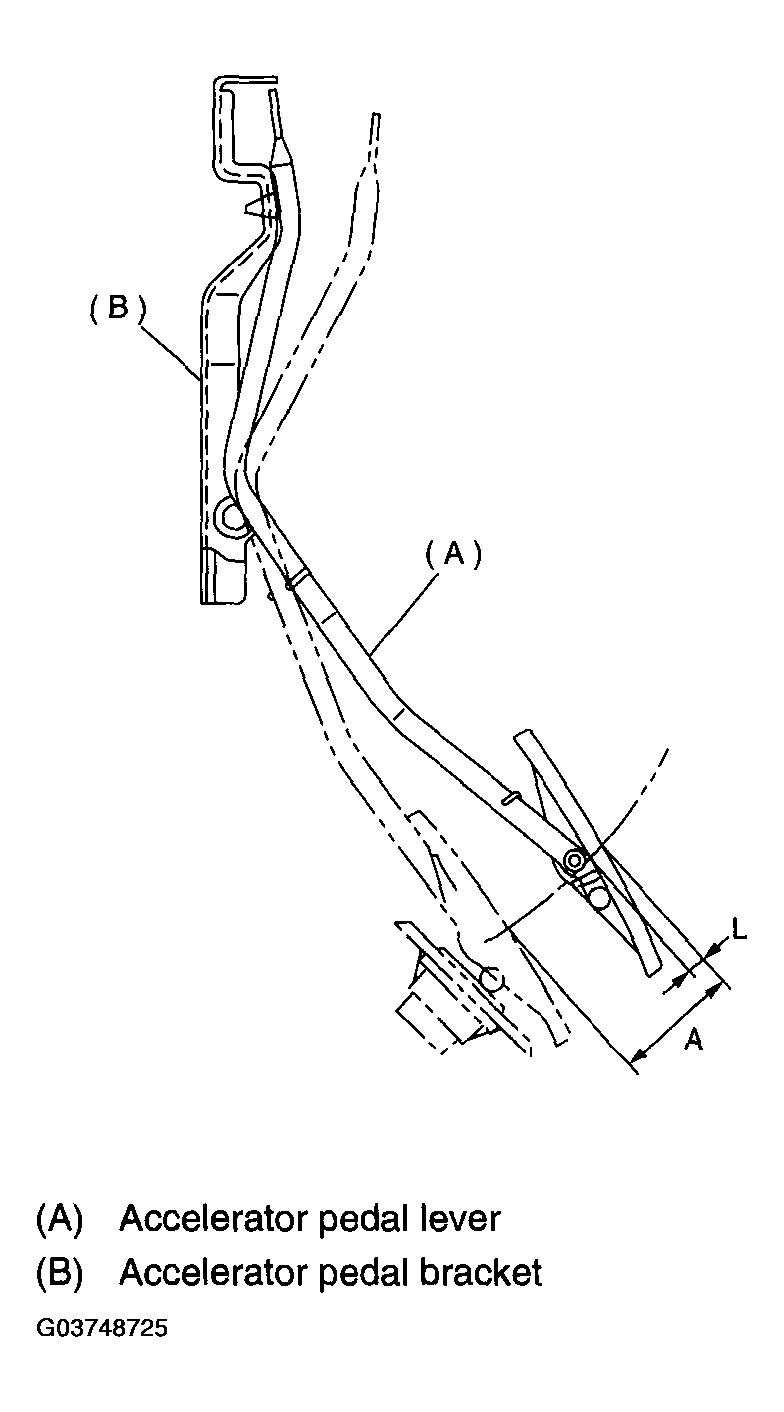

Free play at pedal pad: L
0 - 4 mm (0 - 0.16 in)
Stroke at pedal pad: A
50 - 55 mm (1.97 - 2.17 in)
Accelerator cable lock nut tightening torque:
12 N.m (1.2 kgf-m, 9 ft-lb)
