2004 Subaru Outback L.L. Bean EditionFACTORY OEM SERVICE PROCEDURE

RH Side

Release fuel pressure.
Refer to FUEL .
Open fuel flap lid, and remove fuel filler cap.
Disconnect ground cable from battery.

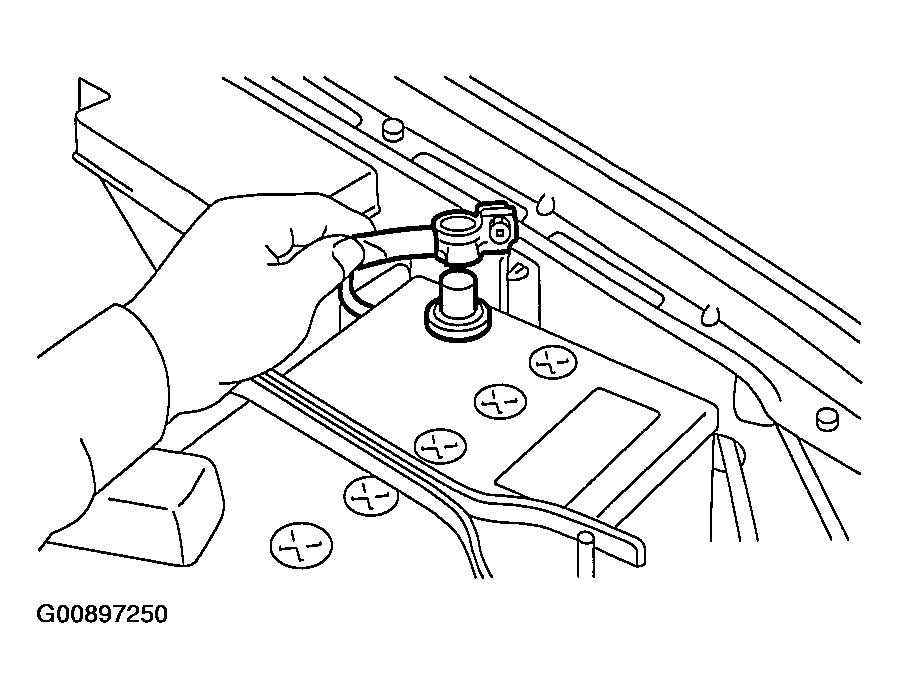

Fig 1: Disconnecting Battery Ground Cable
Courtesy of SUBARU OF AMERICA, INC.
Remove air cleaner lower case. Refer to REMOVAL , Air Cleaner.
Remove power steering pump and tank from brackets.
1. Remove V-belt.
  Refer to REMOVAL , V-belt.
2. Remove power steering oil pipe with bracket.

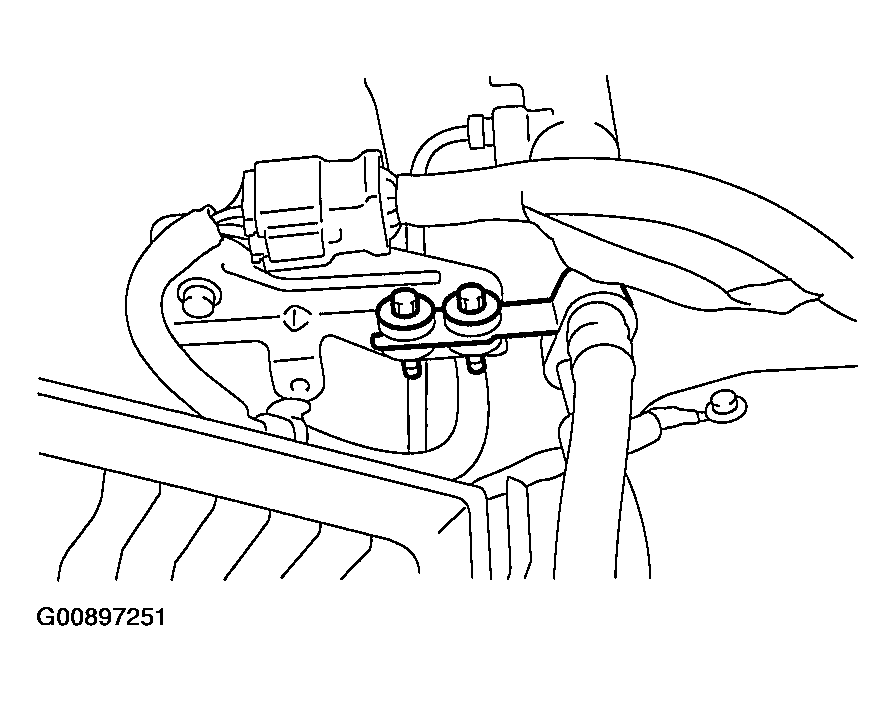

  Fig 2: Removing Power Steering Oil Pipe
  Courtesy of SUBARU OF AMERICA, INC.
3. Remove bolts which install power steering pump bracket.
  CAUTION: Do not disconnect power steering hose.
