Crankshaft Position Sensor: Removal

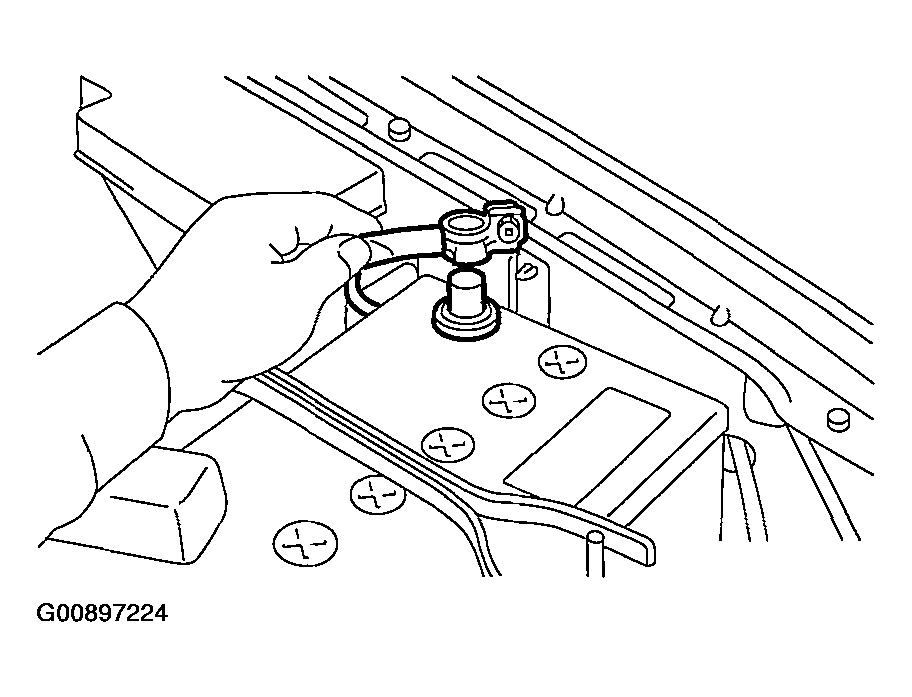

- Disconnect ground cable from battery.
- Remove air intake chamber.
Refer to REMOVAL , Air Intake Chambers.

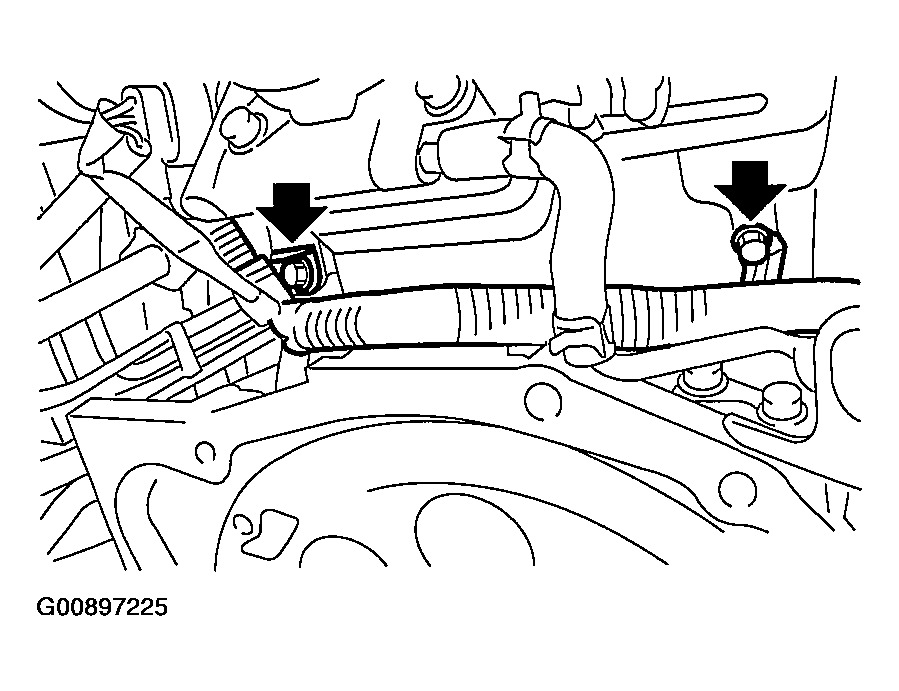

- Remove engine harness bracket from intake manifold.

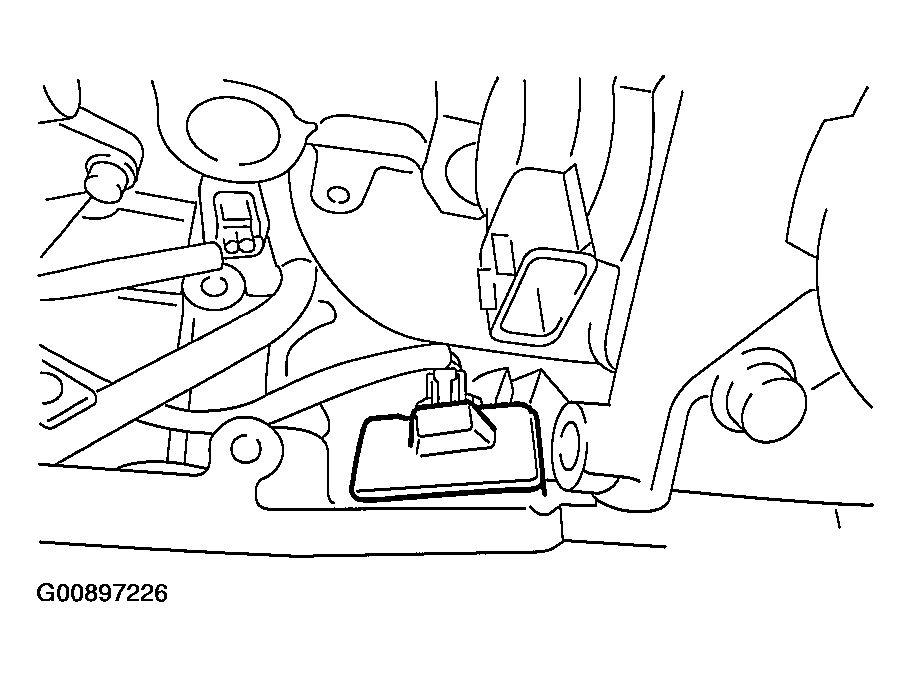

- Remove service hole cover.

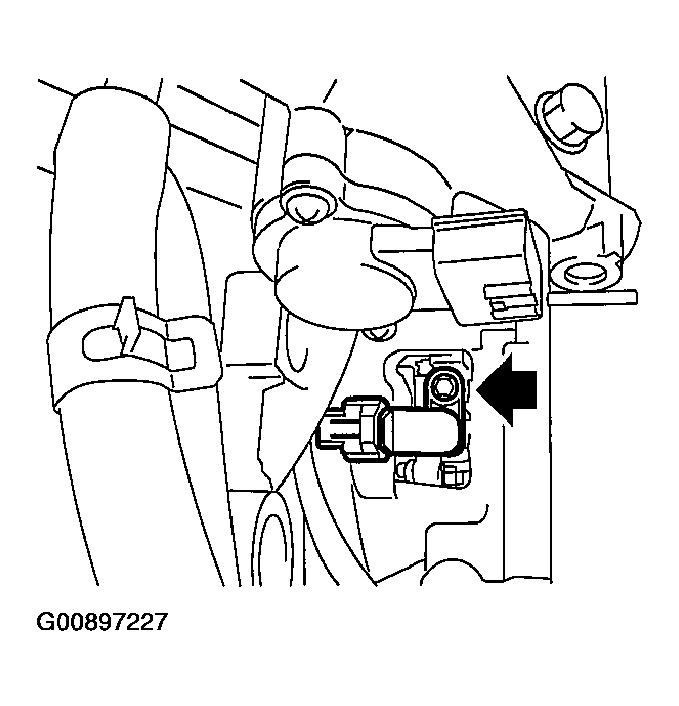

- Remove bolt which install crankshaft position sensor to cylinder block.
- Remove crankshaft position sensor, and disconnect connector from it.
