2004 Subaru Outback L.L. Bean EditionFACTORY OEM SERVICE PROCEDURE
Bench Testing: Diode
CAUTION:
Never use a mega tester (measuring use for high voltage) or any other similar measure for this test; otherwise, the diodes may be damaged.

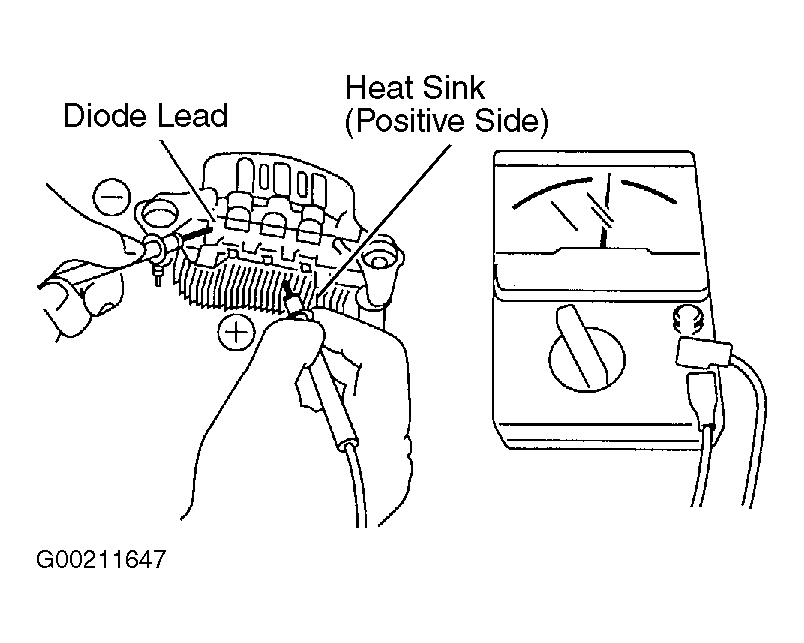

- Check for continuity between the diode lead and positive side heat sink. See Fig 1 . The positive diode is in good condition if resistance is 1 ohms or less only in the direction from the diode lead to heat sink.
- Check for continuity between the negative side heat sink and diode lead. See Fig 2 . The negative diode is in good condition if resistance is 1 ohms or less only in the direction from the heat sink to diode lead.
