Throttle Body: Removal

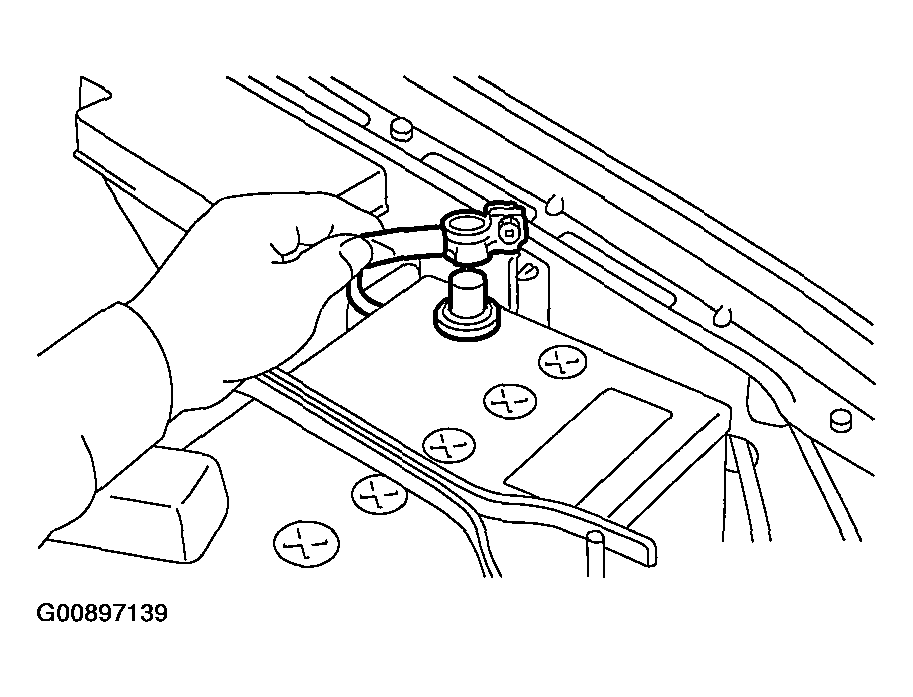

- Disconnect ground cable from battery.
- Remove air intake chamber.
Refer to REMOVAL , Air Intake Chambers.

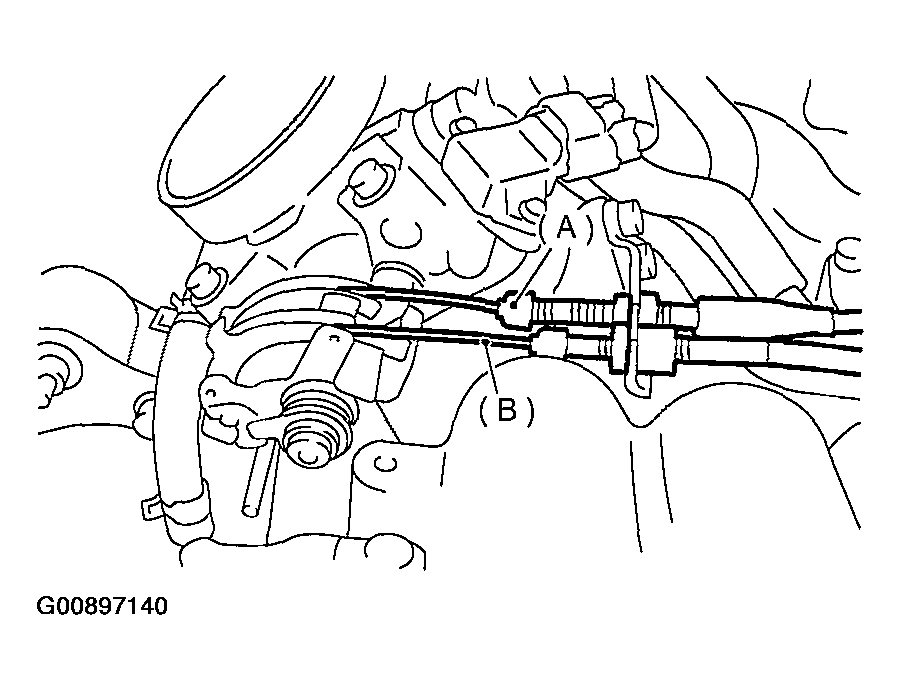

- Disconnect accelerator cable (A).
- Disconnect cruise control cable (B). (With cruise control model)

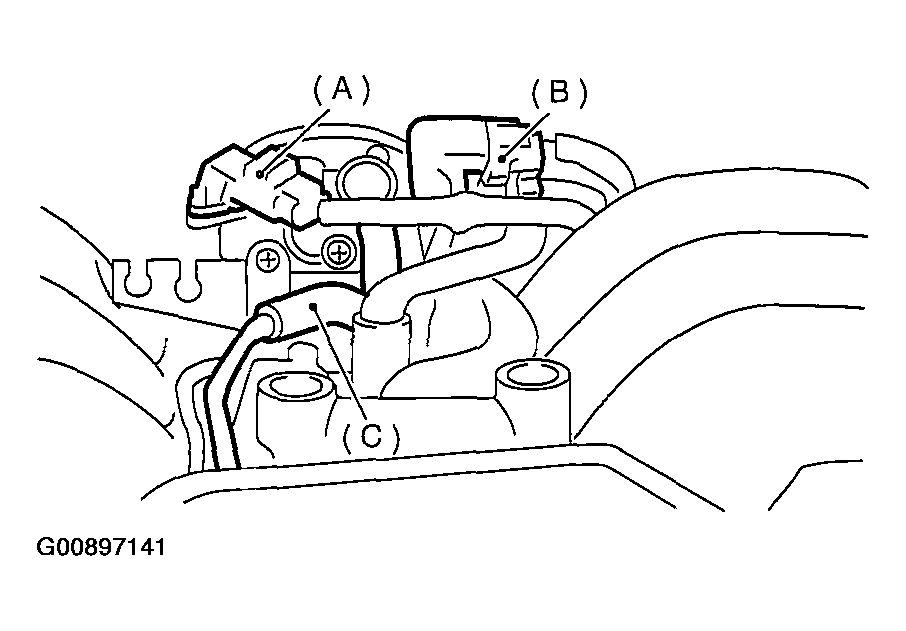

- Disconnect connectors from intake manifold pressure sensor (A) and idle air control solenoid valve (B).
- Disconnect air by-pass hose (C) from idle air control solenoid valve.

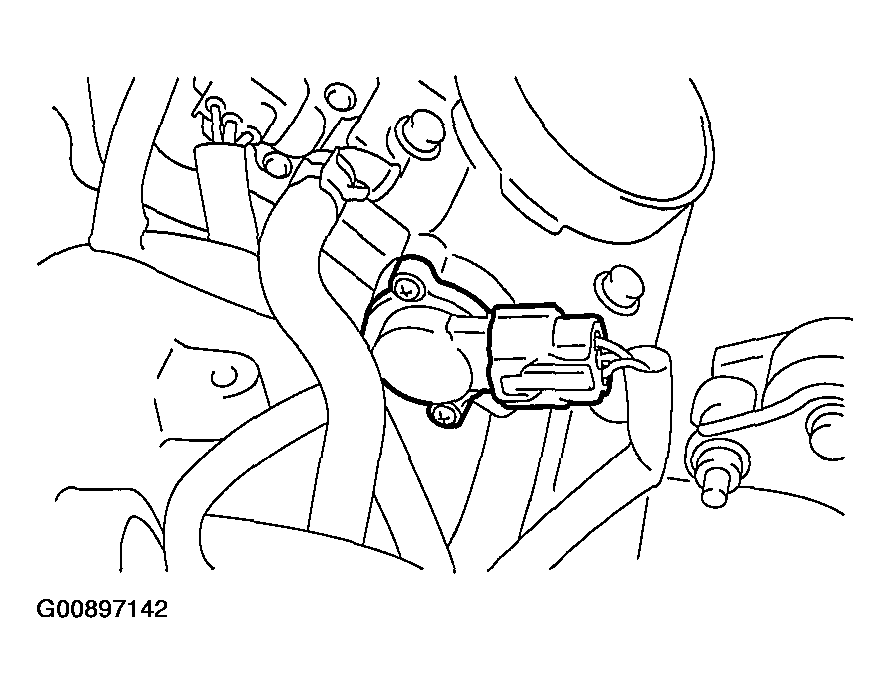

- Disconnect throttle position sensor connector.
- Disconnect engine coolant hoses from throttle body.

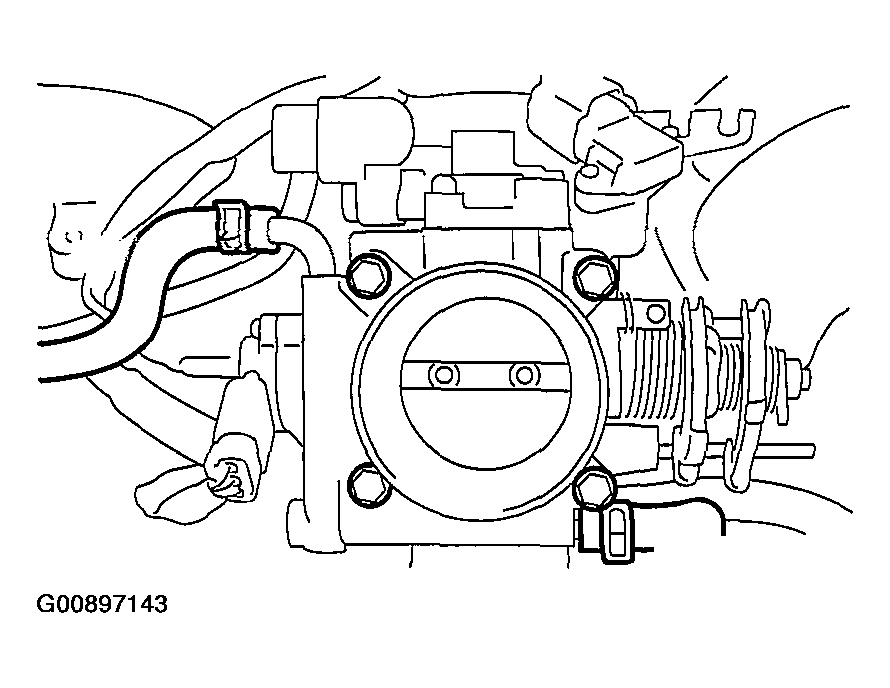

- Remove bolts which secure throttle body to intake manifold.
