2004 Subaru Outback Base, 4D SedanFACTORY OEM SERVICE PROCEDURE

Intake Manifold: Assembly

  1. Install intake induction valve vacuum hose to intake manifold.

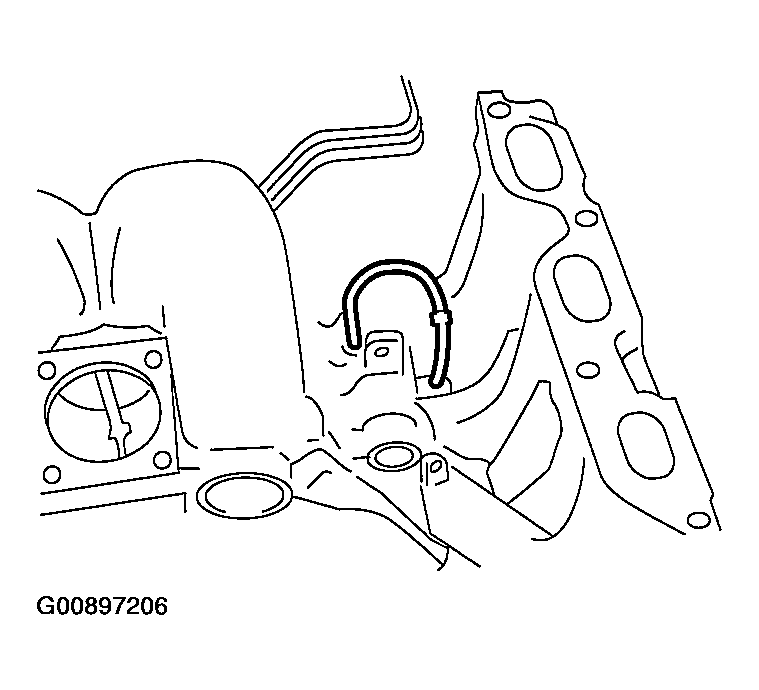

    Fig 1: Installing Intake Induction Valve Vacuum Hose
    G00897206Courtesy of SUBARU OF AMERICA, INC.
  2. Install fuel pipe and injector pipe assembly.

    Tightening torque:

    1. 5.0 N.m (0.51 kgf-m, 3.7 ft-lb)

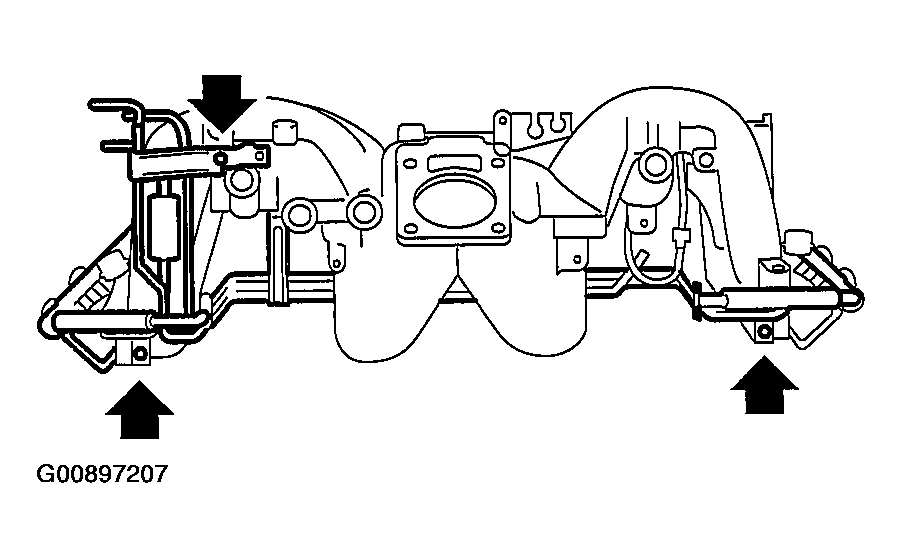

    Fig 2: Installing Fuel Pipe And Injector Pipe Assembly
    G00897207Courtesy of SUBARU OF AMERICA, INC.
  3. Connect pressure regulator vacuum hose (A) to intake manifold.

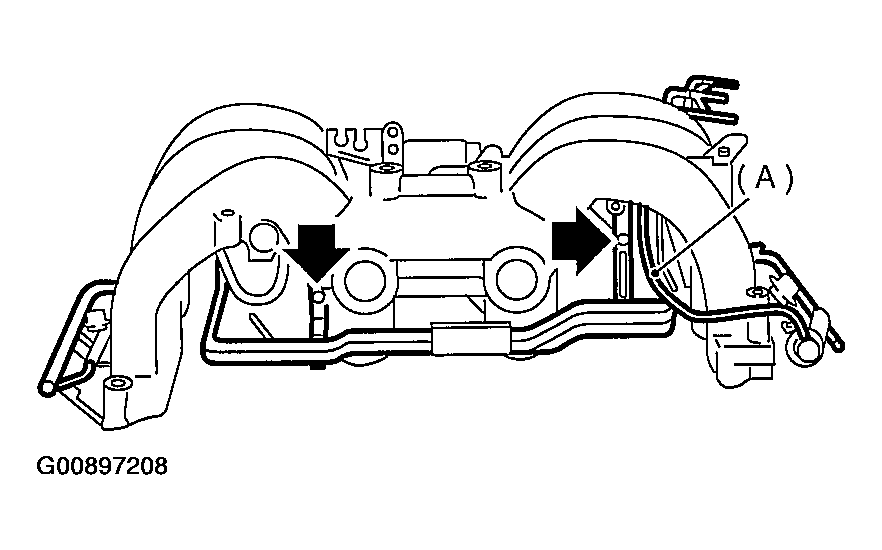

    Fig 3: Connecting Pressure Regulator Vacuum Hose
    G00897208Courtesy of SUBARU OF AMERICA, INC.
  4. Install air assist and purge pipe assembly.

    Tightening torque:

    1. 5.0 N.m (0.51 kgf-m, 3.7 ft-lb)

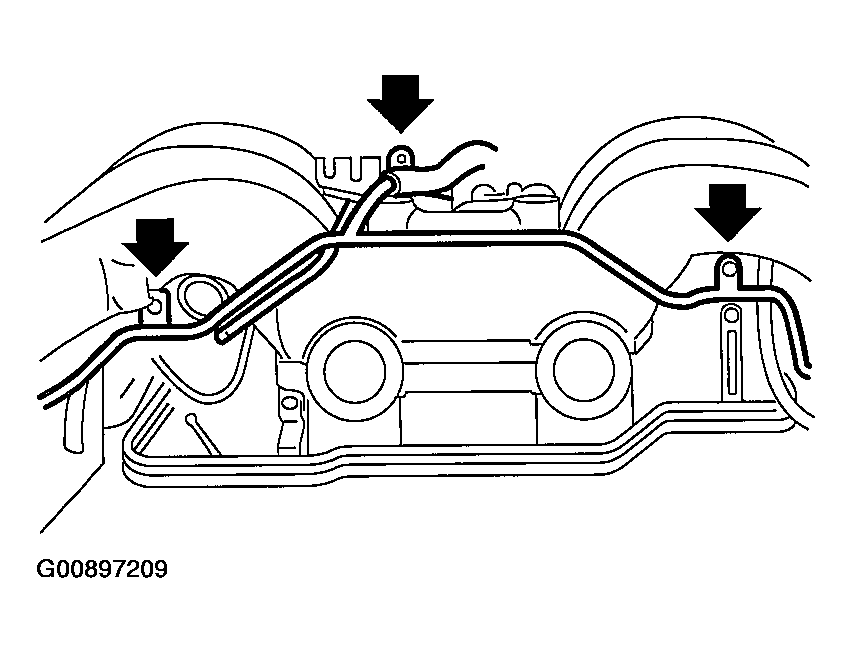

    Fig 4: Installing Air Assist And Purge Pipe Assembly
    G00897209Courtesy of SUBARU OF AMERICA, INC.
  5. Install PCV pipe to intake manifold.

    Tightening torque:

    1. 6.4 N.m (0.65 kgf-m, 4.7 ft-lb)

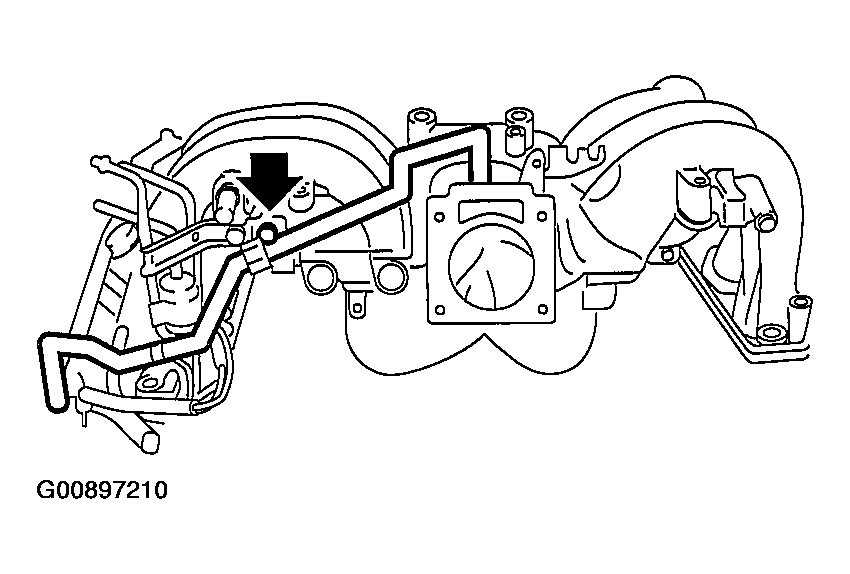

    Fig 5: Installing PCV Pipe
    G00897210Courtesy of SUBARU OF AMERICA, INC.
  6. Install engine harness assembly to intake manifold.

    Tightening torque:

    1. 5.0 N.m (0.51 kgf-m, 3.7 ft-lb)

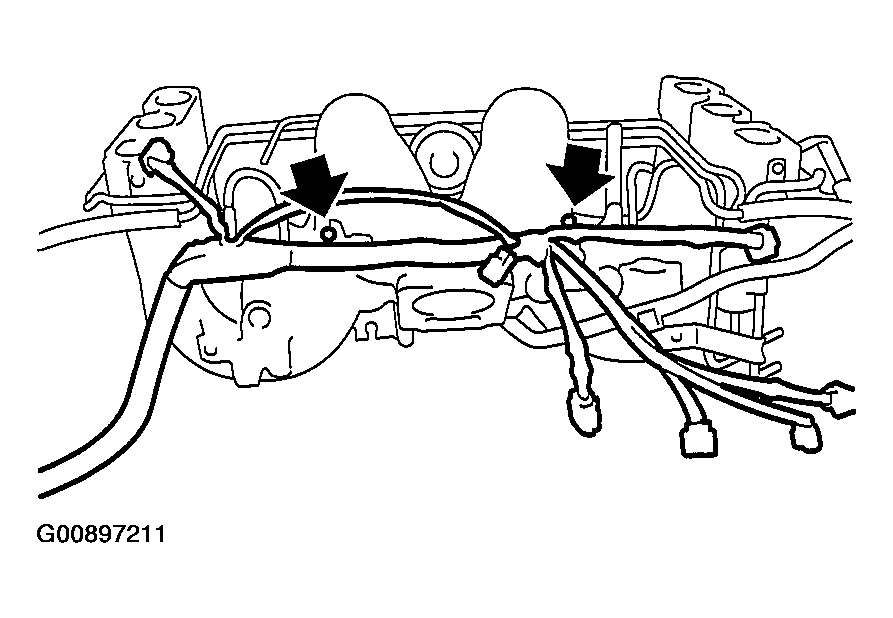

    Fig 6: Installing Engine Harness Assembly
    G00897211Courtesy of SUBARU OF AMERICA, INC.
  7. Install EGR valve.

    Tightening torque:

    1. 19 N.m (1.9 kgf-m, 14 ft-lb)
    NOTE: When removing EGR valve, use a new gasket.
  8. Connect connector to EGR valve.

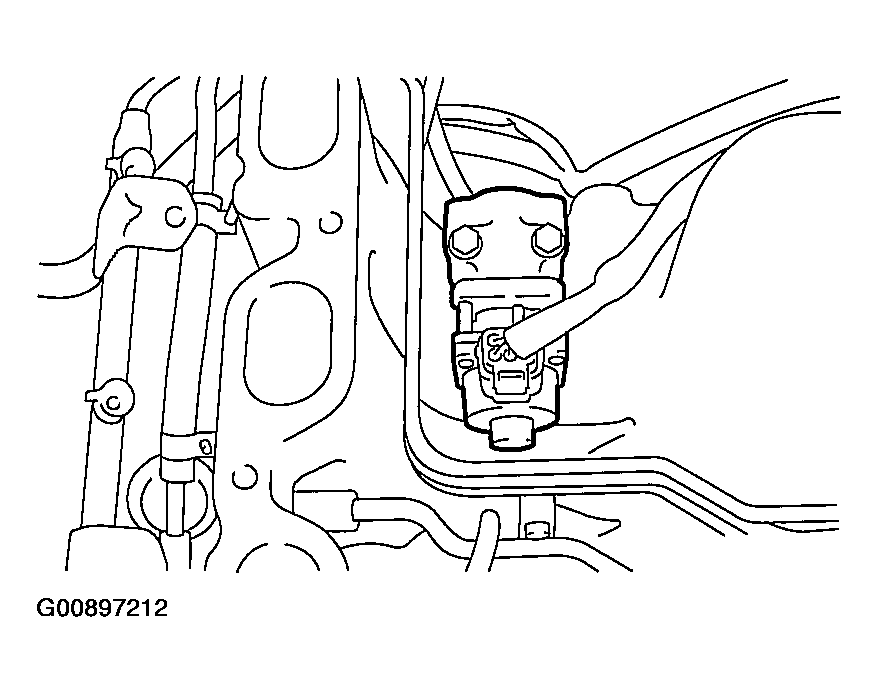

    Fig 7: Connecting EGR Valve Connector
    G00897212Courtesy of SUBARU OF AMERICA, INC.
  9. Install purge control solenoid valve.

    Tightening torque:

    1. 19 N.m (1.9 kgf-m, 14 ft-lb)
  10. Connect connector to purge control solenoid valve.

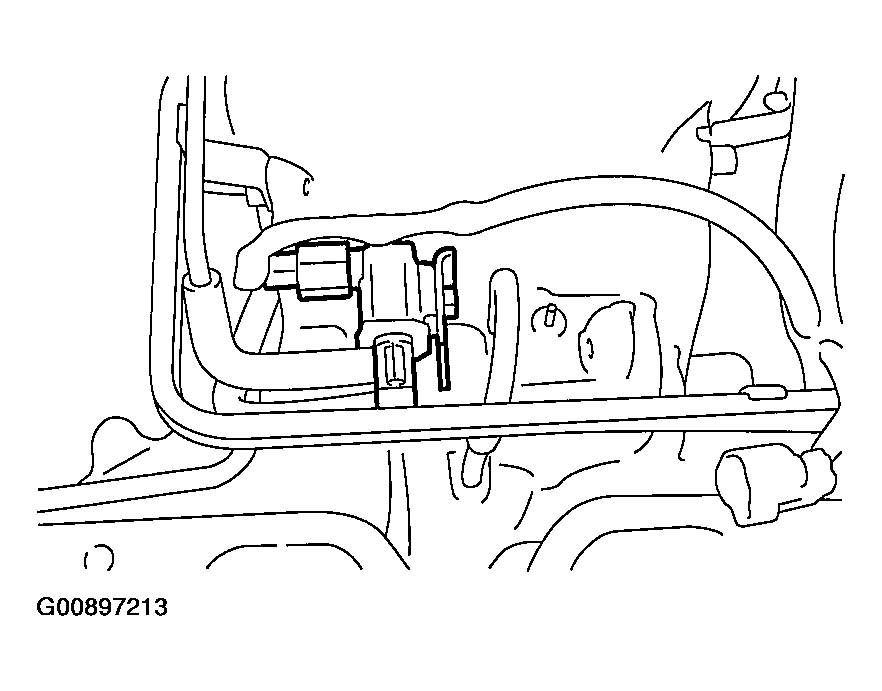

    Fig 8: Connecting Purge Control Solenoid Valve Connector
    G00897213Courtesy of SUBARU OF AMERICA, INC.
  11. Connect hoses to purge control solenoid valve.
    CAUTION: Carefully connect the evaporation hoses.
