Install the intake manifold onto the cylinder heads.
Tightening torque:

25 N.m (2.5 kgf-m, 18.1 ft-lb)

Fig 1: Installing Intake Manifold Onto The Cylinder Heads
Courtesy of SUBARU OF AMERICA, INC.

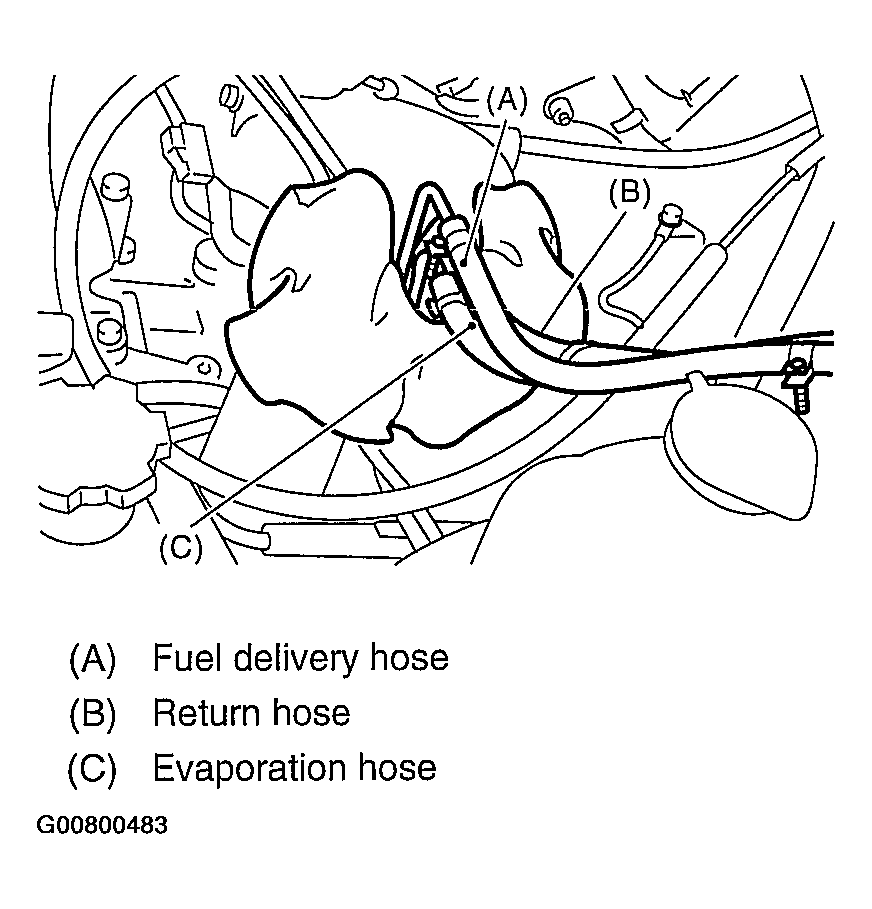

Connect the fuel hoses.

Fig 2: Connecting The Fuel Hoses
Courtesy of SUBARU OF AMERICA, INC.
Connect the engine ground terminal to ground stay.
Tightening torque:

19 N.m (1.9 kgf-m, 13.7 ft-lb)

Fig 3: Connecting The Engine Ground Terminal To Ground Stay
Courtesy of SUBARU OF AMERICA, INC.

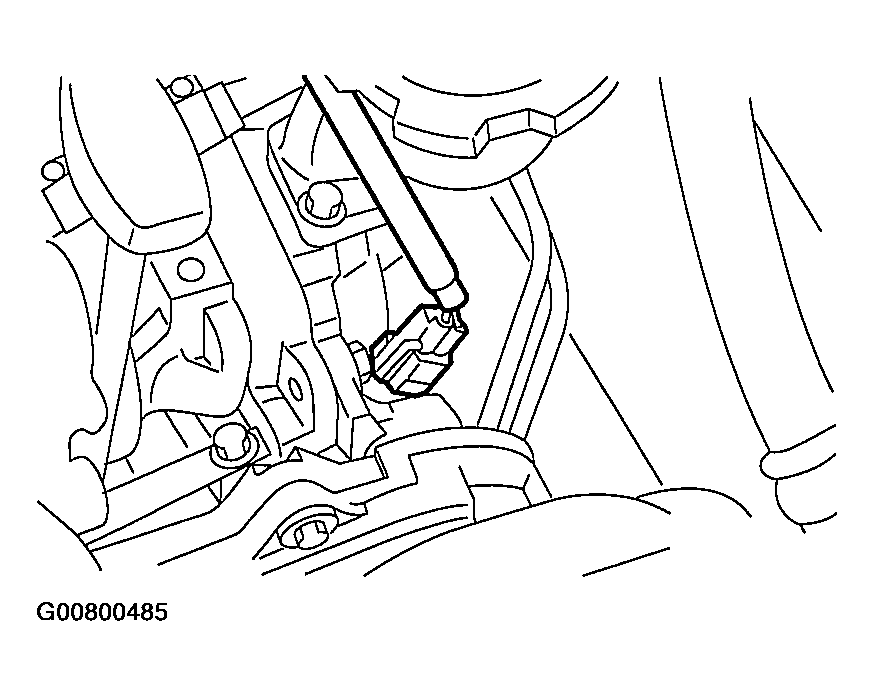

Connect the connector to the camshaft position sensor.

Fig 4: Connecting The Connector To The Camshaft Position Sensor
Courtesy of SUBARU OF AMERICA, INC.

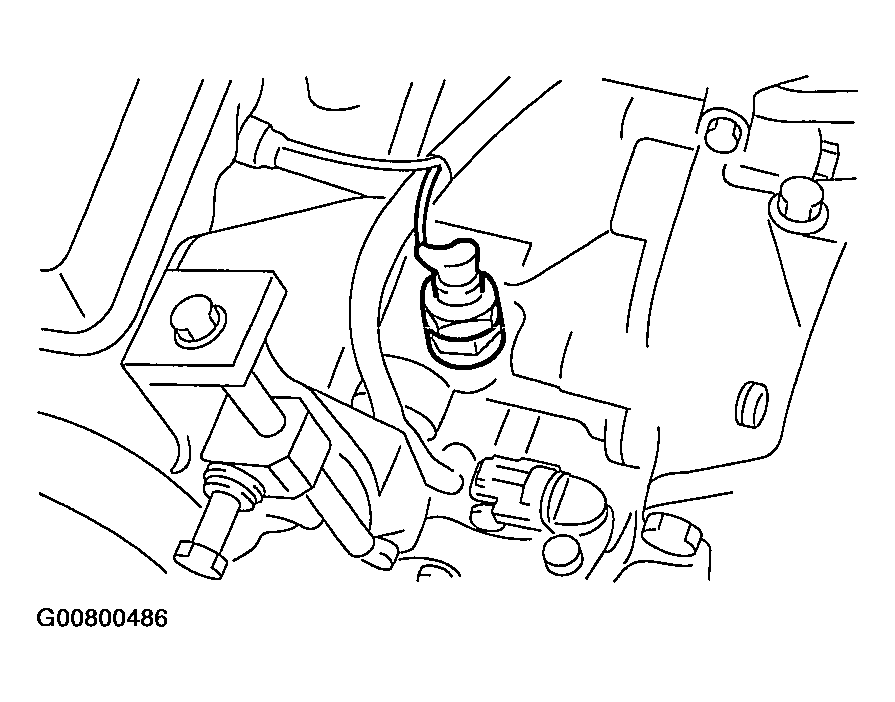

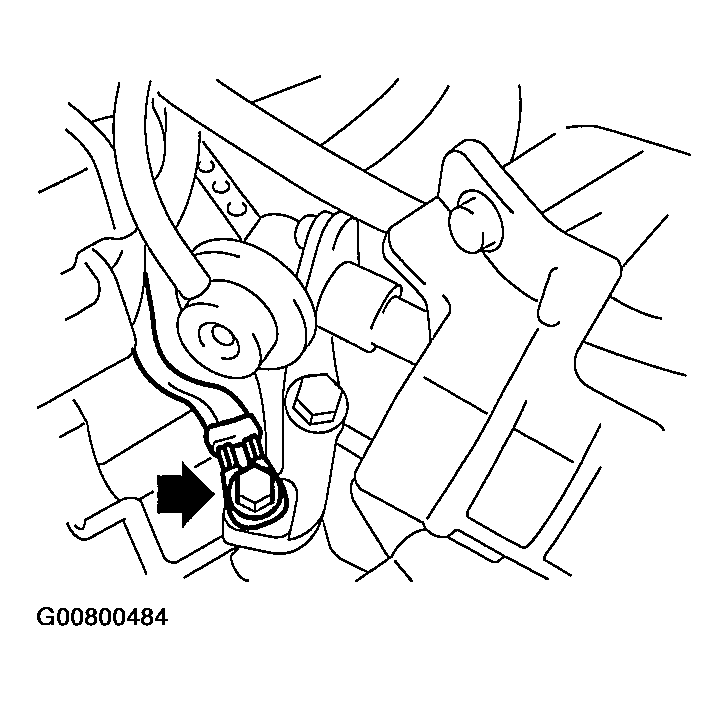

Connect the connector to the oil pressure switch.

Fig 5: Connecting The Connector To The Oil Pressure Switch
Courtesy of SUBARU OF AMERICA, INC.

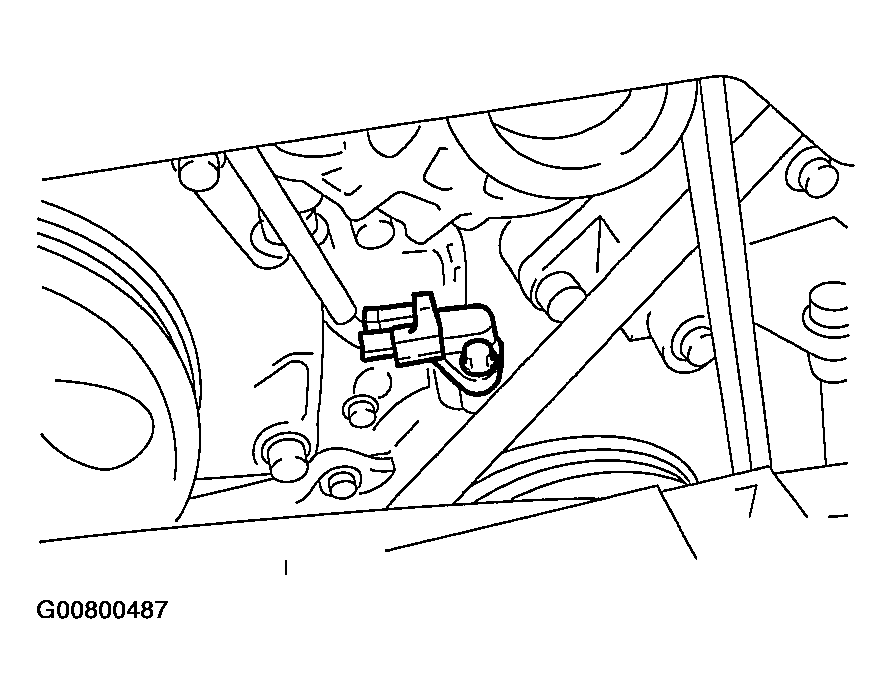

Connect the connector to the crankshaft position sensor.

Fig 6: Connecting The Connector To The Crankshaft Position Sensor
Courtesy of SUBARU OF AMERICA, INC.

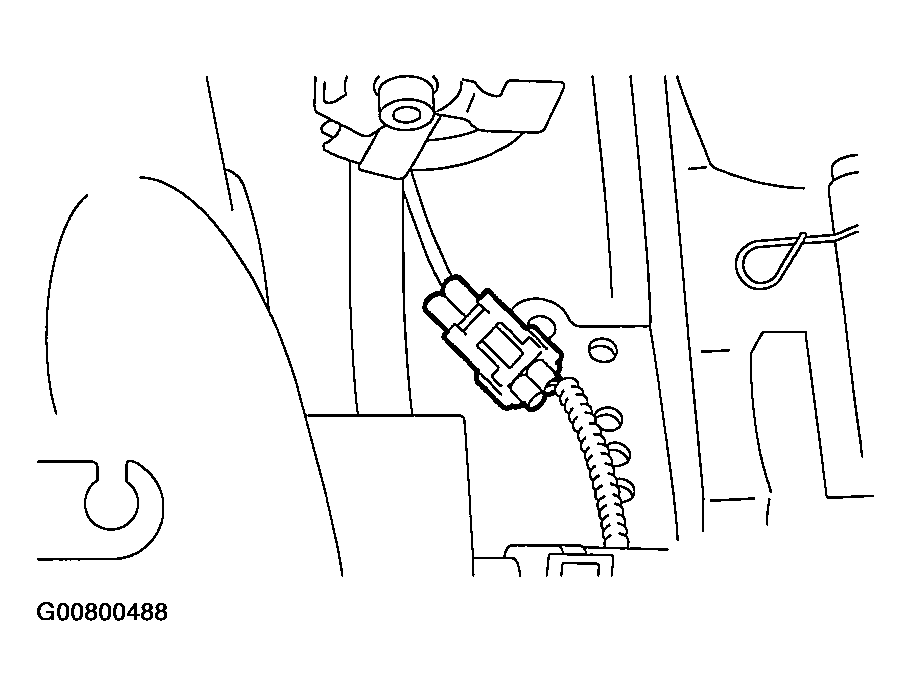

Connect the knock sensor connector.

Fig 7: Connecting The Knock Sensor Connector
Courtesy of SUBARU OF AMERICA, INC.
Connect the connectors to the engine coolant temperature sensor.

Fig 8: Connecting The Connectors To The Engine Coolant Temperature Sensor
Courtesy of SUBARU OF AMERICA, INC.

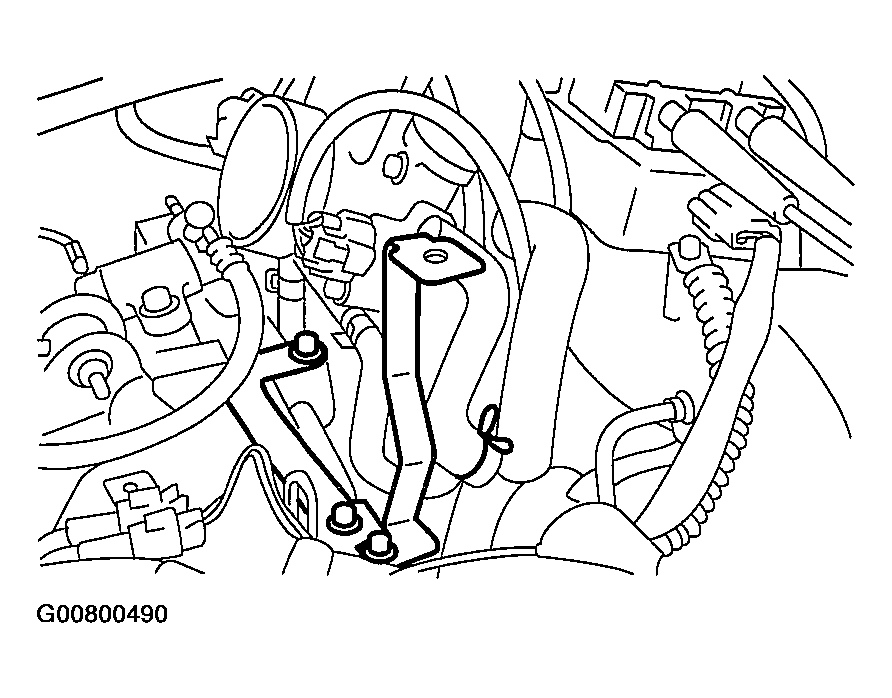

Install the air cleaner case stay RH and engine harness bracket, and connect the engine harness connectors to the bulkhead connectors.

Fig 9: Installing Air Cleaner Case Stay (RH Side) & Engine Harness Bracket
Courtesy of SUBARU OF AMERICA, INC.

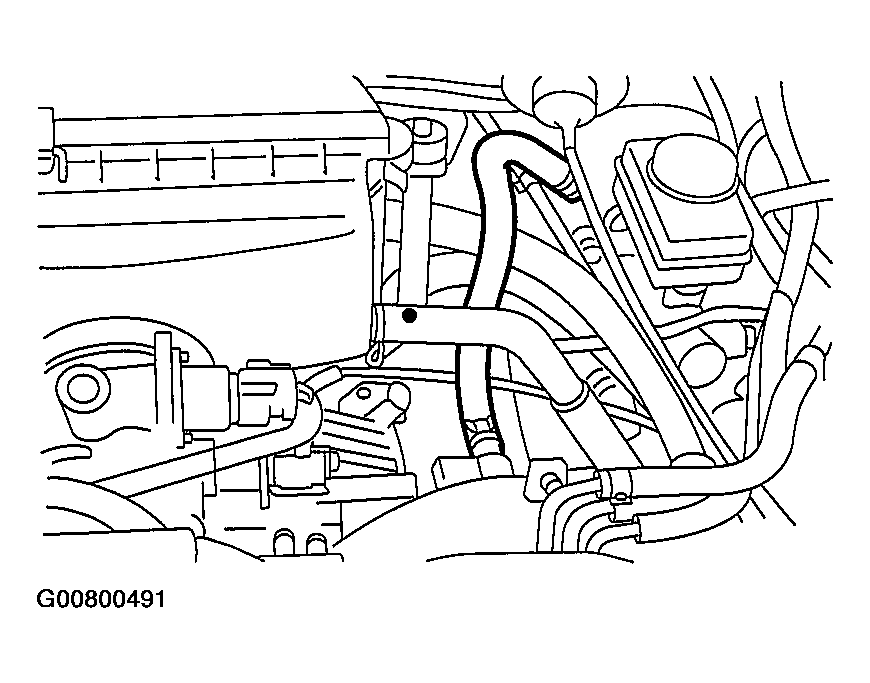

Connect the brake booster hose.

Fig 10: Connecting The Brake Booster Hose
Courtesy of SUBARU OF AMERICA, INC.

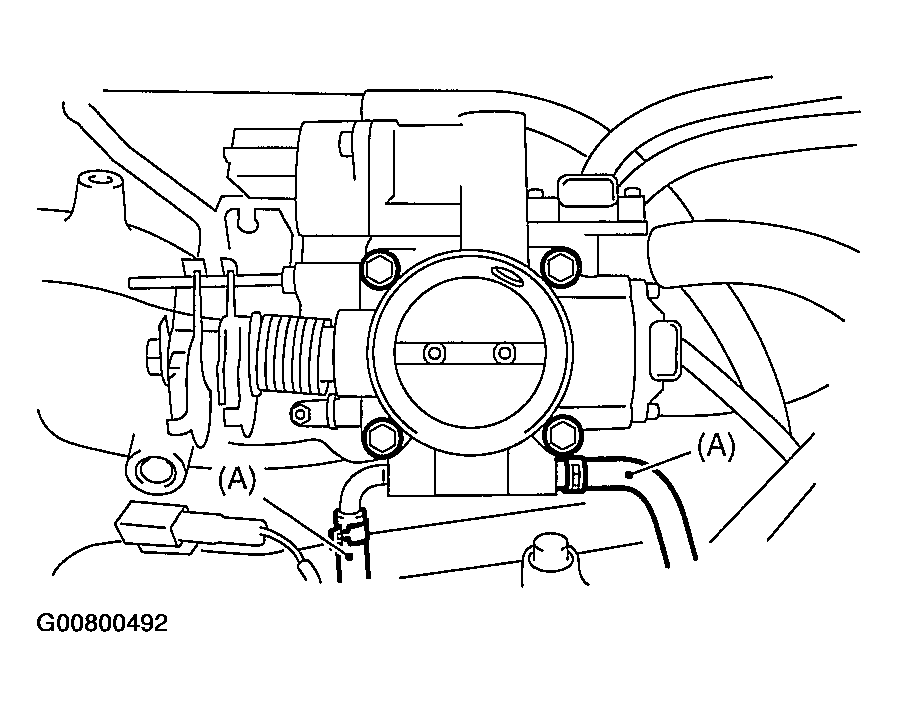

Connect the engine coolant hose (A) to the throttle body.

Fig 11: Connecting The Engine Coolant Hose (A) To The Throttle Body
Courtesy of SUBARU OF AMERICA, INC.

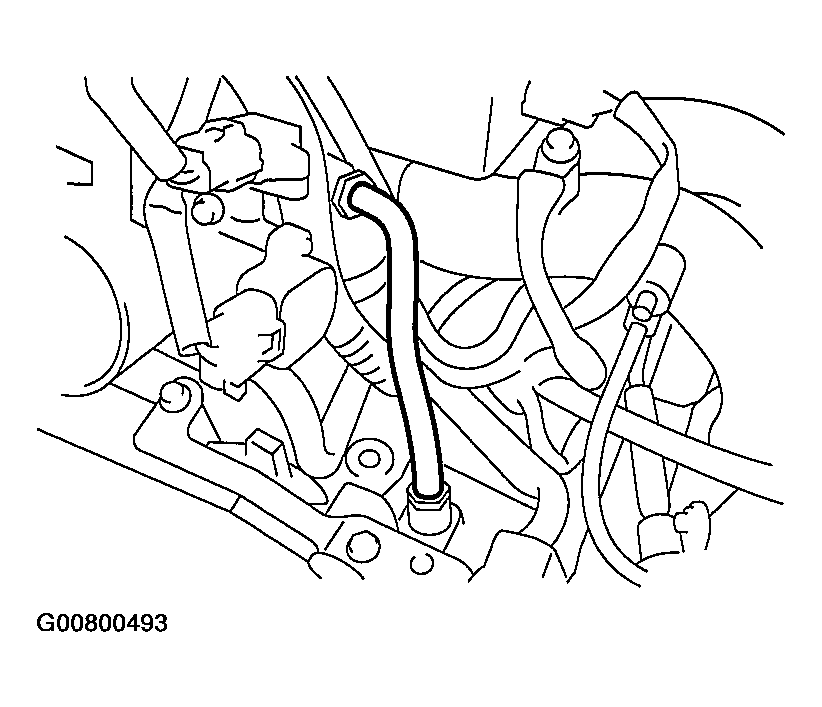

Connect the PCV hose to the intake manifold.

Fig 12: Connecting The PCV Hose To The Intake Manifold
Courtesy of SUBARU OF AMERICA, INC.
Connect the spark plug cords to the spark plugs.
Install the power steering pump and reservoir tank to bracket.

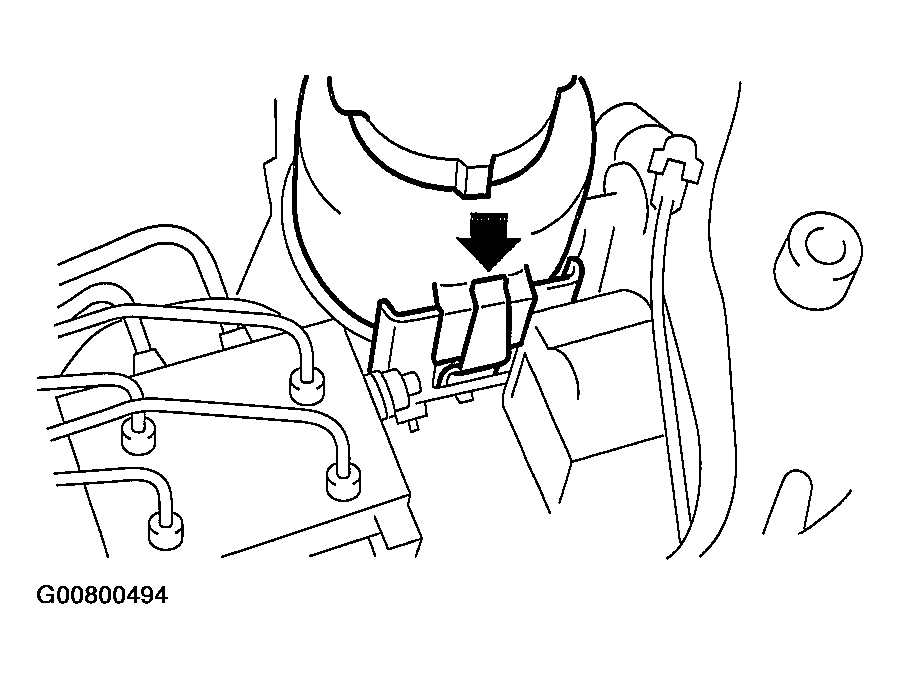

1. Install the reservoir tank to bracket.

  Fig 13: Installing Reservoir Tank To Bracket
  Courtesy of SUBARU OF AMERICA, INC.

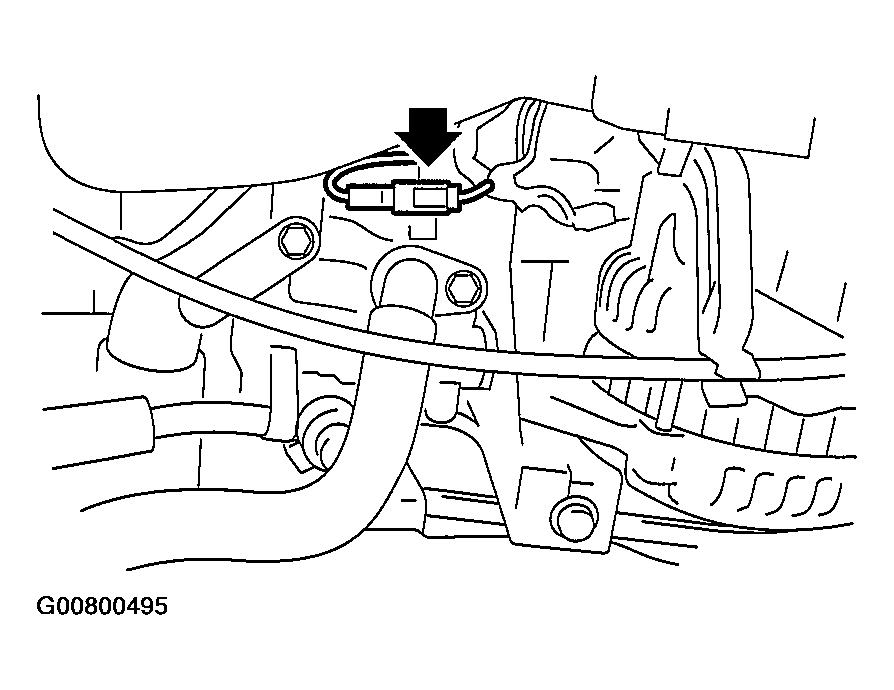

2. Connect the connector to the power steering pump switch.

  Fig 14: Connecting The Connector To The Power Steering Pump Switch
  Courtesy of SUBARU OF AMERICA, INC.

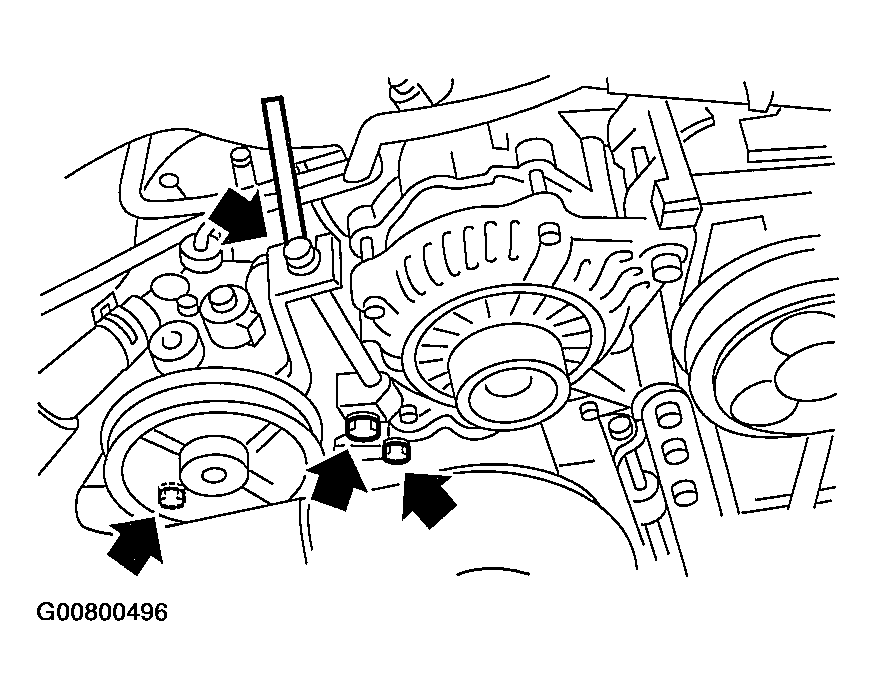

3. Tighten the bolts which install power steering pump bracket.
  Tightening torque:

  22 N.m (2.2 kgf-m, 15.9 ft-lb)

  Fig 15: Tightening Bolts At Power Steering Pump Bracket
  Courtesy of SUBARU OF AMERICA, INC.

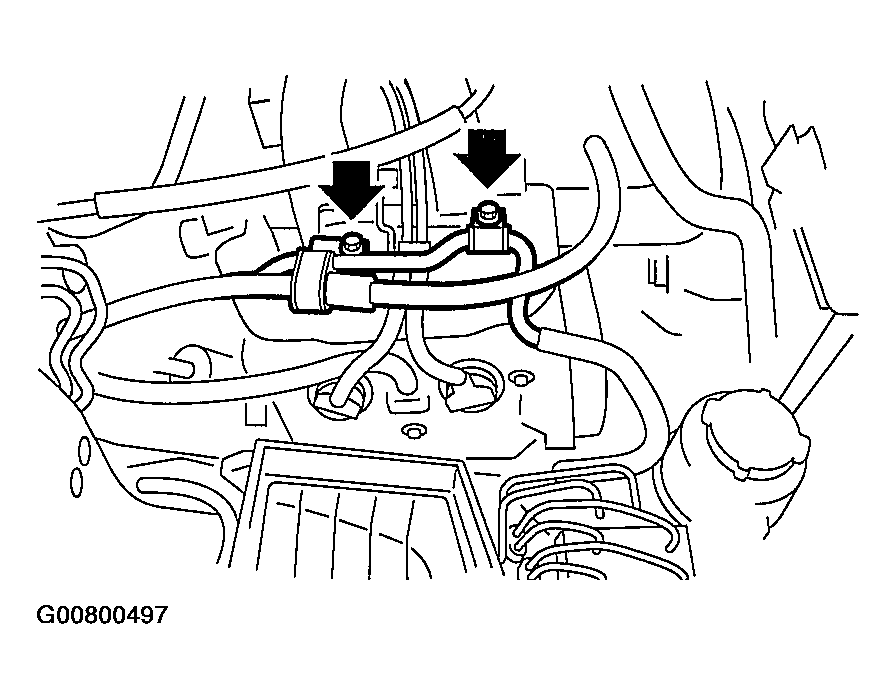

4. Install the power steering pipes onto the right side intake manifold protector.

  Fig 16: Installing Power Steering Pipes Onto The Right Side Intake Manifold Protector
  Courtesy of SUBARU OF AMERICA, INC.
5. Install the front side V-belt. < Ref. to INSTALLATION , V-belt. >
6. Install the resonator chamber. < Ref. to INSTALLATION , Resonator Chamber. > .

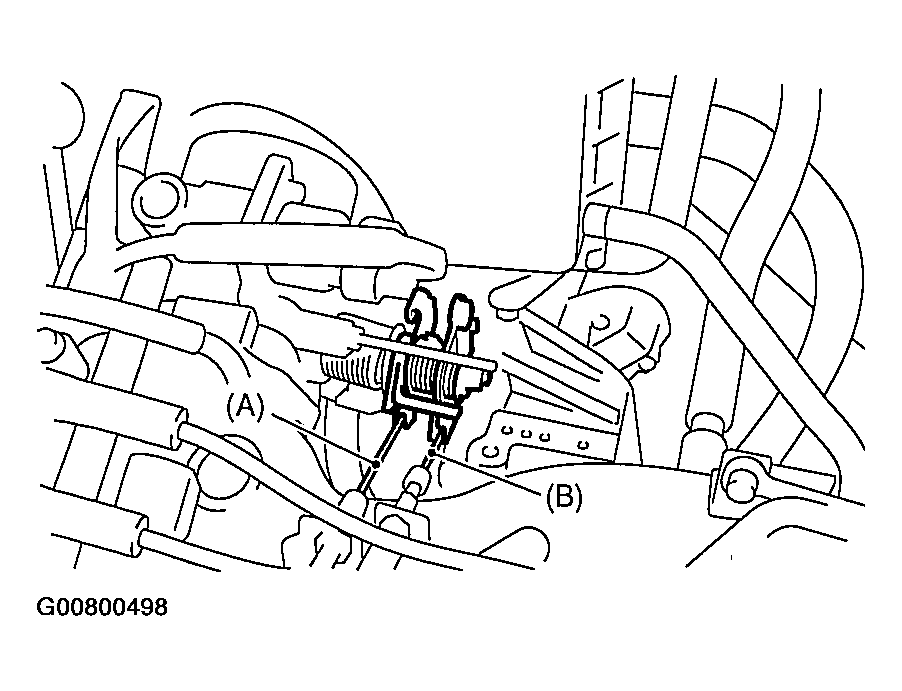

Connect the accelerator cable (A).
Connect the cruise control cable (B). (Model with cruise control)

Fig 17: Identifying Accelerator Cable & Cruise Control Cable
Courtesy of SUBARU OF AMERICA, INC.
Install the air intake duct and air cleaner case.
< Ref. to INSTALLATION , Air Intake Duct.>

< Ref. to INSTALLATION , Air Cleaner Case.>

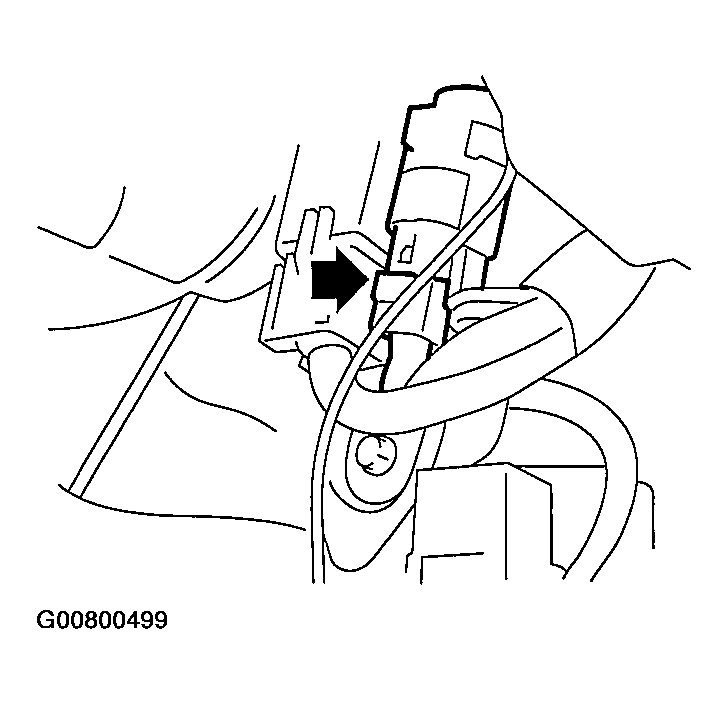

Connect the connector to the fuel pump relay.

Fig 18: Connecting Connector To Fuel Pump Relay
Courtesy of SUBARU OF AMERICA, INC.

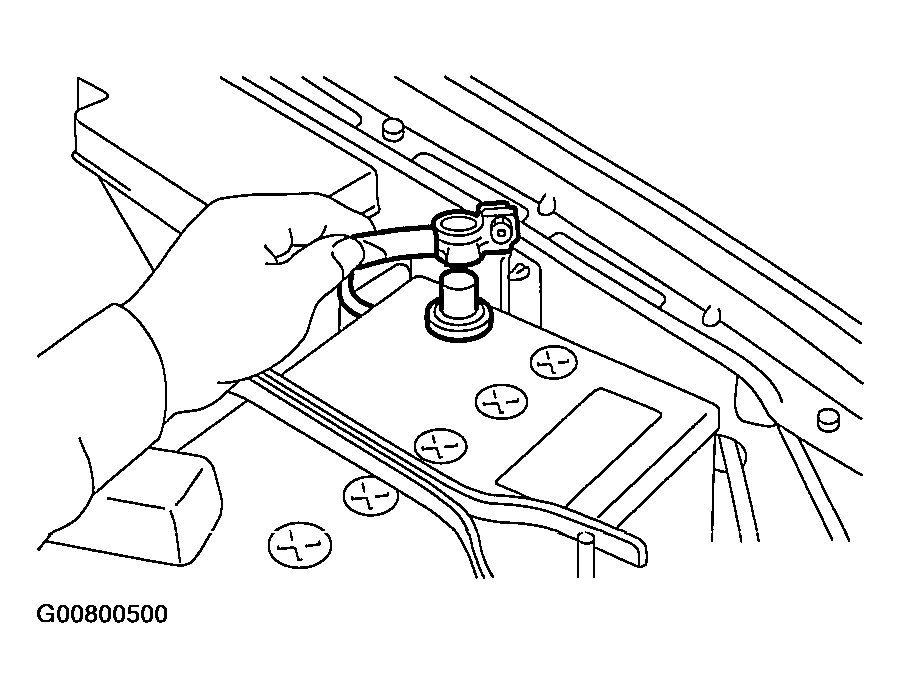

Connect the battery ground cable to battery.

Fig 19: Connecting Battery Ground Cable To Battery
Courtesy of SUBARU OF AMERICA, INC.
