Select Lever: Removal
- Set the vehicle on a lift.
- Disconnect the ground cable from battery.
- Move the select lever to "N" range.
- Lift-up the vehicle.
- Remove the rear exhaust pipe and muffler.
Non-turbo model
< Ref. to REMOVAL , Rear Exhaust Pipe . > < Ref. to REMOVAL , Muffler . >
Turbo model
< Ref. to REMOVAL , Rear Exhaust Pipe . > < Ref. to REMOVAL , Muffler . >
- Remove the heat shield cover. (If equipped)

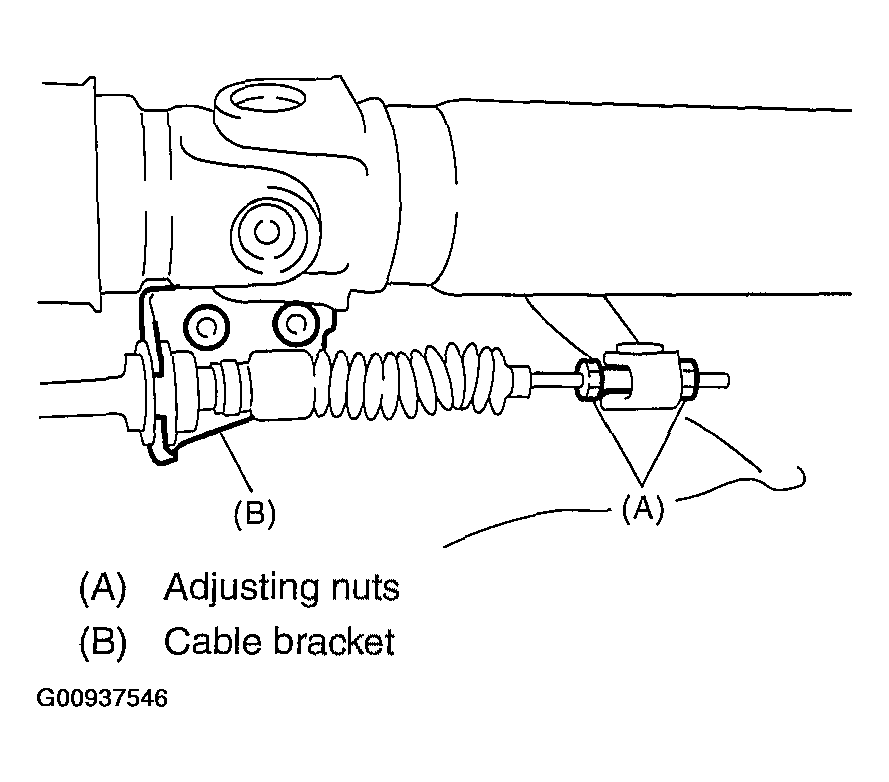

- Disconnect the cable from select lever, and then remove the cable bracket.
- Lower the vehicle.
- Remove the console box. < Ref. to REMOVAL , Console Box . >

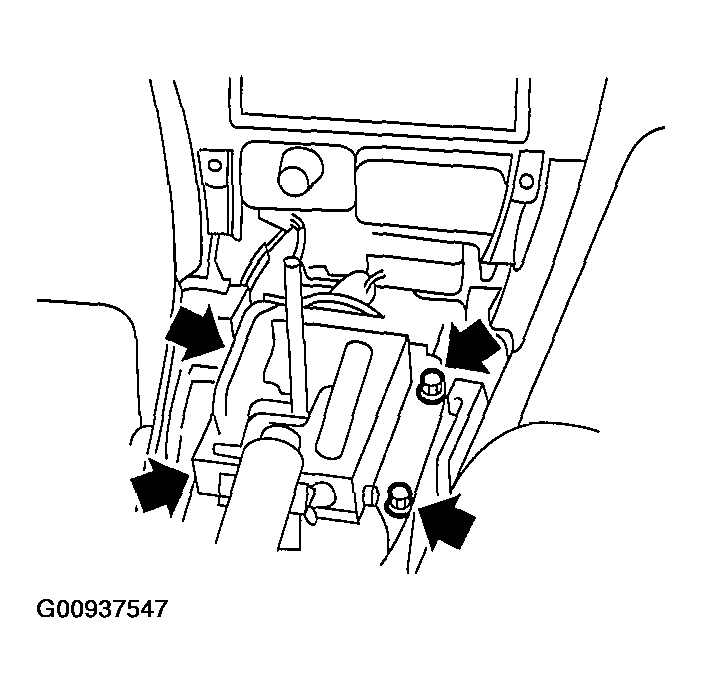

- Disconnect the connectors, then remove the four bolts to take out the select lever assembly from body.
