Select Cable: Removal
- Set the vehicle on a lift.
- Disconnect the ground cable from battery.
- Prior to removal, set the lever to "N" range.
- Lift-up the vehicle.
- Remove the front and center exhaust pipe.
Non-turbo model
< Ref. to REMOVAL , Front Exhaust Pipe . >
Turbo model
< Ref. to REMOVAL , Front Exhaust Pipe . >
- Remove the heat shield cover. (If equipped)

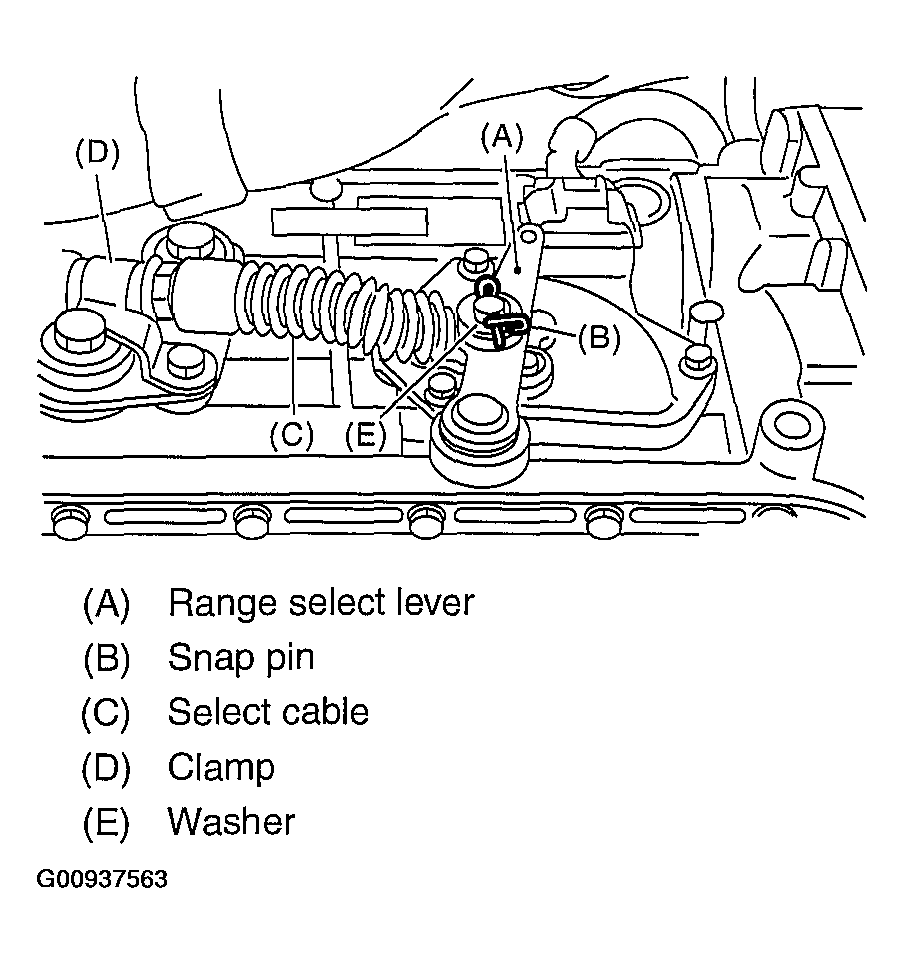

- Remove the snap pin from range select lever.

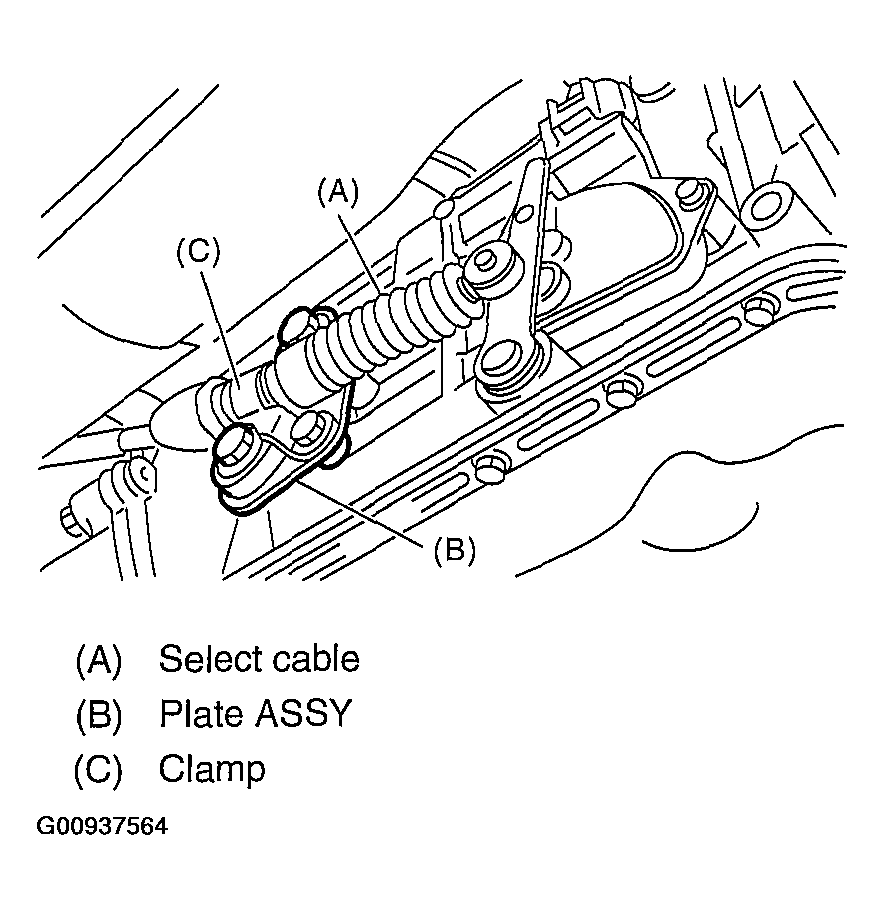

- Remove the plate assembly from transmission case.

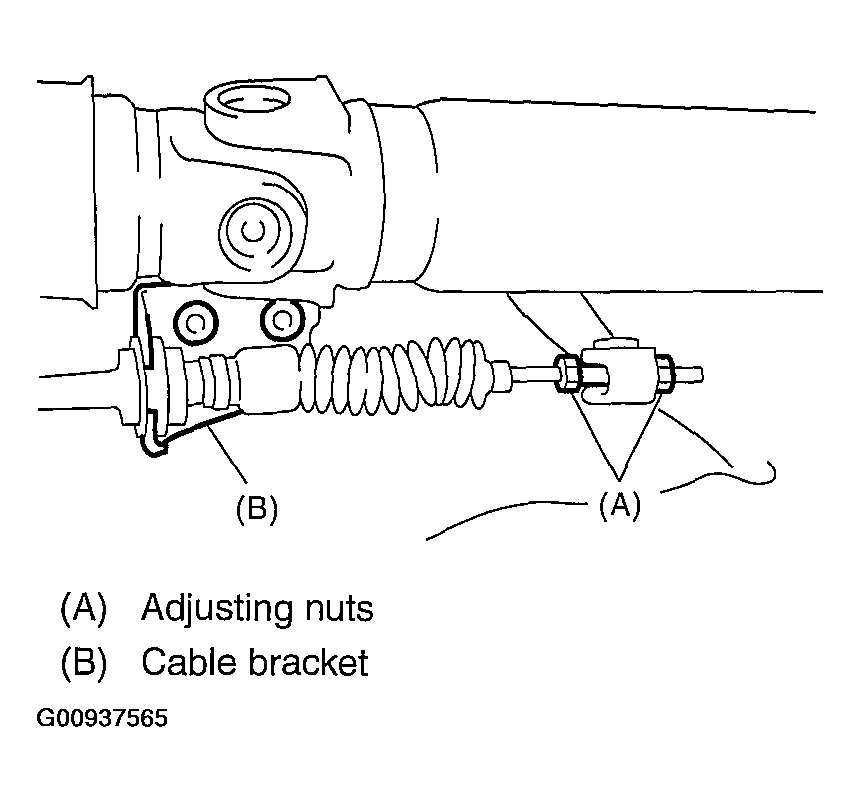

- Disconnect the select cable from range select lever, and then remove the cable bracket.
- Remove the select cable from plate assembly.
