2004 Subaru Forester XT, AutomaticFACTORY OEM SERVICE PROCEDURE
Transmission Control Module (TCM): Removal

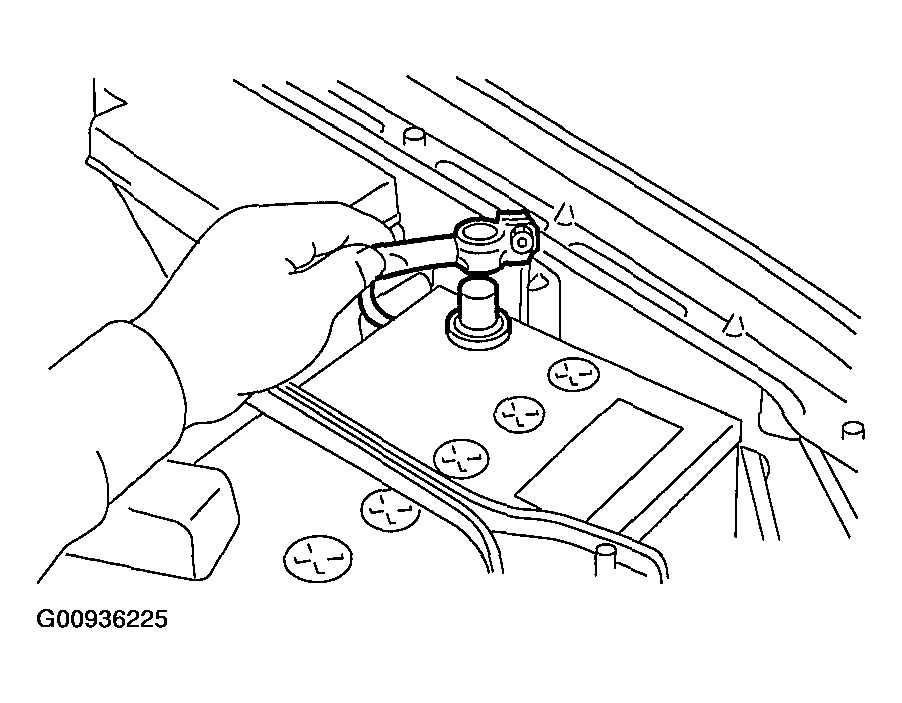

- Disconnect the ground cable from battery.

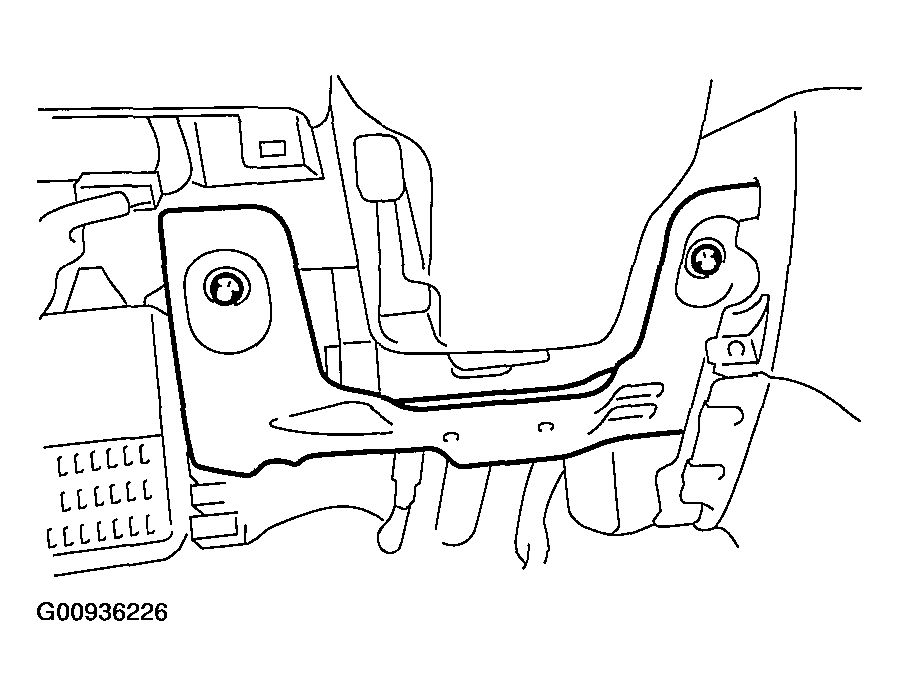

- Remove the lower cover and then disconnect the connector.
- Remove the knee bolster.

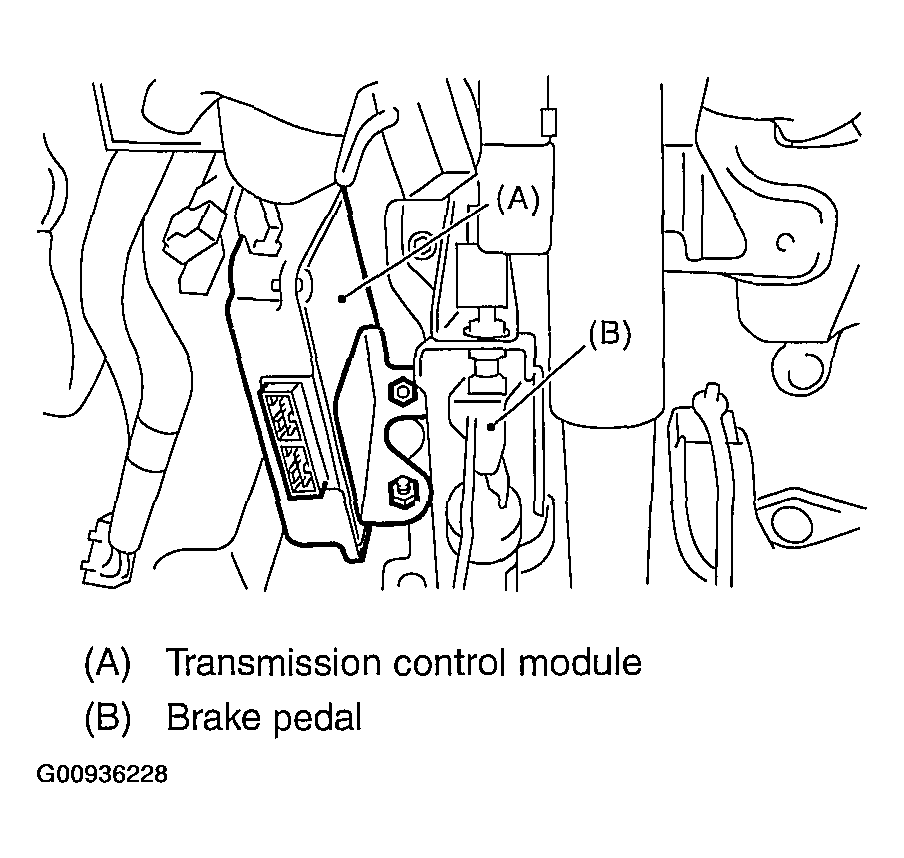

- Disconnect the connectors from transmission control module.

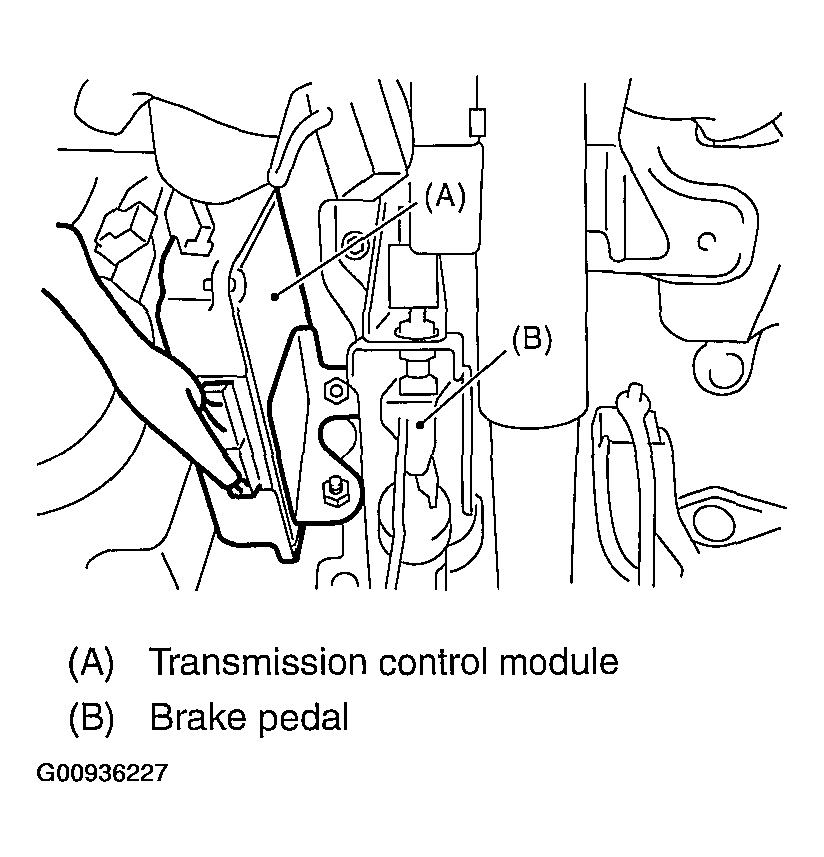

- Remove the transmission control module.
