2004 Subaru Forester XT, AutomaticFACTORY OEM SERVICE PROCEDURE

Extension Case: Installation

Apply Vaseline to the selected thrust needle bearing, and then attach the selected thrust needle bearing to the end surface of reduction drive gear. < Ref. to ADJUSTMENT . >
NOTE: Install thrust needle bearing in the correct direction.
Install new gasket.
Install the extension case to the transmission case.
Tighten bolts to secure the case.
1. Tightening torque: 25 N.m (2.5 kgf-m, 18.1 ft-lb)

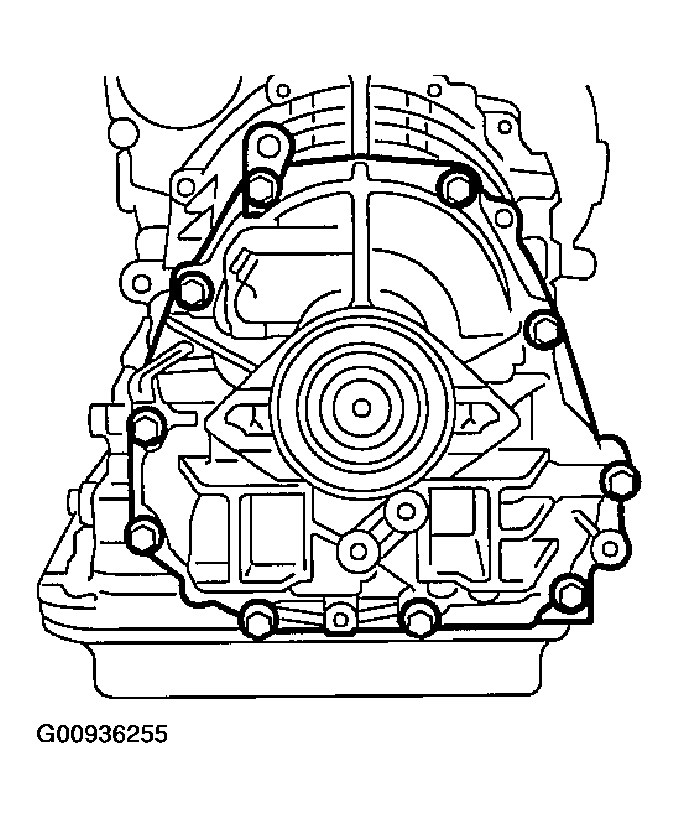

Fig 1: Identifying Extension Case To Transmission Case
Courtesy of SUBARU OF AMERICA, INC.
Install the rear vehicle speed sensor.
1. Tightening torque: 7 N.m (0.7 kgf-m, 5.1 ft-lb)
- NON-TURBO MODEL

  Fig 2: Identifying Rear Vehicle Speed Sensor (Non-Turbo Model)
  Courtesy of SUBARU OF AMERICA, INC.
- TURBO MODEL

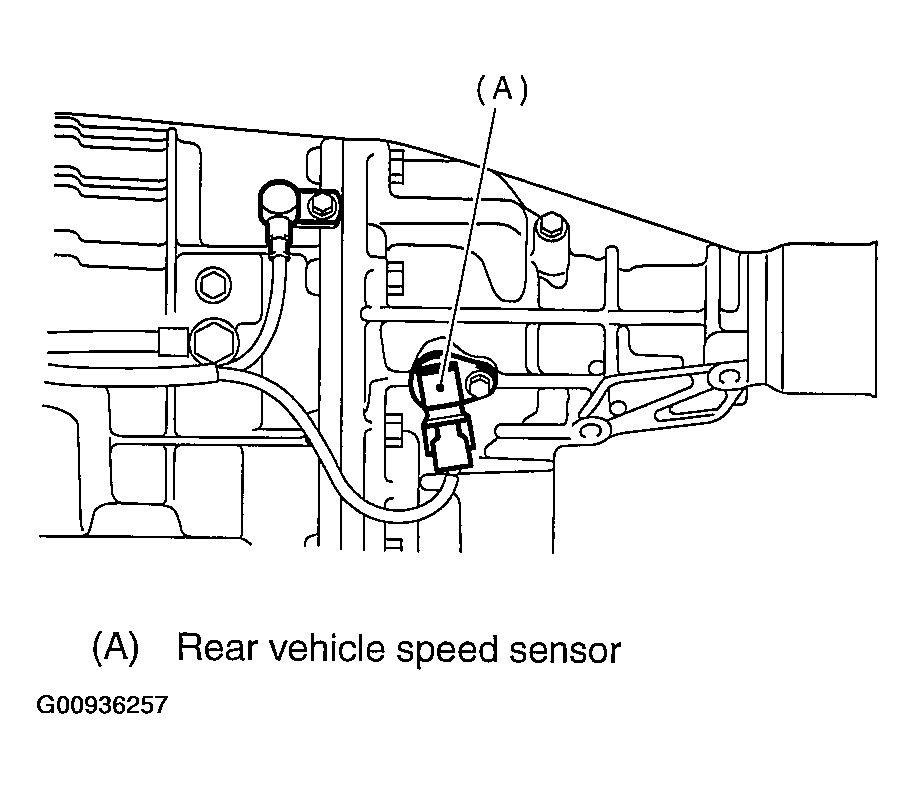

  Fig 3: Identifying Rear Vehicle Speed Sensor (Turbo Model)
  Courtesy of SUBARU OF AMERICA, INC.
Install the transmission assembly. < Ref. to INSTALLATION . >
