2004 Subaru Forester XT, AutomaticFACTORY OEM SERVICE PROCEDURE

Non-Turbo Model

  1. Set the range select lever in "N" range.
  2. Install the control valve, ATF temperature sensor and ground connectors.
    1. Tightening torque: 8 N.m (0.8 kgf-m, 5.8 ft-lb)

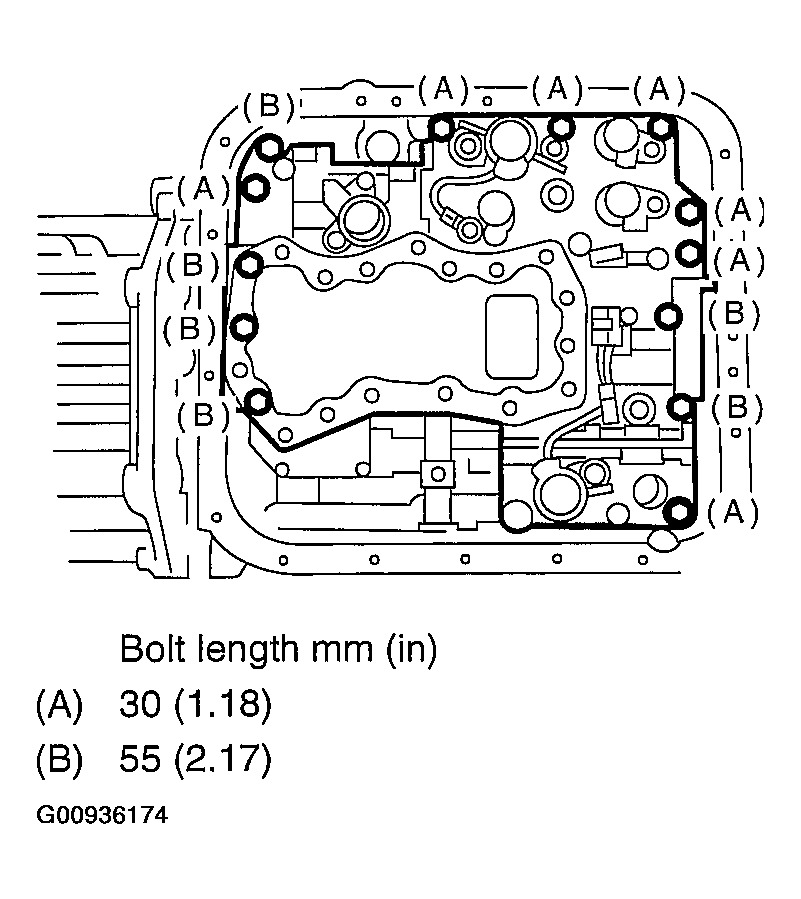

    Fig 1: Identifying Control Valve Body For Installation
    G00936174Courtesy of SUBARU OF AMERICA, INC.
  3. Connect all connectors.

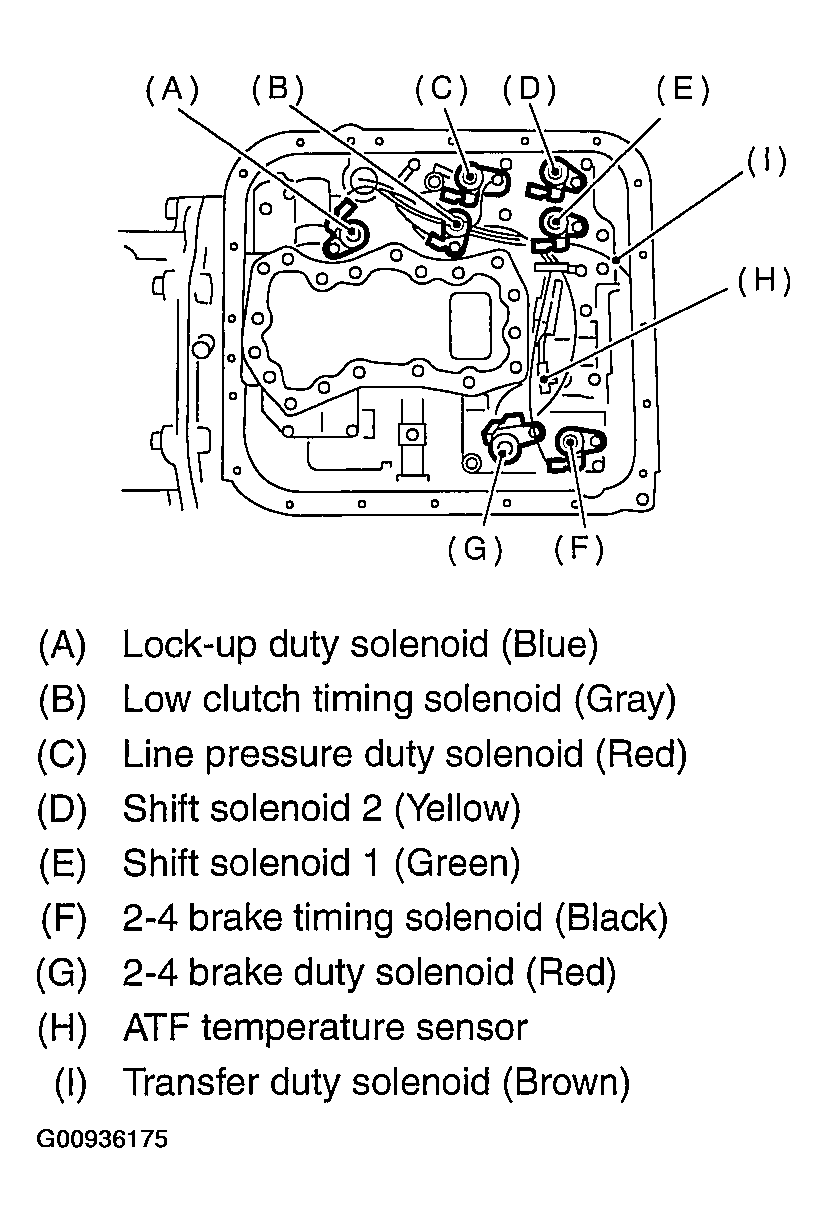

    Fig 2: Connecting All Connectors
    G00936175Courtesy of SUBARU OF AMERICA, INC.
  4. Attach the magnet at specified position.

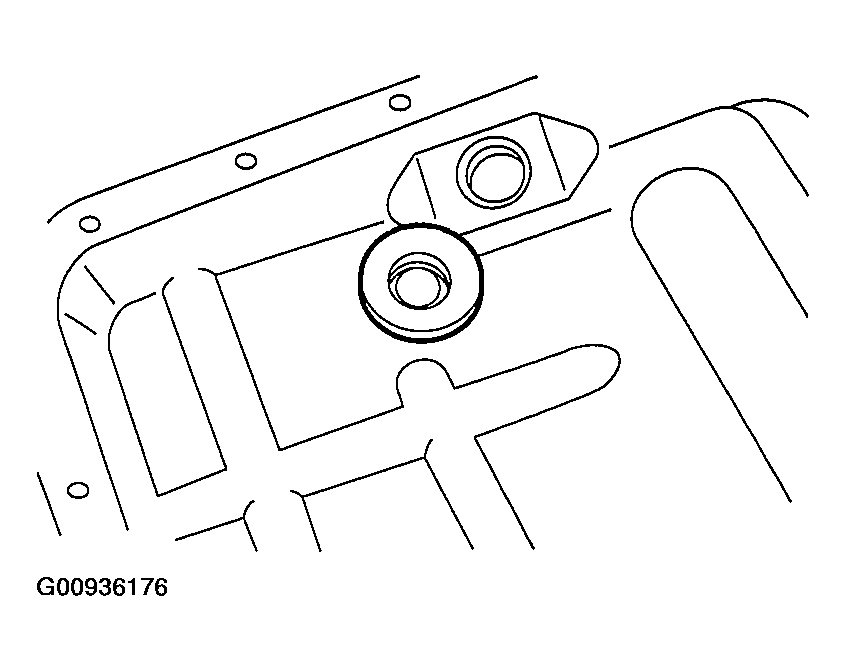

    Fig 3: Attaching Magnet At Specified Position
    G00936176Courtesy of SUBARU OF AMERICA, INC.
  5. Apply proper amount of liquid gasket to the entire oil pan mating surface.
    1. Liquid gasket: THREE BOND 1217B (Part No. K0877YA020)

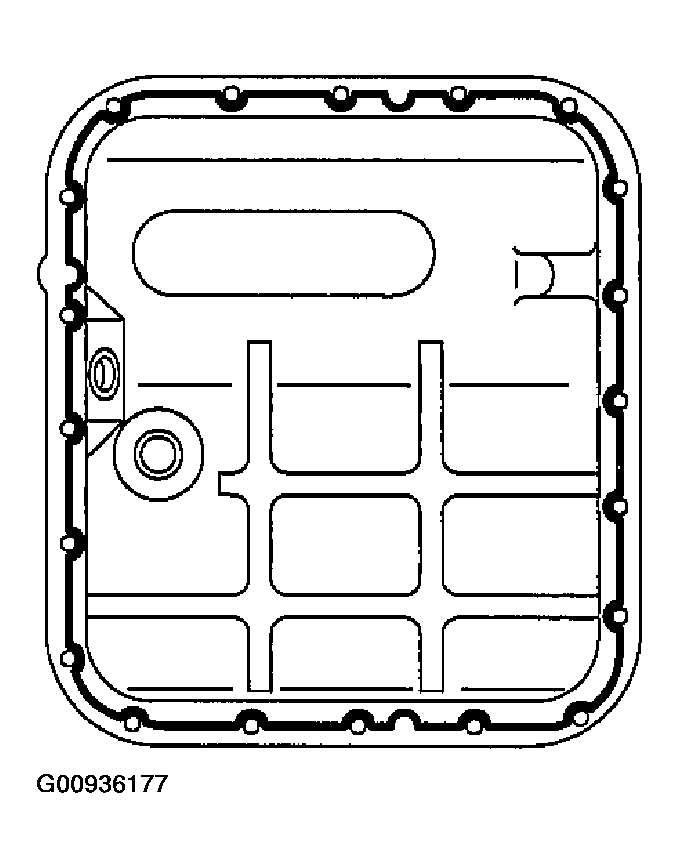

    Fig 4: Applying Liquid Gasket To Entire Oil Pan Mating Surface
    G00936177Courtesy of SUBARU OF AMERICA, INC.
  6. Apply liquid gasket fully to three holes other than screw holes on transmission case.
    1. Liquid gasket: THREE BOND 1217B (Part No. K0877YA020)

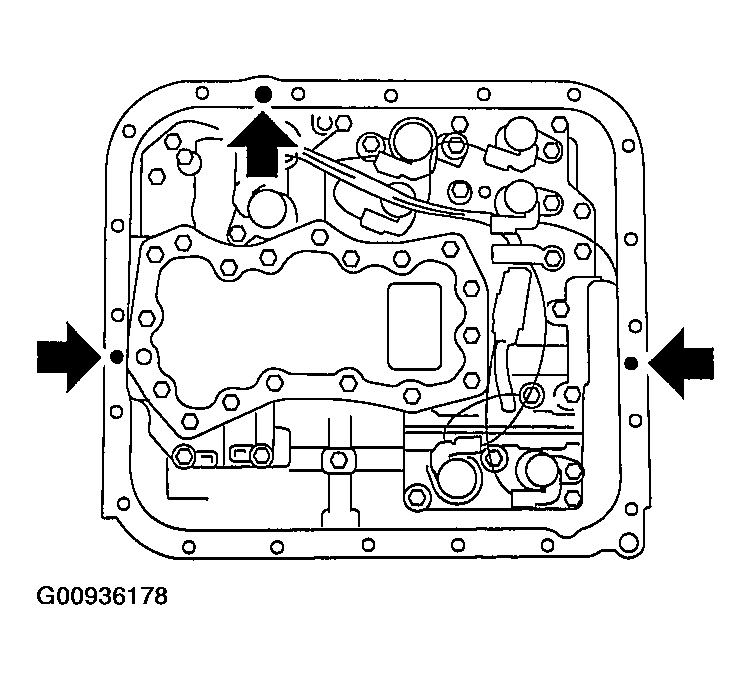

    Fig 5: >Applying Liquid Gasket Fully To Three Holes Other Than Screw Holes On Transmission Case
    G00936178Courtesy of SUBARU OF AMERICA, INC.
  7. Install the oil pan by equally tightening bolts.
    1. Tightening torque: 5 N.m (0.5 kgf-m, 3.6 ft-lb)
  8. Pour ATF into the ATF charge pipe.
    1. Recommended fluid: Dexron III type automatic transmission fluid
    2. Fluid capacity: Fill the same amount of fluid drained from drain plug hole.
  9. Bleed the air from control valve. < Ref. to AIR BLEEDING OF CONTROL VALVE . >
  10. Check the level of ATF.

    < Ref. to AUTOMATIC TRANSMISSION FLUID . >
