2004 Subaru Forester XT, AutomaticFACTORY OEM SERVICE PROCEDURE

Subaru Select Monitor: Operation

  • HOW TO USE SUBARU SELECT MONITOR

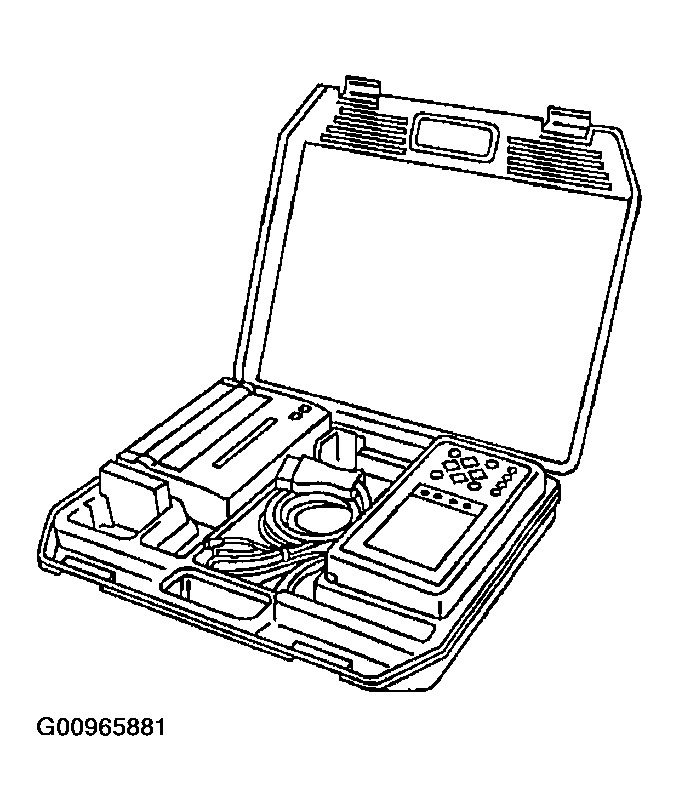

    1. Prepare the Subaru Select Monitor kit. < Ref. to PREPARATION TOOL  . >
      Fig 1: Identifying Select Monitor Kit
      G00965881Courtesy of SUBARU OF AMERICA, INC.
    2. Connect the diagnosis cable to Subaru Select Monitor.

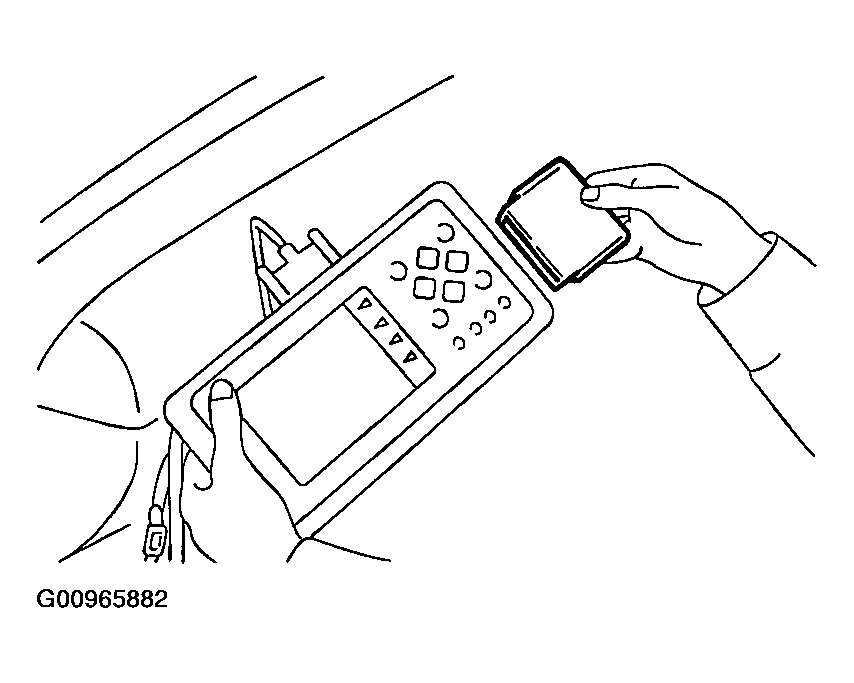

    3. Insert the cartridge into Subaru Select Monitor. < Ref. to PREPARATION TOOL  . >
      Fig 2: Inserting Cartridge Into Select Monitor
      G00965882Courtesy of SUBARU OF AMERICA, INC.
    4. Connect the Subaru Select Monitor to data link connector.

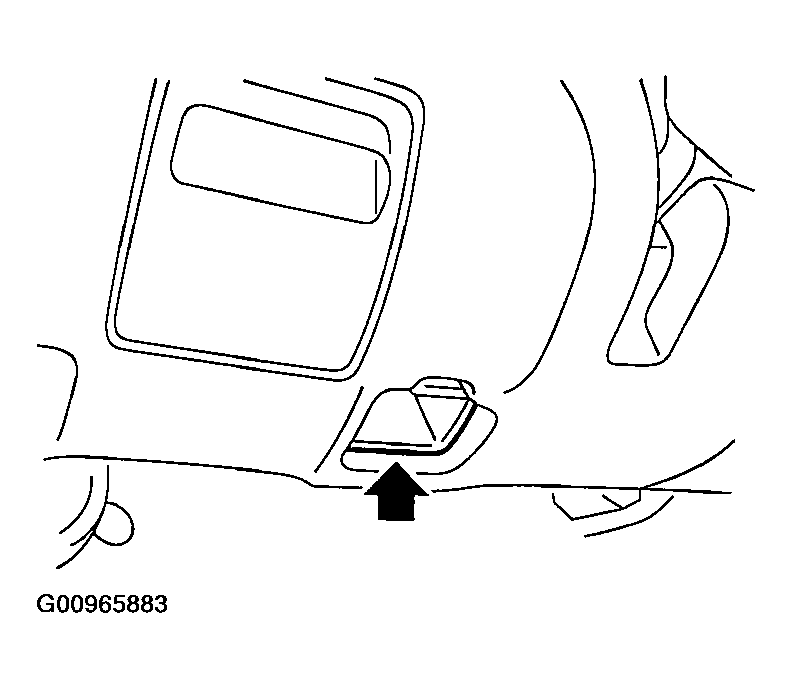

      1. Data link connector is located in the lower portion of instrument panel (on the driver's side).
        Fig 3: Identifying Data Link Connector Location
        G00965883Courtesy of SUBARU OF AMERICA, INC.
      2. Connect the diagnosis cable to data link connector.
      CAUTION: Do not connect the scan tools except for Subaru Select Monitor and OBD-II general scan tool.

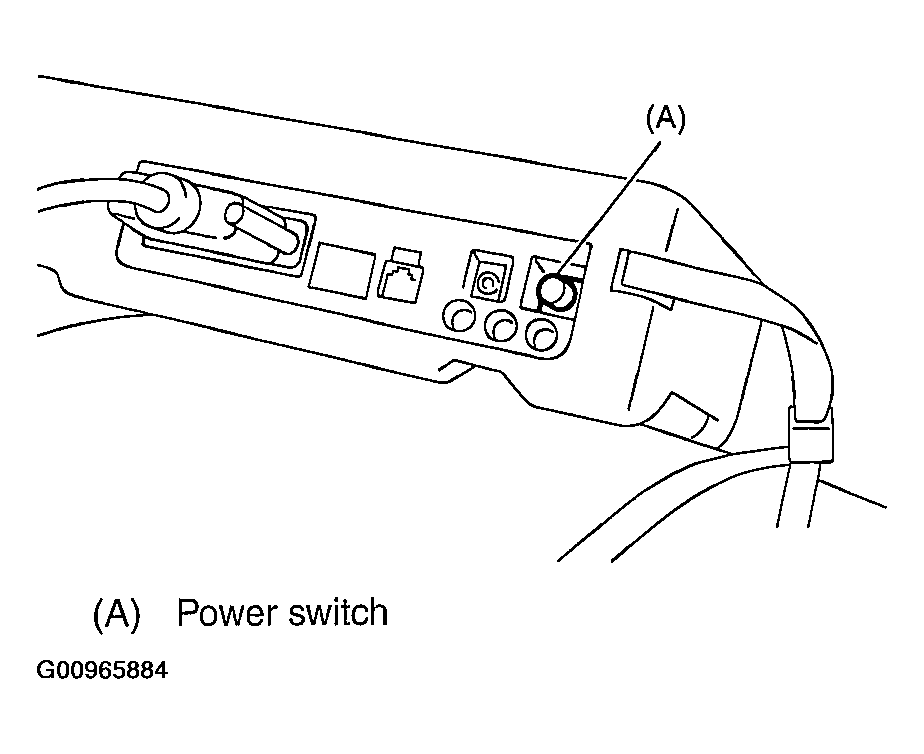

    5. Turn the ignition switch to ON (engine OFF) and Subaru Select Monitor switch to ON.
      Fig 4: Identifying Select Monitor Switch
      G00965884Courtesy of SUBARU OF AMERICA, INC.
    6. Using the Subaru Select Monitor, call up the DTC and various data, and then record them.
  • READ DIAGNOSTIC TROUBLE CODE (DTC) FOR ENGINE. (NORMAL MODE)

    Refer to Read Diagnostic Trouble Code (DTC) for information about how to indicate DTC. < Ref. to READ DIAGNOSTIC TROUBLE CODE (DTC) . >

  • READ DIAGNOSTIC TROUBLE CODE (DTC) FOR ENGINE. (OBD MODE)

    Refer to Read Diagnostic Trouble Code (DTC) for information about how to indicate DTC. < Ref. to READ DIAGNOSTIC TROUBLE CODE (DTC) . >

  • READ CURRENT DATA FOR ENGINE. (NORMAL MODE)
    1. On the << Main Menu >> display screen, select the {Each System Check} and press the [YES] key.
    2. On the << System Selection Menu >> display screen, select the {Engine Control System} and press the [YES] key.
    3. Press the [YES] key after the information of engine type is displayed.
    4. On the << Engine Diagnosis >> display screen, select the {Current Data Display & Save} and press the [YES] key.
    5. On the << Data Display Menu >> display screen, select the {Data Display} and press the [YES] key.
    6. Using the scroll key, move the display screen up or down until desired data is shown.

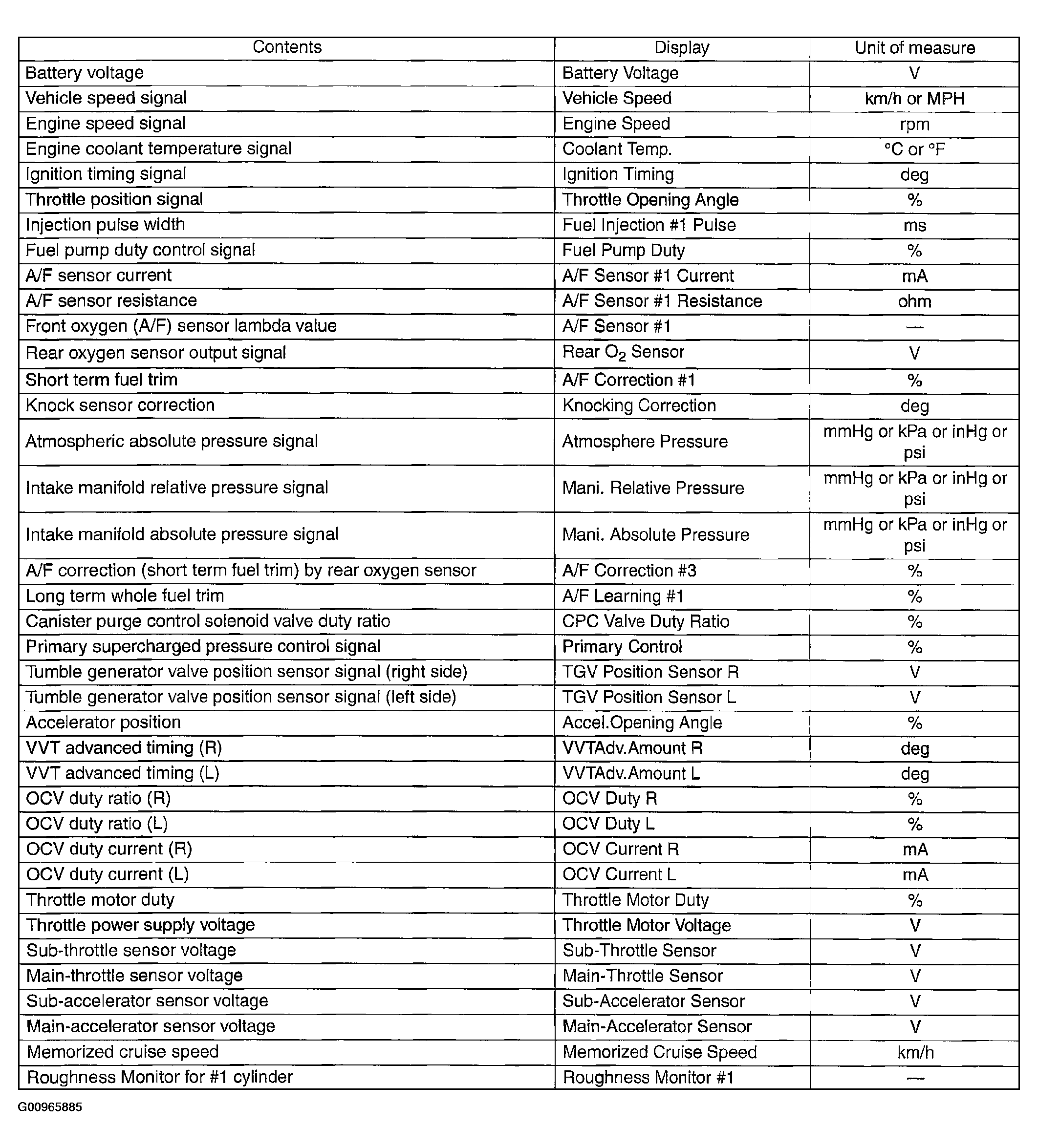

      • A list of the support data is shown in the following table.
    Fig 5: Support Data Table (1 Of 5)
    G00965885Courtesy of SUBARU OF AMERICA, INC.
