2004 Subaru Forester XT, AutomaticFACTORY OEM SERVICE PROCEDURE
Tumble Generator Valve Assembly: Removal
- Release the fuel pressure. < Ref. to RELEASING OF FUEL PRESSURE . >
- Open the fuel filler flap lid and remove the fuel filler cap.

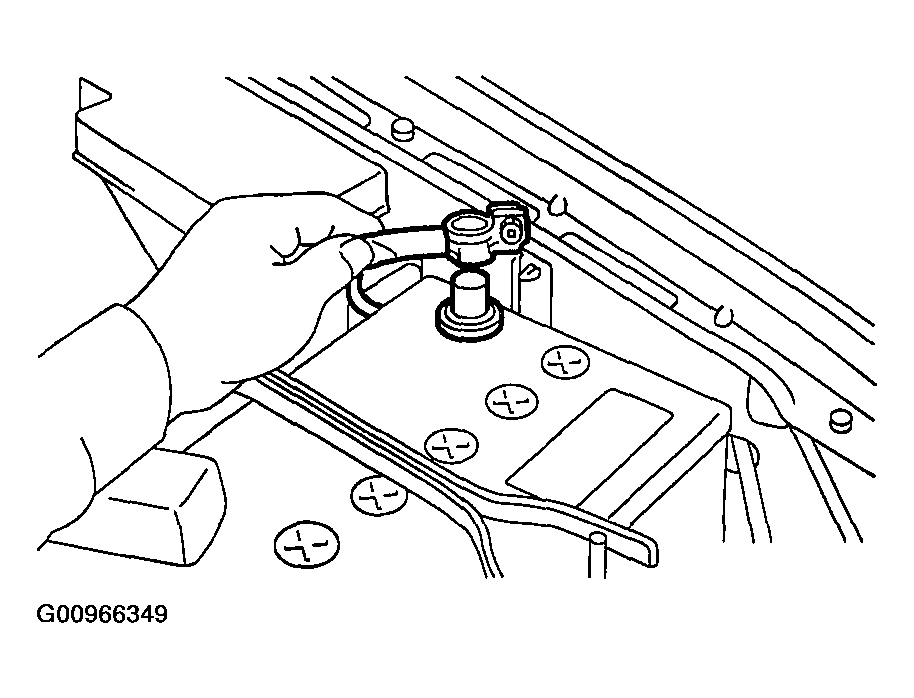

- Disconnect the ground cable from battery.
- Remove the intake manifold. < Ref. to REMOVAL . >

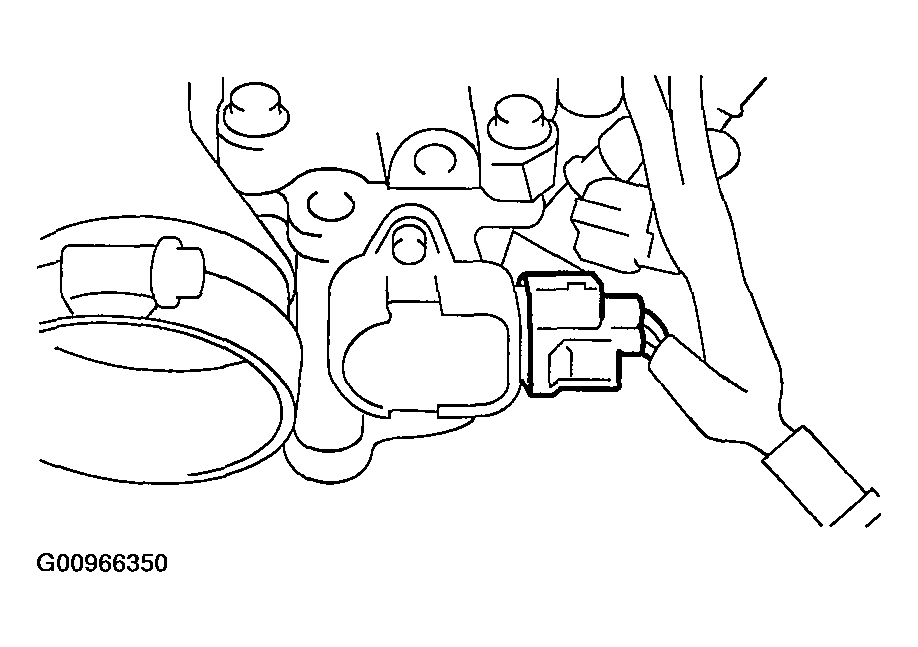

- Disconnect the connector from the tumble generator valve sensor.

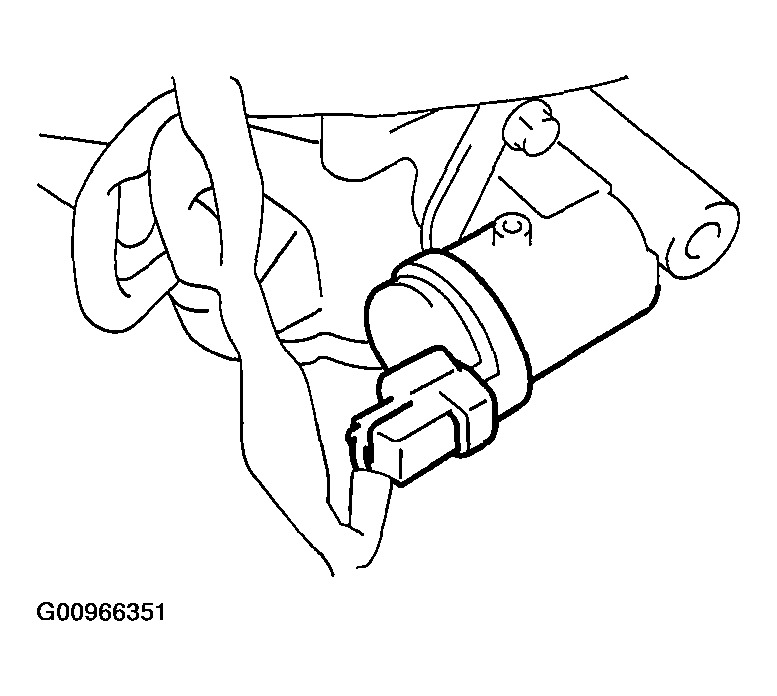

- Disconnect the connector from the tumble generator valve actuator.
- Remove the fuel injector. < Ref. to REMOVAL . >

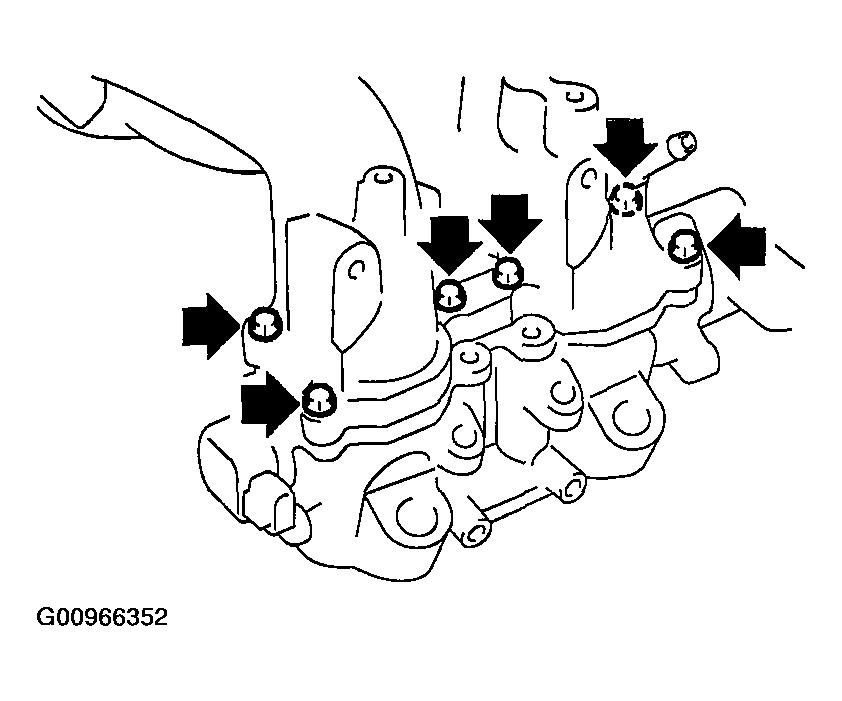

- Remove the tumble generator valve body from the intake manifold.
