2004 Subaru Forester XT, AutomaticFACTORY OEM SERVICE PROCEDURE

Intake Manifold: Installation

  1. Install the intake manifold onto cylinder heads.
    NOTE: Always use new gaskets.
    1. Tightening torque: 25 N.m (2.5 kgf-m, 18.1 ft-lb)

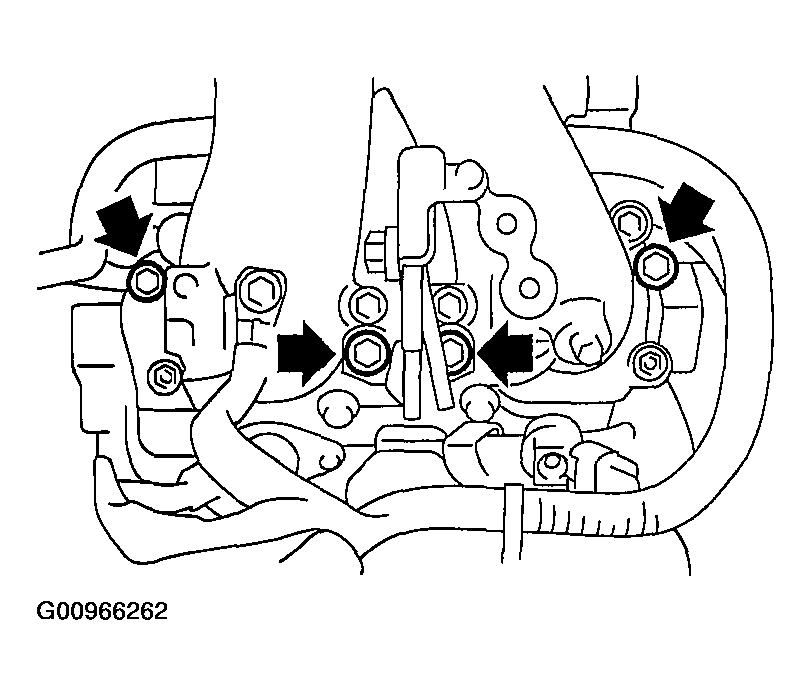

    Fig 1: Intake Manifold Onto Cylinder Heads
    G00966262Courtesy of SUBARU OF AMERICA, INC.
  2. Connect the fuel delivery hose, return hose and evaporation hose.

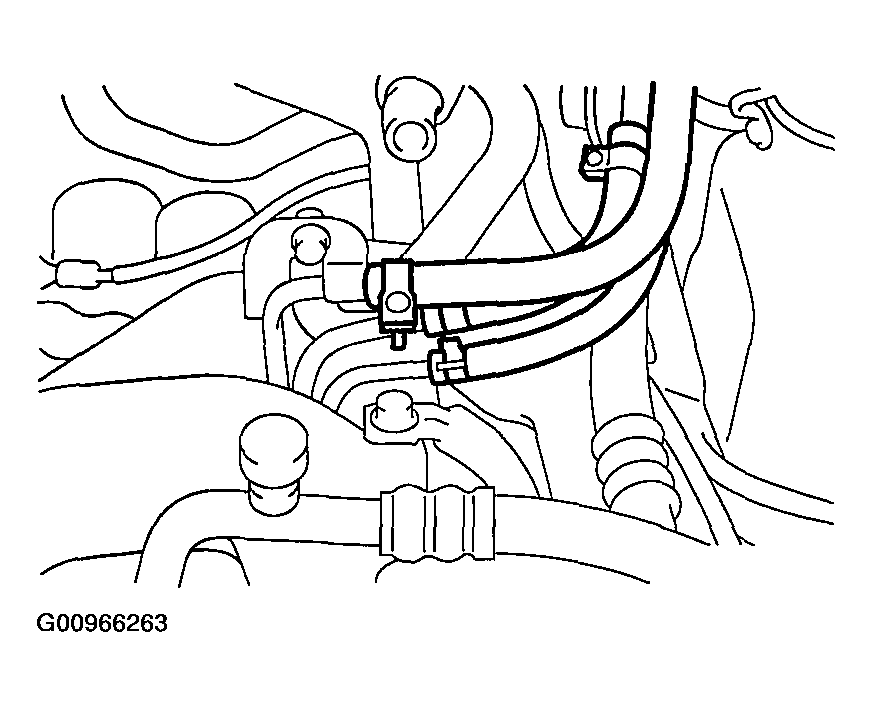

    Fig 2: Identifying Fuel Delivery Hose
    G00966263Courtesy of SUBARU OF AMERICA, INC.
  3. Connect the connectors to the oil pressure switch (B), crankshaft position sensor (C) and engine coolant temperature sensor (A).

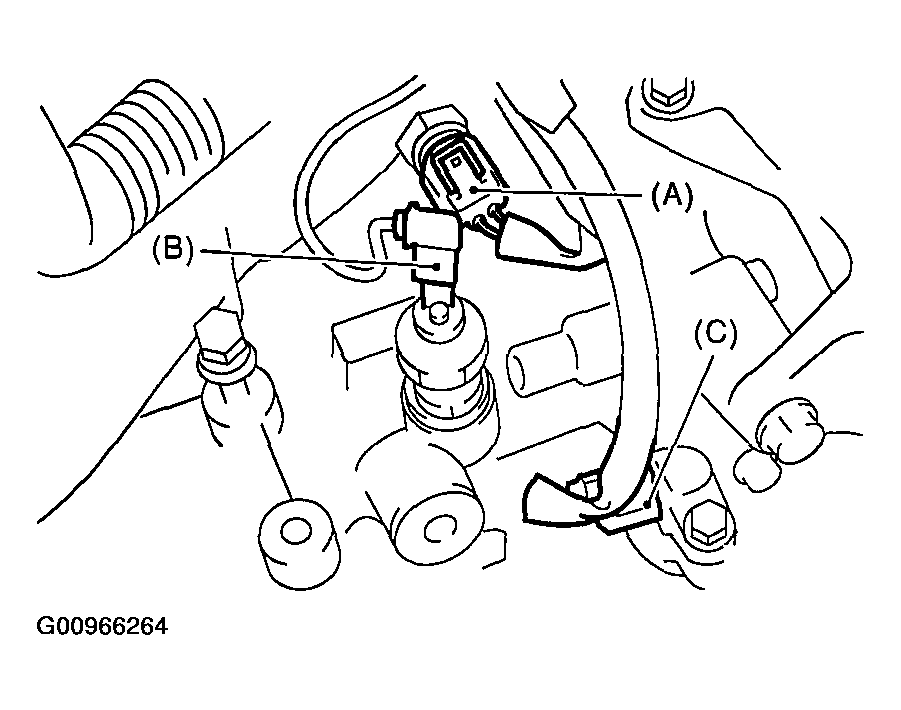

    Fig 3: Identifying Components
    G00966264Courtesy of SUBARU OF AMERICA, INC.
  4. Connect the connectors to the knock sensor.

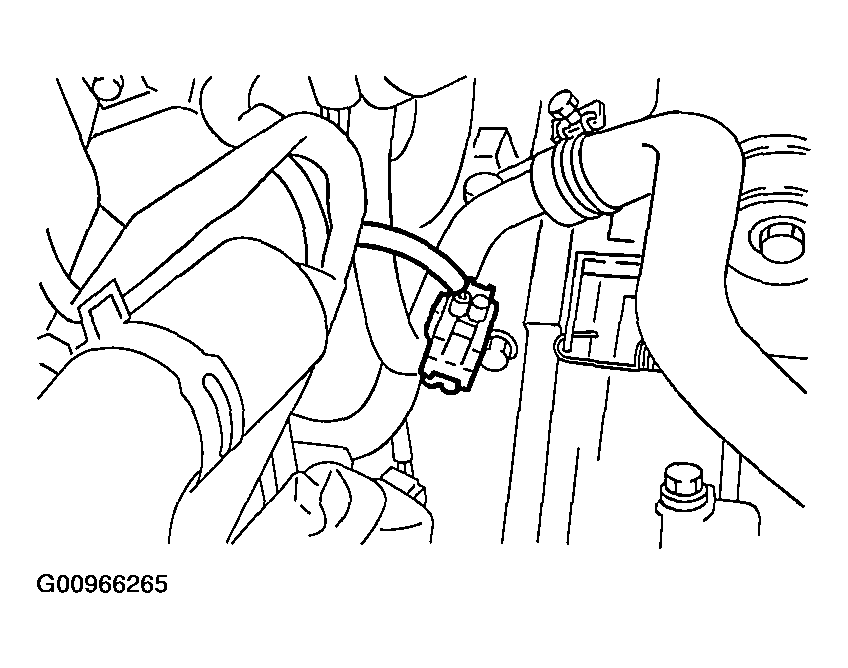

    Fig 4: Identifying Knock Sensor
    G00966265Courtesy of SUBARU OF AMERICA, INC.
  5. Connect the connectors to the camshaft position sensor.

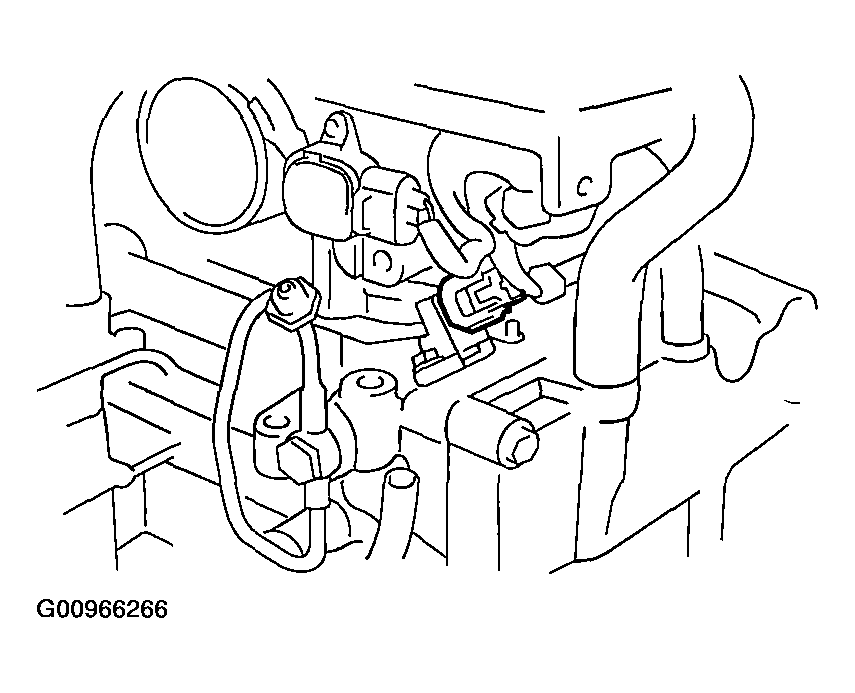

    Fig 5: Identifying Camshaft Position Sensor
    G00966266Courtesy of SUBARU OF AMERICA, INC.

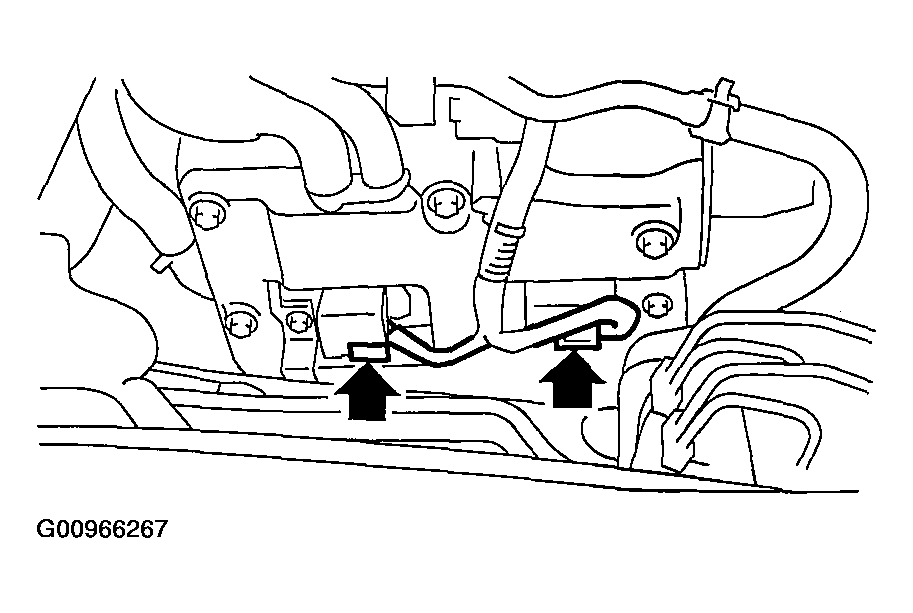

  6. Connect the connectors to the ignition coil.
    Fig 6: Identifying Ignition Coil
    G00966267Courtesy of SUBARU OF AMERICA, INC.
  7. Connect the engine harness with clip (A) to the bracket.
    • RH SIDE

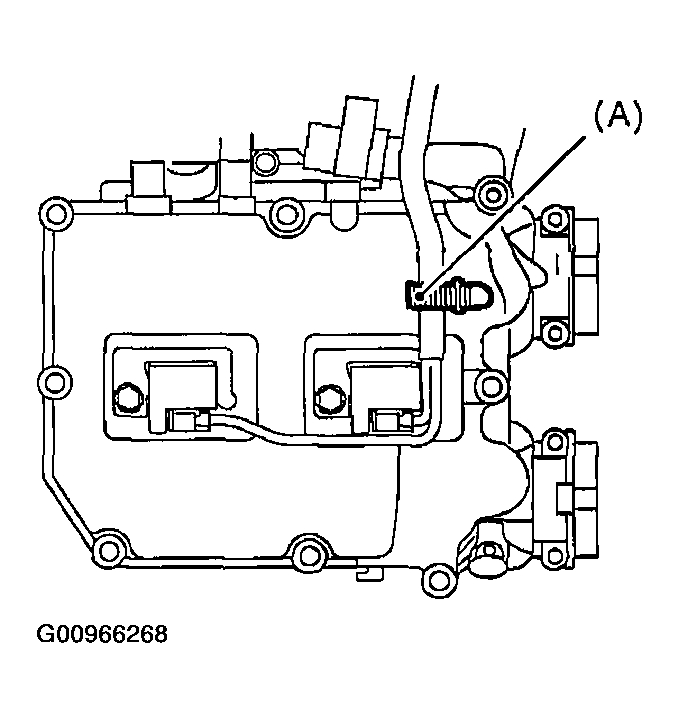

      Fig 7: Identifying Engine Harness (RH Side)
      G00966268Courtesy of SUBARU OF AMERICA, INC.
    • LH SIDE

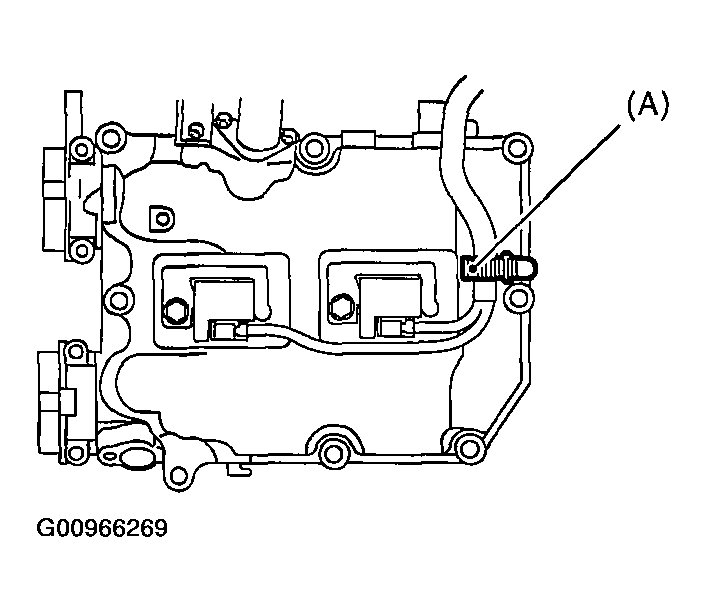

      Fig 8: Identifying Engine Harness (LH Side)
      G00966269Courtesy of SUBARU OF AMERICA, INC.
  8. Connect the engine harness connectors to the bulkhead harness connectors.

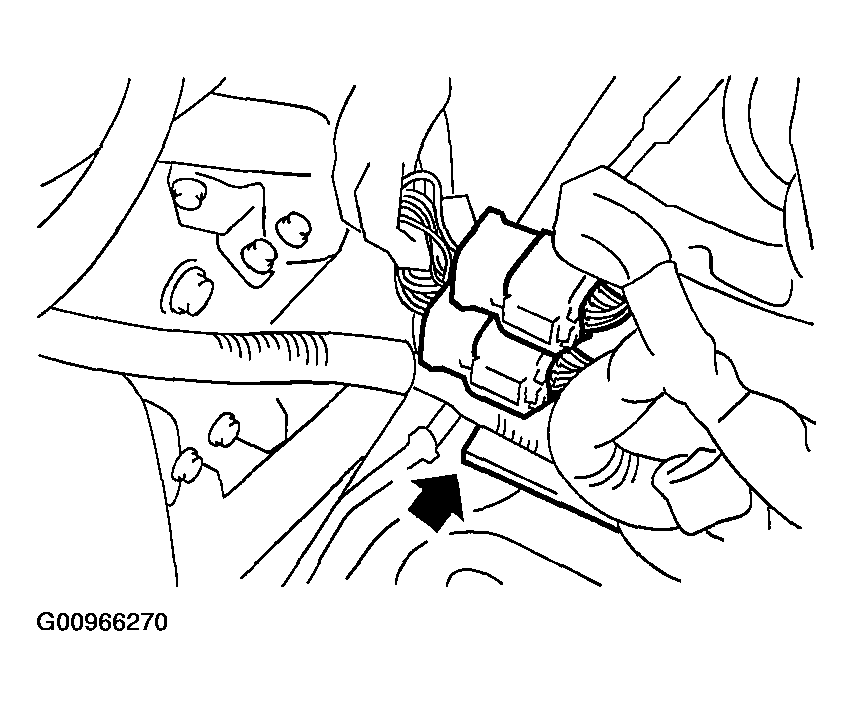

    Fig 9: Identifying Engine Harness Connectors (1 Of 2)
    G00966270Courtesy of SUBARU OF AMERICA, INC.
