2004 Subaru Forester XT, AutomaticFACTORY OEM SERVICE PROCEDURE

Fuel filler Pipe: Assembly

Install the shut valve on the fuel filler pipe. < Ref. to INSTALLATION , Shut Valve . >
Connect the evaporation hose to the fuel filler pipe.

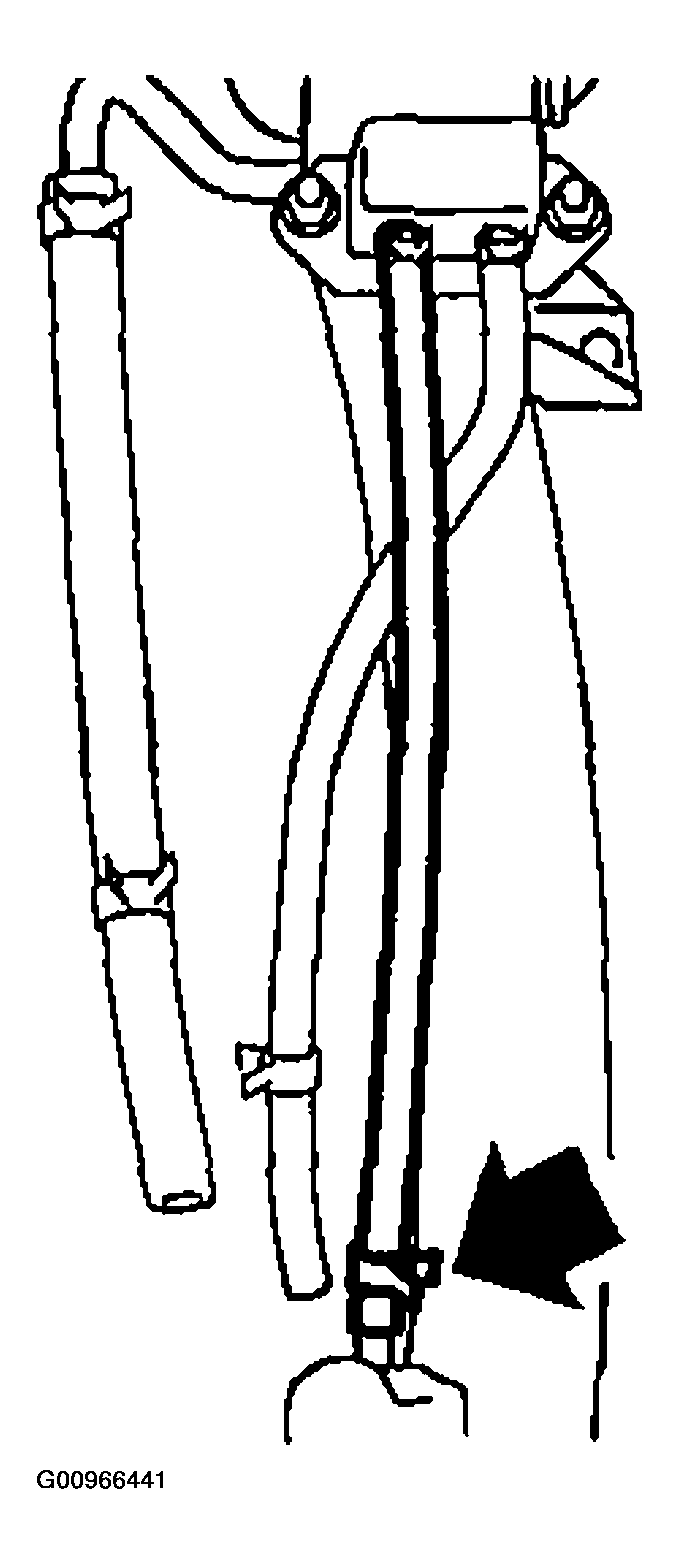

Fig 1: Identifying Fuel Filler Pipe
Courtesy of SUBARU OF AMERICA, INC.
Connect the evaporation hose to the evaporation pipe.

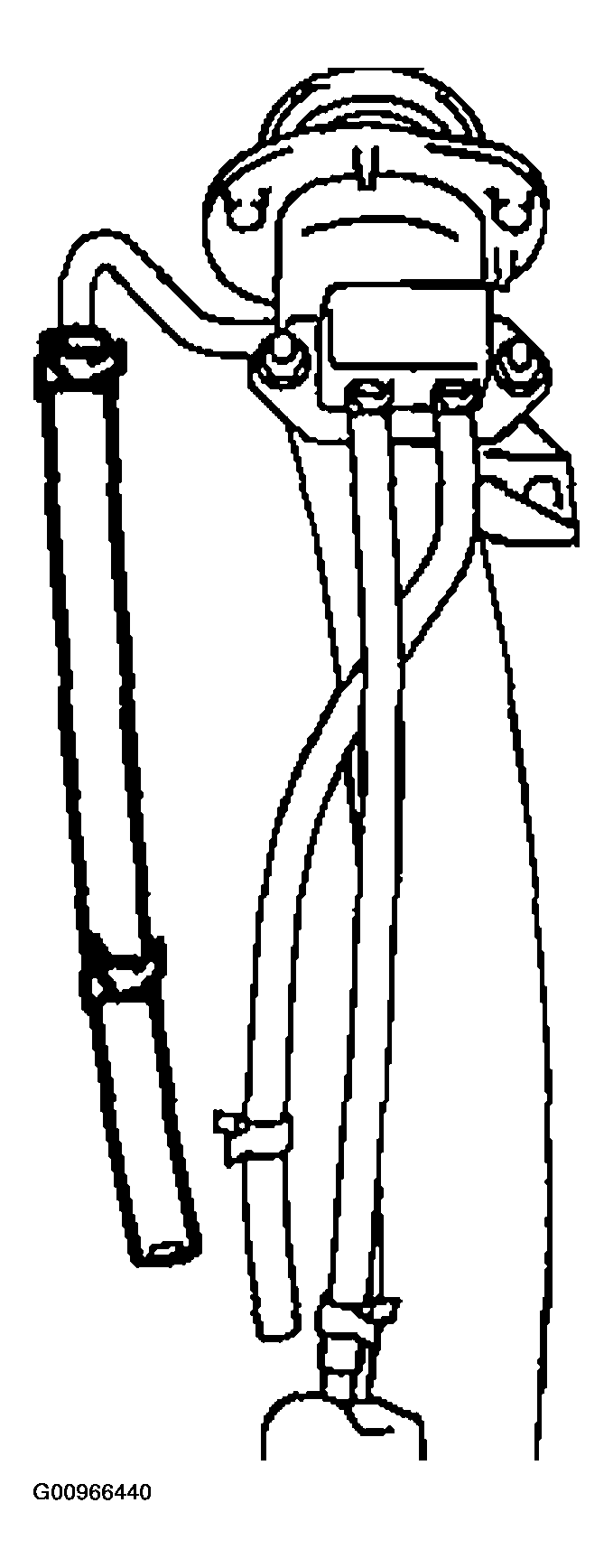

Fig 2: Identifying Evaporation Pipe
Courtesy of SUBARU OF AMERICA, INC.
Install the evaporation pipe to the fuel filler pipe.

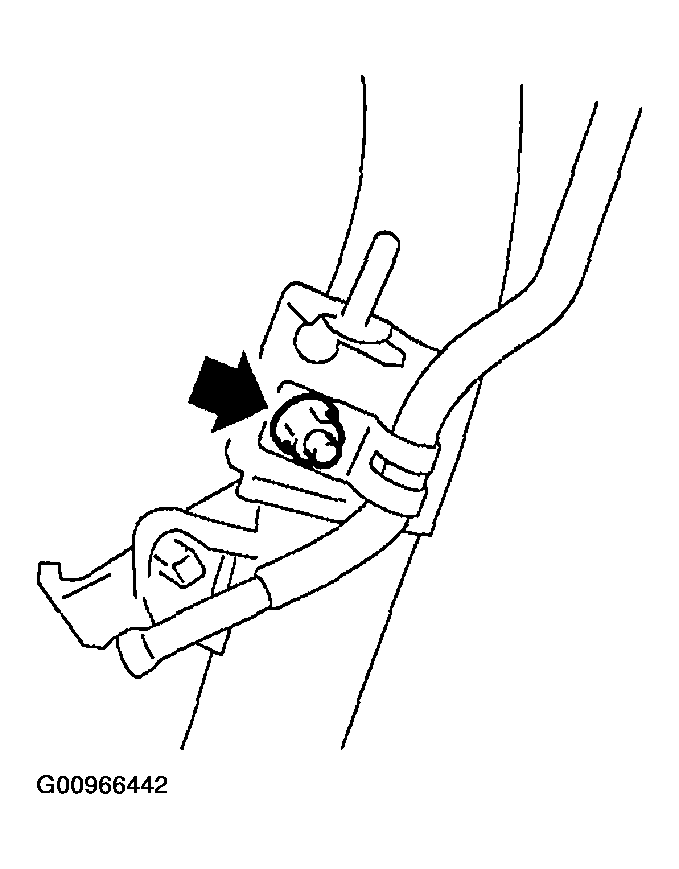

Fig 3: Identifying Fuel Filler Pipe
Courtesy of SUBARU OF AMERICA, INC.
