2004 Subaru Forester XT, AutomaticFACTORY OEM SERVICE PROCEDURE

Fuel Injector: Removal

RH SIDE
1. Release the fuel pressure. < Ref. to RELEASING OF FUEL PRESSURE , Fuel . >
2. Open the fuel filler flap lid and remove the fuel filler cap.
3. Disconnect the ground cable from battery.

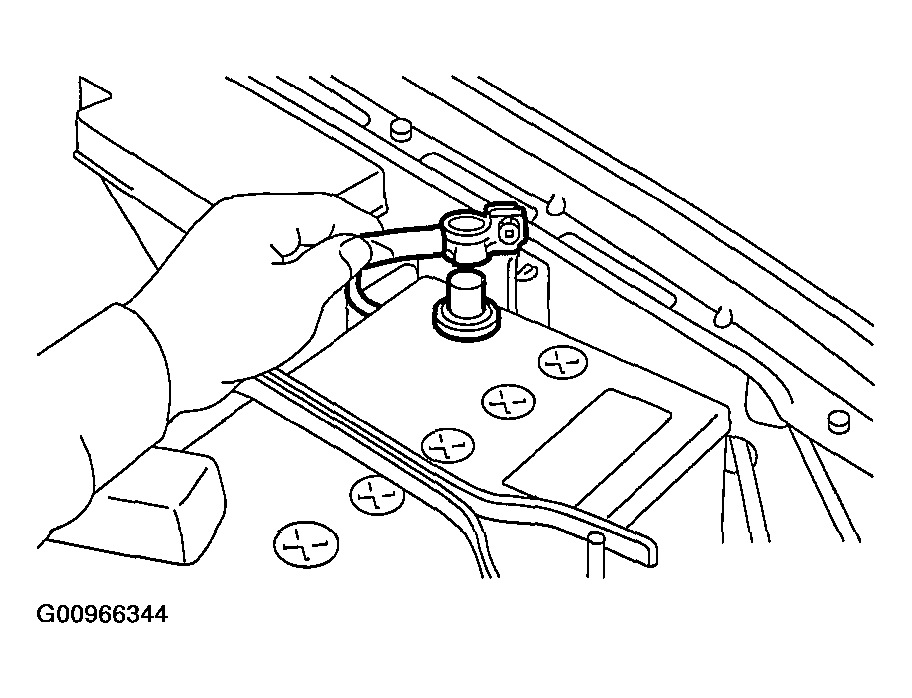

  Fig 1: Disconnecting Ground Cable From Battery
  Courtesy of SUBARU OF AMERICA, INC.
4. Remove the fuel pipe protector RH.

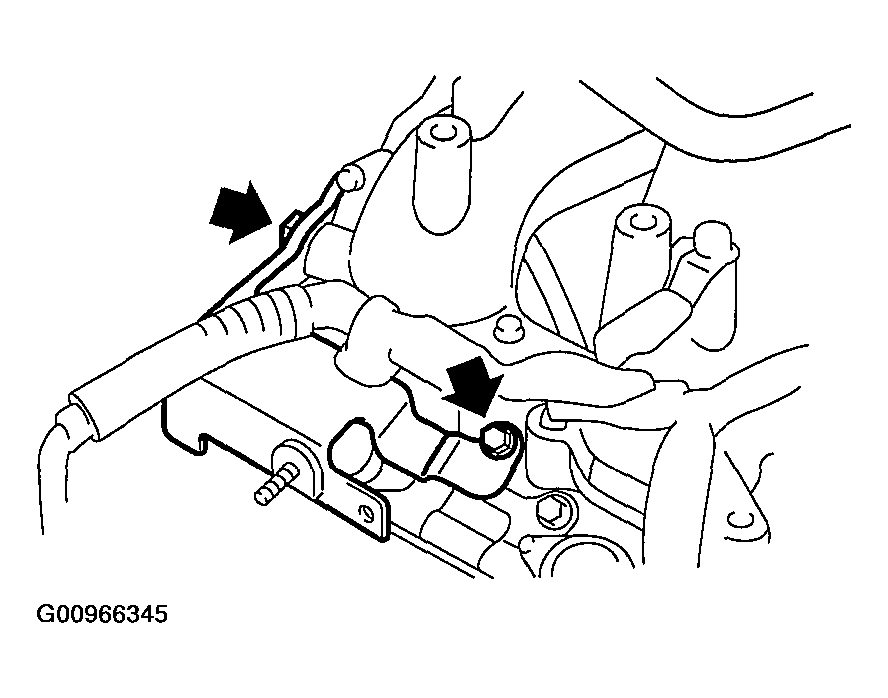

  Fig 2: Identifying Fuel Pipe Protector RH
  Courtesy of SUBARU OF AMERICA, INC.
5. Disconnect the connector from the fuel injector.
6. Remove the screw and remove the fuel injector.

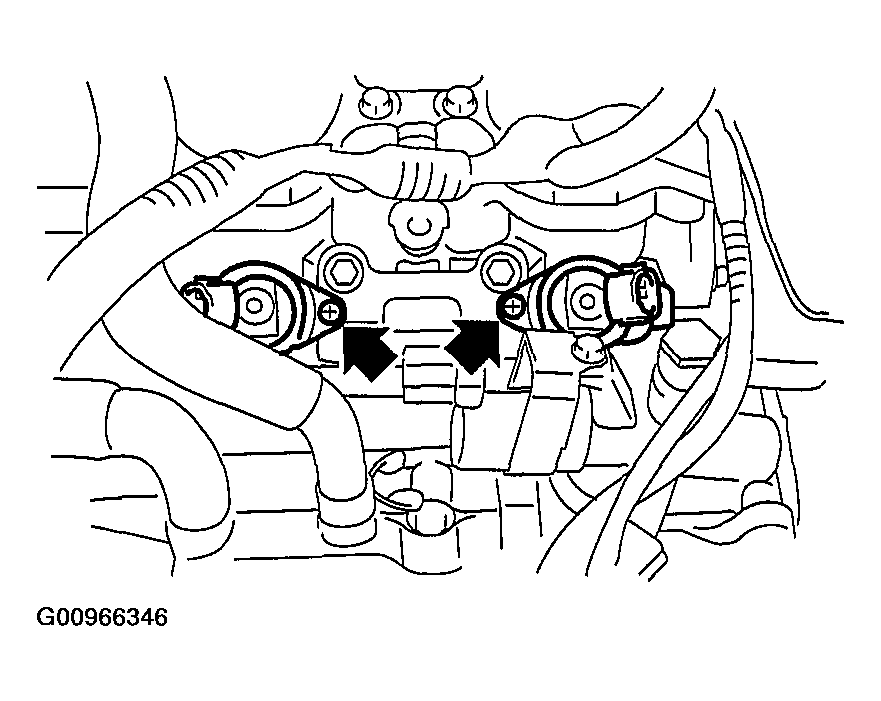

  Fig 3: Identifying Fuel Injector
  Courtesy of SUBARU OF AMERICA, INC.
LH SIDE
1. Release the fuel pressure. < Ref. to RELEASING OF FUEL PRESSURE , Fuel . >
2. Open the fuel filler flap lid and remove the fuel filler cap.
3. Disconnect the ground cable from battery.

  Fig 4: Disconnecting Ground Cable From Battery
  Courtesy of SUBARU OF AMERICA, INC.
4. Remove the intake manifold. < Ref. to REMOVAL , Intake Manifold . >
5. Disconnect the connector from the fuel injector.
6. Remove the screw and remove the fuel injector.

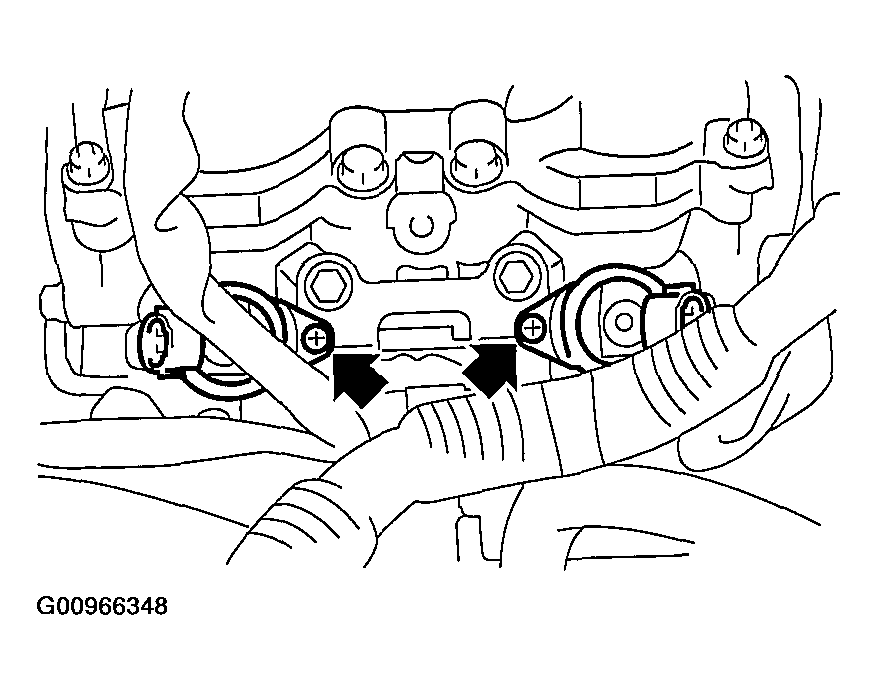

  Fig 5: Identifying Fuel Injector (LH Side)
  Courtesy of SUBARU OF AMERICA, INC.
