2004 Subaru Forester XT, AutomaticFACTORY OEM SERVICE PROCEDURE
Engine Control Module (ECM): Removal

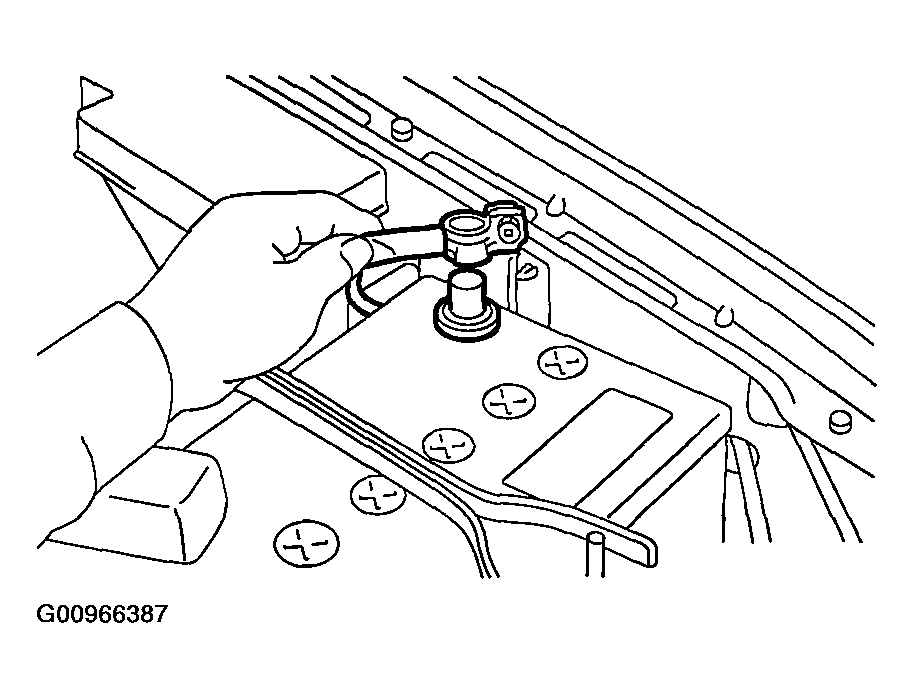

- Disconnect the ground cable from battery.
- Remove the lower inner trim of the passenger side. < Ref. to REMOVAL , Lower Inner Trim . >
- Detach the floor mat of the front passenger seat.

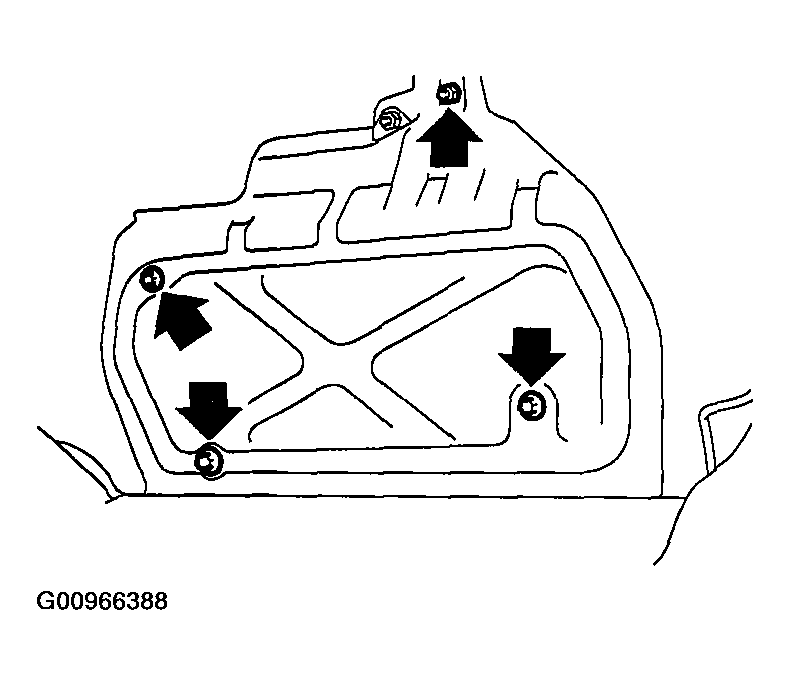

- Remove the protect cover.

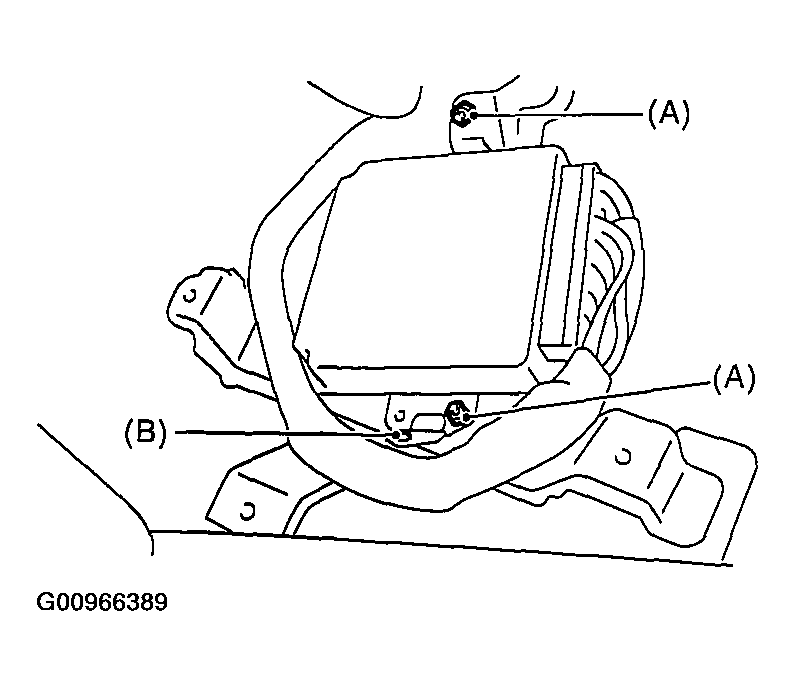

- Remove the nuts (A) which hold ECM to the bracket.
- Remove the clip (B) from the bracket.
- Disconnect the ECM connectors and take out the ECM.
