2004 Subaru Forester XT, AutomaticFACTORY OEM SERVICE PROCEDURE

Crankshaft Position Sensor: Removal

Disconnect the ground cable from battery.

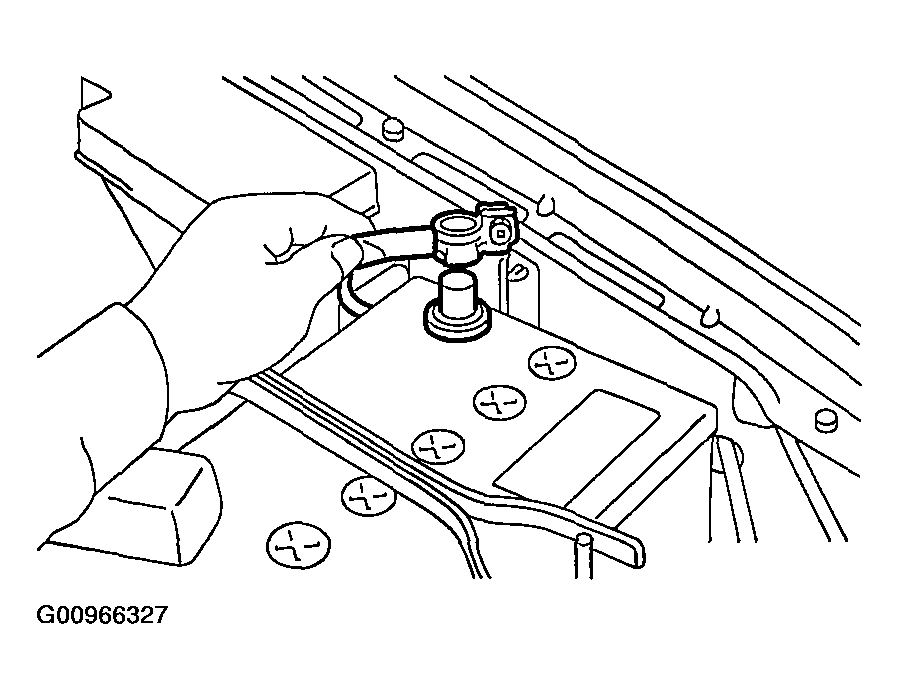

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolt which installs the crankshaft position sensor to cylinder block.

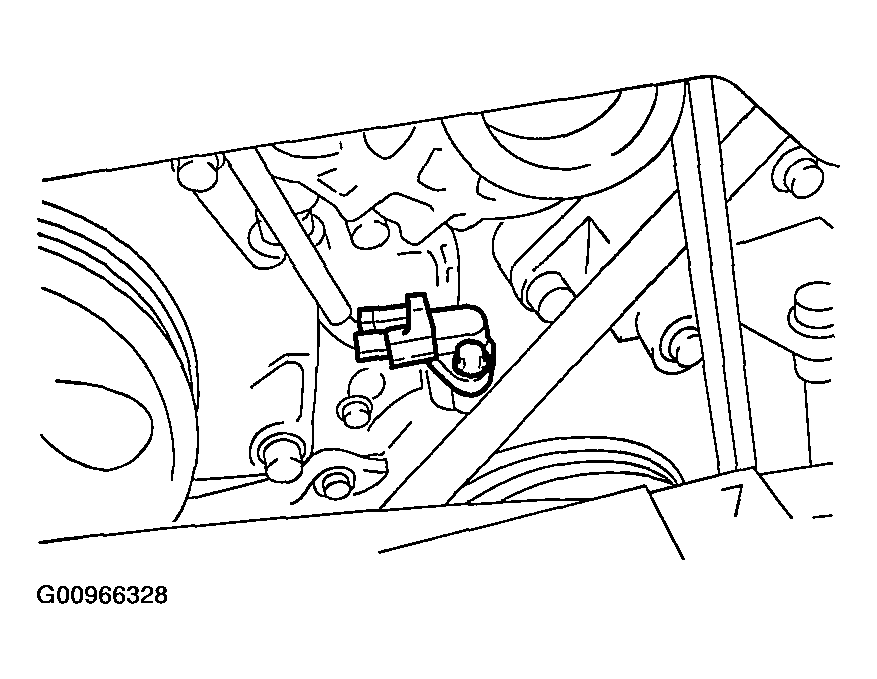

Fig 2: Identifying Cylinder Block
Courtesy of SUBARU OF AMERICA, INC.
Remove the crankshaft position sensor, and disconnect the connector from it.

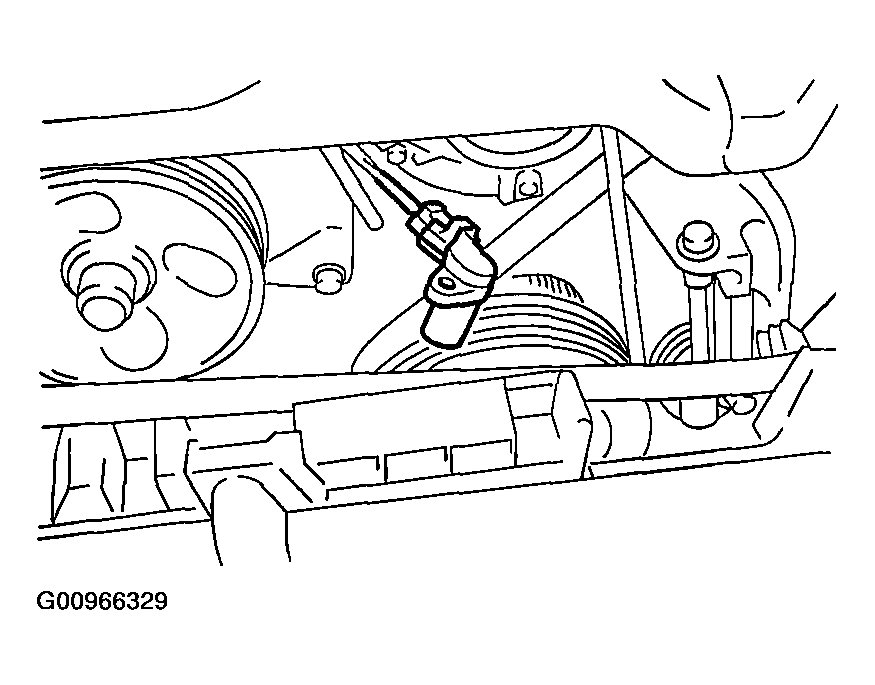

Fig 3: Identifying Crankshaft Position Sensor
Courtesy of SUBARU OF AMERICA, INC.
