Throttle Position Sensor: Adjustment
- When using voltage meter:
- Turn the ignition switch to OFF.

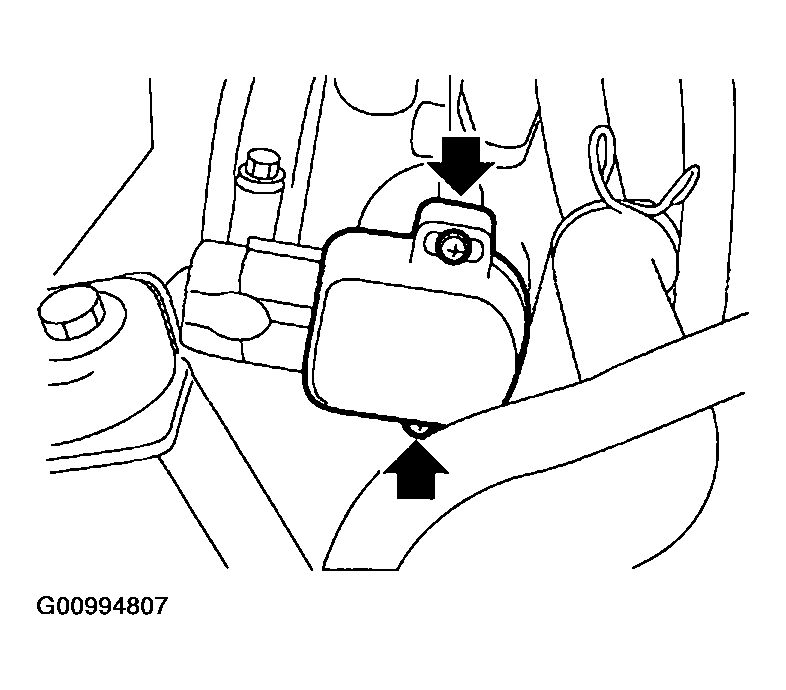

- Loosen the throttle position sensor holding screws.
- Turn the ignition switch to ON.
- Adjust the throttle position sensor to the proper position to allow the voltage signal to the ECM to be in specification.

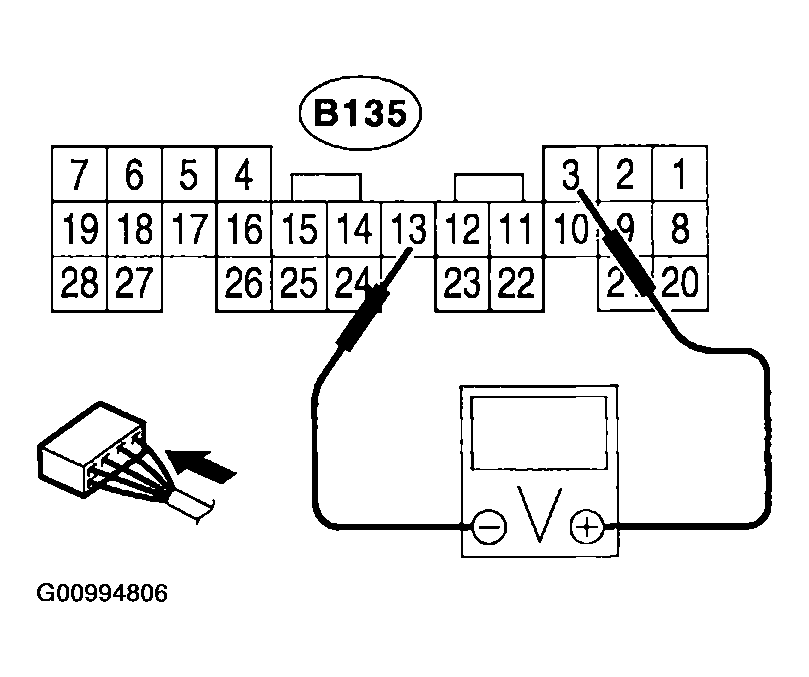

Connector & terminal / Specified voltage (B135) No. 3 (+) - No. 13 (-) / 0.45 - 0.55 V [Fully closed.]
- Tighten the throttle position sensor holding screws.
Tightening torque: 1.6 N.m (0.16 kgf-m, 1.2 ft-lb)
- When using SUBARU Select Monitor:
- Turn the ignition switch to OFF.

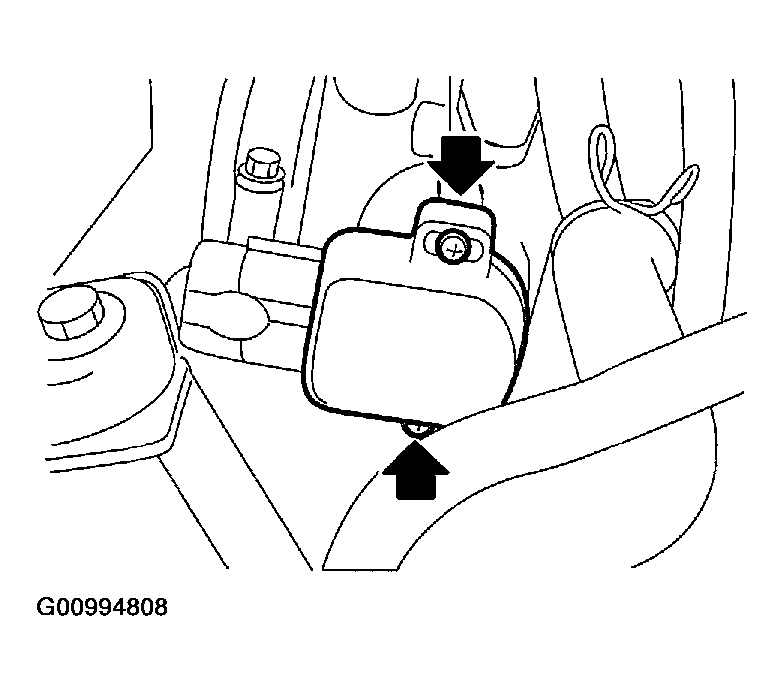

- Loosen the throttle position sensor holding screws.
