Intake Manifold: Assembly
- Install the fuel pipe assembly and pressure regulator, etc. to the intake manifold.

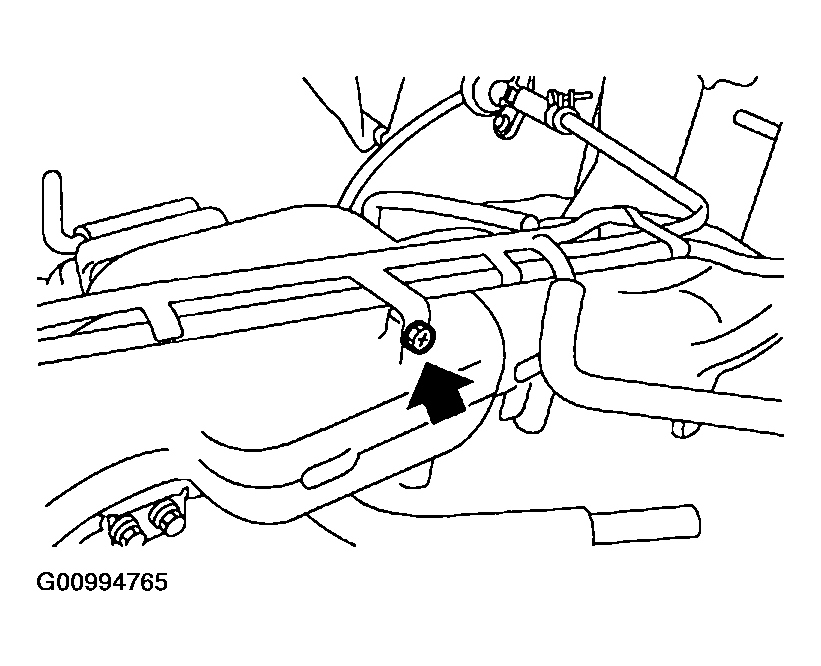

- Tighten the bolt which installs the fuel pipes on the intake manifold.
Tightening torque: 5.0 N.m (0.51 kgf-m, 3.7 ft-lb)

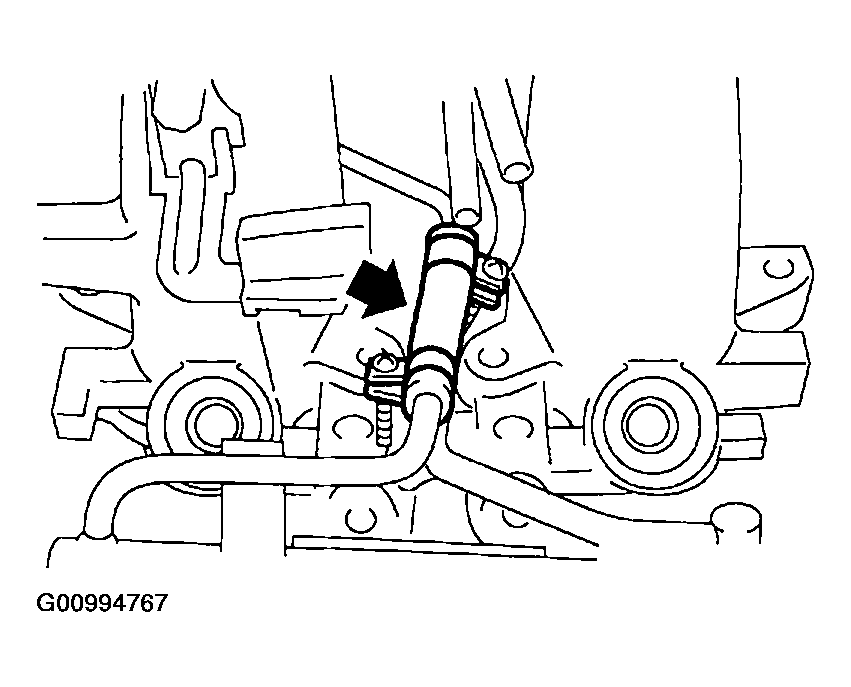

- Connect the right side fuel hose to the injector pipe, and tighten the clamp screw.
- Install the fuel injector pipe.

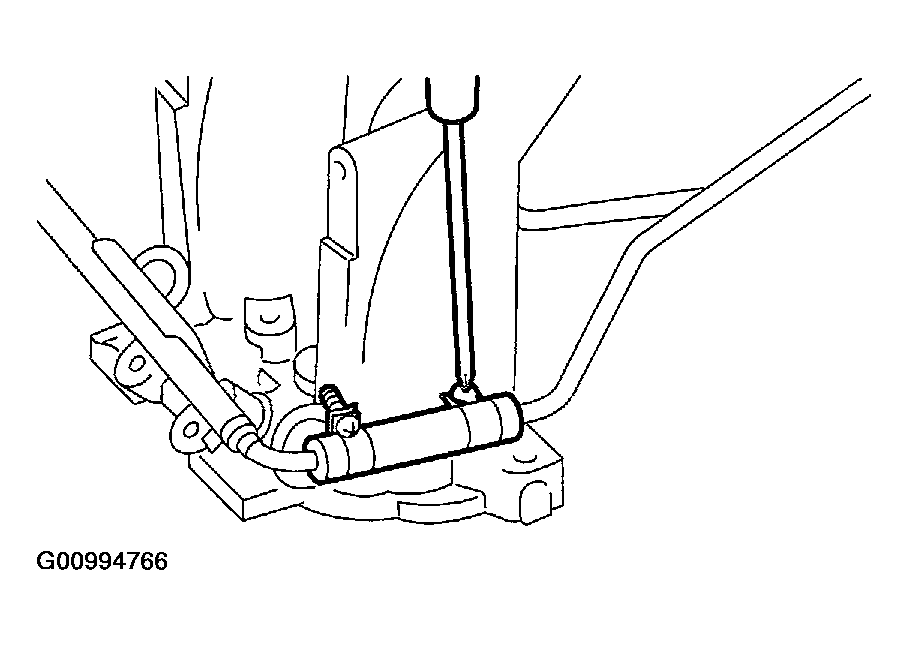

- Connect the left side fuel hose to the injector pipe, and tighten the clamp screw.

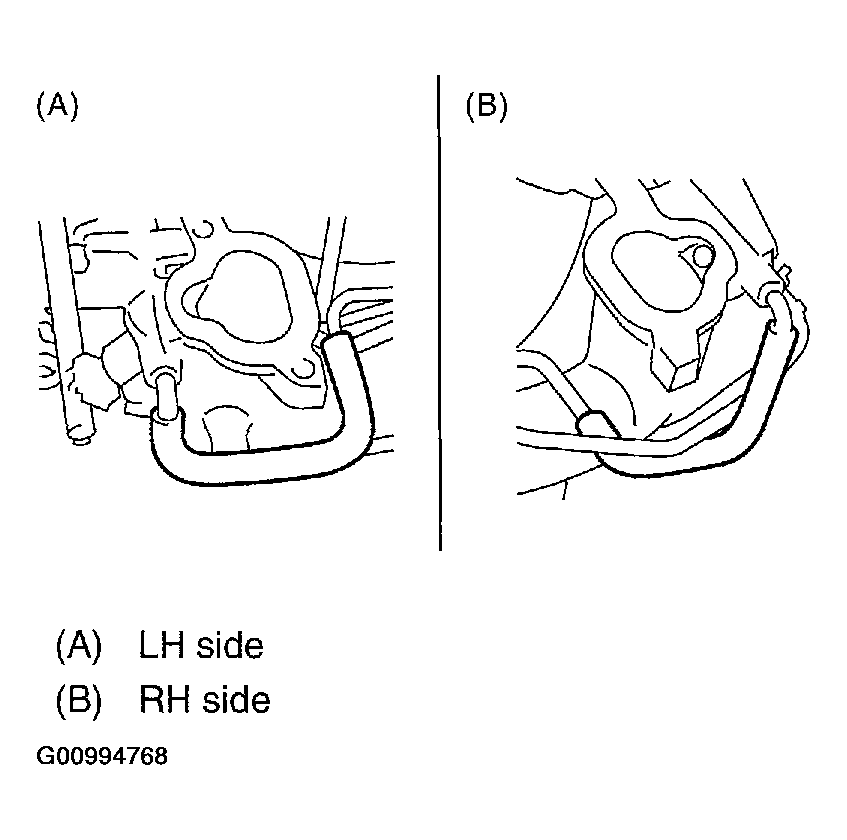

- Connect the air assist hoses.
- Install the fuel injectors.NOTE: Replace the O-rings with new ones.
