2004 Subaru Forester X, AutomaticFACTORY OEM SERVICE PROCEDURE

Draining Fuel

WARNING:

Place "NO FIRE" signs near the working area.
Be careful not to spill fuel on the floor.

Set the vehicle on the lift.
Disconnect the ground cable from battery.

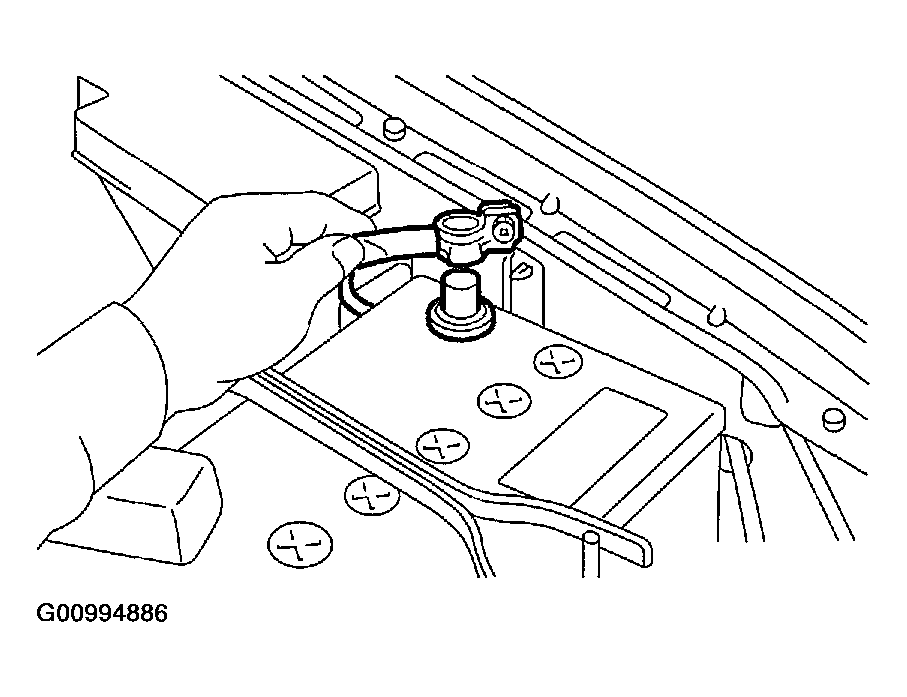

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Open the fuel filler flap lid, and then remove the fuel filler cap.
Lift-up the vehicle.
Drain the fuel from the fuel tank. Set a container under the vehicle and remove the drain plug from the fuel tank.

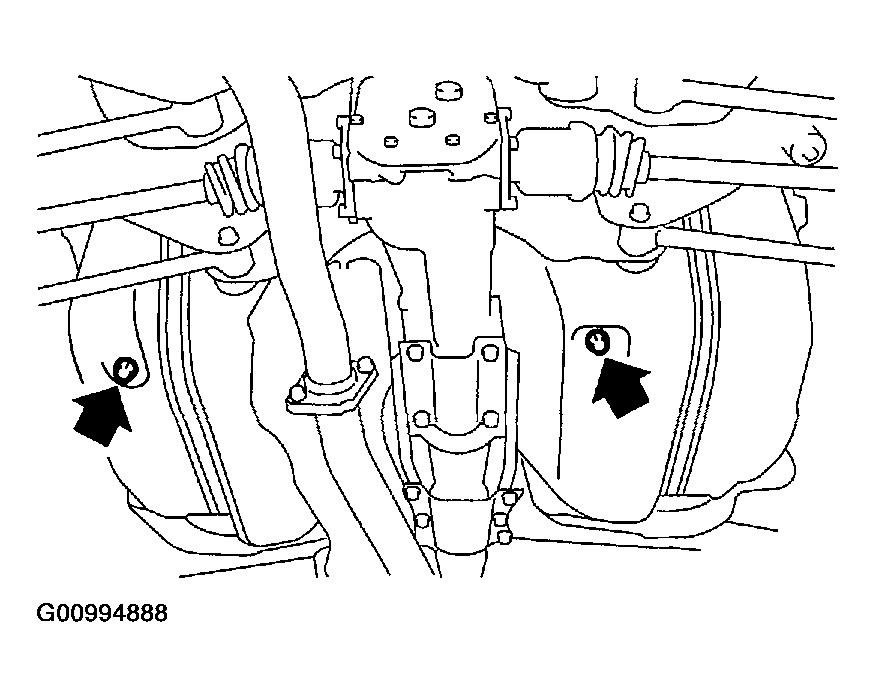

Fig 2: Identifying Drain Plug
Courtesy of SUBARU OF AMERICA, INC.
Tighten the fuel drain plug.
Tightening torque: 26 N.m (2.65 kgf-m, 19.2 ft-lb)

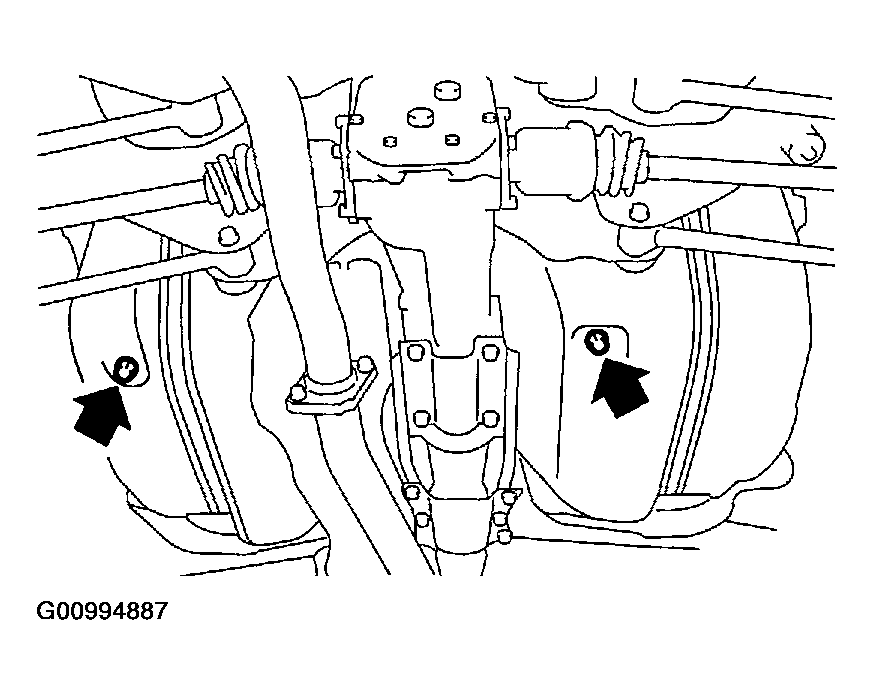

Fig 3: Tightening Fuel Drain Plug
Courtesy of SUBARU OF AMERICA, INC.
