Fuel Sub Level Sensor: Removal
- Place "NO FIRE" signs near the working area.
- Be careful not to spill fuel on the floor.

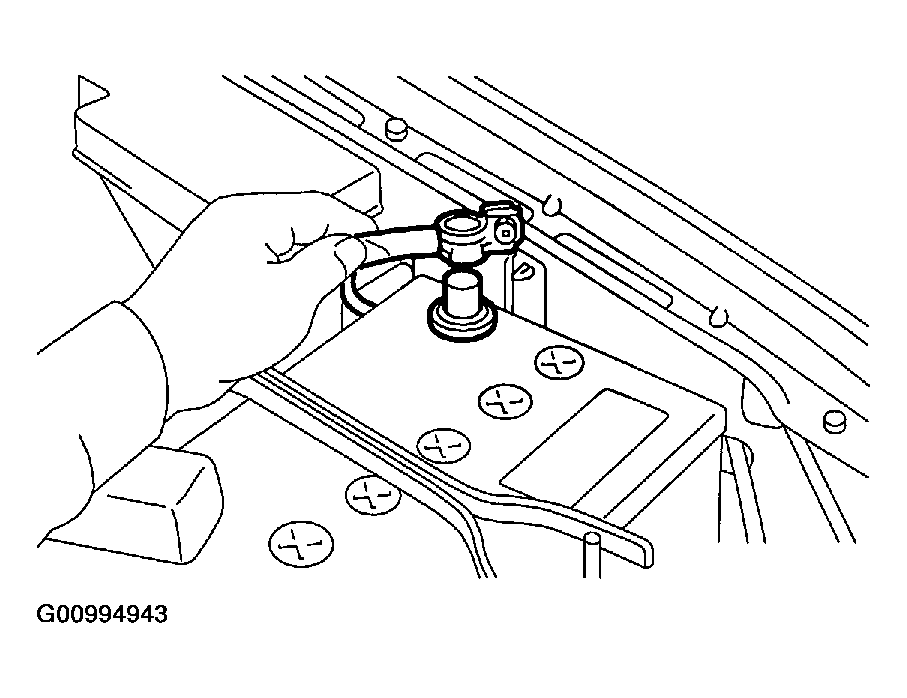

- Disconnect the ground cable from battery.
- Lift-up the vehicle.

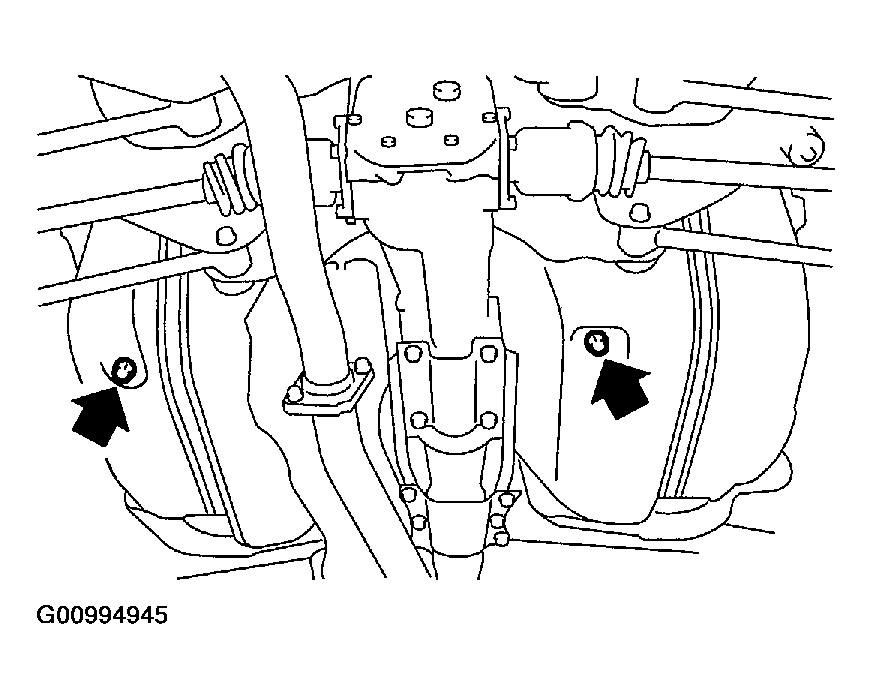

- Drain the fuel from the fuel tank. Set a container under the vehicle and remove the drain plug from the fuel tank.
- Tighten the fuel drain plug.
Tightening torque: 26 N.m (2.65 kgf-m, 19.2 ft-lb)
- Remove the rear seat.

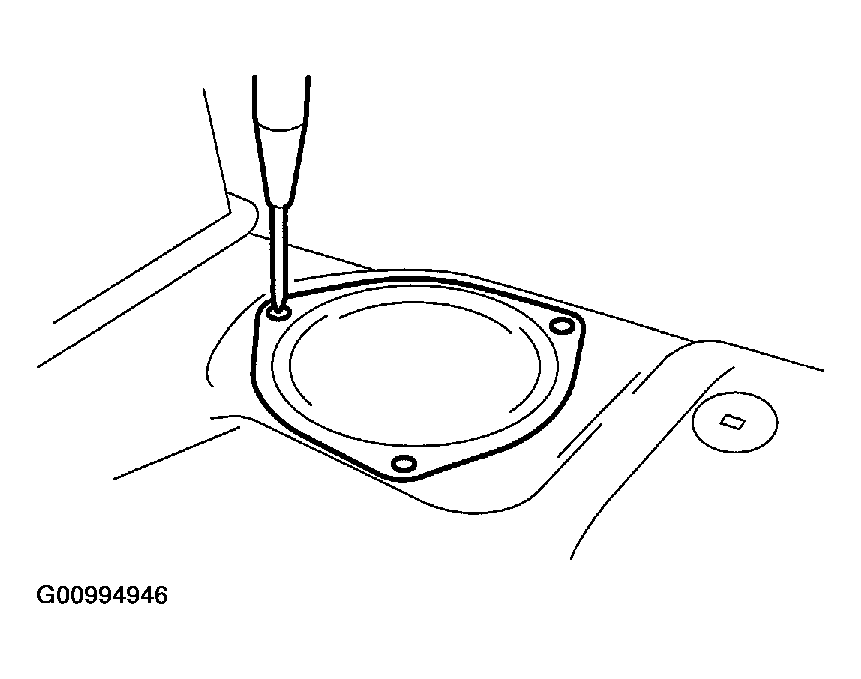

- Remove the service hole cover.

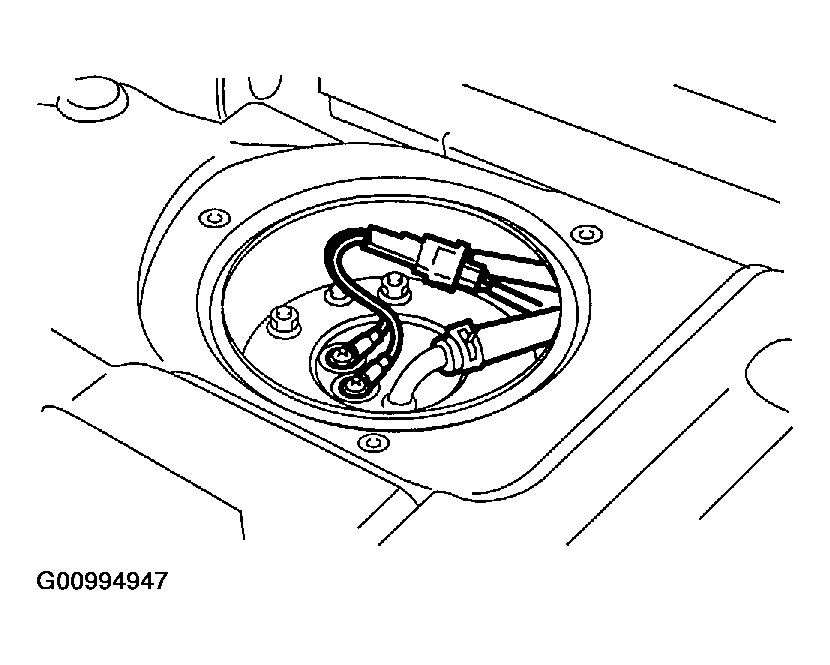

- Disconnect the connector from the fuel sub level sensor.
- Disconnect the fuel jet pump hose.

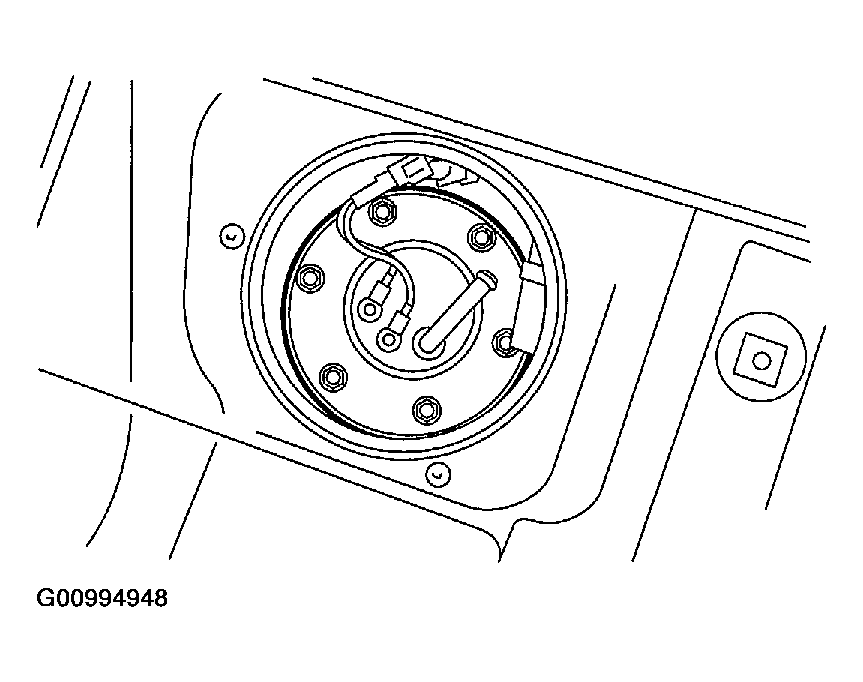

- Remove the bolts which install the fuel sub level sensor on the fuel tank.

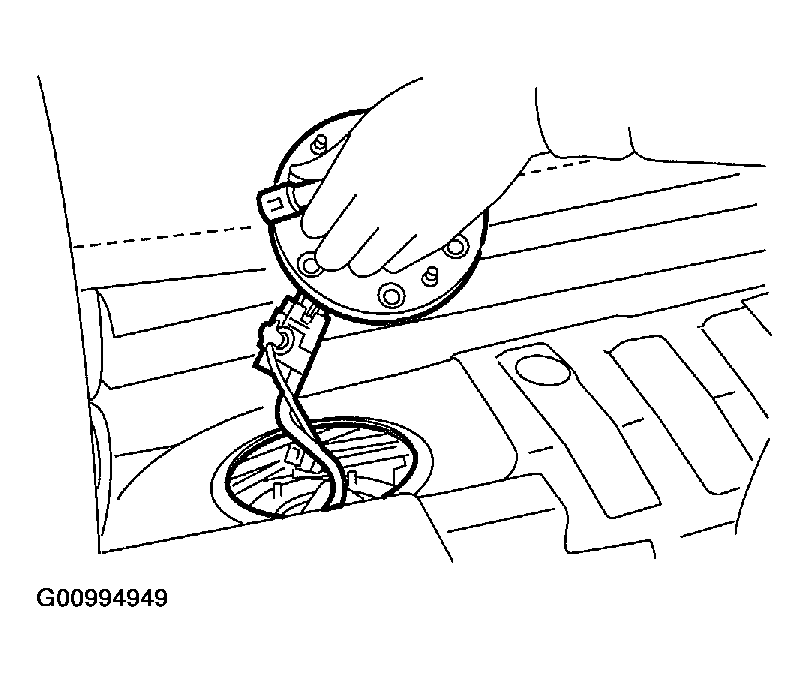

- Remove the fuel sub level sensor.
