RH Side

Refer to RELEASING OF FUEL PRESSURE , OPERATION, Fuel.

1. Remove the front side V-belt. Refer to REMOVAL REMOVAL, V-belt.
2. Remove the bolts which hold the power steering pipes onto the intake manifold protector.

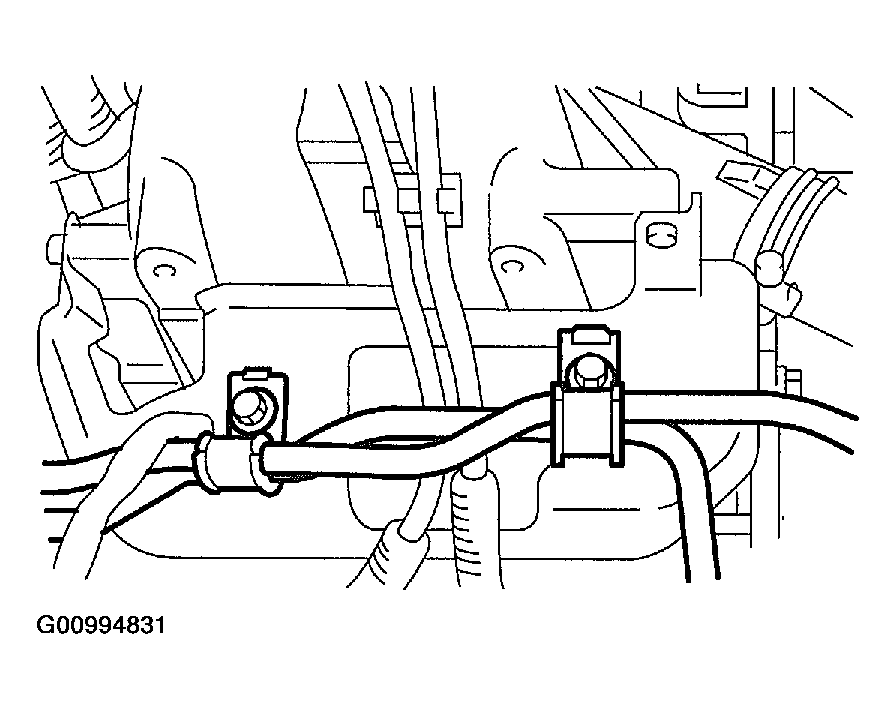

   Fig 3: Identifying Bolts & Power Steering Pipes

   Courtesy of SUBARU OF AMERICA, INC.
3. Remove the bolts which install the power steering pump to the bracket.

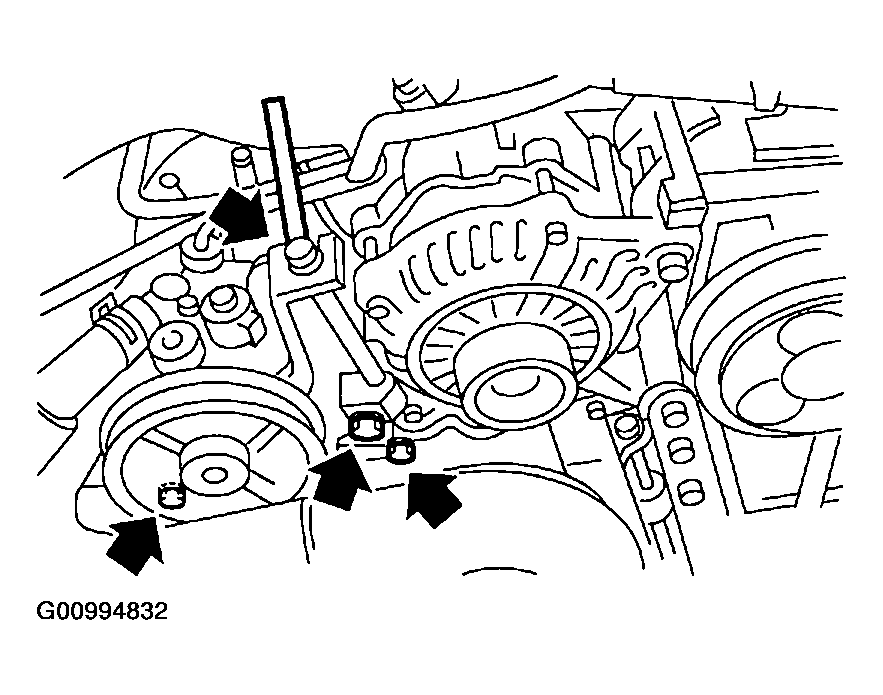

   Fig 4: Identifying Bolts & Power Steering Pump

   Courtesy of SUBARU OF AMERICA, INC.
4. Disconnect the connector from the power steering pump switch.

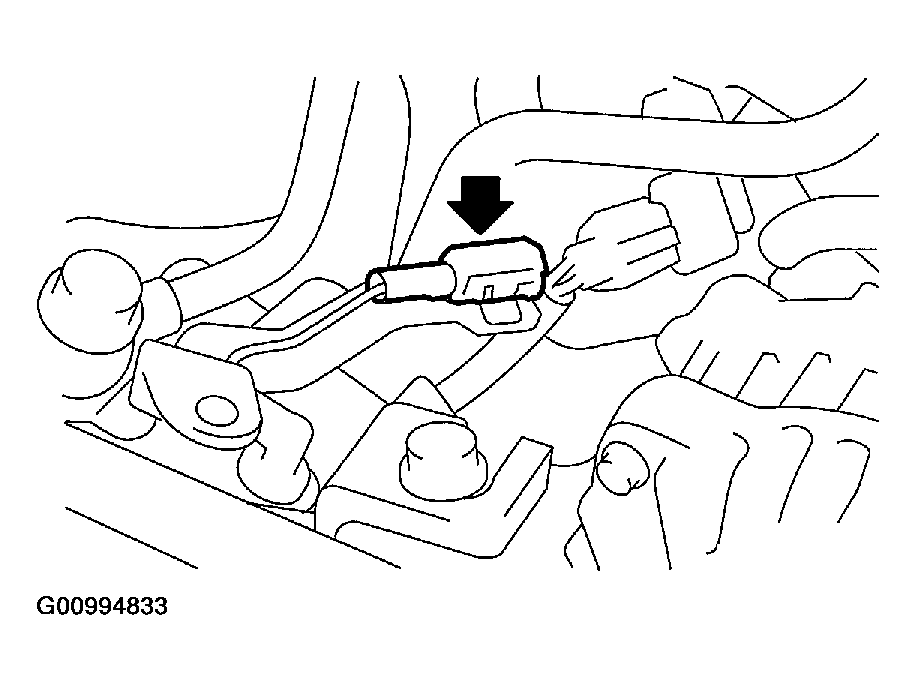

   Fig 5: Disconnecting Connector From Power Steering Pump Switch

   Courtesy of SUBARU OF AMERICA, INC.
5. Remove the power steering tank from the bracket by pulling it upwards.

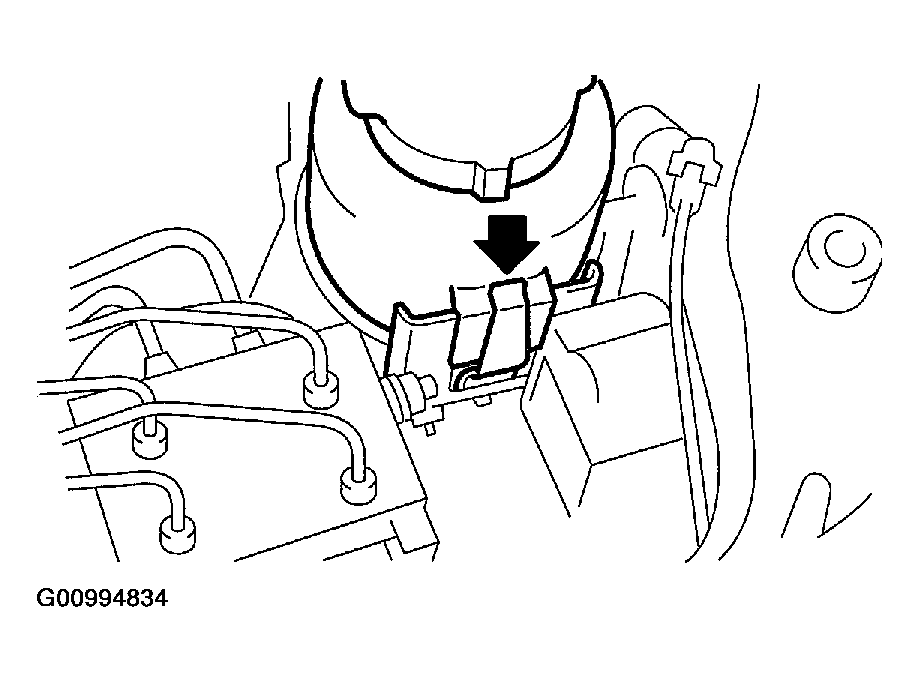

   Fig 6: Identifying Power Steering Tank

   Courtesy of SUBARU OF AMERICA, INC.
6. Place the power steering pump and reservoir tank on the right side wheel apron.

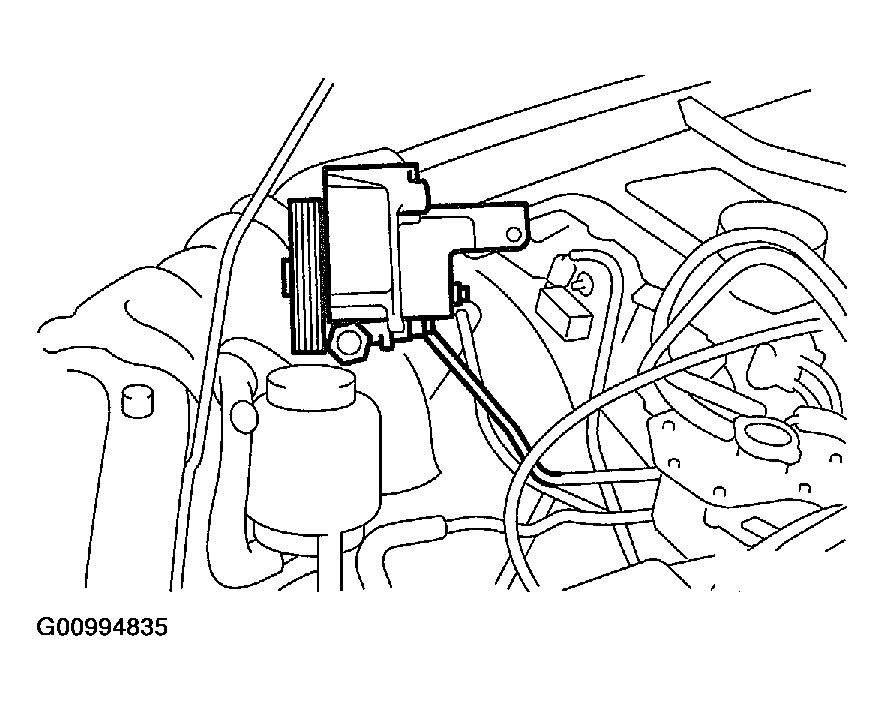

   Fig 7: Placing Power Steering Pump & Reservoir Tank On Right Side Wheel Apron

   Courtesy of SUBARU OF AMERICA, INC.
7. Remove the fuel pipe protector RH.

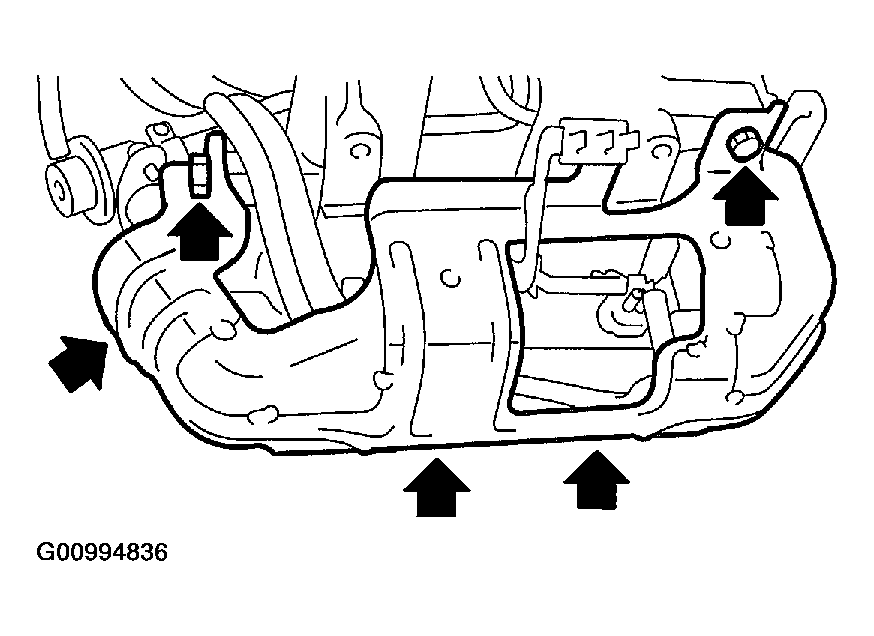

   Fig 8: Identifying Fuel Pipe Protector RH

   Courtesy of SUBARU OF AMERICA, INC.

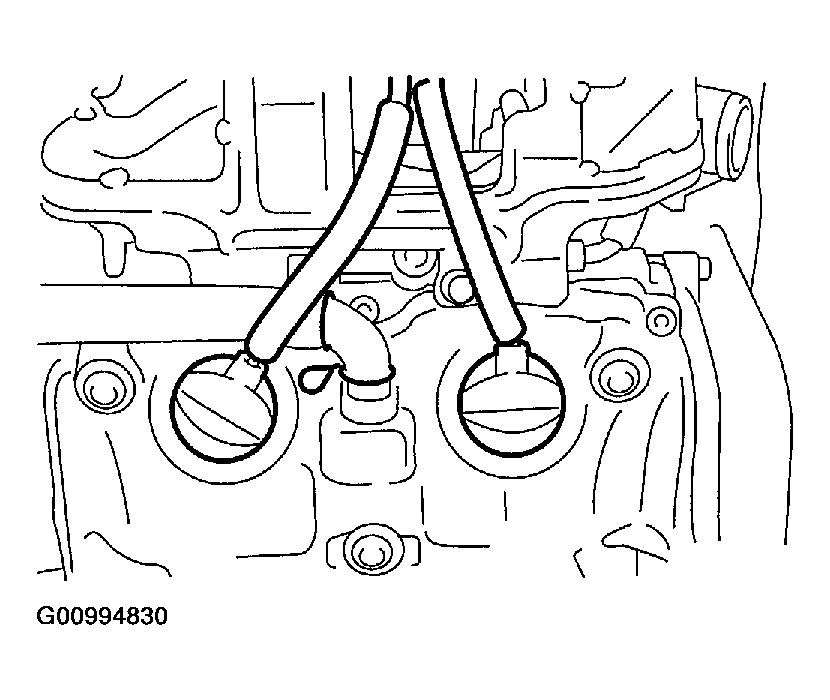

8. Disconnect the connector from fuel injector.

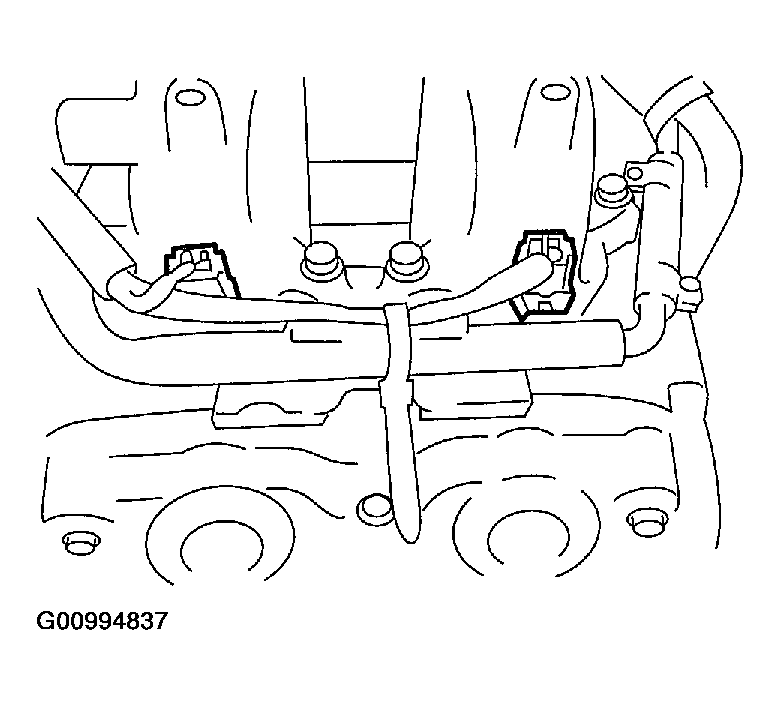

   Fig 9: Disconnecting Connector From Fuel Injector

   Courtesy of SUBARU OF AMERICA, INC.
9. Remove the bolt which holds the injector pipe to the intake manifold.

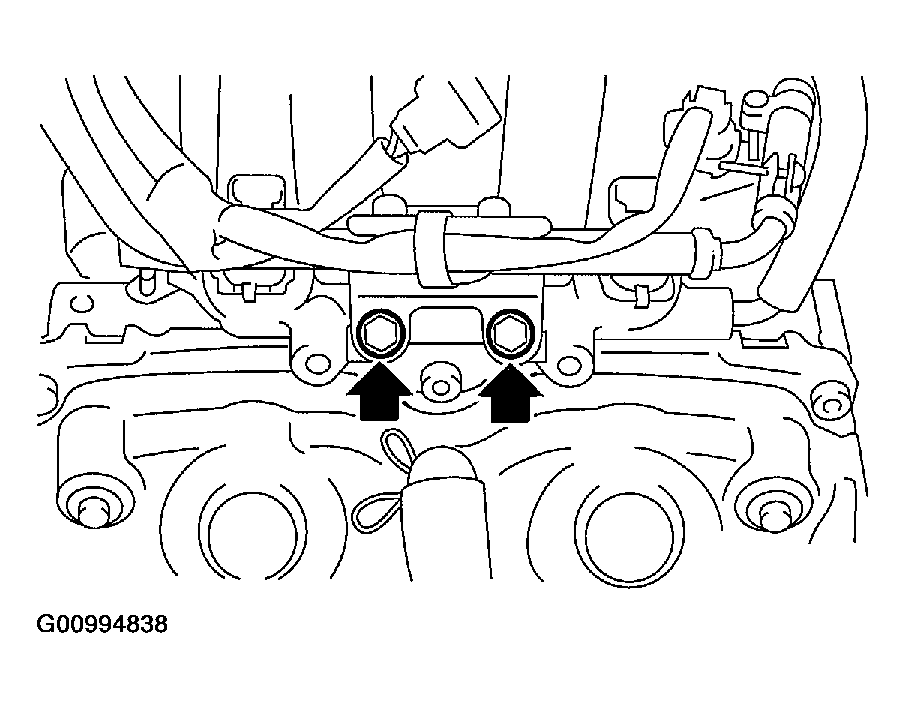

   Fig 10: Identifying Bolt & Injector Pipe (1 Of 2)

   Courtesy of SUBARU OF AMERICA, INC.
