2004 Subaru Forester X, AutomaticFACTORY OEM SERVICE PROCEDURE

LH Side

  1. Release the fuel pressure. Refer to RELEASING OF FUEL PRESSURE , OPERATION, Fuel.
  2. Open the fuel filler flap lid, and remove the fuel filler cap.
  3. Disconnect the ground cable from battery.

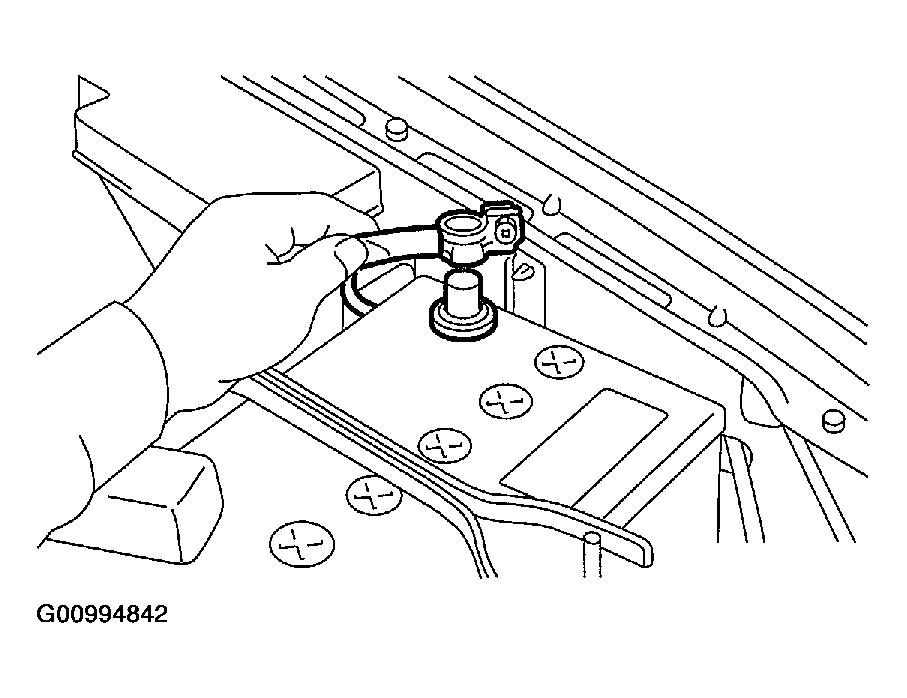

    Fig 1: Disconnecting Ground Cable From Battery
    G00994842Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the two bolts which install the washer tank on the body.

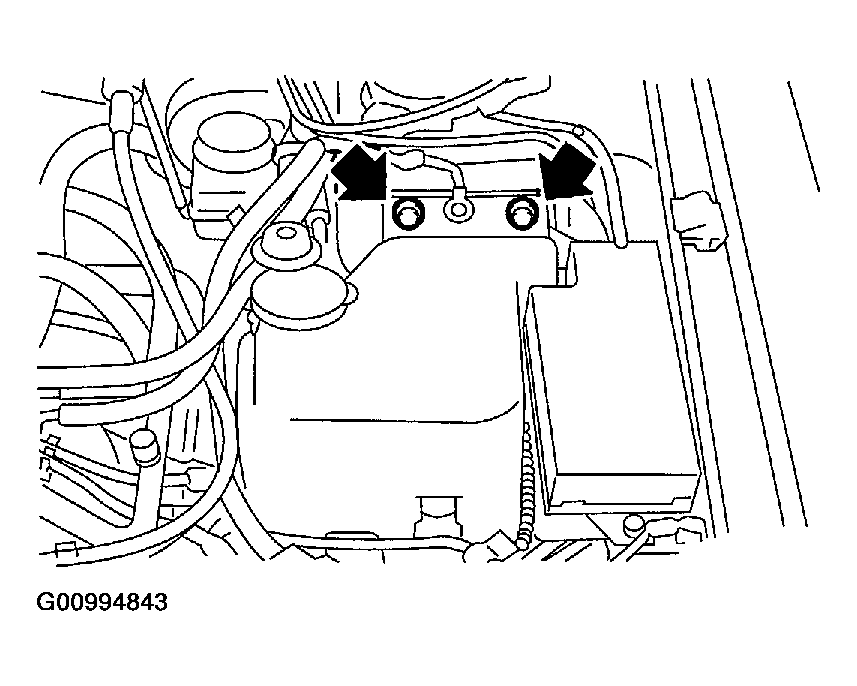

    Fig 2: Identifying Bolts & Washer Tank
    G00994843Courtesy of SUBARU OF AMERICA, INC.
  5. Disconnect the connector from the front window washer motor.
  6. Disconnect the connector from the rear gate glass washer motor.

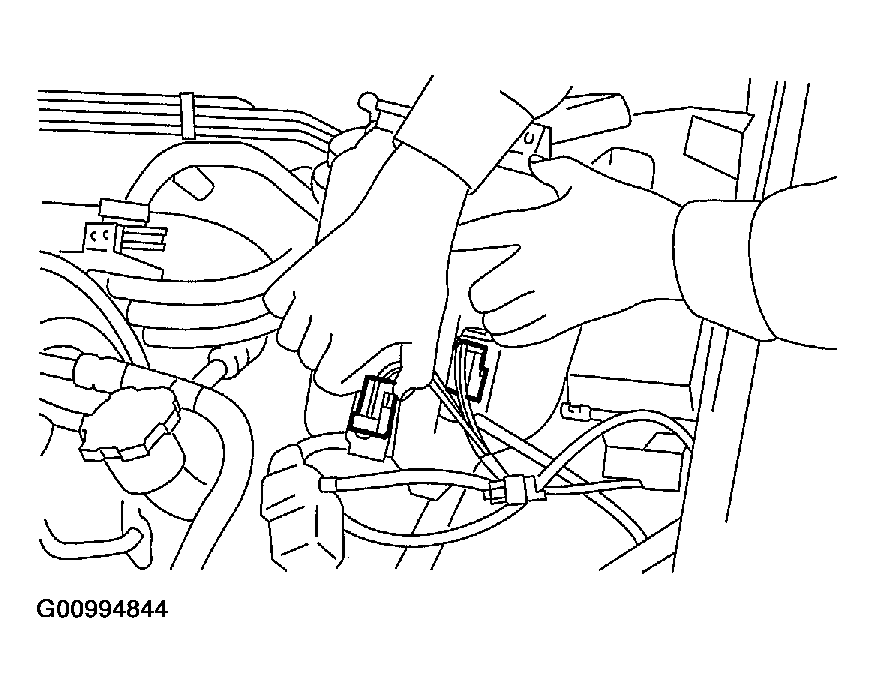

    Fig 3: Disconnecting Connector From Rear Gate Glass Washer Motor
    G00994844Courtesy of SUBARU OF AMERICA, INC.
  7. Disconnect the rear window glass washer hose from the washer motor, then plug the connection with a suitable cap.
  8. Move the washer tank, and secure it away from the working area.

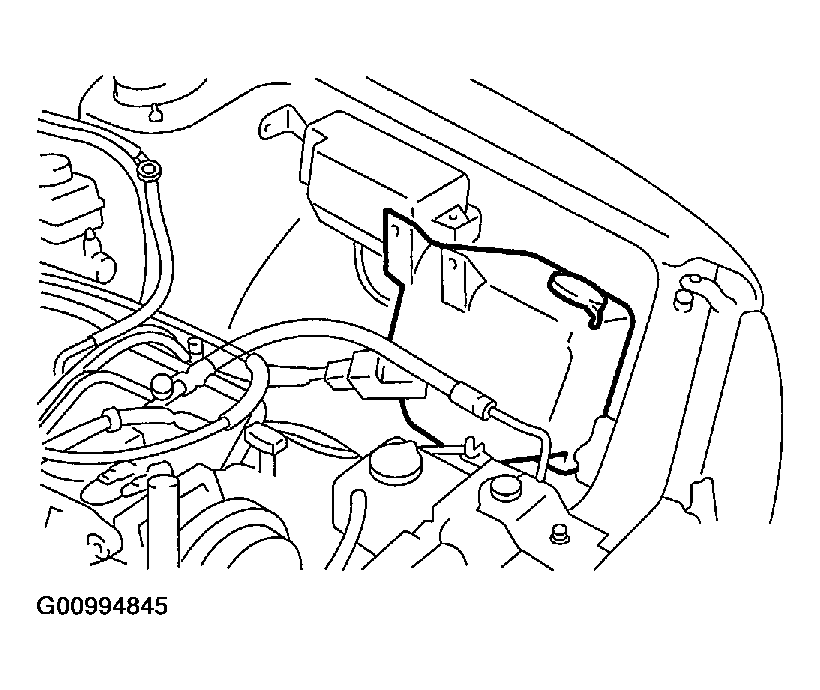

    Fig 4: Disconnecting Rear Window Glass Washer Hose From Washer Motor
    G00994845Courtesy of SUBARU OF AMERICA, INC.
  9. Remove the spark plug cords from the spark plugs (#2 and #4 cylinders).

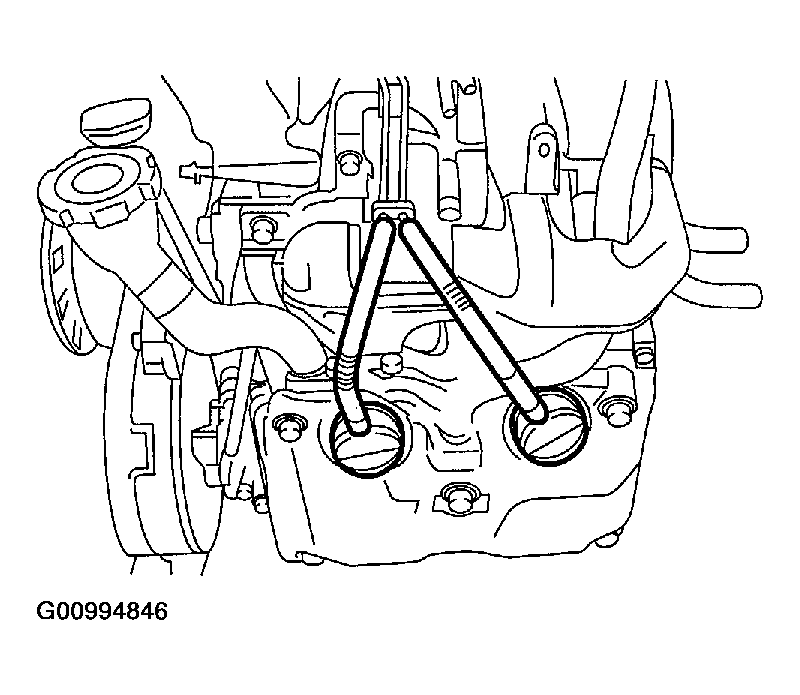

    Fig 5: Identifying Spark Plug Cords
    G00994846Courtesy of SUBARU OF AMERICA, INC.
  10. Remove the fuel pipe protector LH.

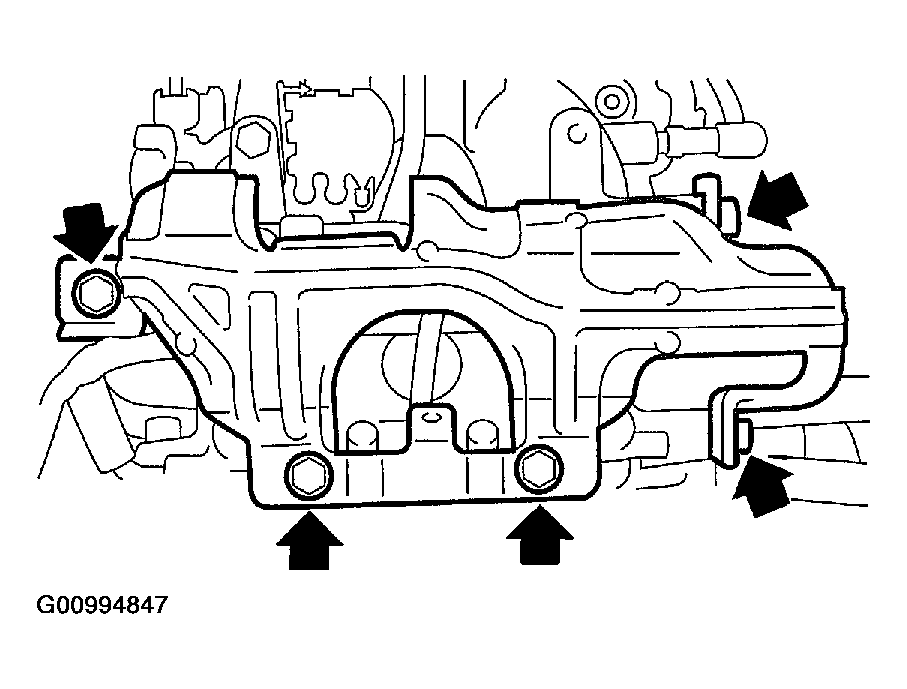

    Fig 6: Identifying Fuel Pipe Protector LH
    G00994847Courtesy of SUBARU OF AMERICA, INC.
  11. Disconnect the connector from the fuel injector.

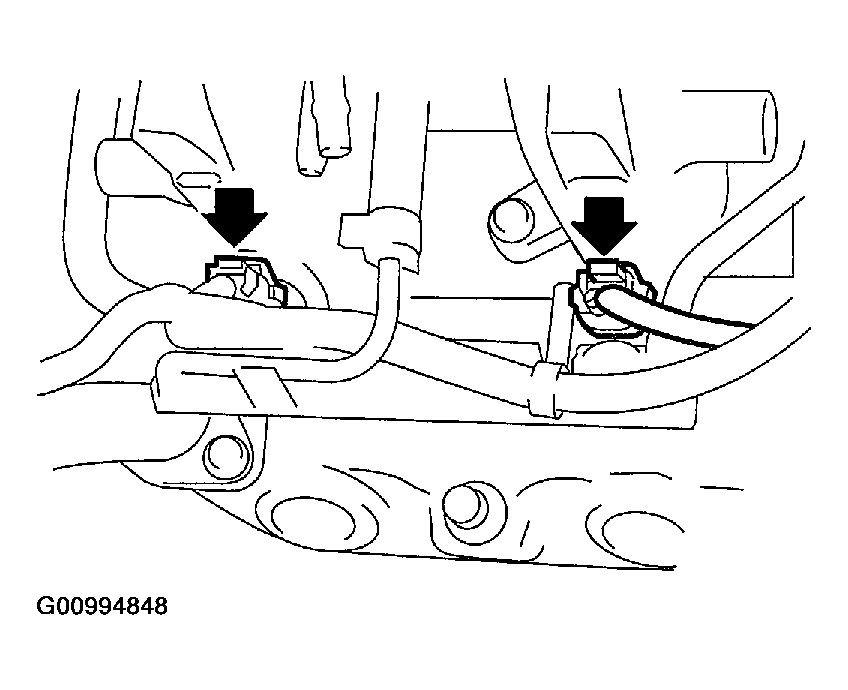

    Fig 7: Disconnecting Connector From Fuel Injector
    G00994848Courtesy of SUBARU OF AMERICA, INC.
  12. Remove the bolt which holds the injector pipe to the intake manifold.

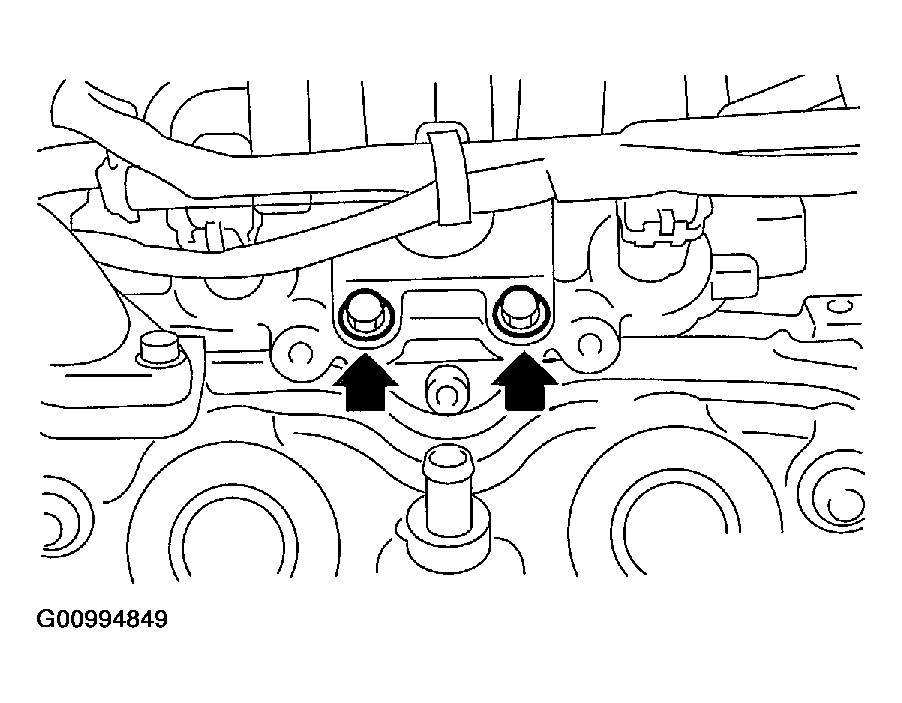

    Fig 8: Identifying Bolt & Injector Pipe (1 Of 2)
    G00994849Courtesy of SUBARU OF AMERICA, INC.
