2004 Subaru Forester X, AutomaticFACTORY OEM SERVICE PROCEDURE

Fuel Filler Pipe: Disassembly

Move the clip, and disconnect the evaporation hose from the joint pipe.

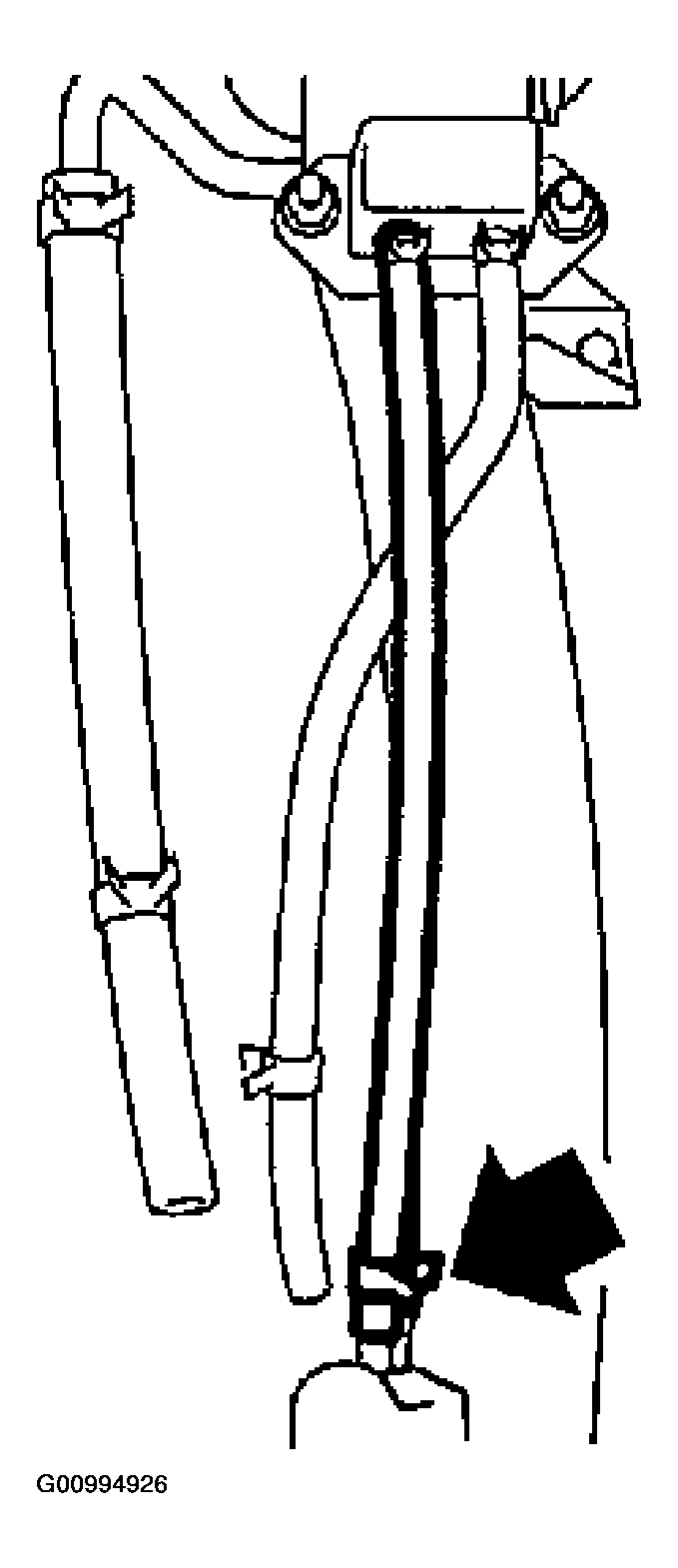

Fig 1: Disconnecting Evaporation Hose From Joint Pipe
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolt which installs the joint pipe on the fuel filler pipe.

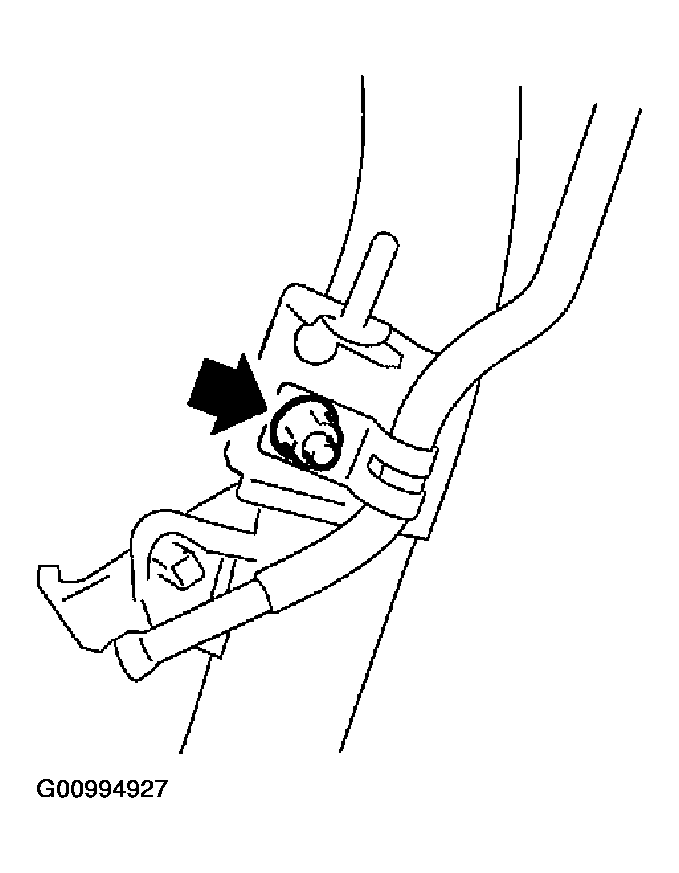

Fig 2: Identifying Bolt & Joint Pipe
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the evaporation hose from the fuel filler pipe.

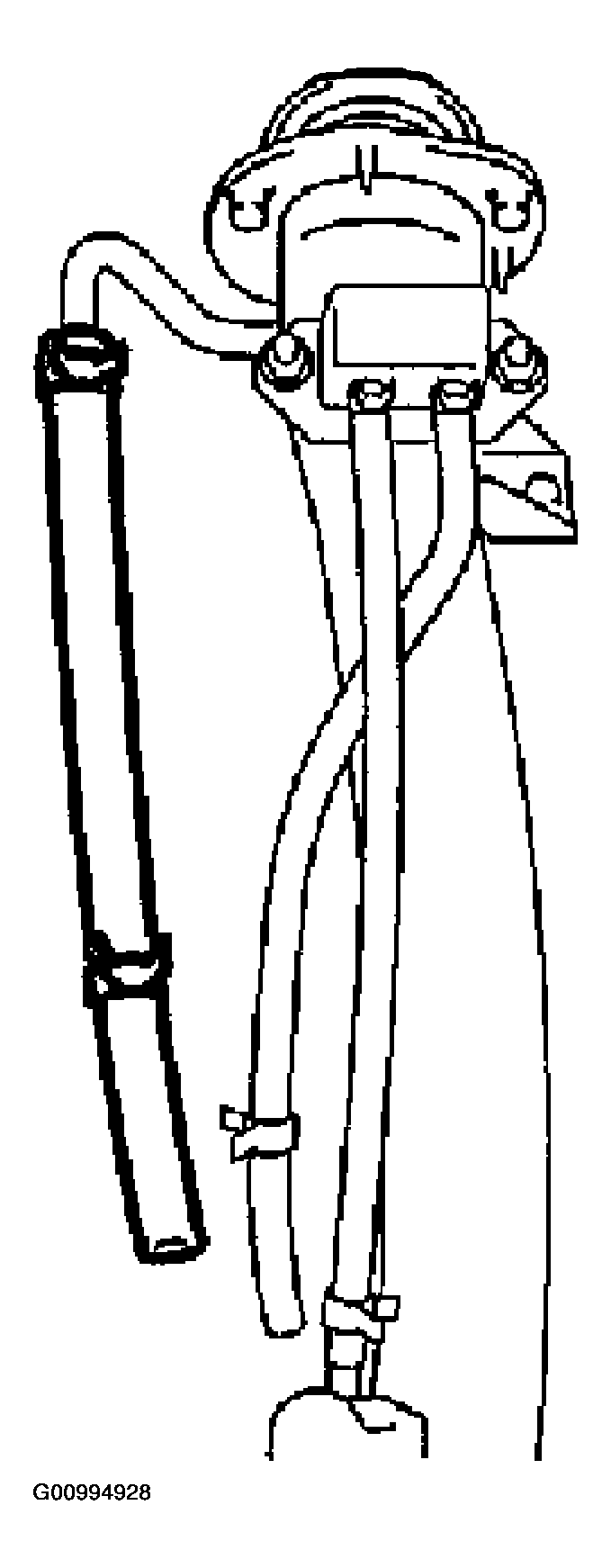

Fig 3: Disconnecting Evaporation Hose From Fuel Filler Pipe
Courtesy of SUBARU OF AMERICA, INC.
Remove the shut valve from the fuel filler pipe. Refer to REMOVAL , Shut Valve.
