2004 Subaru Baja Turbo, AutomaticFACTORY OEM SERVICE PROCEDURE

Intake Manifold: Removal

  1. Release the fuel pressure. Refer to FUEL .
  2. Open the fuel filler lid and remove the fuel filler cap.
  3. Disconnect the ground cable from battery.

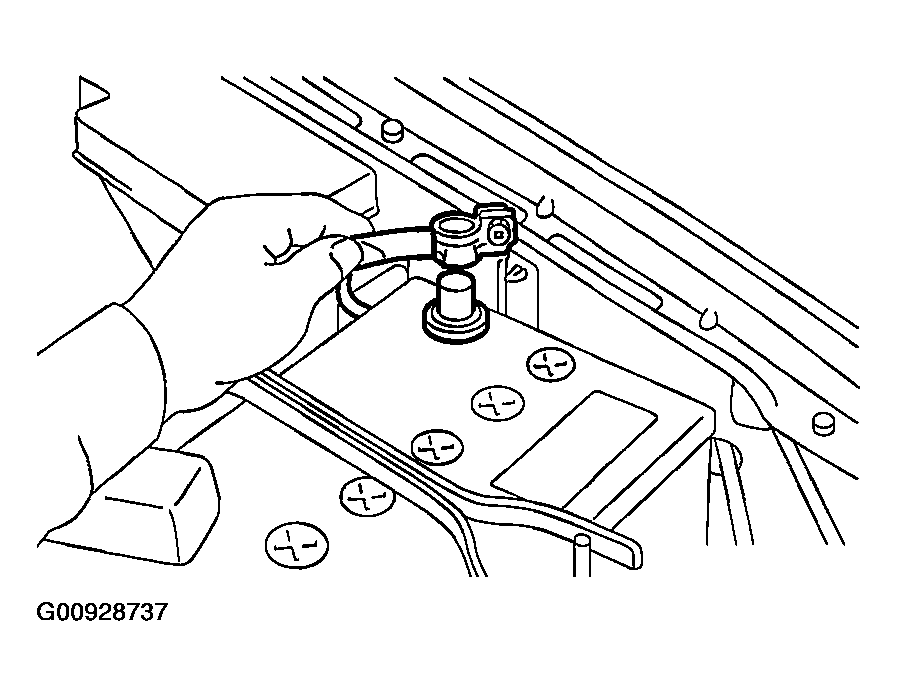

    Fig 1: Disconnecting Ground Cable From Battery
    G00928737Courtesy of SUBARU OF AMERICA, INC.
  4. Lift up the vehicle.
  5. Remove the under cover.
  6. Drain the engine coolant about 3.0 l  (3.2 US qt, 2.6 Imp qt).

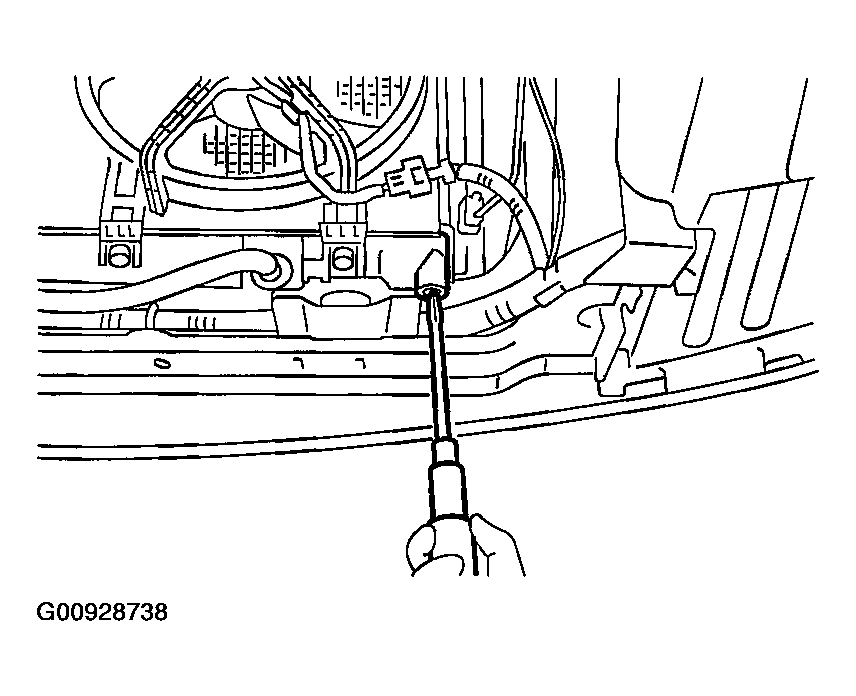

    Fig 2: Removing Under Cover
    G00928738Courtesy of SUBARU OF AMERICA, INC.
  7. Remove the air cleaner upper cover and air intake boot. Refer to REMOVAL , Air Cleaner.
  8. Remove the air cleaner element.
  9. Remove the intercooler. Refer to REMOVAL , Intercooler.
  10. Remove the coolant filler tank. Refer to REMOVAL , Coolant Filler Tank.
  11. Remove the power steering pump.
    1. Remove the front side V-belt. Refer to REMOVAL , V-belt.
    2. Disconnect the power steering switch connector.

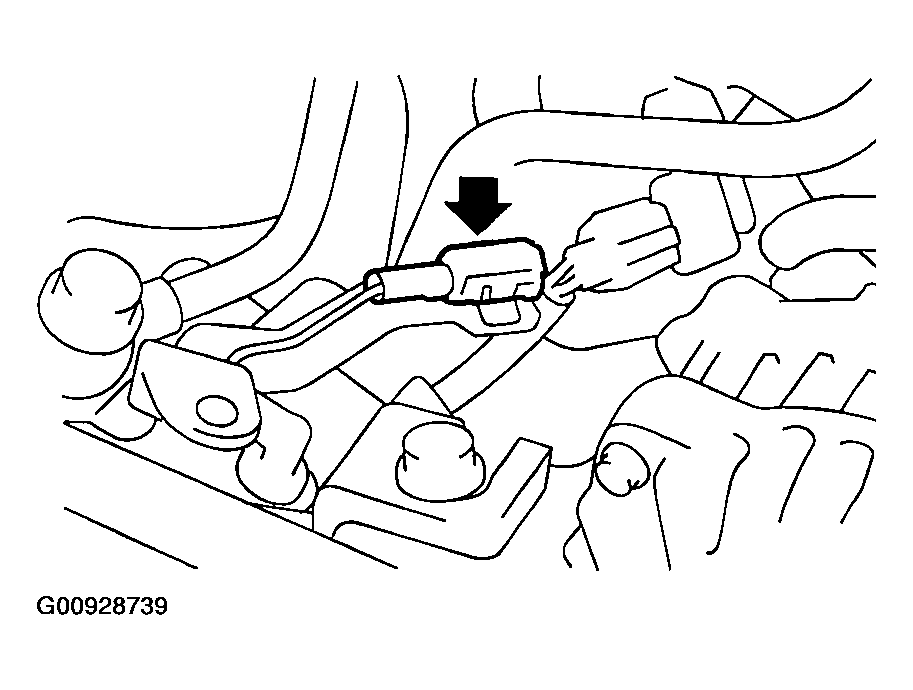

      Fig 3: Removing Power Steering Switch Connector
      G00928739Courtesy of SUBARU OF AMERICA, INC.
    3. Remove the bolts which secure the power steering pipe brackets to the intake manifold.
      NOTE: Do not disconnect the power steering hose.
