Intake Manifold: Installation

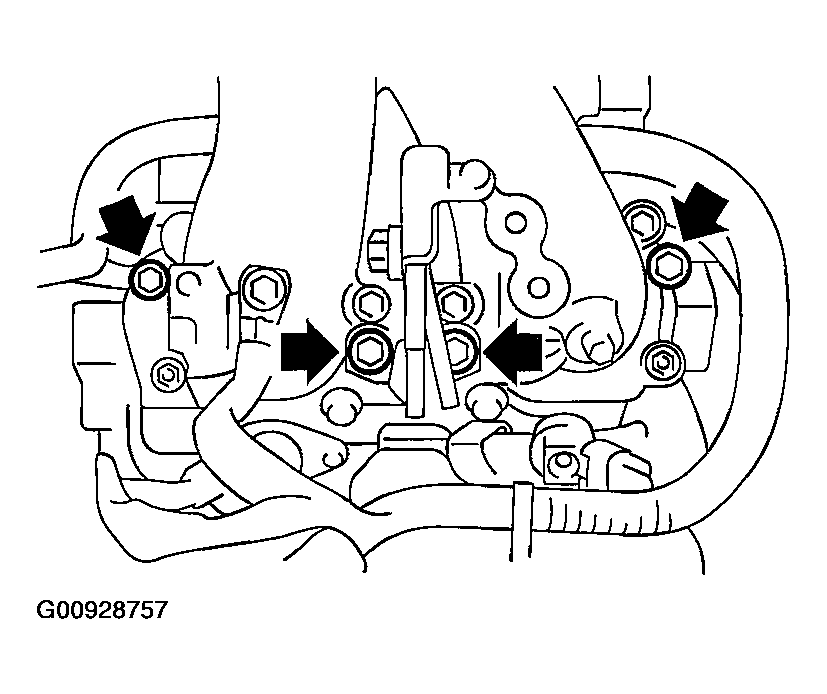

- Install the intake manifold onto cylinder heads.NOTE: Always use new gaskets.
Tightening torque:
25 N.m (2.5 kgf-m, 18.1 ft-lb)

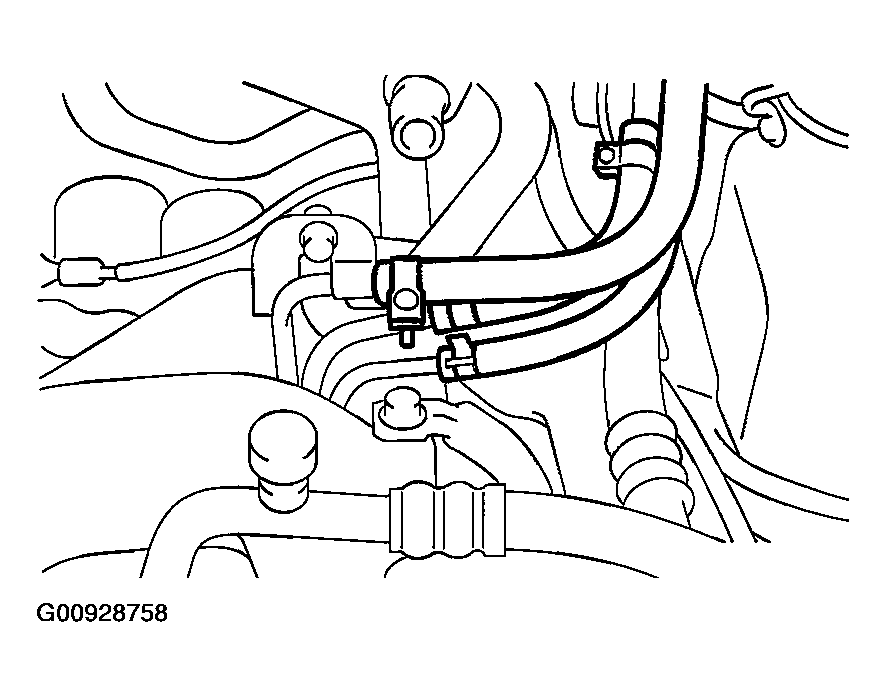

- Connect the fuel delivery hose, return hose and evaporation hose.

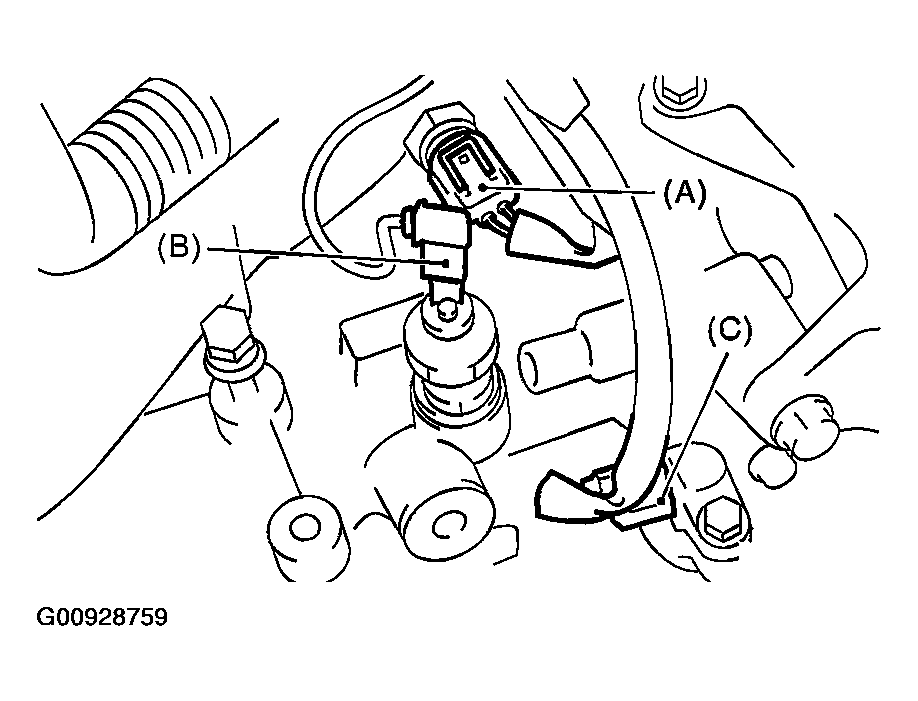

- Connect the connector to the oil pressure switch (B), crankshaft position sensor (C) and engine coolant temperature sensor (A).

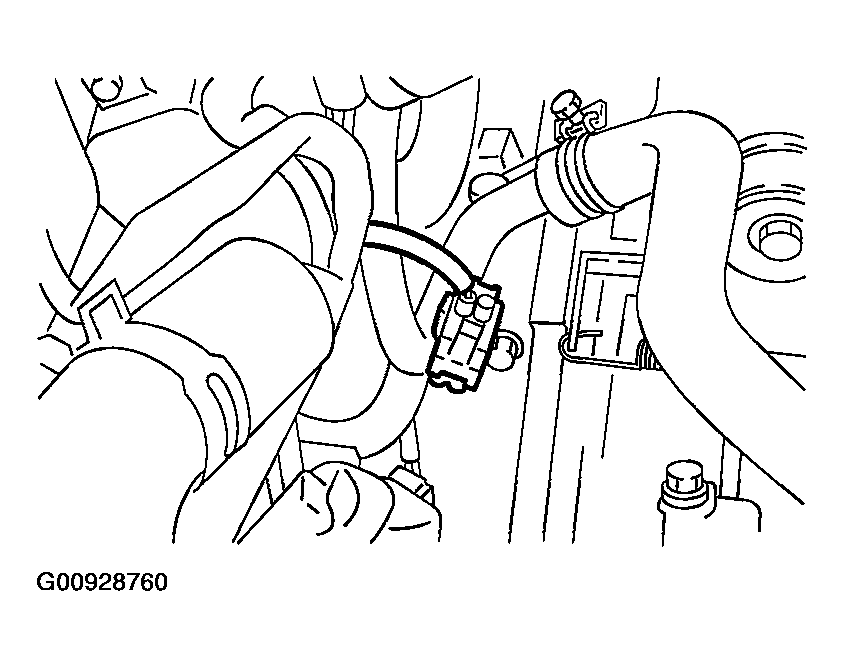

- Connect the connector to the knock sensor.

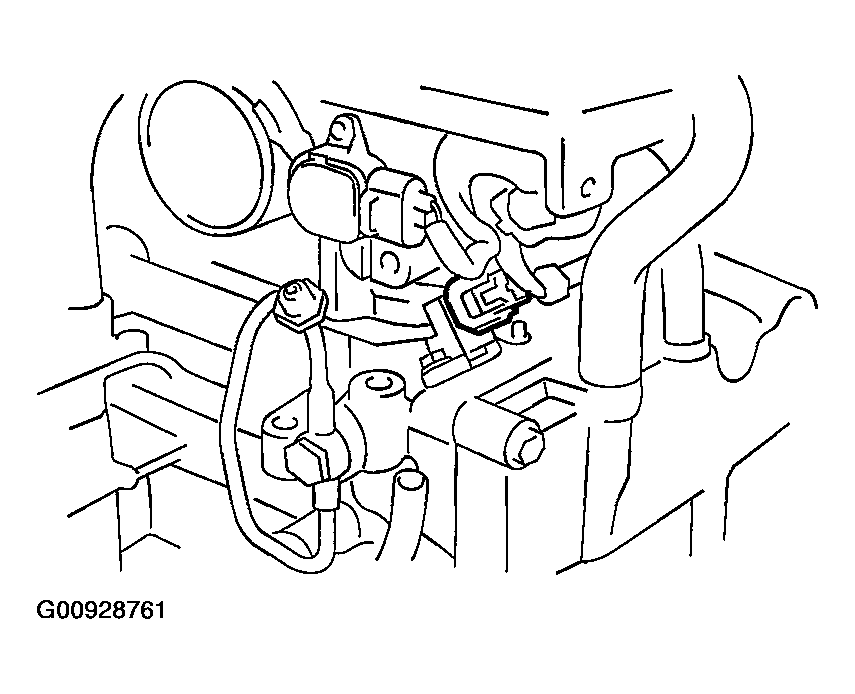

- Connect the connector to the camshaft position sensor.
- Connect the connector to the ignition coil.

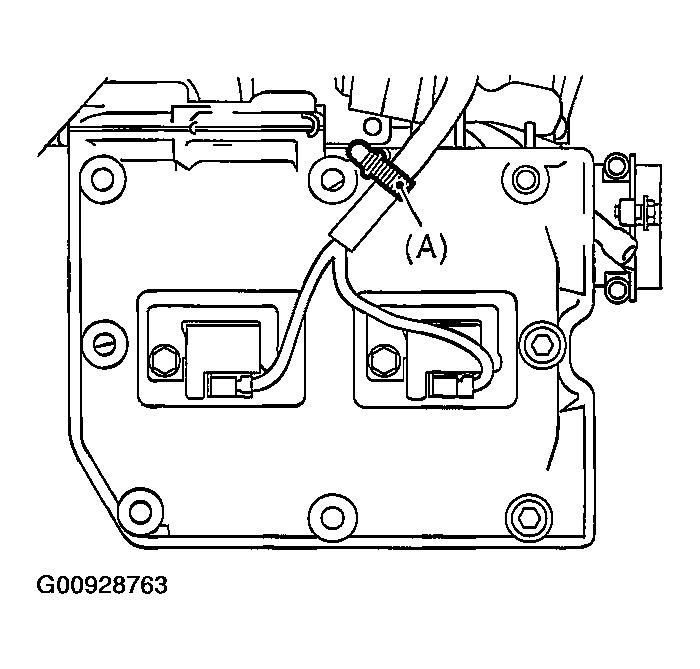

- Connect the engine harness with clip (A) to the bracket.

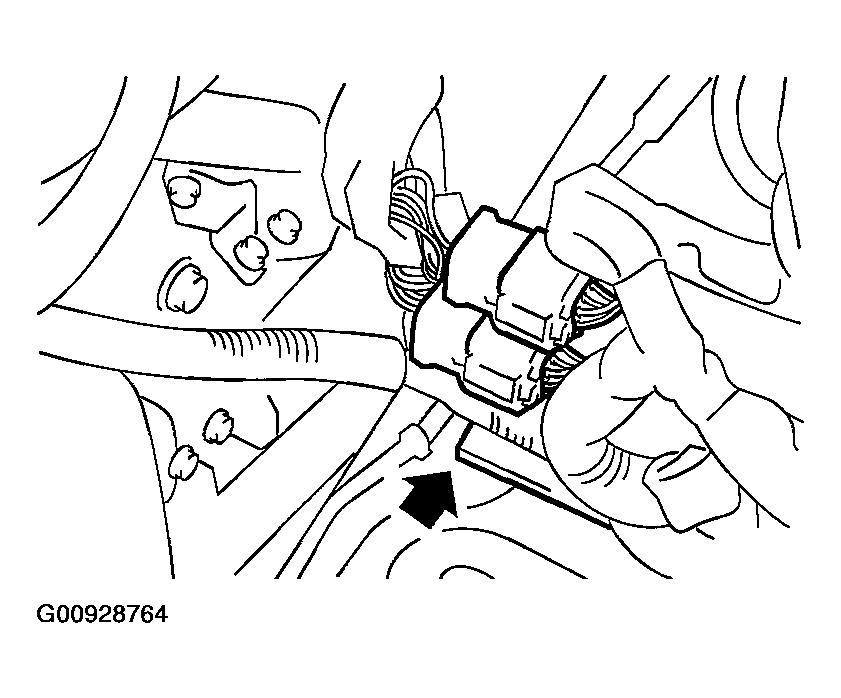

- Connect the engine harness connector to the bulkhead harness connectors.
