NOTE: Replace the gasket with a new one.

Install the tumble generator valve assembly to the intake manifold.
Tightening torque:

8.25 N.m (0.84 kgf-m, 6.1 ft-lb)

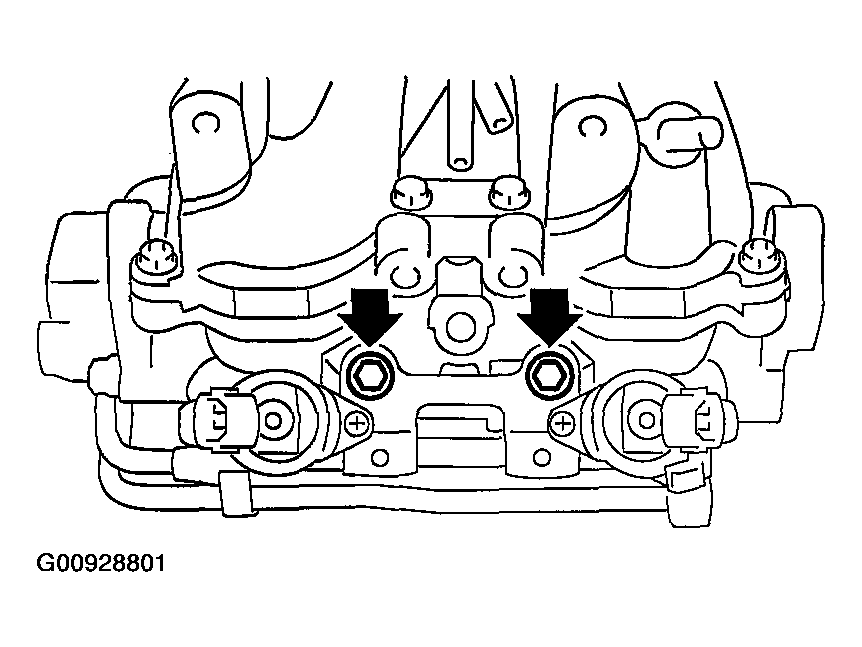

Fig 1: Installing Tumble Generator Valve Assembly To Intake Manifold
Courtesy of SUBARU OF AMERICA, INC.
Install the air intake duct to the intake manifold.
Tightening torque:

19 N.m (1.94 kgf-m, 13.7 ft-lb)

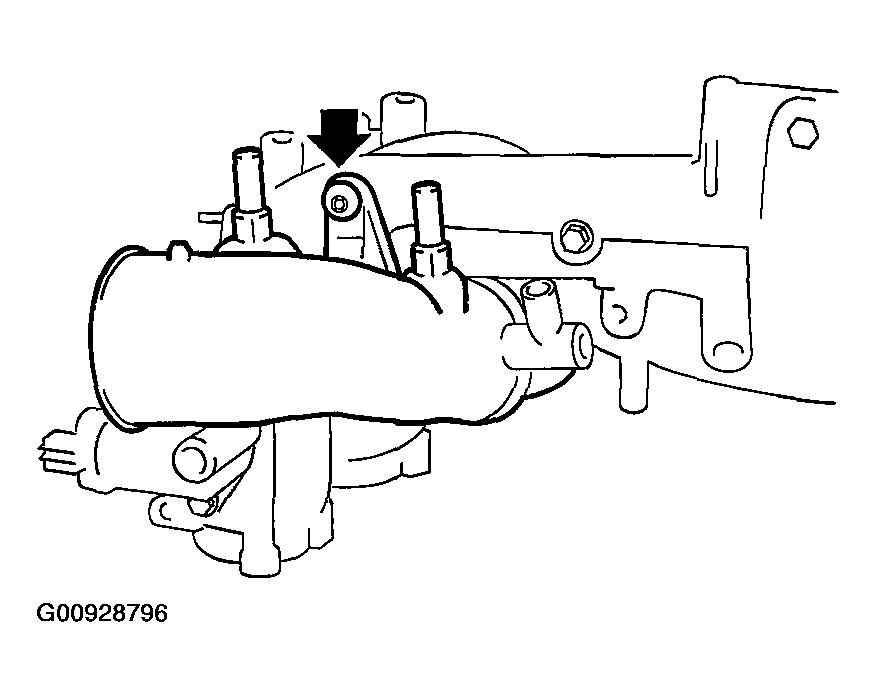

Fig 2: Installing Air Intake Duct To Intake Manifold
Courtesy of SUBARU OF AMERICA, INC.
Install the fuel pipe assembly and pressure regulator to the intake manifold.
Tightening torque:

4.9 N.m (0.5 kgf-m, 3.6 ft-lb)

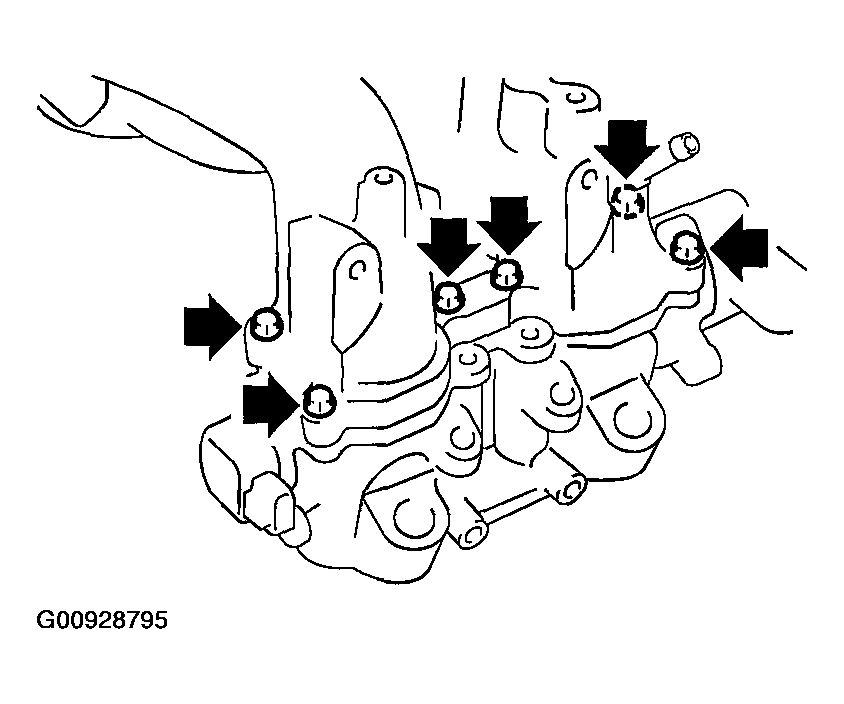

Fig 3: Installing Fuel Pipe Assembly
Courtesy of SUBARU OF AMERICA, INC.
Install the fuel injector pipe LH.
Connect the left side fuel hose to injector pipe, and tighten the clamp screw.

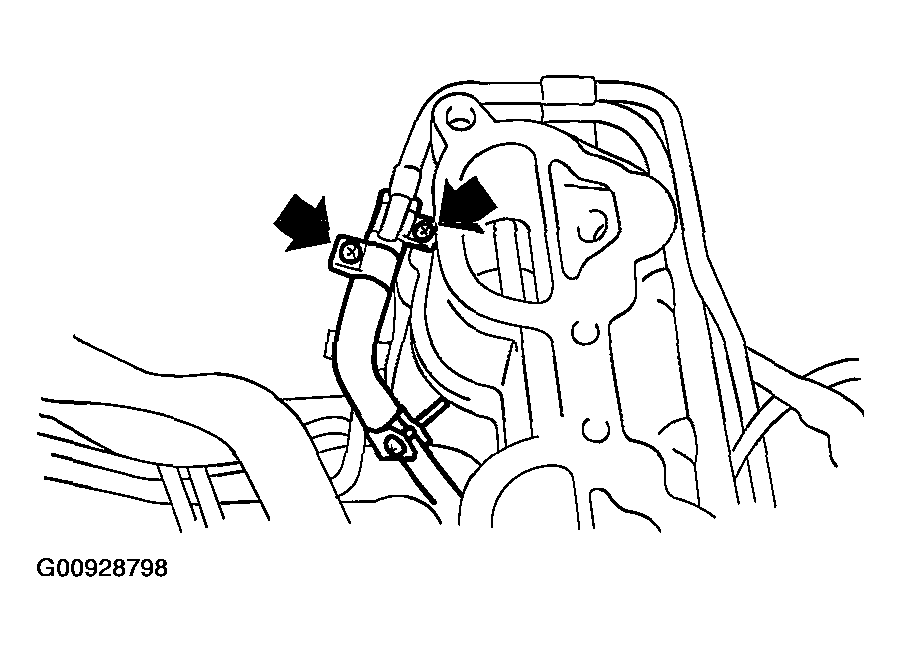

Fig 4: Installing Fuel Injector Pipe LH
Courtesy of SUBARU OF AMERICA, INC.
Install the fuel injector pipe RH.
Connect the right side fuel hose to injector pipe, and tighten the clamp screw.

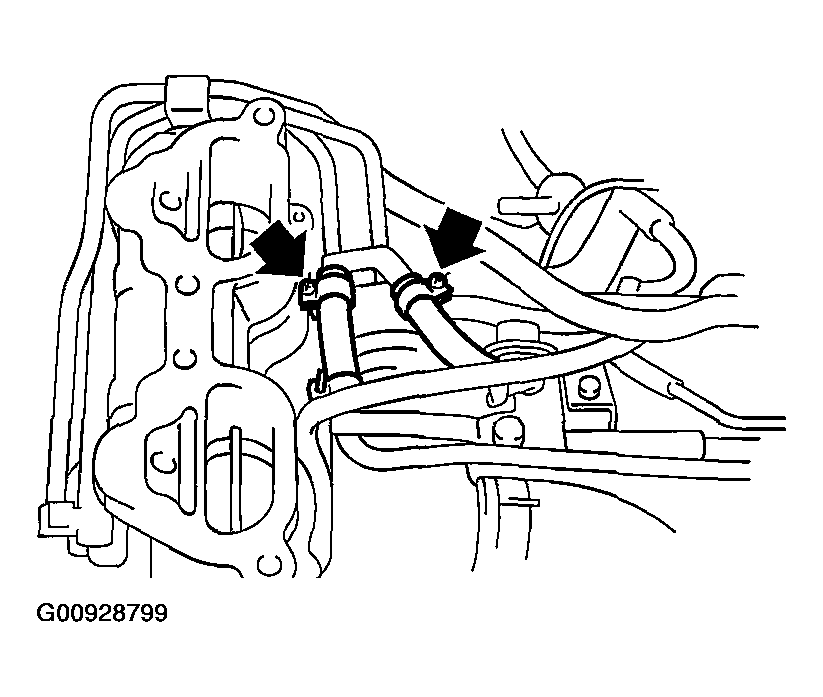

Fig 5: Installing Fuel Injector Pipe RH
Courtesy of SUBARU OF AMERICA, INC.
Install the engine harness to the intake manifold.
Install the harness bracket which holds the engine harness onto intake manifold.
Tightening torque:

19 N.m (1.94 kgf-m, 13.7 ft-lb)

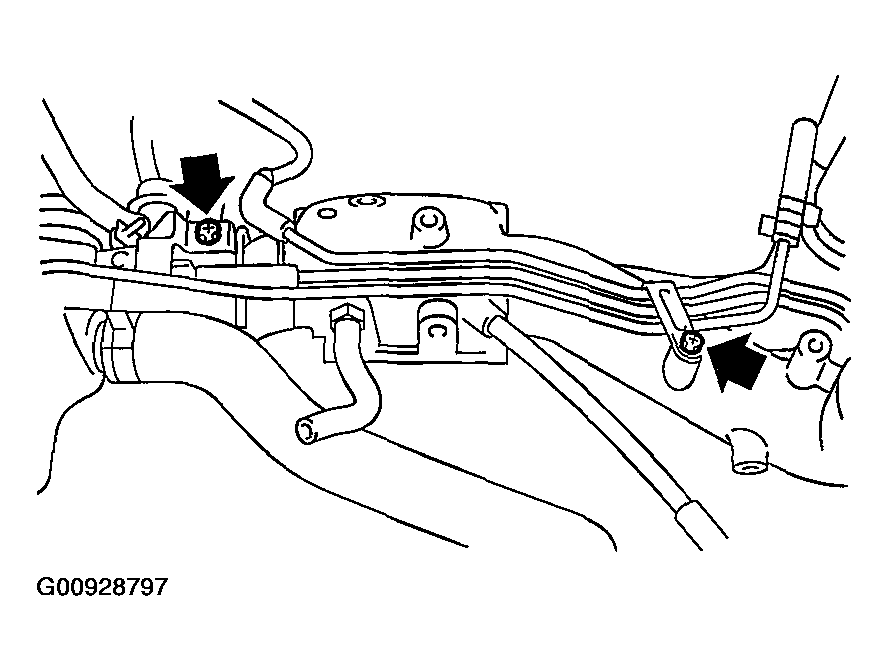

Fig 6: Installing Fuel Injector Pipe Onto Intake Manifold
Courtesy of SUBARU OF AMERICA, INC.
Tighten the bolts which install the fuel injector pipe onto intake manifold.
Tightening torque:

19 N.m (1.94 kgf-m, 13.7 ft-lb)
- LH SIDE

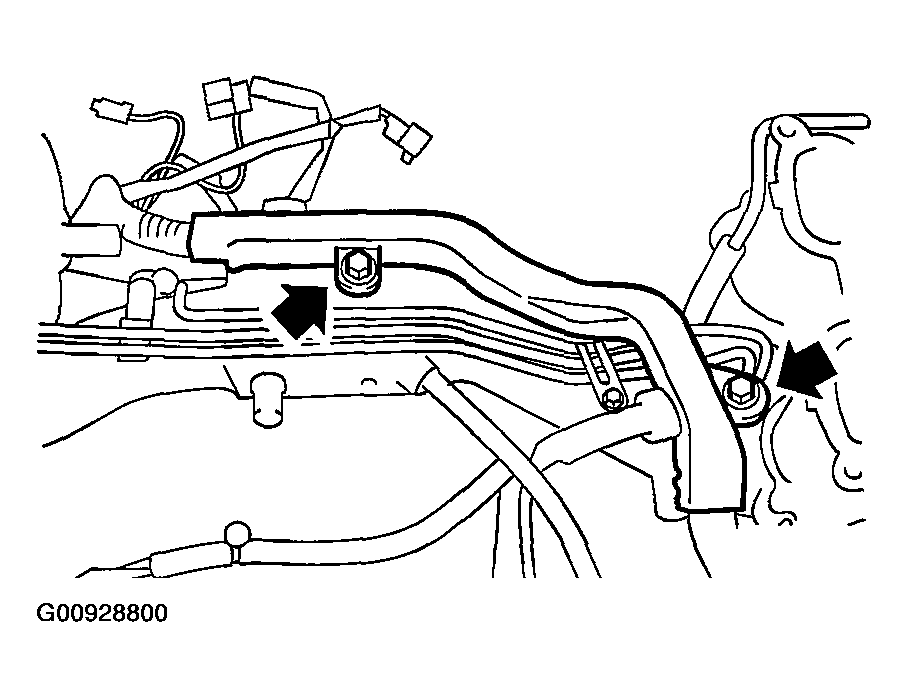

  Fig 7: Tightening Bolts LH Side (1 Of 2)
  Courtesy of SUBARU OF AMERICA, INC.
