Exhaust Temperature Sensor: Installation
- Before installing exhaust temperature sensor, apply anti-seize compound only to the threaded portion of exhaust temperature sensor to make the next removal easier.CAUTION: Never apply anti-seize compound to protector of exhaust temperature sensor.
Anti-seize compound:
SS-30 by JET LUBE

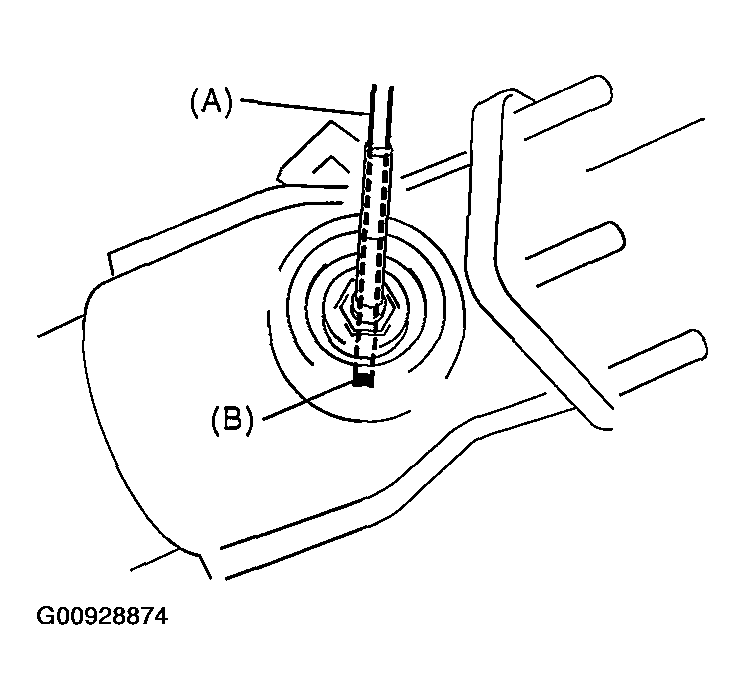

- Install the exhaust temperature sensor.NOTE: Align the harness (A) of exhaust temperature sensor to the marking (B) of joint pipe, and tighten the screws.
Tightening torque:
21 N.m (2.1 kgf-m, 15.2 ft-lb)
- Install the joint pipe. Refer to INSTALLATION , Joint Pipe.

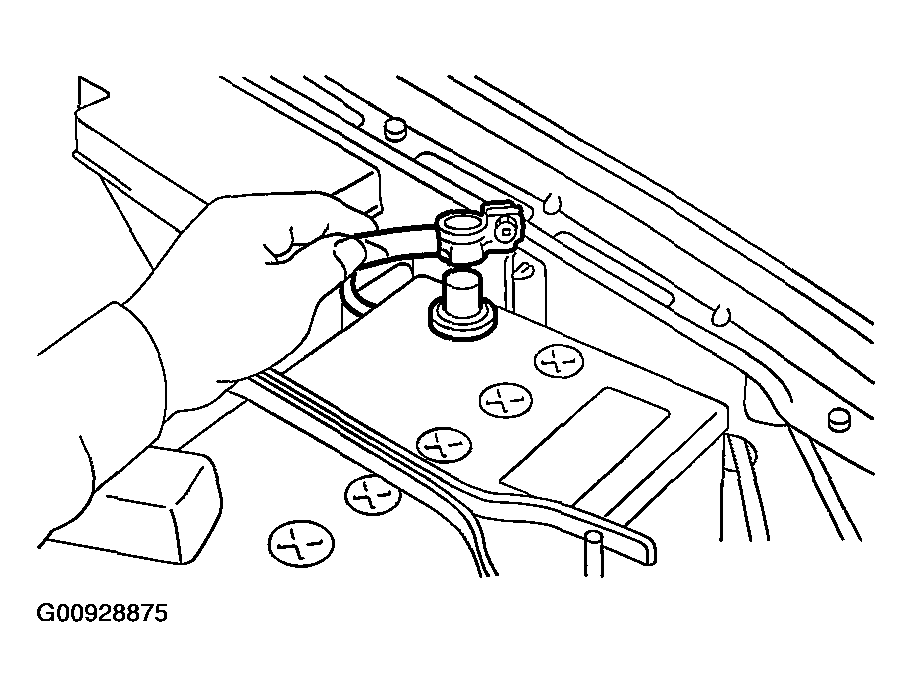

- Connect the battery ground cable to battery.
