2004 Subaru Baja Turbo, AutomaticFACTORY OEM SERVICE PROCEDURE

Electronic Control Throttle Relay: Removal

Disconnect ground cable from battery.

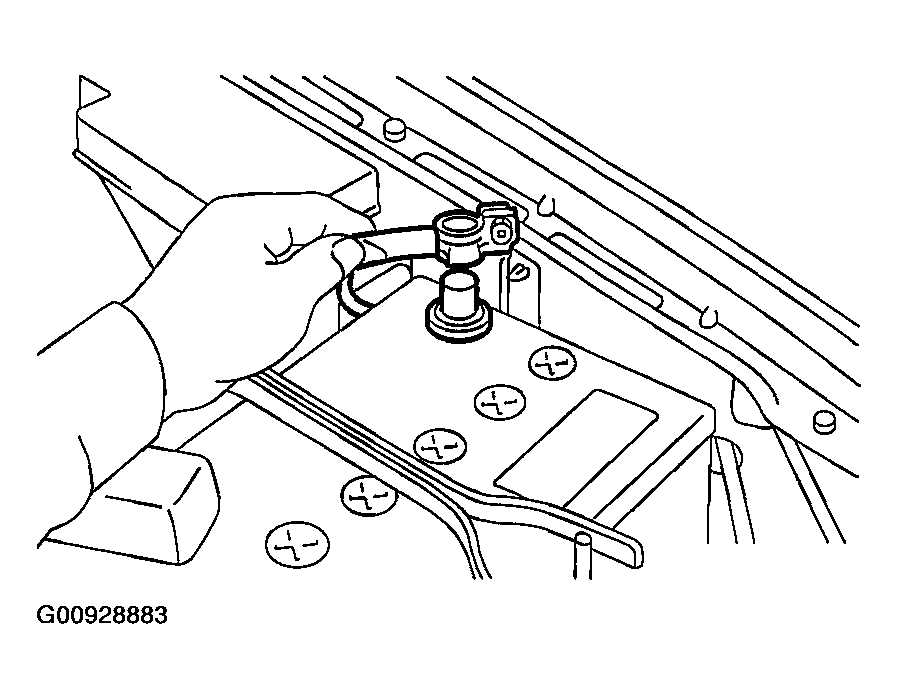

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Disconnect connector form the passenger's side electronic control throttle relay.
Remove the electronic control throttle relay from the bracket.

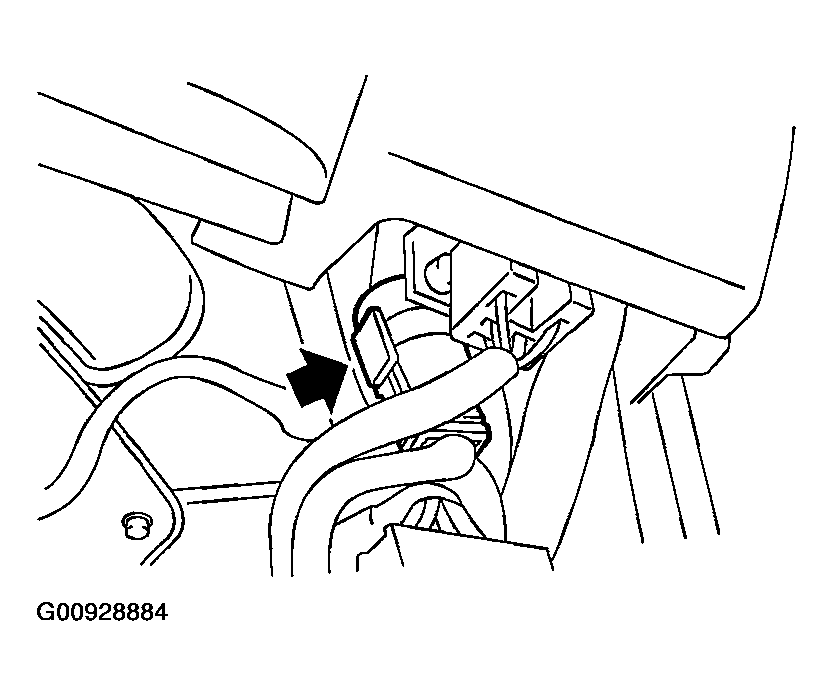

Fig 2: Removing Electronic Control Throttle Relay From Bracket
Courtesy of SUBARU OF AMERICA, INC.
