2004 Subaru Baja Base, AutomaticFACTORY OEM SERVICE PROCEDURE
Select Cable: Installation
- Install the select cable to base plate.
- Tightening torque: 18 N.m (1.8 kgf-m, 13.0 ft-lb)

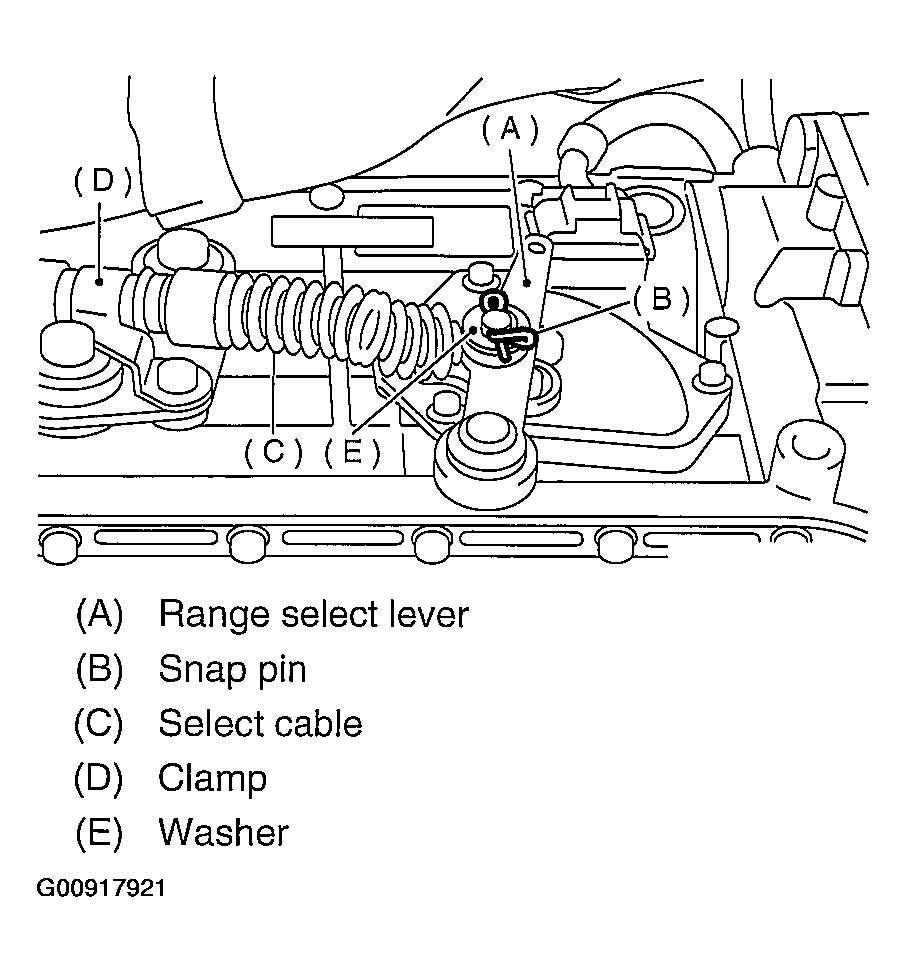

- Install the select cable to range select lever.

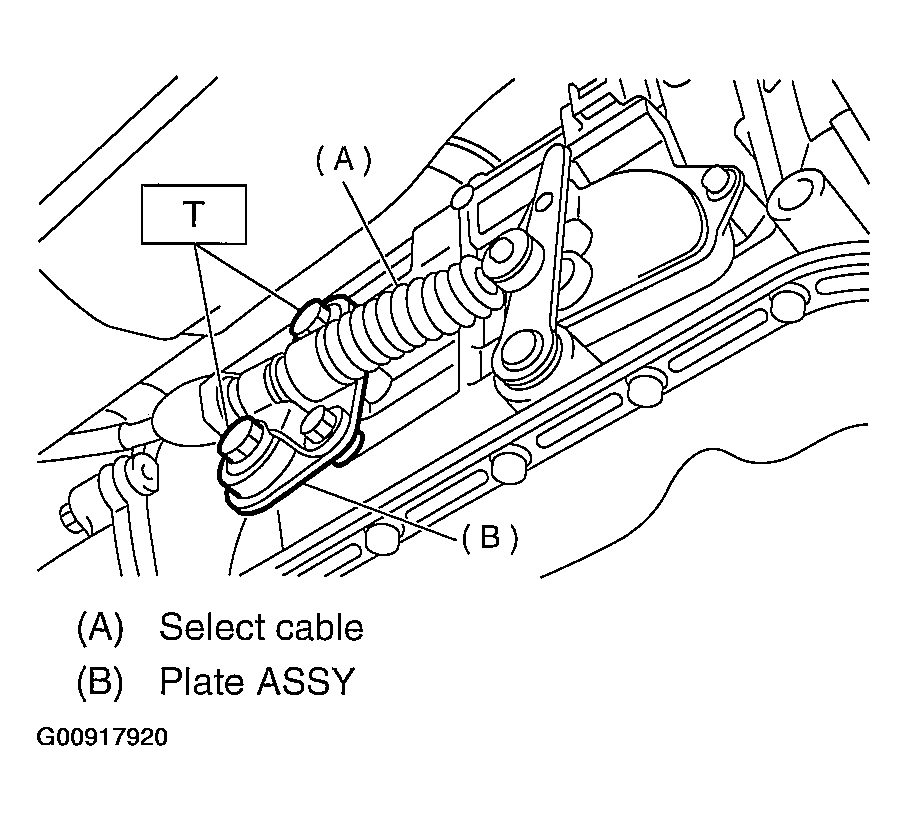

- Install the plate assembly to transmission.
- Tightening torque: T: 24.5 N.m (2.5 kgf-m, 18.1 ft-lb)
- Install the washer and snap pin to range select lever.
- Move the select lever to "N" position, then adjust the select cable position. Refer to ADJUSTMENT , Select Cable.
- Install the heat shield cover. (If equipped)
- Install the front and center exhaust pipe. (Non-TURBO model)
Except 2.5 L U5 model
Refer to INSTALLATION , Front Exhaust Pipe.
2.5 L U5 model
Refer to INSTALLATION , Front Exhaust Pipe.
3.0 L model
Refer to INSTALLATION , Front Exhaust Pipe.
- Install center exhaust pipe. (TURBO model) < Refer to INSTALLATION , Center Exhaust Pipe.
