2004 Subaru Baja Base, AutomaticFACTORY OEM SERVICE PROCEDURE
Transmission Control Module (TCM): Removal

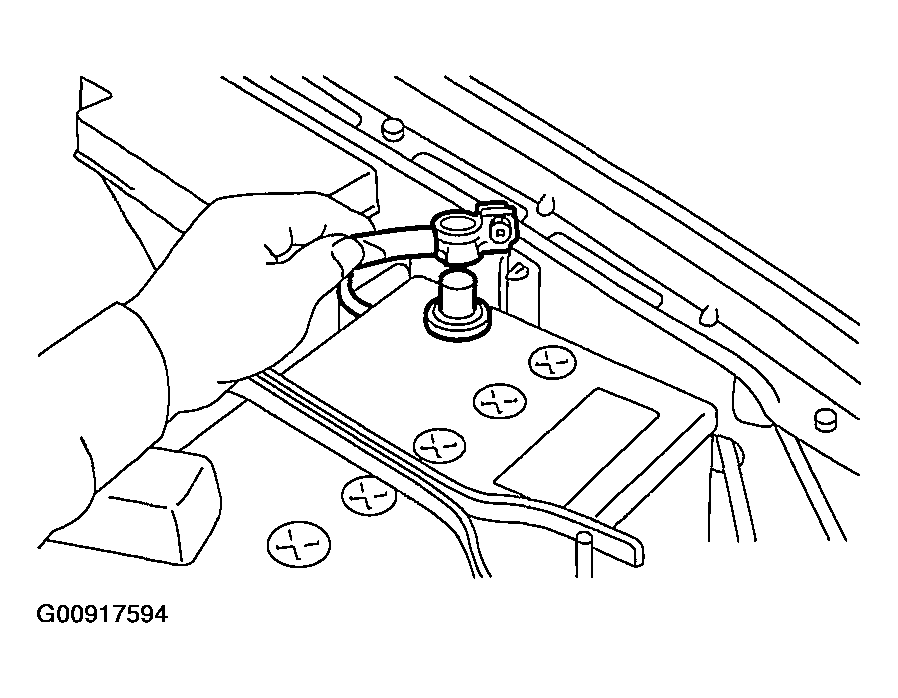

- Disconnect the ground cable from battery.
- Remove the lower cover and then disconnect the connector.
- Remove the knee bolster.
- Disconnect the connectors from TCM.

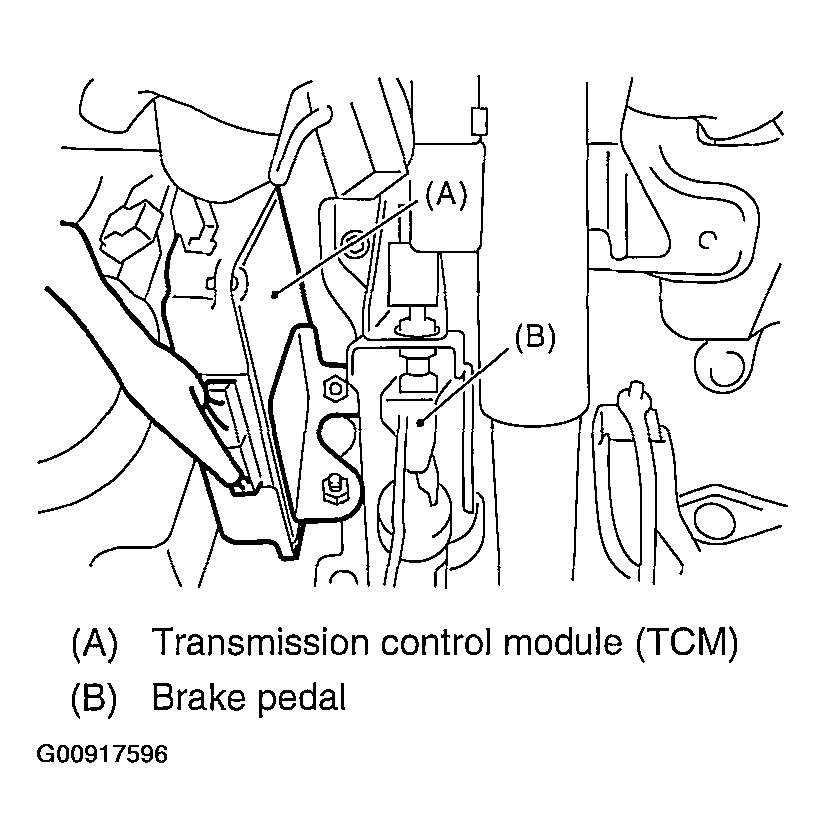

- Remove the TCM.
