2004 Subaru Baja Base, AutomaticFACTORY OEM SERVICE PROCEDURE
Transmission Control Device: Removal
- Remove the transmission assembly from the vehicle. Refer to REMOVAL .
- Extract the torque converter clutch assembly. Refer to REMOVAL .
- Remove the input shaft.
- Lift-up the lever behind the transmission harness connector and disconnect it from stay.
- Disconnect the air breather hoses. Refer to REMOVAL .
- Disconnect the inhibitor switch connector from stay.
- Wrap the nipple attached to the air breather hose around with a vinyl tape.
- Remove pitching stopper bracket.

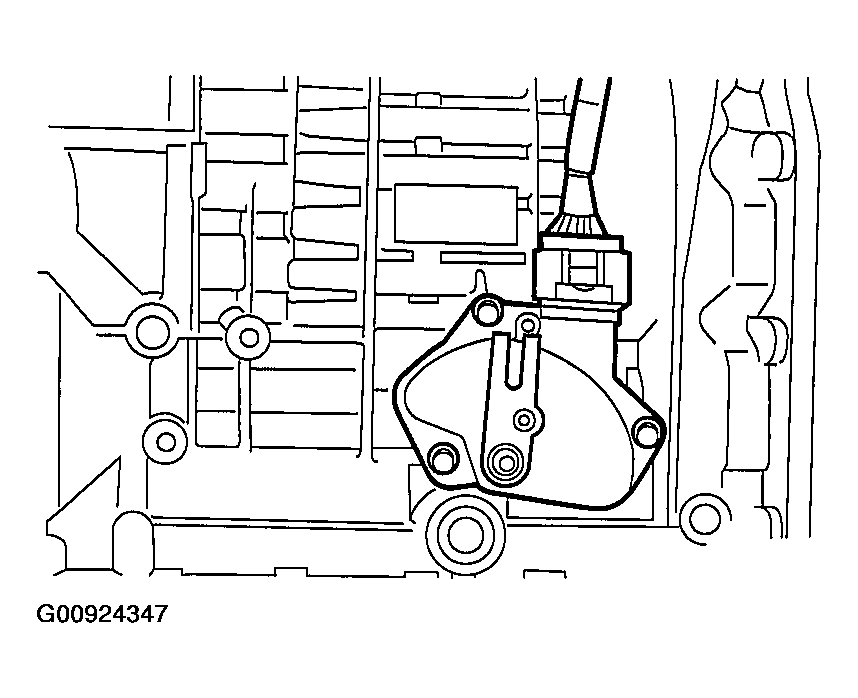

- Remove the inhibitor switch.
- Remove the control valve body assembly. Refer to REMOVAL .

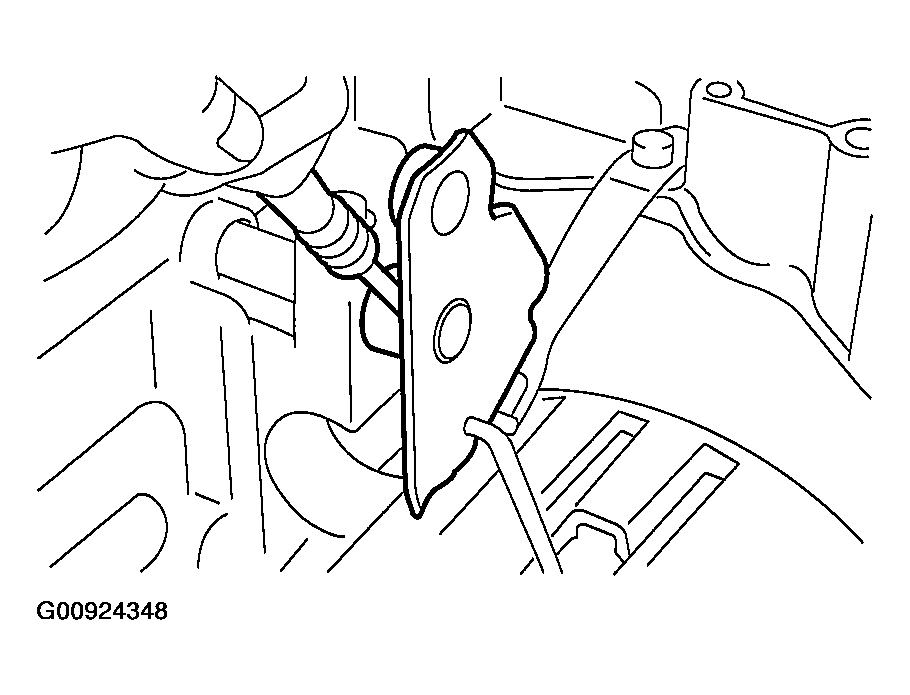

- Pull off the straight pin of manual plate.
- Remove the bolts securing select lever, then remove the select lever, manual plate and parking rod.NOTE: Be careful not to damage the lips of the press-fitted oil seal in the case.
