2004 Subaru Baja Base, AutomaticFACTORY OEM SERVICE PROCEDURE
Automatic Transmission: General Description: Specifications

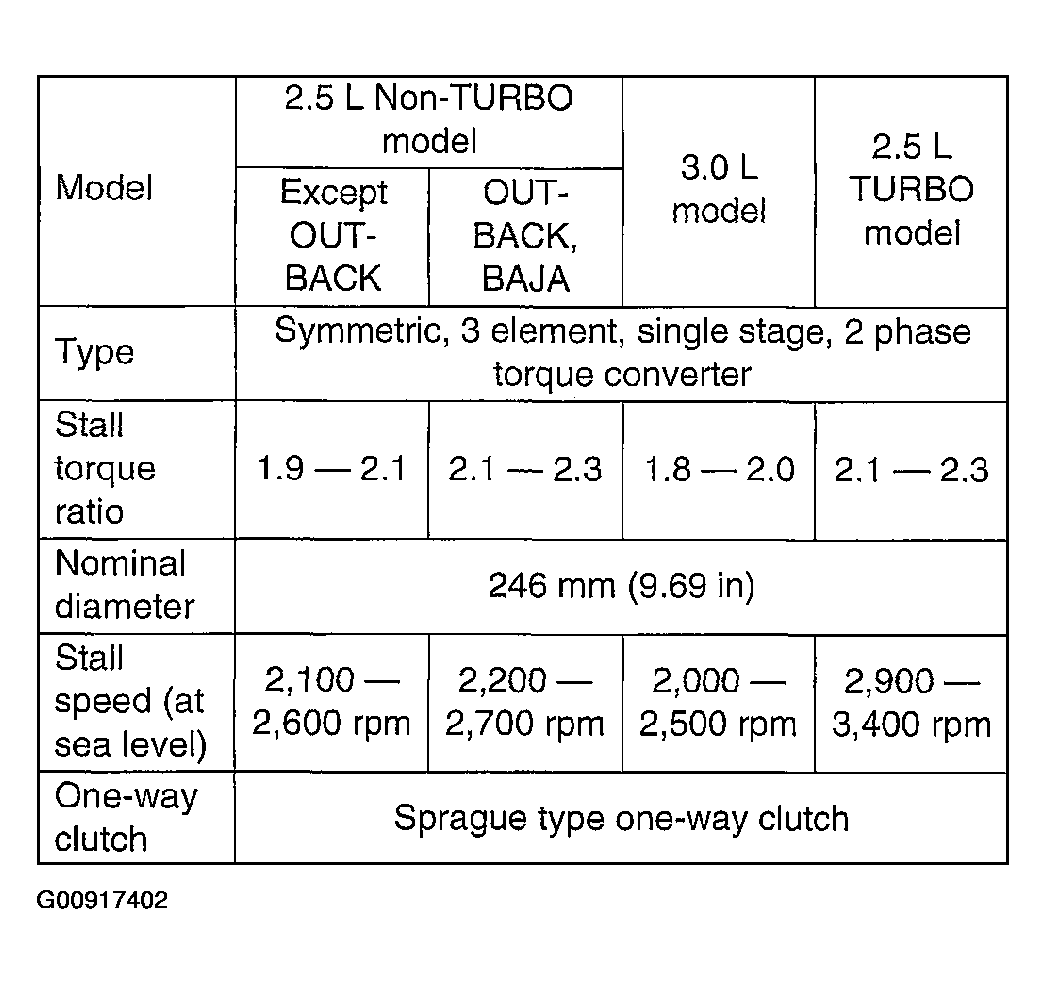

- TORQUE CONVERTER CLUTCH

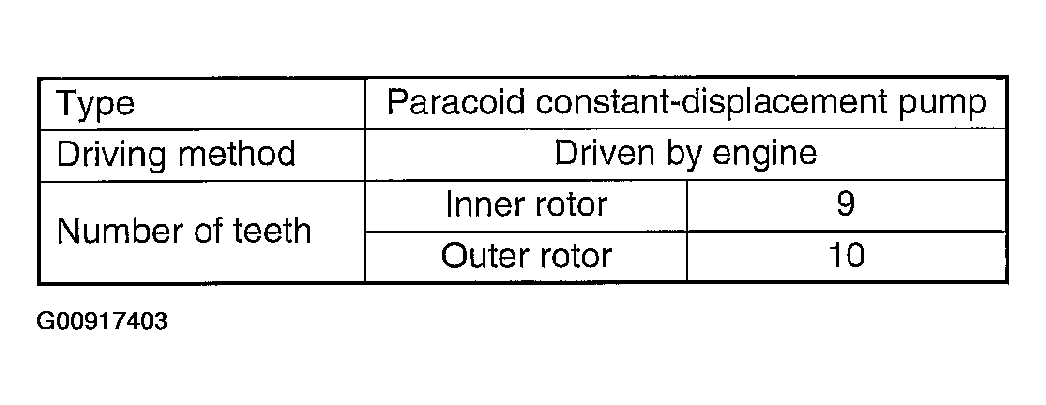

- OIL PUMP

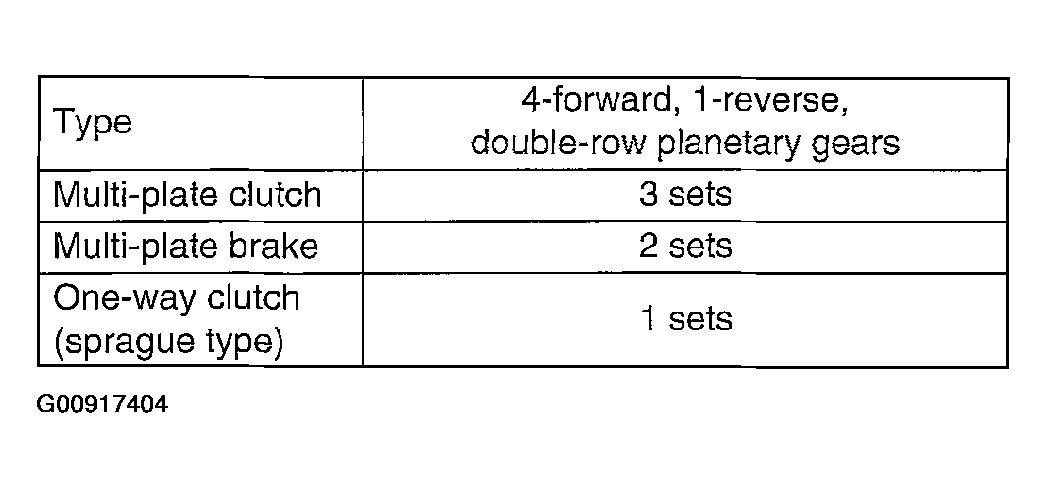

- TRANSMISSION CONTROL ELEMENT

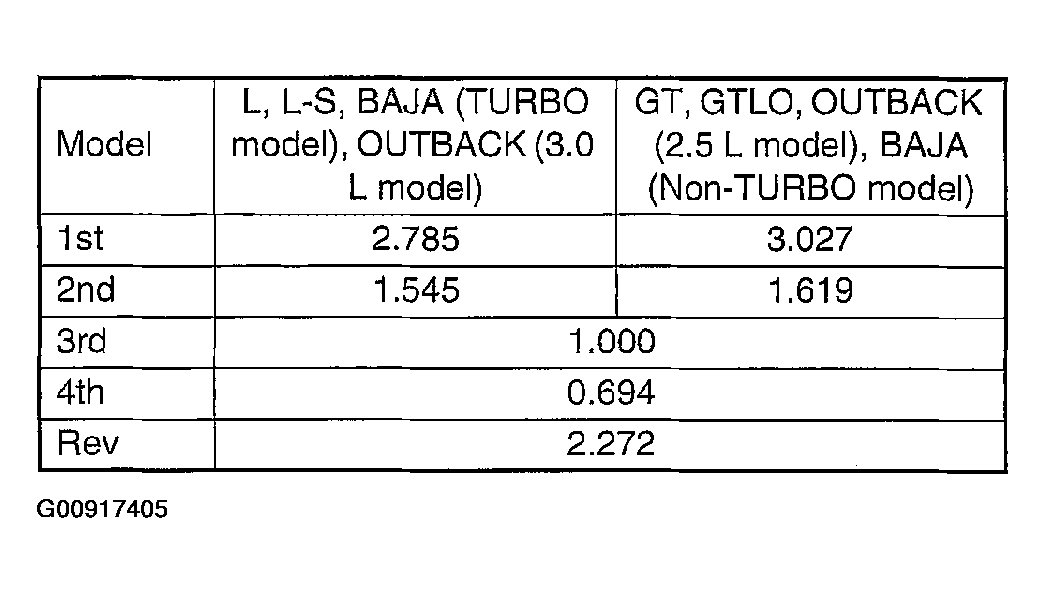

- TRANSMISSION GEAR RATIO

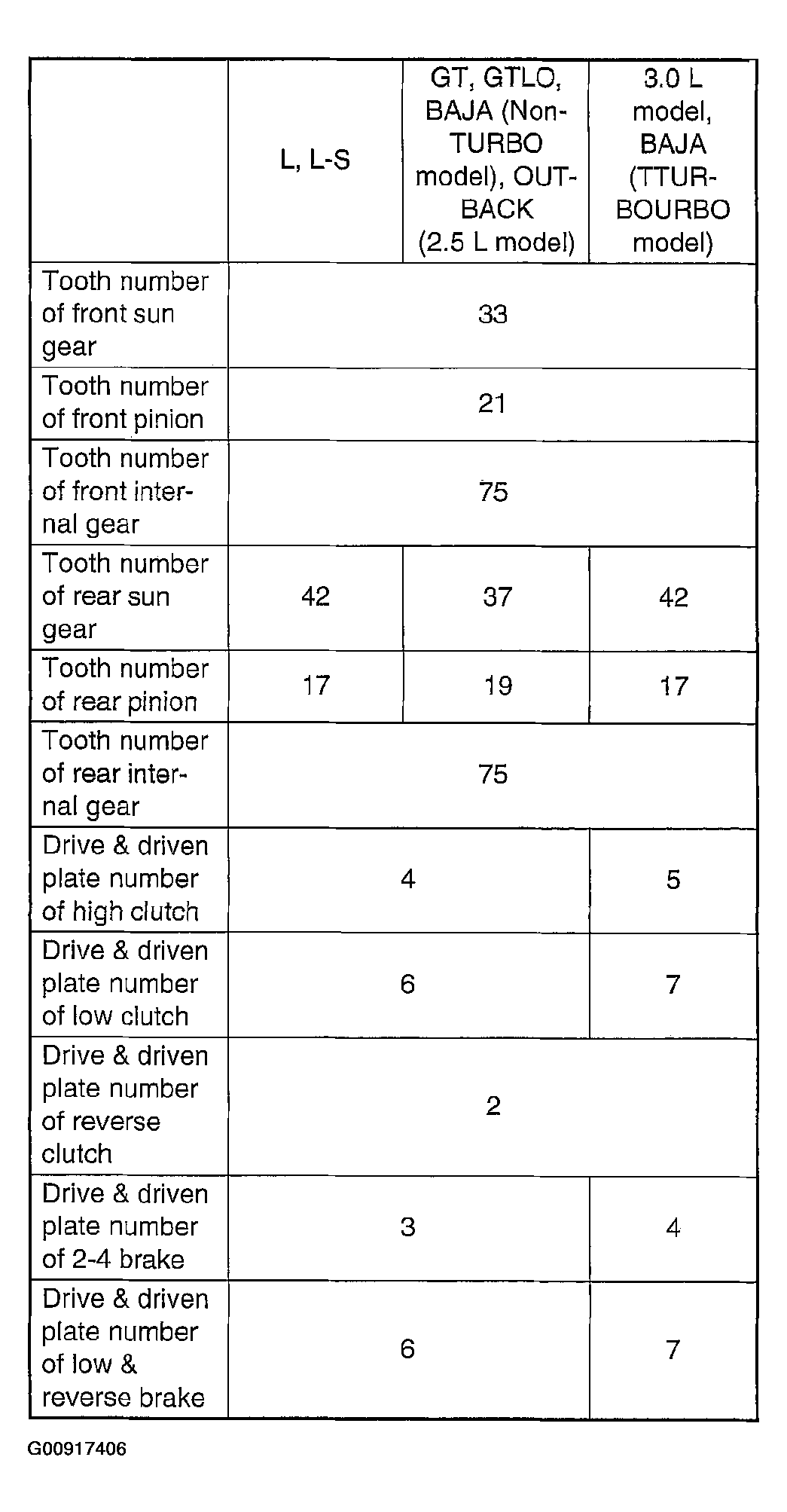

- PLANETARY GEAR AND PLATE

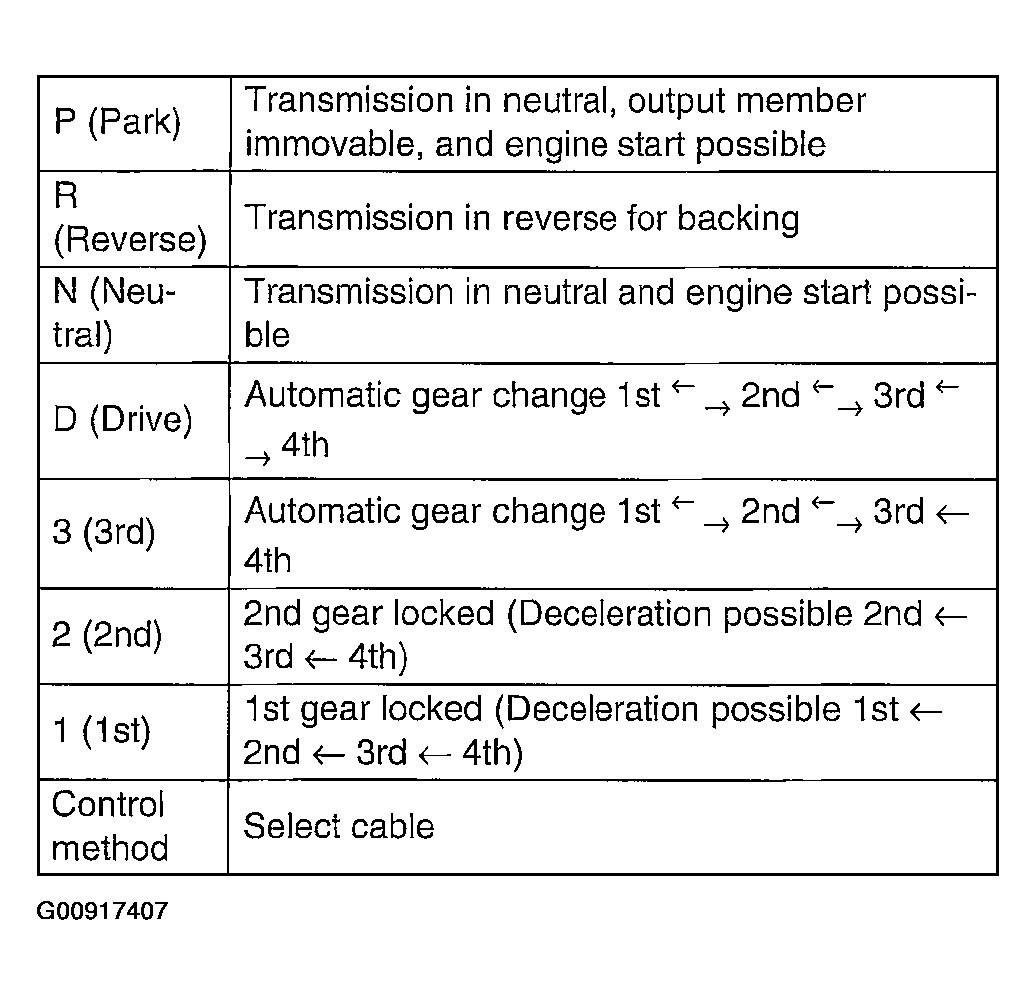

- SELECTOR POSITION

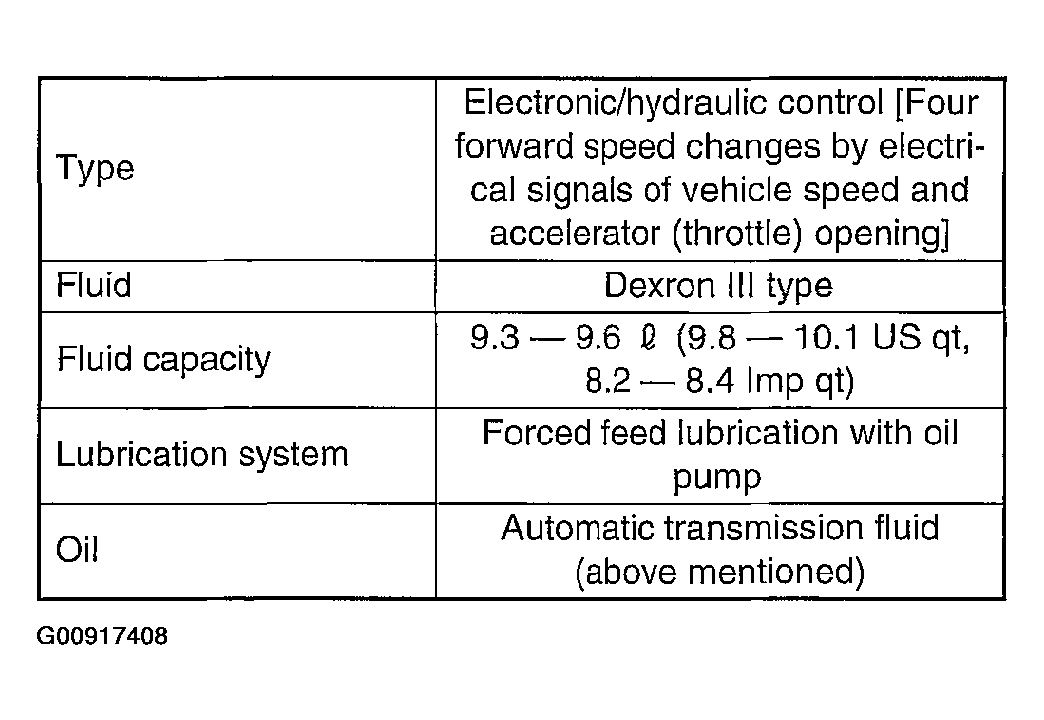

- HYDRAULIC CONTROL AND LUBRICATION

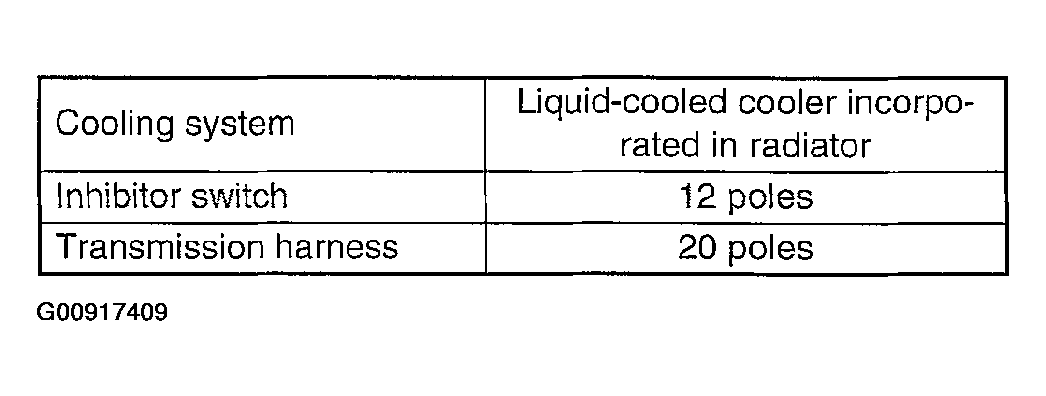

- COOLING AND HARNESS

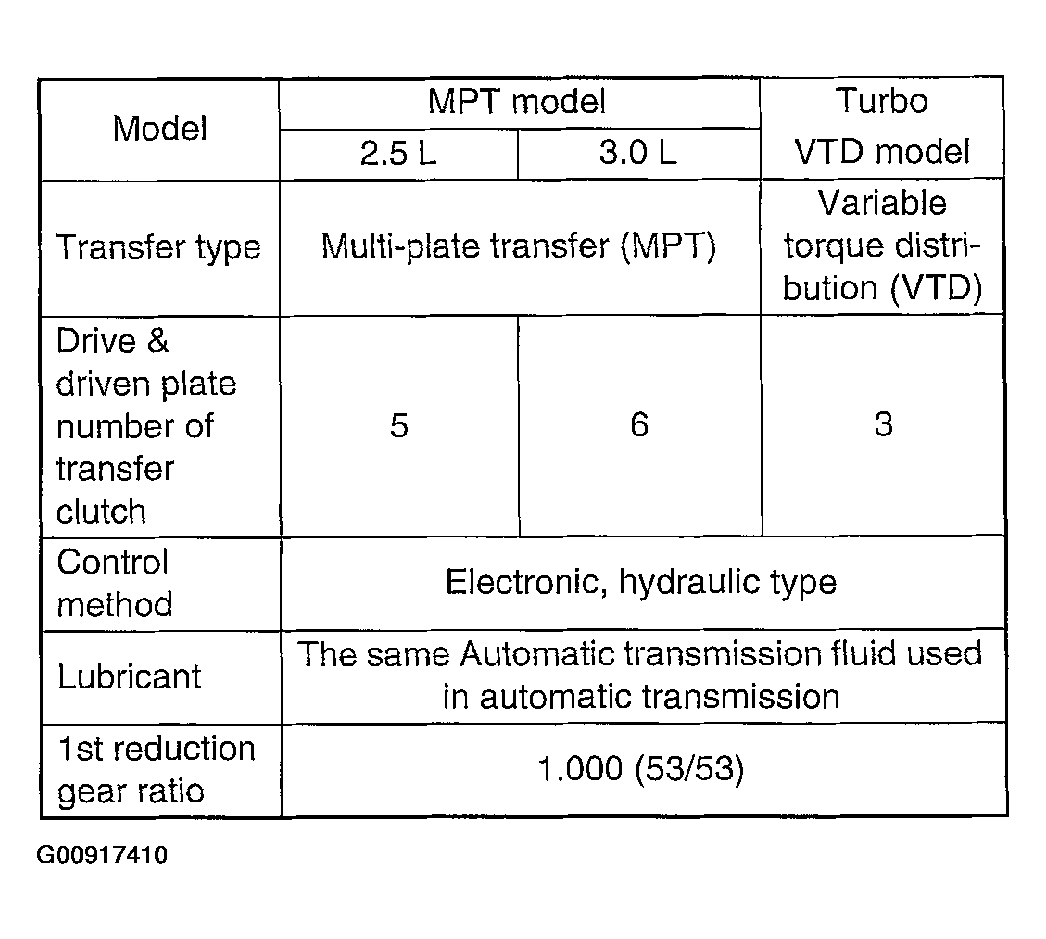

- TRANSFER

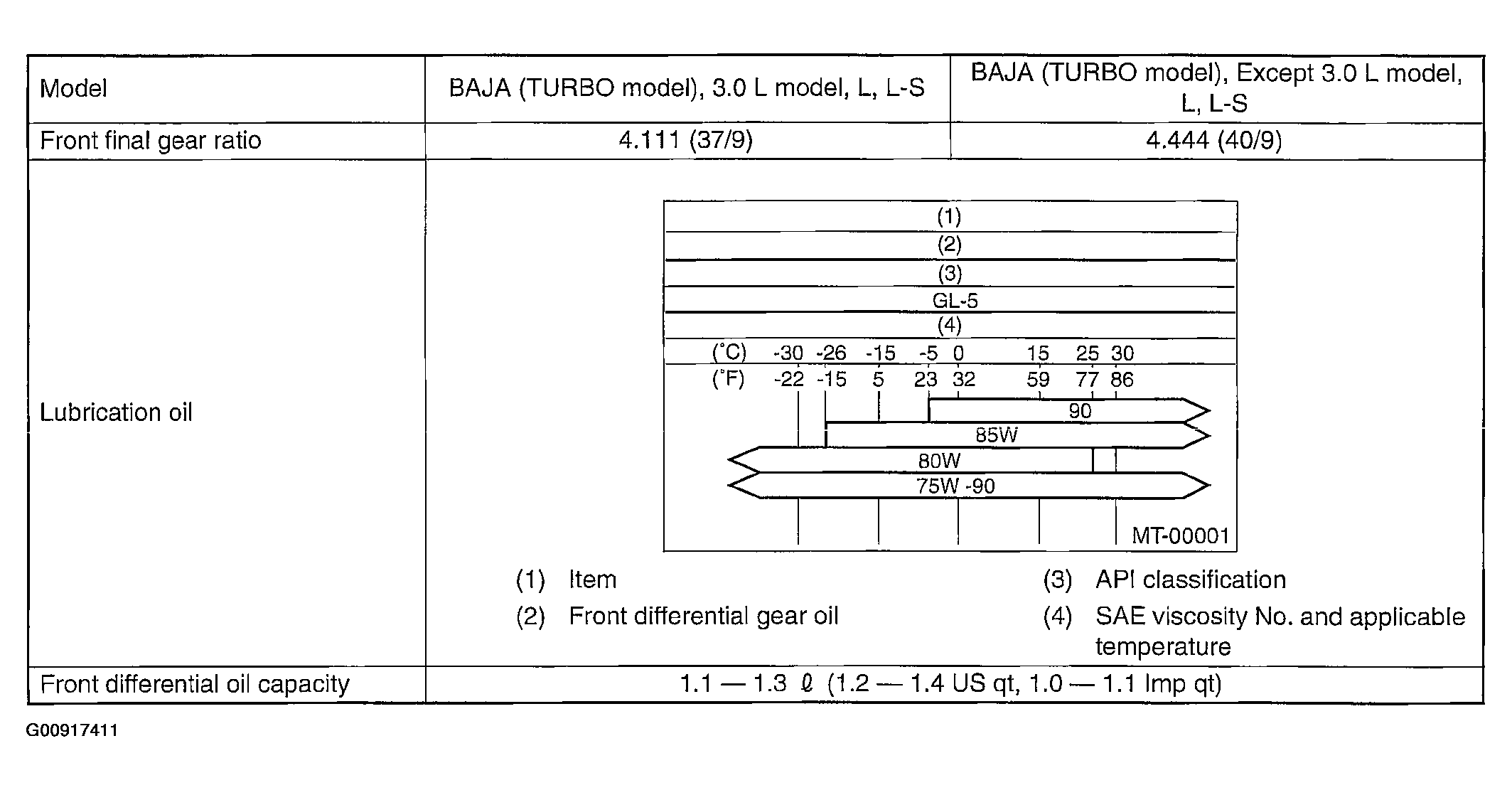

- FINAL REDUCTION
