2004 Subaru Baja Base, AutomaticFACTORY OEM SERVICE PROCEDURE

Extension Case: Installation

Attach the selected thrust needle bearing to the end surface of reduction drive gear with vaseline.
NOTE: Install thrust needle bearing in the correct direction.
Install new gasket.
Install the extension case to the transmission case.
Tighten bolts to secure the case.
1. Tightening torque: 25 N.m (2.5 kgf.m, 18.1 ft.lb)

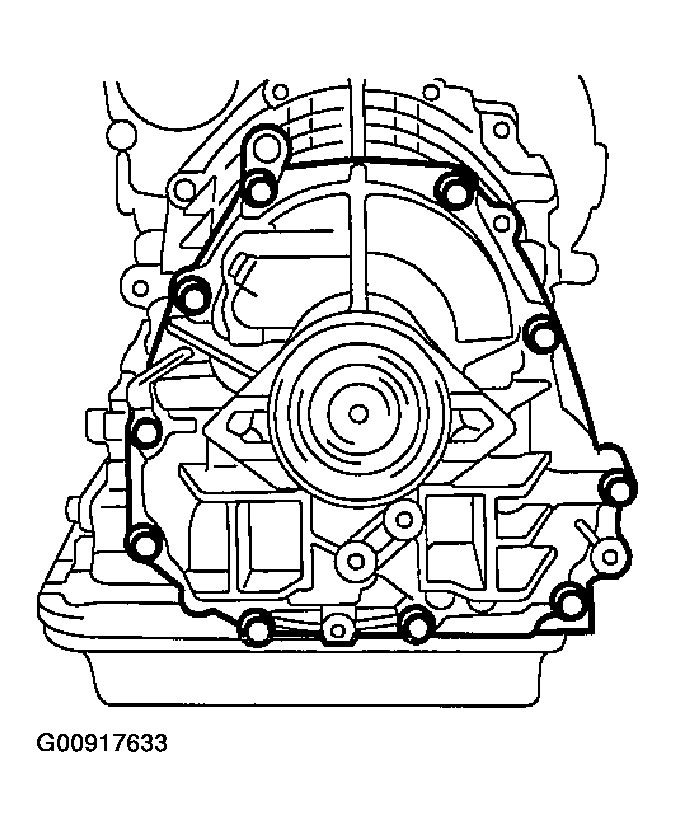

Fig 1: Installing Extension Case To Transmission Case
Courtesy of SUBARU OF AMERICA, INC.
Install the rear vehicle speed sensor.
1. Tightening torque: 7 N.m (0.7 kgf.m, 5.1 ft.lb)
- MPT MODEL

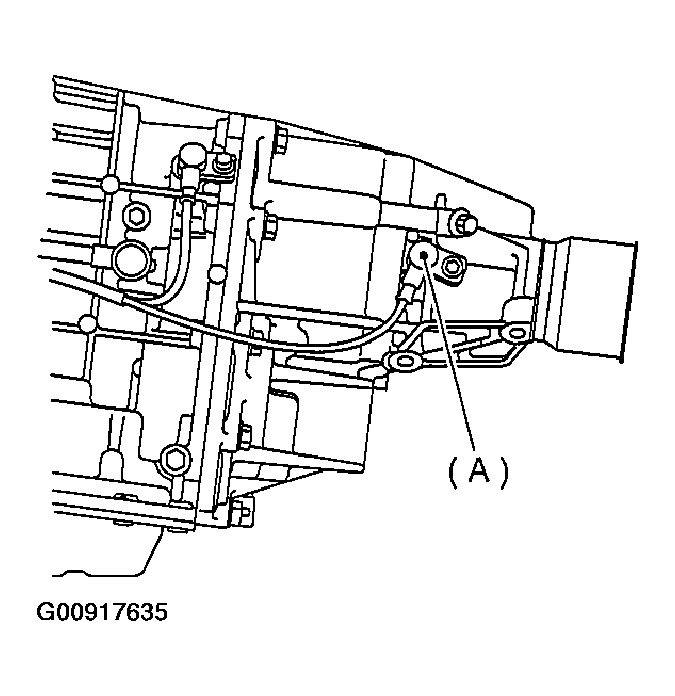

  Fig 2: Installing Rear Vehicle Speed Sensor - MPT Model
  Courtesy of SUBARU OF AMERICA, INC.
- VTD MODEL

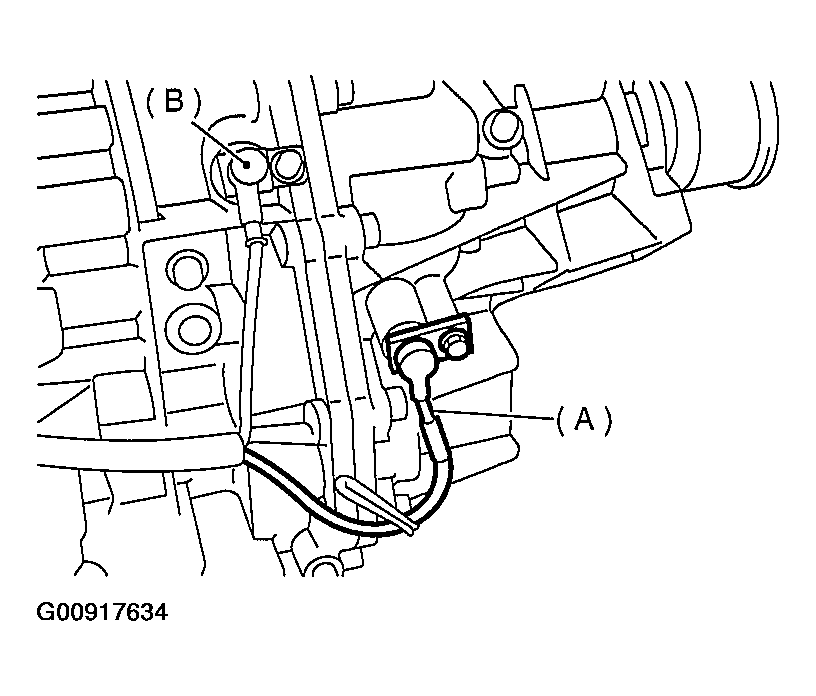

  Fig 3: Installing Rear Vehicle Speed Sensor - VTD Model
  Courtesy of SUBARU OF AMERICA, INC.
Install the transmission assembly. Refer to INSTALLATION .
