2004 Subaru Baja Base, AutomaticFACTORY OEM SERVICE PROCEDURE
Key Interlock Function

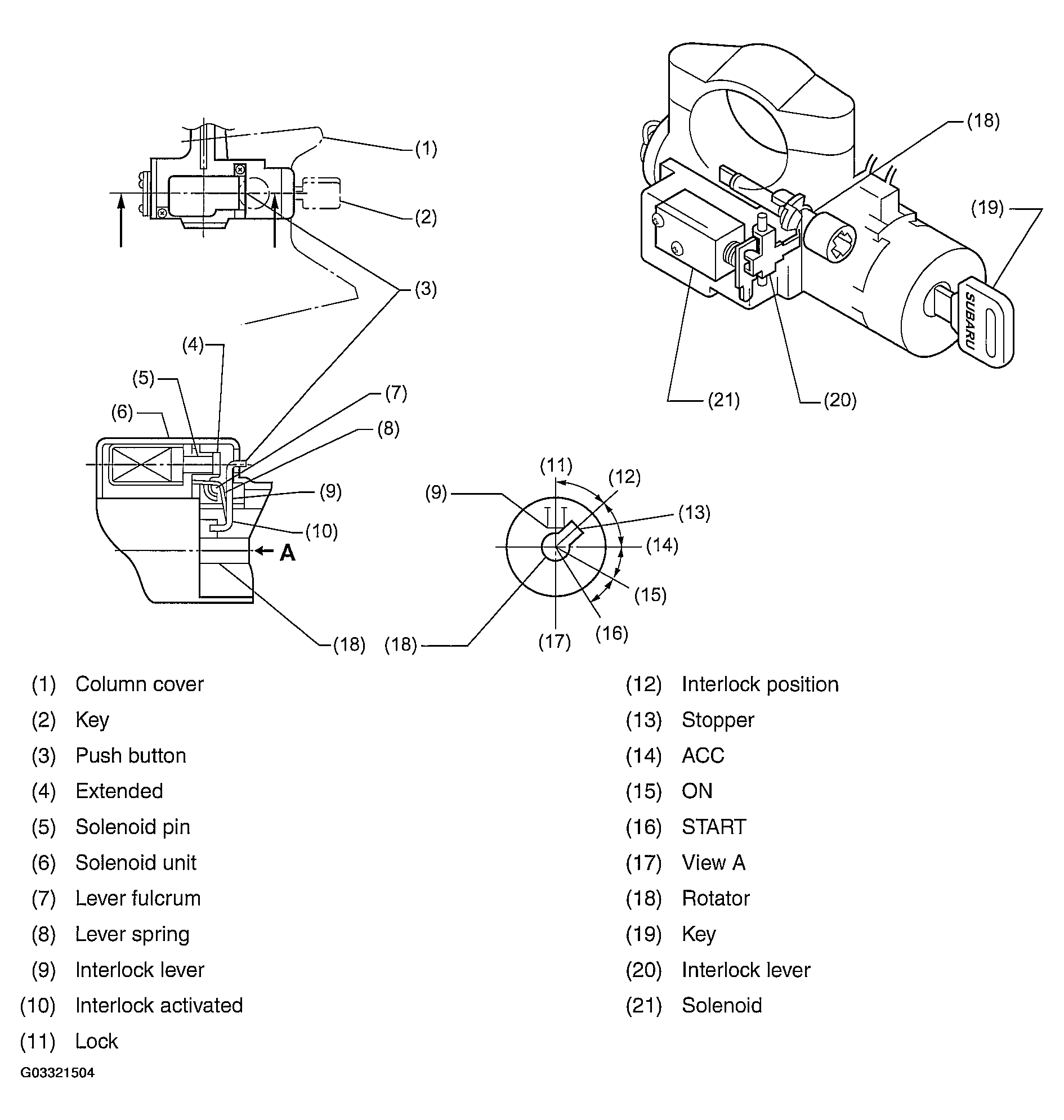

- When the select lever is at any position other than "P", the solenoid is energized and its pin is held extended. Being caused to stay in its upright position by extension of the pin, the interlock lever interferes with the stopper portion of the rotator which turns together with the ignition key. Thus, the ignition key cannot be rotated to the "LOCK" position.

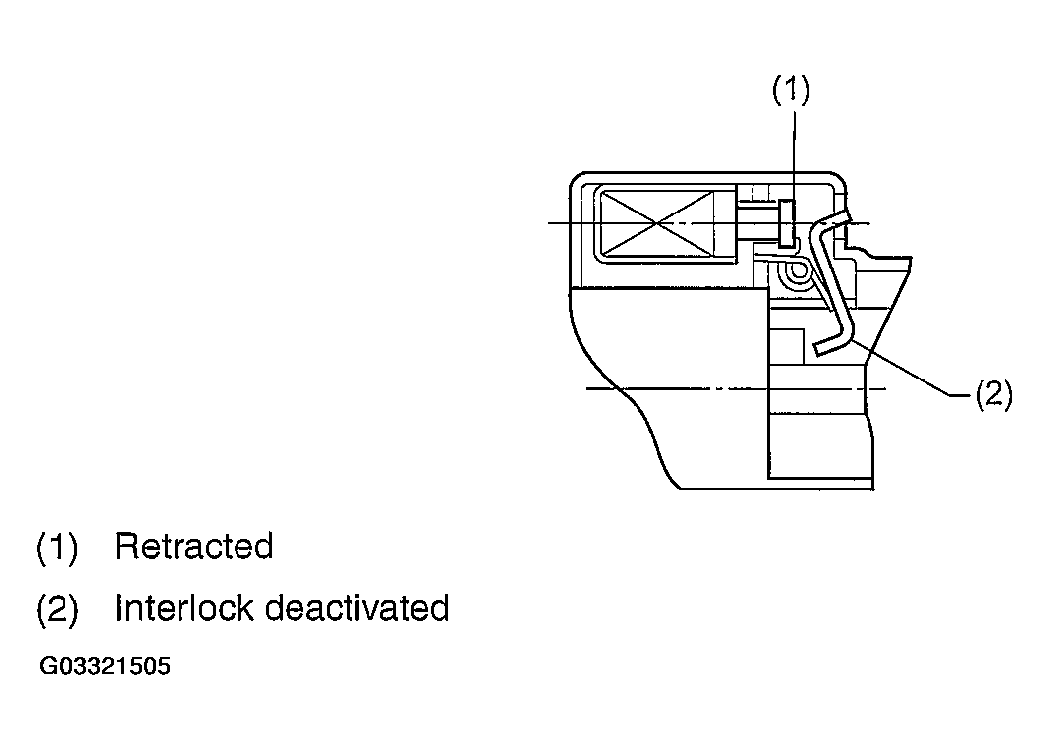

- When the select lever is moved to "P", the inhibitor switch in the select lever assembly operates, de-energizing the solenoid. As the push force of the solenoid pin is removed, the lever spring causes the interlock lever to tilt and become clear of the rotator's stopper. Then the key can be rotated to the LOCK position and removed from the ignition switch.
