2004 Subaru Baja Base, AutomaticFACTORY OEM SERVICE PROCEDURE
Read Freeze Frame Data For Engine (OBD Mode)
- On the << Main Menu >> display screen, select the {Each System Check} and press the [YES] key.
- On the << System Selection Menu >> display screen, select the {Engine Control System} and press the [YES] key.
- Press the [YES] key after displayed the information of engine type.
- On the << Engine Diagnosis >> display screen, select the {OBD System} and press the [YES] key.
- On the << OBD Menu >> display screen, select the {Freeze Frame Data} and press the [YES] key.

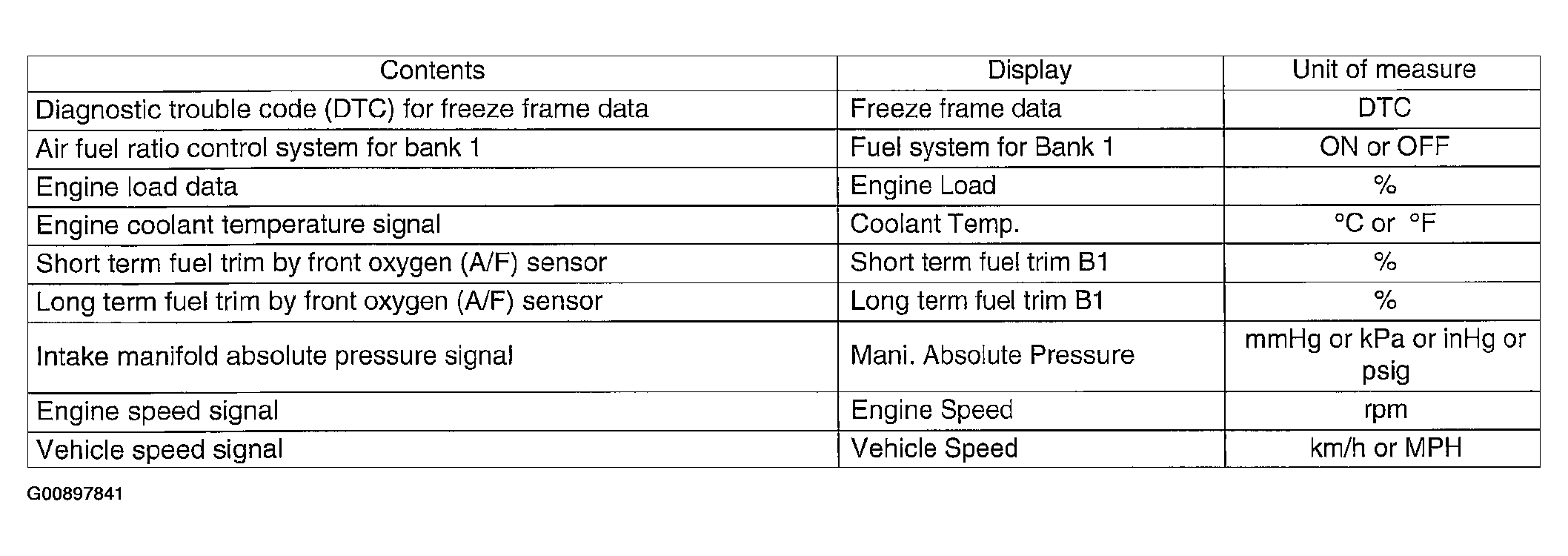

- A list of the support data is shown in the following table.
