2004 Subaru Baja Base, AutomaticFACTORY OEM SERVICE PROCEDURE

Electrical Components Location: Location: Transmission

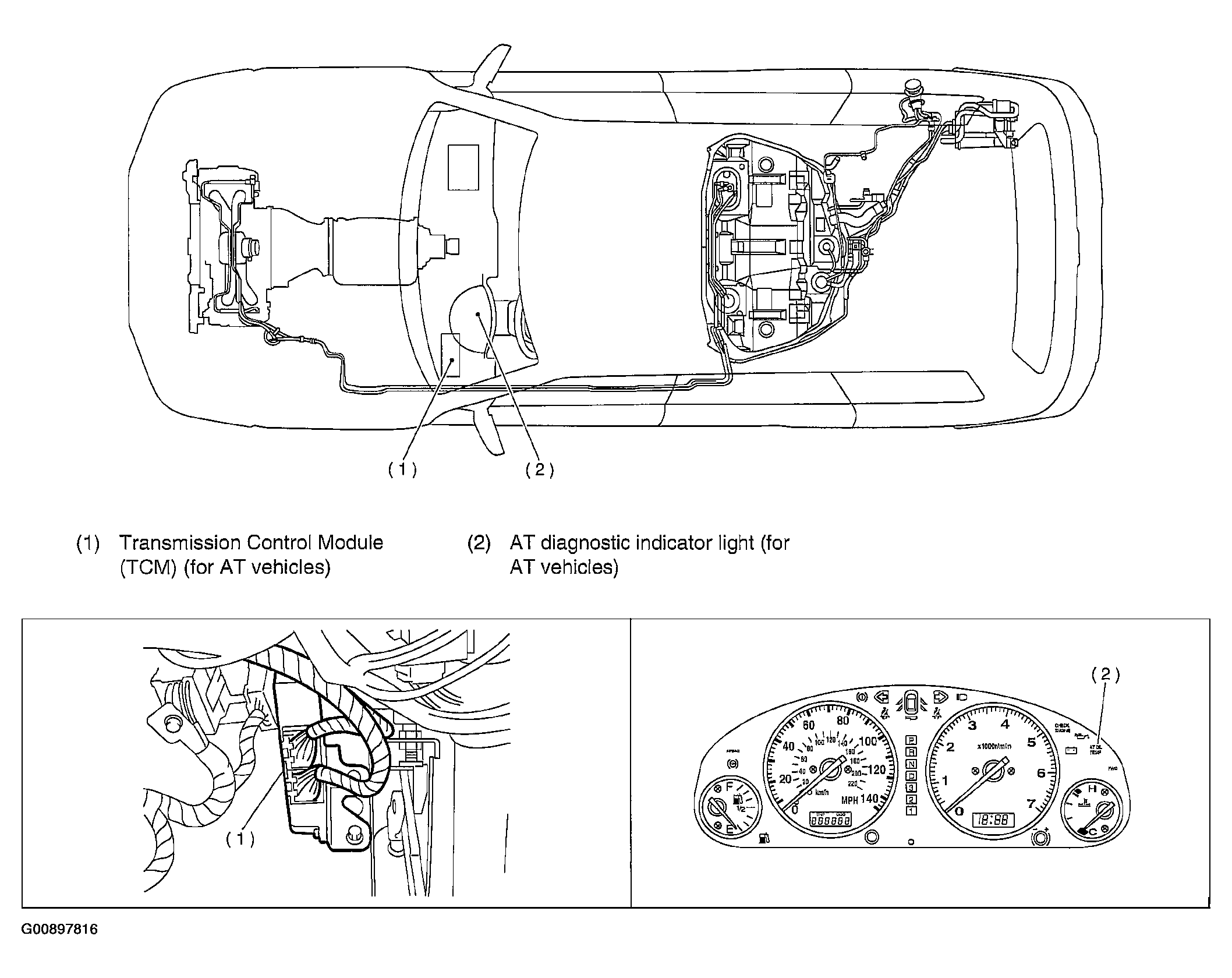

MODULE

Fig 1: Identifying Transmission Module
Courtesy of SUBARU OF AMERICA, INC.

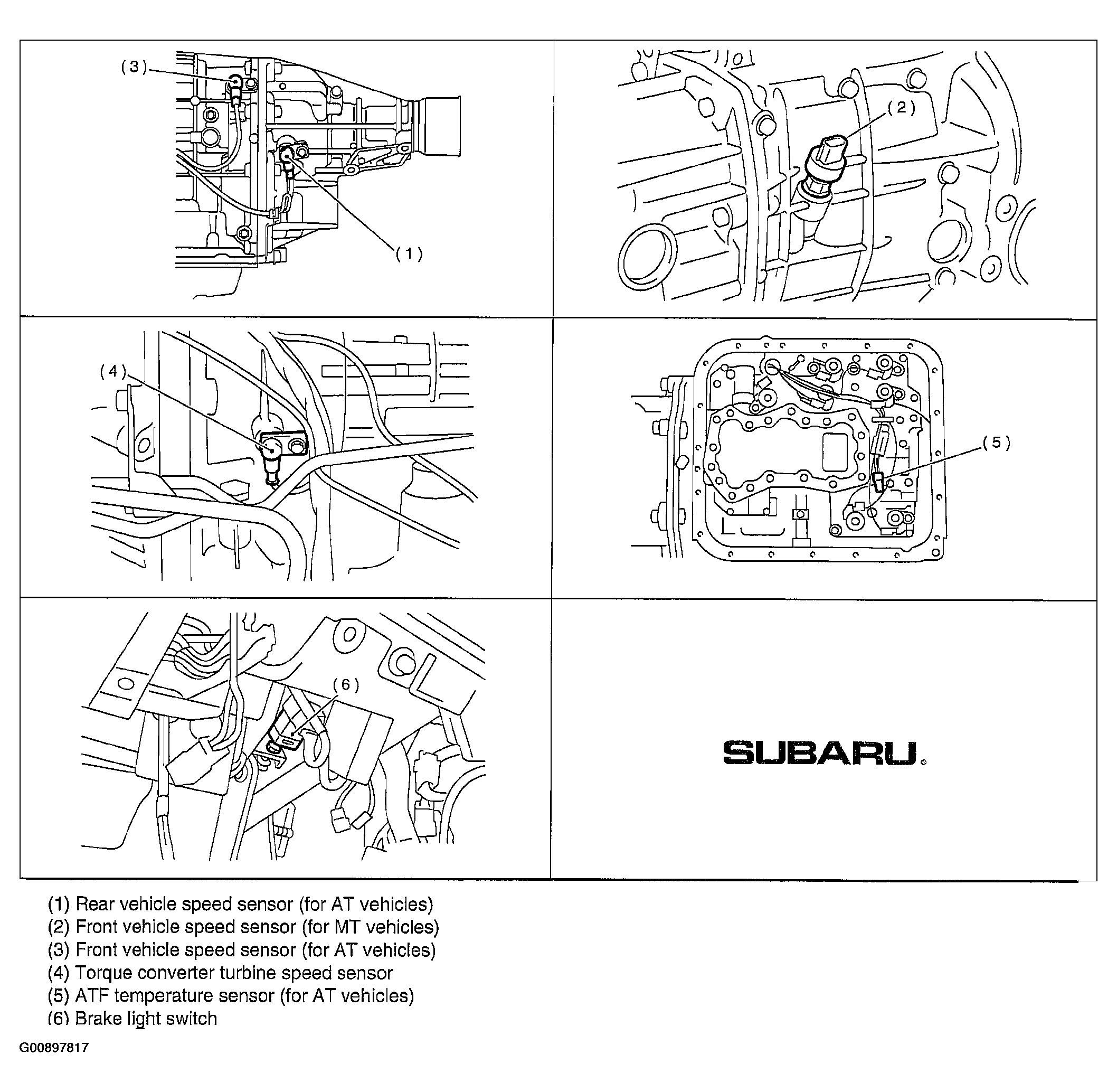

SENSOR

Fig 2: Identifying Transmission Module Sensor
Courtesy of SUBARU OF AMERICA, INC.

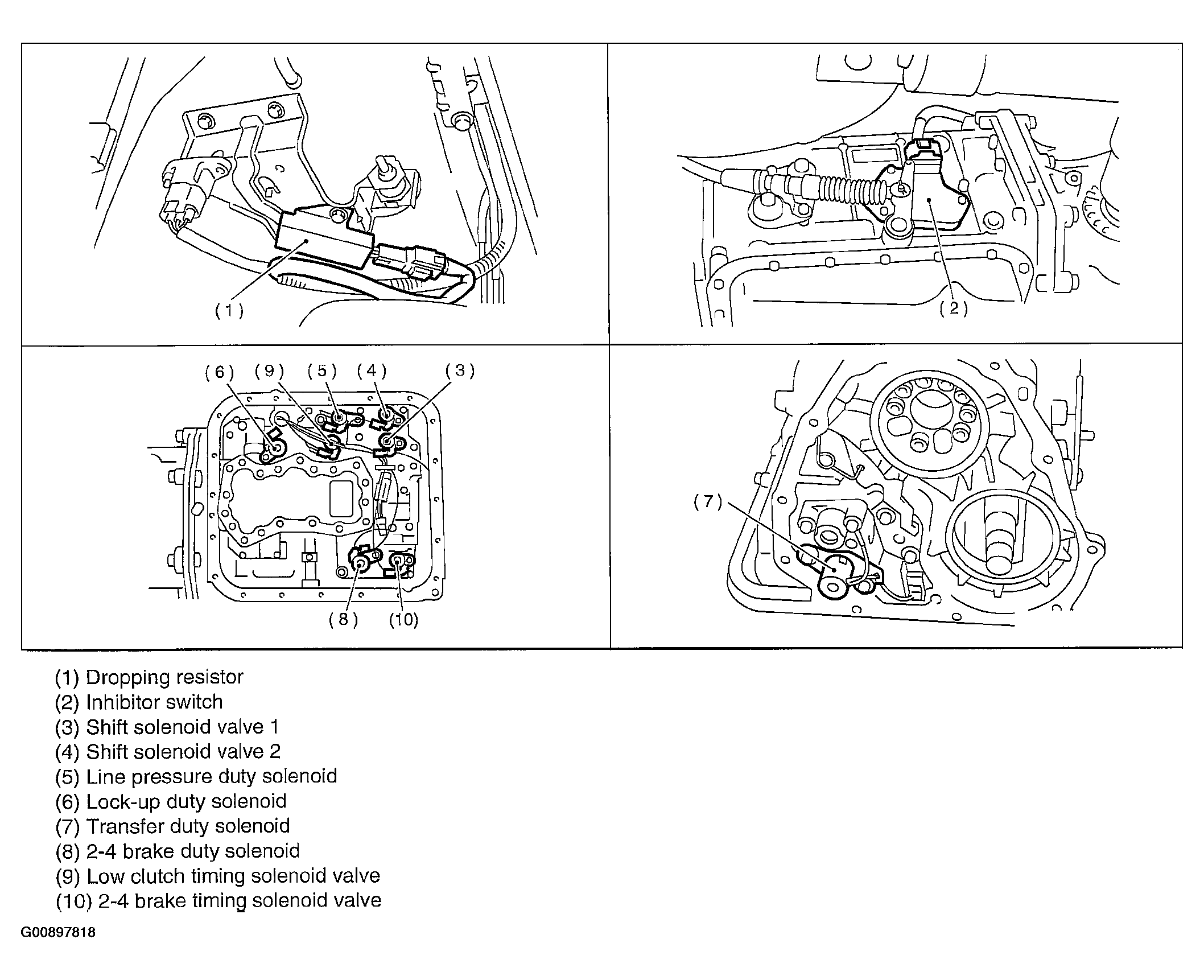

SOLENOID VALVE AND SWITCH (AT VEHICLES)

Fig 3: Identifying Solenoid Valve & Switch (AT Model)
Courtesy of SUBARU OF AMERICA, INC.

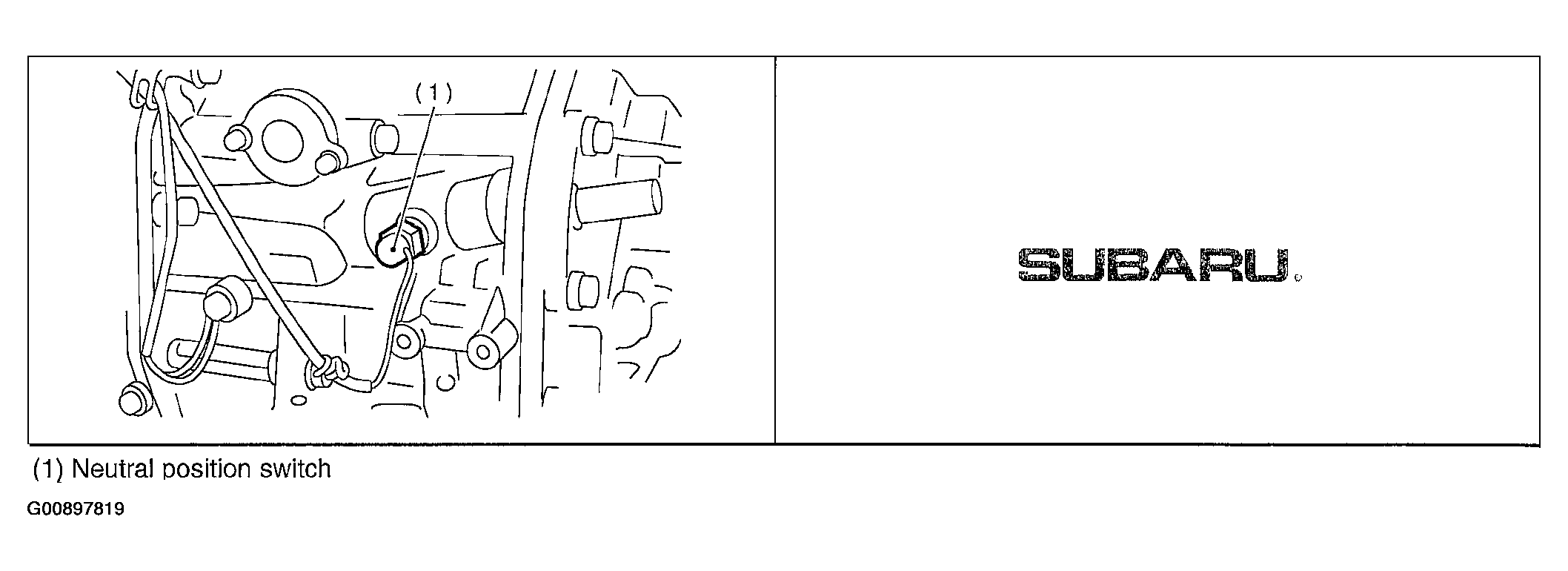

SOLENOID VALVE AND SWITCH (MT VEHICLES)

Fig 4: Identifying Solenoid Valve & Switch (MT Model)
Courtesy of SUBARU OF AMERICA, INC.
