2004 Subaru Baja Base, AutomaticFACTORY OEM SERVICE PROCEDURE
Control Module Power Supply And Ground Line
CAUTION:
After repair or replacement of malfunctioning parts, conduct Clear Memory mode. Refer to
CLEAR MEMORY MODE and Inspection Mode. Refer to
INSPECTION MODE
.

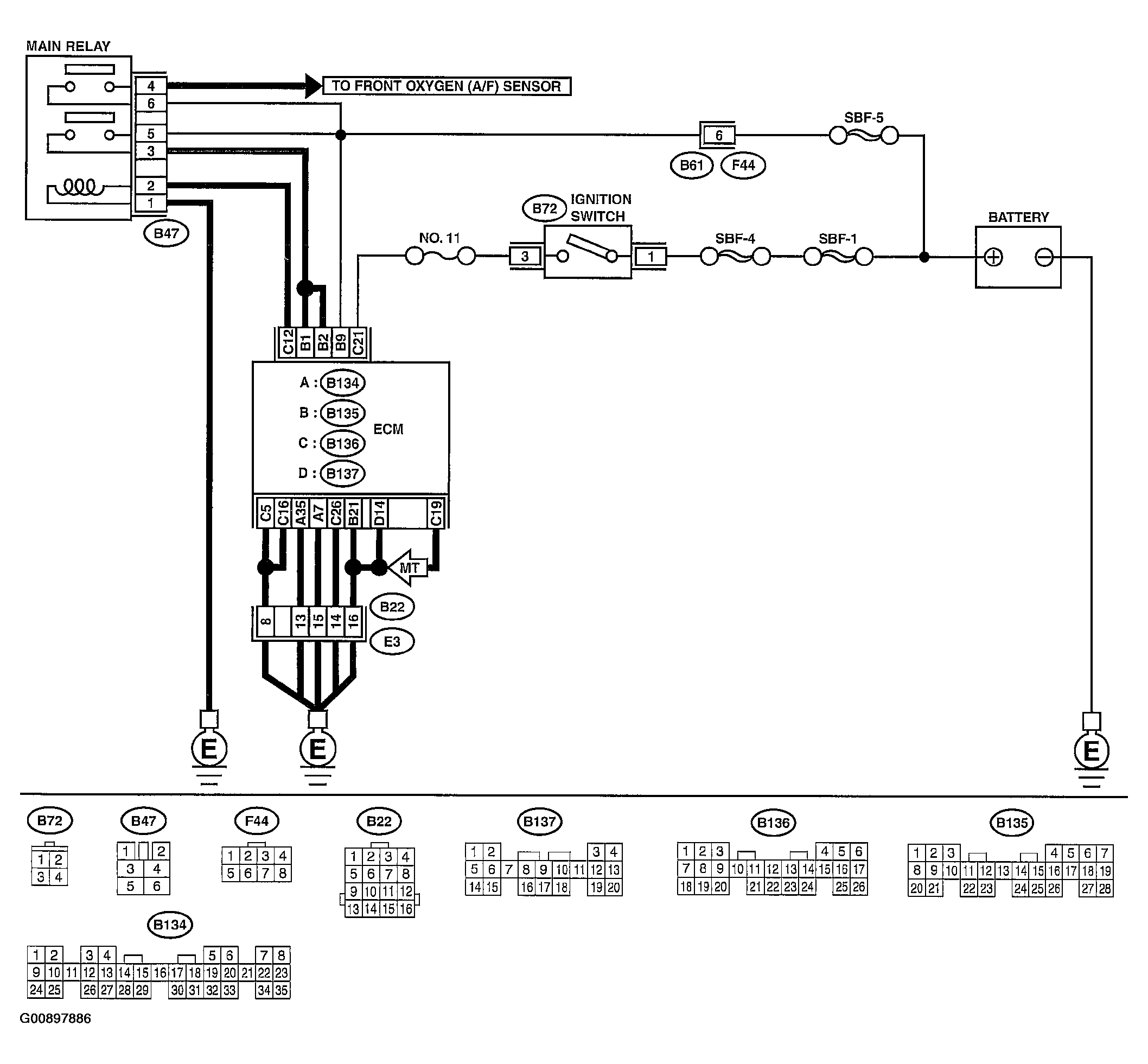

- WIRING DIAGRAM:
