2004 Subaru Baja Base, AutomaticFACTORY OEM SERVICE PROCEDURE

Throttle Position Sensor: Adjustment

Turn ignition switch to OFF.
Loosen throttle position sensor holding screws.

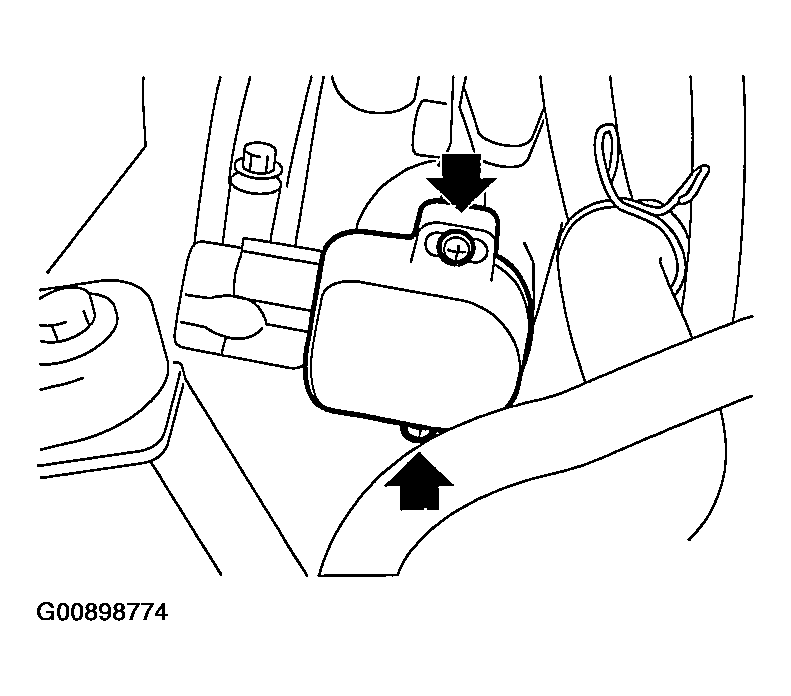

Fig 1: Loosening Throttle Position Sensor Holding Screws
Courtesy of SUBARU OF AMERICA, INC.
When using voltage meter;
1. Take out ECM.
2. Turn ignition switch to ON.
3. Adjust throttle position sensor to the proper position to allow the voltage signal to ECM to be in specification.
  1. Connector & terminal/Specified voltage: (B135) No. 13 - (B135) No. 19/0.45 - 0.55 V [Fully closed.]

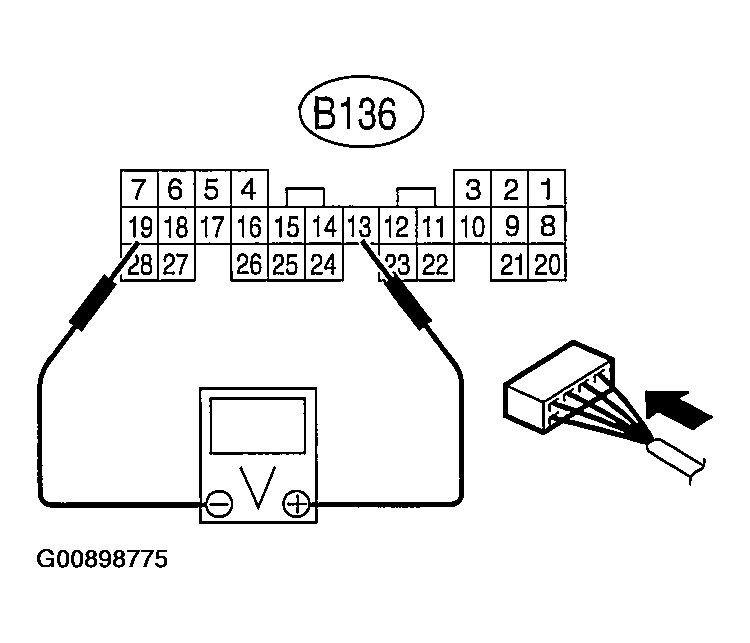

  Fig 2: Identifying Throttle Position Sensor Terminals
  Courtesy of SUBARU OF AMERICA, INC.
4. Tighten throttle position sensor holding screws.
  1. Tightening torque: 2.4 N.m (0.24 kgf-m, 1.7 ft-lb)

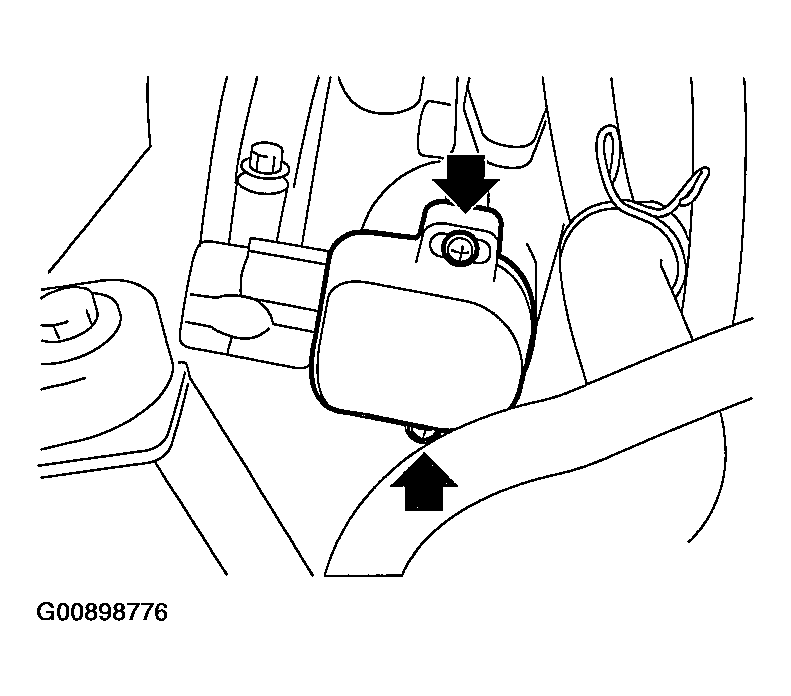

Fig 3: Tightening Throttle Position Sensor Holding Screws
Courtesy of SUBARU OF AMERICA, INC.
When using Subaru Select Monitor;
1. Turn ignition switch to OFF.
2. Loosen throttle position sensor holding screws.

  Fig 4: Loosening Throttle Position Sensor Holding Screws
  Courtesy of SUBARU OF AMERICA, INC.
