2004 Subaru Baja Base, AutomaticFACTORY OEM SERVICE PROCEDURE
Intake Manifold: Removal
- Release fuel pressure. Refer to RELEASING OF FUEL PRESSURE , OPERATION, Fuel.
- Open fuel flap lid, and remove fuel filler cap.

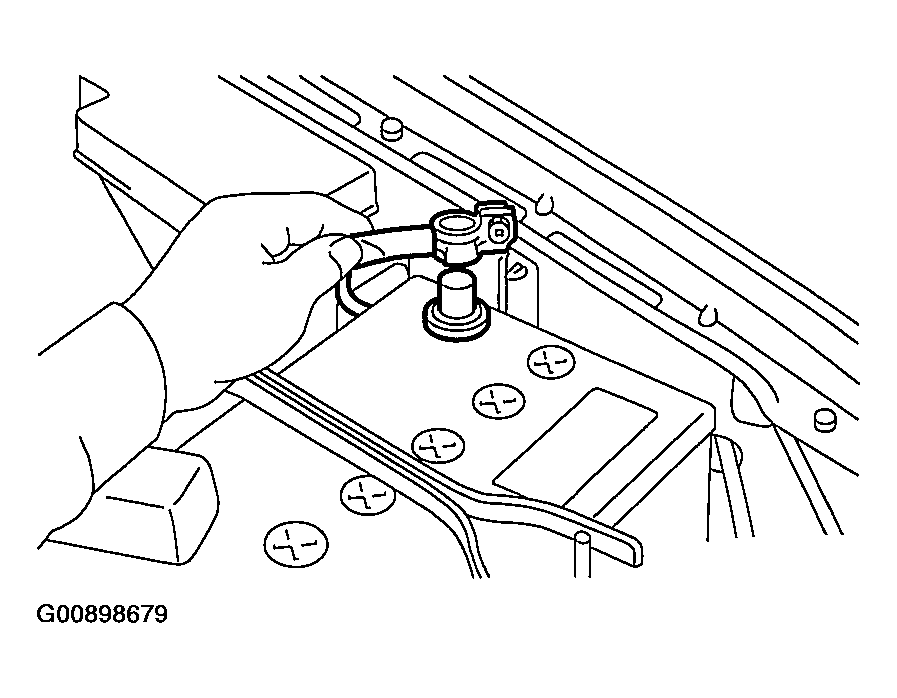

- Disconnect battery ground cable.
- Remove air intake duct and air cleaner case. Refer to REMOVAL , Air Intake Duct and REMOVAL , Air Cleaner Case.

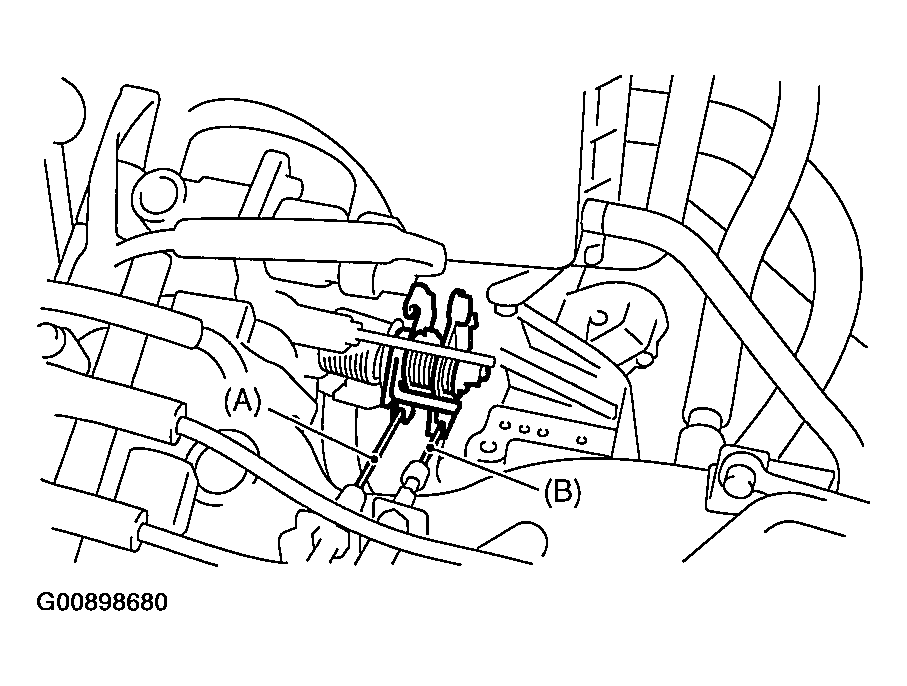

- Disconnect accelerator cable (A).
- Disconnect cruise control cable (B). (With cruise control model)
- Remove power steering pump and tank from brackets.
