2004 Subaru Baja Base, AutomaticFACTORY OEM SERVICE PROCEDURE
Fuel Sub Level Sensor: Removal
WARNING:
- Place "NO FIRE" signs near the working area.
- Be careful not to spill fuel on the floor.
- During work procedures, if fuel tank is more than 3/4 full, be careful because fuel may spill.
- Drain fuel from tank. Refer to DRAINING FUEL , OPERATION, Fuel.
- Raise rear seat and turn floor mat up. (Wagon model)
- Remove rear seat. (Sedan model)

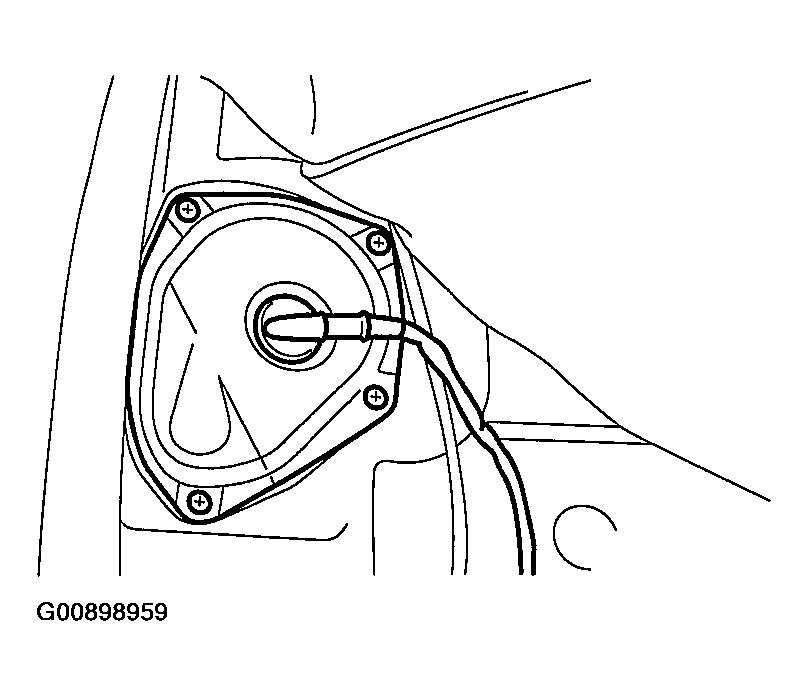

- Remove service hole cover.

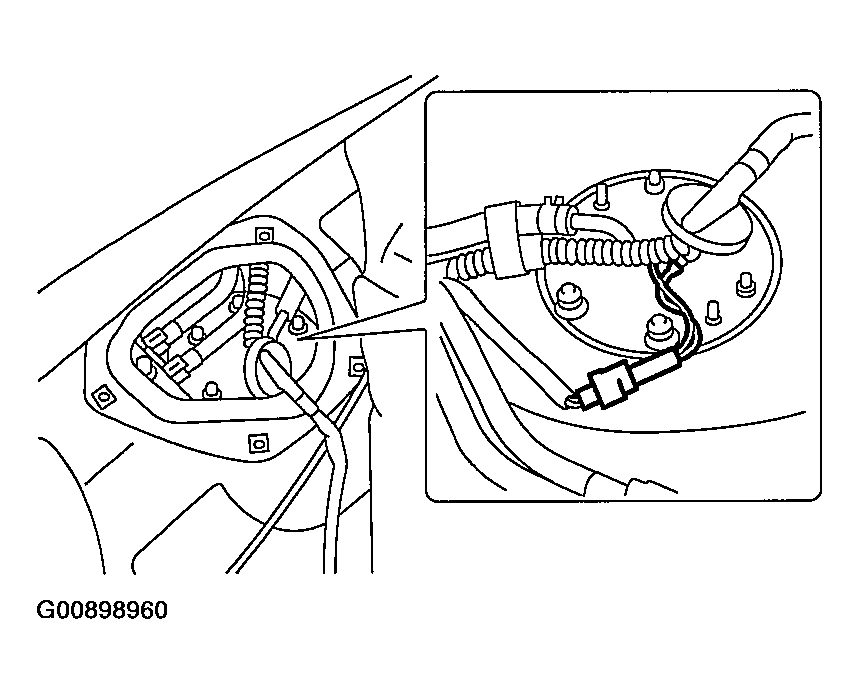

- Disconnect connector from fuel sub level sensor.

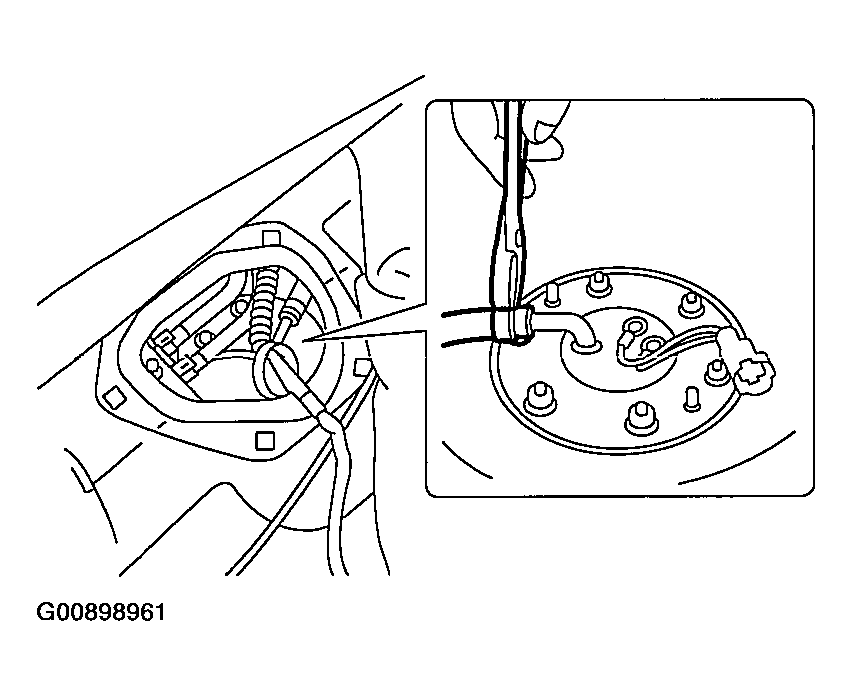

- Disconnect fuel jet pump hose.

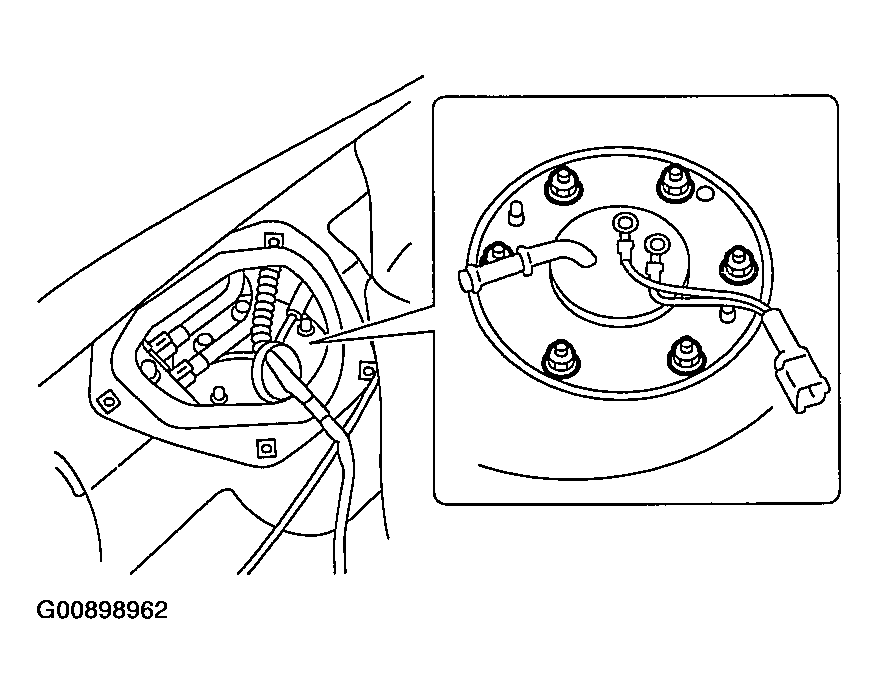

- Remove bolts which install fuel sub level sensor on fuel tank.
- Remove fuel sub level sensor.
