2004 Subaru Baja Base, AutomaticFACTORY OEM SERVICE PROCEDURE
Fuel Cut Valve: Removal
- Remove fuel tank. Refer to REMOVAL , Fuel Tank.

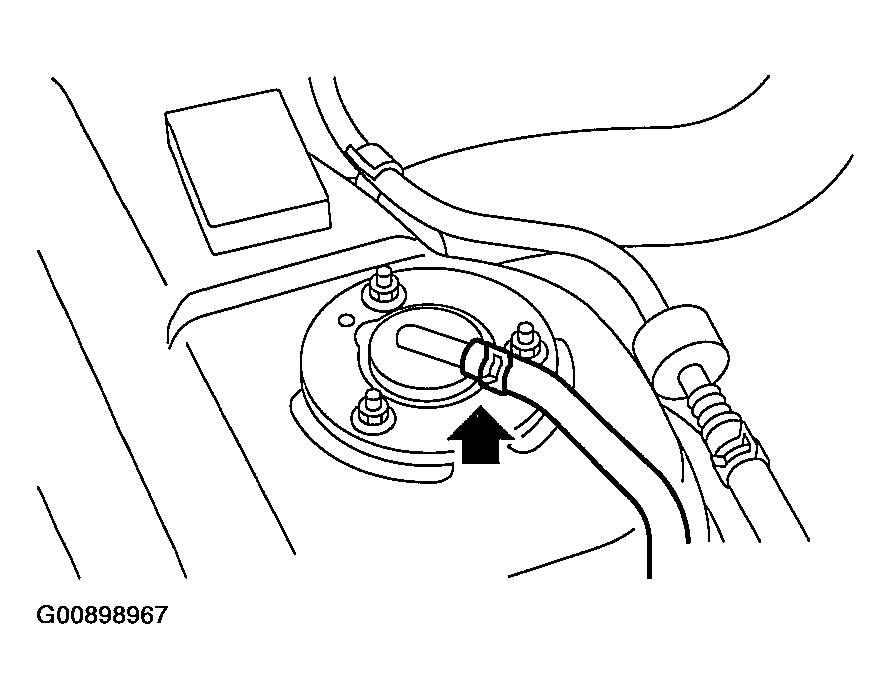

- Move clip and disconnect evaporation hose from fuel cut valve.
- Remove bolts which install fuel cut valve.
